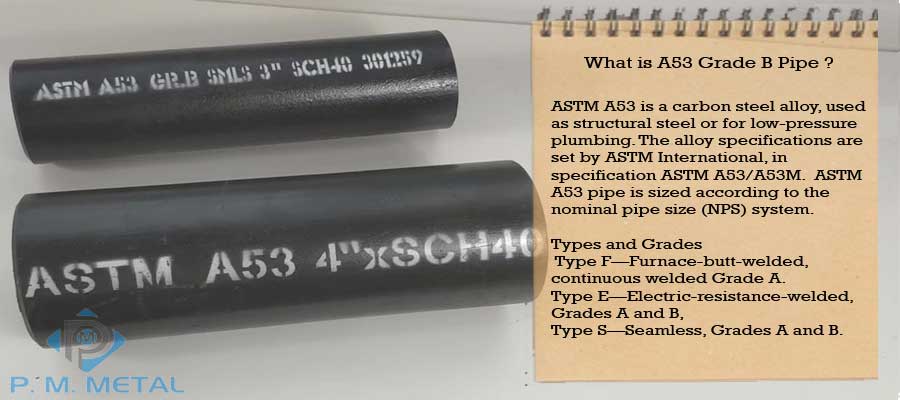

What is ASTM A53 Grade B Pipe?
ASTM A53 Grade B pipes are a carbon steel grade that covers seamless and welded pipes configurations. Designed with an excellent chemical composition these pipes showcase good tolerance in oxidative and corrosive media. The grade B modules possess enhanced strength and are designed with an outstanding tensile strength of 415mpa with a yield strength of 240mpa. The pipes can be readily coiled, flanged, and welded in place.
ASTM A53 Grade B Seamless Pipe Vs ASTM A53 Grade B Welded Pipe
Seamless and welded pipes are two common configurations used to manufacture modules in the ASTM A53 grade B. Both these types can be differentiated based on certain features.
ASTM A53 Gr B Tube vs ASME SA 53 Gr B Pipe
Is ASTM A53 Pipe and ASME SA53 Pipe Galvanized?
A53 pipes of both ASME and ASTM standards is hot-dipped galvanized to improve its resistance to oxidative and reducing media across stress-induced environments.
Table of Content
Products | Standards | Steel Grade | Specifications | Coating | FOB Mumbai | ||||
---|---|---|---|---|---|---|---|---|---|
OD | WT | Length | USD/ TON | ||||||
INCH | MM | SCH | MM | M | |||||
ASTM A53 Grade B Seamless Pipes | ASTM A53 | Grade B | 1 | 33.4 | S-40 | 3.38 | 6.0 | Black | $ 833 |
ASTM A53 Gr b SMLS Pipes | ASME SA 53 | Gr B | 1 1/4 | 42.2 | S-40 | 3.56 | $ 764 |
||
ASTM A53 Schedule 40 Seamless Pipes | A53a | Grb | 1 1/2 | 48.3 | S-40 | 3.68 | $ 764 | ||
ASTM A53b Seamless Pipes | ASTM A53m | Grade B | 2 | 60.3 | S-40 | 3.91 | $ 750 | ||
ASTM A53 Grade B Schedule 40 SMLS Pipes | SA 53 | Gr.B | 2 1/2 | 73.0 | S-40 | 5.16 | $ 799 | ||
A53 Grb Seamless Pipes | ASME SA 53 | Grade B | 3 | 88.9 | S-40 | 5.49 | $ 799 | ||
ASTM A53 Type F Seamless Pipes | ASTM A53 | Gr.B | 4 | 114.3 | S-40 | 6.02 | $ 764 | ||
ASME SA 53 Gr B SMLS Pipes | A53m | Grb | 5 | 141.3 | S-40 | 6.55 | $ 799 | ||
ASTM A53 Type S Seamless Pipes | SA 53 | Grade B | 6 | 168.3 | S-40 | 7.11 | $ 799 | ||
ASTM A53 Type E Grade B SMLS Pipes | ASTM A53 | GradeB | 8 | 219.1 | S-40 | 8.18 | $ 792 | ||
Carbon Steel ASTM A53 Seamless Pipes | ASME SA 53 | Gr.B | 10 | 273.1 | S-40 | 9.27 | $ 833 | ||
A53grb Seamless Pipes | A53 | Grb | 12 | 323.9 | S-40 | 10.31 | $ 833 | ||
ASTM A53 Steel SMLS Pipes | ASTM A53m | Grade B | 14 | 355.6 | S-40 | 11.31 | $ 833 | ||
ASTM A53a Seamless Pipes | SA 53a | Gr B | 16 | 406.4 | S-40 | 12.70 | $ 875 |
Specifications | ASTM/ ASME A53 /SA53 |
---|---|
Schedules | Schedule 40, Schedule 80, Schedule 160, Schedule XS, Schedule XXS Pipe Supplier |
ASTM A53 Grade B Pipe Dimensions | ASME, API and ASTM |
Type | ERW / Fabricated / Seamless / Welded |
Size | 1/2” NB upto 36” NB |
Length | Max18 Meters, Min 3 Meters, or according to customer’s requirement |
Value Added Services Provided by suppliers | Beveling, Cutting, Polishing, Ultrasonic Testing, Destructive, Threading, Non Destructive |
Thickness | 3 to12mm |
Form | Round and Hydraulic |
End | Beveled End, Plain End, Treaded |
Type E (electric-resistance welded) | Type S (seamless) | Type F (furnace- welded pipe) | |||
---|---|---|---|---|---|
Grade A | Grade B | Grade A | Grade B | Grade A | |
Copper, max.% | 0.40 | 0.40 | 0.40 | 0.40 | 0.4 |
Carbon max. % | 0.25 | 0.30 | 0.25 | 0.30 | 0.3 |
Nickel, max. % | 0.40 | 0.40 | 0.40 | 0.40 | 0.4 |
Manganese % | 0.95 | 1.2 | 0.95 | 1.2 | 1.2 |
Chromium, max. % | 0.40 | 0.40 | 0.40 | 0.40 | 0.4 |
Phosphorous, max. % | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Molybdenum, max. % | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
Sulfur, max. % | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
Vanadium, max. % | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
A53 Grade B Pipe Specs | A53 Grade B Pipe Properties | |||
---|---|---|---|---|
Grade B | Grade A | Grade C | ||
ASTM A53 | Tenside Properties, min, psi (MPa) | 60000(415) | 48000(330) | |
Yield Properties, min, psi (MPa) | 35000(240) | 30000(205) |
Continuous-Welded | Seamless and Electric-resistance-welded | ||
---|---|---|---|
Grade A | Grade B | ||
A53 Grade B Pipe Yield Strength, min., psi | 25,000 | 30,000 | 35,000 |
Tensile Properties, min., psi | 45,000 | 48,000 | 60,000 |
DIN Type | UNS | DIN Number | KS | EN | JIS |
---|---|---|---|---|---|
St45 / St42-2 | K03005 | 1629 /1626 | SPPS42 | 1.0408/1.0040 | STPG410 |
ASTM A53 Standard Weight |
Double Random — Shortest Length 22", minimum average for order 35". |
Single Random — 16" – 22". 5% may be jointers. If Plain Ends — 5% may be 12" – 16". |
Extra Strong and Double Extra Strong |
Double Random (XS and lighter) — Shortest Length 22", minimum average for order 35". |
Single Random — 12" -22". 5% may be 6" – 12". |
Lengths longer than single random with wall thicknesses heavier than XS subject to negotiation. |
End Finish (unless otherwise specified) |
Couplings — Applied handling tight. Couplings, 2" and smaller straight tapped, other sizes taper tapped. |
STD or XS, or wall thicknesses less than 0.500 in. (excluding XXS): Plain and beveled |
Thread Protection — Applied to pipe 4" and larger. |
All XXS and wall thicknesses over 0.500 in.: Plain end square cut. |
ASTM A53 Grade B Pipes Types | Wall thickness | Out diameter | Length |
---|---|---|---|
SA53 gr b ERW (Custom Sizes) | As per requirement | 1/2" NB - 24" NB | Custom |
ASTM A53 Grade B Seamless Pipes (Custom Sizes) | SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 | 1/2" NB - 60" NB | Custom |
ASTM A53 Grade B SAW Pipes | As per requirement | 16" NB - 100" NB | Custom |
ASTM A53 Grade B Welded Pipes (in Stock + Custom Sizes) | As per requirement | 1/2" NB - 24" NB | Custom |
Permissible Variations for ASTM A53 Grades A and B Pipe | |||
---|---|---|---|
O.D. | Under | Over | |
Outside Diameter | NPS 2 and up DN 50 and up | 1% | 1% |
NPS 1/8 to 1-1/2 DN 6 to 40 | 1/64″ (0.4mm) | 1/64″ (0.4mm) | |
Wall Thickness at Any Point | 12.50% | ——– | |
Weight | 10% | 10% |
Size NPS | Weight per Foot | Pipe O.D. | Standard to XXHY | Wall Thickness | Section Modulus | Pipe I.D. | Schedule Pipe # |
Gallon Capacity Per Linear Foot |
---|---|---|---|---|---|---|---|---|
1/2 | 0.85 | 0.84 | STD | 0.109 | .0407 | 0.622 | 40 | .0158 |
1.09 | XHY | 0.147 | .0478 | 0.546 | 80 | .0122 | ||
1.31 | 0.188 | .0528 | 0.464 | 160 | .0088 | |||
1.72 | XXHY | 0.294 | .0577 | 0.252 | .0026 | |||
3/4 | 1.13 | 1.05 | STD | 0.113 | .0705 | 0.824 | 40 | .0277 |
1.48 | XHY | 0.154 | .0853 | 0.742 | 80 | .0225 | ||
1.95 | 0.219 | .1006 | 0.612 | 160 | .0153 | |||
2.44 | XXHY | 0.308 | .1103 | 0.434 | .0077 | |||
1 | 1.68 | 1.315 | STD | 0.133 | .1328 | 1.049 | 40 | .0449 |
2.17 | XHY | 0.179 | .1606 | 0.957 | 80 | .0374 | ||
2.85 | 0.250 | .1904 | 0.815 | 160 | .0271 | |||
3.66 | XXHY | 0.358 | .2136 | 0.599 | .0146 | |||
1 1/4 | 2.27 | 1.66 | STD | 0.140 | .2346 | 1.380 | 40 | .0777 |
3.00 | XHY | 0.191 | .2913 | 1.278 | 80 | .0666 | ||
3.77 | 0.250 | .3421 | 1.160 | 160 | .0549 | |||
5.22 | 0.382 | .4110 | 0.896 | .0328 | ||||
1 1/2 | 2.72 | 1.90 | STD | 0.145 | .3262 | 1.610 | 40 | .1058 |
3.63 | XHY | 0.200 | .4118 | 1.500 | 80 | .0918 | ||
4.86 | 0.281 | .5079 | 1.338 | 160 | .0730 | |||
6.41 | 0.400 | .5977 | 1.100 | .0494 | ||||
2 | 2.64 | 2.375 | 0.109 | .4205 | 2.157 | 10 | .1898 | |
3.66 | STD | 0.154 | .5606 | 2.067 | 40 | .1743 | ||
5.03 | XHY | 0.218 | .7309 | 1.939 | 80 | .1534 | ||
5.68 | 0.250 | .8045 | 1.875 | .1434 | ||||
6.29 | 0.281 | .8666 | 1.813 | .1344 | ||||
7.47 | 0.344 | .9806 | 1.687 | 160 | .1161 | |||
9.04 | XXHY | 0.436 | 1.1043 | 1.503 | .0922 | |||
2 1/2 | 3.53 | 2.875 | 0.120 | .6870 | 2.635 | 10 | .2833 | |
5.80 | STD. | 0.203 | 1.0640 | 2.469 | 40 | .2487 | ||
6.14 | 0.216 | 1.1169 | 2.443 | .2435 | ||||
7.02 | 0.250 | 1.2468 | 2.375 | .2301 | ||||
7.67 | XHY | 0.276 | 1.3386 | 2.323 | 80 | .2202 | ||
10.02 | 0.375 | 1.6371 | 2.125 | 160 | .1842 | |||
13.71 | XXXHY | 0.552 | 1.9971 | 1.771 | .1280 | |||
3 | 4.34 | 3.50 | 0.120 | 1.0411 | 3.260 | .4336 | ||
5.58 | 0.156 | 1.3122 | 3.188 | .4147 | ||||
6.12 | 0.172 | 1.4265 | 3.156 | .4064 | ||||
6.66 | 0.188 | 1.5342 | 3.124 | .3984 | ||||
7.58 | STD. | 0.216 | 1.7241 | 3.068 | 40 | .3840 | ||
8.69 | 0.250 | 1.9372 | 3.000 | .3672 | ||||
9.67 | 0.281 | 2.1207 | 2.938 | .3521 | ||||
10.26 | XHY | 0.300 | 2.2253 | 2.900 | 80 | .3431 | ||
14.34 | 0.438 | 2.8774 | 2.624 | 160 | .2811 | |||
18.6 | XXHY | 0.600 | 3.4243 | 2.300 | .2158 | |||
3 1/2 | 4.98 | 4.0 | 0.120 | 1.3776 | 3.760 | 10 | .5768 | |
9.12 | STD. | 0.226 | 2.3939 | 3.548 | 140 | .5136 | ||
10.02 | 0.250 | 2.6001 | 3.500 | .4998 | ||||
11.17 | 0.281 | 2.8562 | 3.438 | .4821 | ||||
12.52 | XHY | 0.318 | 3.1400 | 3.364 | 80 | .4617 | ||
22.87 | XXHY | 0.636 | 4.8795 | 2..728 | .3085 | |||
4 | 5.62 | 4.5 | 0.120 | 1.7612 | 4.260 | 10 | .7404 | |
7.24 | 0.156 | 2.2354 | 4.188 | .7156 | ||||
8.67 | 0.188 | 2.6296 | 4.124 | .6942 | ||||
9.32 | 0.203 | 2.8173 | 4.094 | .6838 | ||||
10.02 | 0.219 | 3.0184 | 4.062 | .6725 | ||||
10.80 | STD. | 0.237 | 3.2145 | 4.026 | 40 | .6613 | ||
11.36 | 0.250 | 3.3611 | 4.000 | .6528 | ||||
12.67 | 0.281 | 3.7021 | 3.938 | 60 | .6326 | |||
13.97 | 0.312 | 4.0273 | 3.876 | .6126 | ||||
15.00 | XHY | 0.337 | 4.2713 | 3.826 | 80 | .5972 | ||
19.02 | 0.438 | 5.1790 | 3.624 | 120 | .5361 | |||
22.53 | 0.531 | 5.8997 | 3.438 | 160 | .4822 | |||
27.57 | XXHY | 0.674 | 6.7927 | 3.152 | .4054 | |||
5 | 10.80 | 5.563 | 0.188 | 4.1161 | 5.187 | 1.0979 | ||
12.51 | 0.219 | 4.7279 | 5.125 | 1.0716 | ||||
14.63 | STD. | 0.258 | 5.4500 | 5.047 | 40 | 1.0391 | ||
15.87 | 0.281 | 5.8644 | 5.001 | 1.0204 | ||||
17.51 | 0.312 | 6.4074 | 4.939 | .99647 | ||||
19.19 | 0.344 | 6.9358 | 4.875 | .9696 | ||||
20.80 | XHY | 0.375 | 7.4300 | 4.813 | 80 | .9449 | ||
27.06 | 0.500 | 9.2534 | 4.563 | 120 | .8495 | |||
32.99 | 0.625 | 10.7976 | 4.313 | 160 | .7590 | |||
38.59 | XXHY | 0.750 | 12.0954 | 4.063 | .6734 | |||
6 | 7.59 | 6.625 | 0.109 | 3.5769 | 6.407 | 5 | 1.6748 | |
9.30 | 0.134 | 4.3475 | 6.357 | 10 | 1.6488 | |||
10.79 | 0.156 | 5.0107 | 6.313 | 1.6260 | ||||
12.94 | 0.188 | 5.9351 | 6.249 | 1.5937 | ||||
13.94 | 0.203 | 6.3804 | 6.219 | 1.5780 | ||||
15.00 | 0.219 | 6.8261 | 6.187 | 1.5620 | ||||
17.04 | 0.250 | 7.6905 | 6.125 | 1.5306 | ||||
18.99 | STD. | 0.280 | 8.4958 | 6.065 | 40 | 1.5008 | ||
21.06 | 0.312 | 9.3416 | 6.001 | 1.4688 | ||||
23.10 | 0.344 | 10.111 | 5.937 | 1.4391 | ||||
25.05 | 0.375 | 10.893 | 5.875 | 1.4082 | ||||
28.60 | XHY | 0.432 | 12.224 | 5.761 | 80 | 1.3541 | ||
32.74 | 0.500 | 13.711 | 5.625 | 1.2909 | ||||
36.43 | 0.562 | 14.9806 | 5.501 | 120 | 1.2346 | |||
40.09 | 0.625 | 16.1821 | 5.375 | 1.1787 | ||||
45.39 | 0.719 | 17.8243 | 5.187 | 160 | 1.0977 | |||
53.21 | XXHY | 0.864 | 20.025 | 4.897 | .9784 | |||
60.13 | 1.000 | 21.7719 | 4.625 | .8727 | ||||
66.14 | 1.125 | 23.1237 | 4.375 | .7809 |
For NPS 2 and Larger Sizes | For NPS 1 1/2 and Smaller Sizes | ||
---|---|---|---|
1% over | 1%under | 1/64" | 1/32" under |
Maximum Allowable Pressure (psi) | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NPS | Outside Diameter | Schedule | ||||||||||||
(in) | (in) | XS | 10 | 80 | 100 | 20 | 140 | 30 | 160 | STD | 120 | 40 | XXS | 60 |
1 1/2 | 1.9 | 5158 | 5158 | 7247 | 3739 | 3739 | 10316 | |||||||
1/4 | 0.54 | 10798 | 10798 | 7985 | 7985 | |||||||||
2 | 2.375 | 4498 | 4498 | 7097 | 3177 | 3177 | 8995 | |||||||
3/8 | 0.675 | 9147 | 9147 | 6606 | 6606 | |||||||||
3 | 3.5 | 4200 | 4200 | 6132 | 3024 | 3024 | 8400 | |||||||
1/2 | 0.84 | 8575 | 8575 | 10908 | 6358 | 6358 | 17150 | |||||||
4 | 4.5 | 3670 | 3670 | 5782 | 2581 | 4769 | 2581 | 7339 | ||||||
3/4 | 1.05 | 7187 | 7187 | 10220 | 5273 | 5273 | 14373 | |||||||
6 | 6.625 | 3195 | 3195 | 5318 | 2071 | 4157 | 2071 | 6390 | ||||||
1 | 1.315 | 6670 | 6670 | 9316 | 4956 | 4956 | 13340 | |||||||
10 | 10.75 | 2279 | 2708 | 3277 | 1140 | 4558 | 1399 | 5128 | 1664 | 3847 | 1664 | 4558 | 2279 | |
1 1/4 | 1.66 | 5638 | 5638 | 7380 | 4133 | 4133 | 11276 | |||||||
14 | 14 | 1750 | 875 | 2625 | 3283 | 1092 | 4375 | 1313 | 4921 | 1313 | 3829 | 1533 | 2079 | |
2 1/2 | 2.875 | 4704 | 4704 | 6391 | 3460 | 3460 | 9408 | |||||||
18 | 18 | 1361 | 681 | 2553 | 3147 | 849 | 4252 | 1192 | 4848 | 1021 | 3743 | 1530 | 2042 | |
3 1/2 | 4 | 3896 | 3896 | 2769 | 2769 | |||||||||
22 | 22 | 1114 | 557 | 2506 | 3063 | 835 | 4176 | 1114 | 4733 | 835 | 3619 | 1949 | ||
5 | 5.563 | 3303 | 3303 | 5505 | 2273 | 4404 | 2273 | 6606 | ||||||
30 | 30 | 817 | 510 | 817 | 1021 | 613 | ||||||||
8 | 8.625 | 2841 | 2841 | 3375 | 1420 | 4613 | 1574 | 5147 | 1829 | 4085 | 1829 | 4971 | 2307 | |
32 | 32 | 478 | 766 | 957 | 574 | 1054 | ||||||||
12 | 12.75 | 1922 | 2644 | 3244 | 961 | 4324 | 1268 | 5042 | 1441 | 3843 | 1560 | 3843 | 2160 | |
36 | 36 | 425 | 681 | 851 | 510 | 1021 | ||||||||
16 | 16 | 1531 | 766 | 2585 | 3157 | 956 | 4404 | 1148 | 4882 | 1148 | 3733 | 1531 | 2009 | |
20 | 20 | 1225 | 613 | 2526 | 3138 | 919 | 4288 | 1225 | 4824 | 919 | 3675 | 1455 | 1989 | |
24 | 24 | 1021 | 510 | 2489 | 3126 | 766 | 4210 | 1147 | 4786 | 766 | 3700 | 1405 | 1978 | |
34 | 34 | 450 | 721 | 901 | 540 | 992 | ||||||||
42 | 42 | 583 | 729 | 438 | 875 | |||||||||
A53 Mechanical Properties | |||
---|---|---|---|
Grade A | Grade C | Grade B | |
Tenside Properties, min, psi (MPa) | 48000(330) | 60000(415) | |
Yield Properties, min, psi (MPa) | 30000(205) | 35000(240) |
ASTM A53 Sch 40 – ASTM A53 Grades A and B – dimensions in mm | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
NPS Designator | DN Designator | Outside Diameter | Outside Diameter | Inside Diameter | Inside Diameter | Wall Thickness | Wall Thickness | Nominal Weight (Mass) per unit Length | |||
(Inches) | (mm) | (Inches) | (mm) | (Inches) | (mm) | Plain End (lb/ft) | Plain End (kg/m) | Threads & Couplings (lb/ft) | Threads & Couplings (kg/m | ||
1/8″ | 6 | 0.405 | 10.3 | 0.269 | 6.8 | 0.068 | 1.73 | 0.24 | 0.37 | 0.25 | 0.37 |
1/4″ | 8 | 0.54 | 13.7 | 0.364 | 9.2 | 0.088 | 2.24 | 0.43 | 0.63 | 0.43 | 0.63 |
3/8″ | 10 | 0.675 | 17.1 | 0.493 | 12.5 | 0.091 | 2.31 | 0.57 | 0.84 | 0.57 | 0.84 |
1/2″ | 15 | 0.84 | 21.3 | 0.622 | 15.8 | 0.109 | 2.77 | 0.85 | 1.27 | 0.86 | 1.27 |
3/4″ | 20 | 1.05 | 26.7 | 0.824 | 20.9 | 0.113 | 2.87 | 1.13 | 1.69 | 1.14 | 1.69 |
1″ | 25 | 1.315 | 33.4 | 1.049 | 26.6 | 0.133 | 3.38 | 1.68 | 2.5 | 1.69 | 2.5 |
1-1/4″ | 32 | 1.66 | 42.2 | 1.38 | 35.1 | 0.14 | 3.56 | 2.27 | 3.39 | 2.28 | 3.4 |
1-1/2″ | 40 | 1.9 | 48.3 | 1.61 | 40.9 | 0.145 | 3.68 | 2.72 | 4.05 | 2.74 | 4.04 |
2″ | 50 | 2.375 | 60.3 | 2.067 | 52.5 | 0.154 | 3.91 | 3.66 | 5.44 | 3.68 | 5.46 |
2-1/2″ | 65 | 2.875 | 73 | 2.469 | 62.7 | 0.203 | 5.16 | 5.8 | 8.63 | 5.85 | 8.67 |
3″ | 80 | 3.5 | 88.9 | 3.068 | 77.9 | 0.216 | 5.49 | 7.58 | 11.29 | 7.68 | 11.35 |
3-1/2″ | 90 | 4 | 101.6 | 3.548 | 90.1 | 0.226 | 5.74 | 9.12 | 13.57 | 9.27 | 13.71 |
4″ | 100 | 4.5 | 114.3 | 4.026 | 102.3 | 0.237 | 6.02 | 10.8 | 16.07 | 10.92 | 16.23 |
5″ | 125 | 5.563 | 141.3 | 5.047 | 158.2 | 0.258 | 6.55 | 14.63 | 21.77 | 14.9 | 22.07 |
6″ | 150 | 6.625 | 168.3 | 6.065 | 154.1 | 0.28 | 7.11 | 18.99 | 28.26 | 19.34 | 28.58 |
8″ | 200 | 8.625 | 219.1 | 7.981 | 202.7 | 0.322 | 8.18 | 28.58 | 42.55 | 29.35 | 43.73 |
10″ | 250 | 10.75 | 273 | 10.02 | 254.5 | 0.365 | 9.27 | 40.52 | 60.29 | 41.49 | 63.36 |
12″ | 300 | 12.75 | 323.8 | 12 | 304.8 | 0.375 | 9.52 | 49.61 | 73.78 | 51.28 | 76.21 |
Pipes Sizes (inch) | Weight/feet | Schedules | Oouter diameter | Wall Thickness (Wt) | Inner diameter |
---|---|---|---|---|---|
1/2″ | 1.31 | 160 | 0.84 | 0.188 | 0.464 |
1/8″ | 0.25 | 40 | 0.405 | 0.068 | 0.269 |
3/4″ | 1.13 | 40 | 1.05 | 0.113 | 0.824 |
1/8″ | 0.32 | 80 | 0.405 | 0.095 | 0.215 |
3/4″ | 1.94 | 160 | 1.05 | 0.219 | 0.612 |
1/4″ | 0.43 | 40 | 0.54 | 0.088 | 0.364 |
1″ | 1.68 | 40 | 1.315 | 0.133 | 1.049 |
1/4″ | 0.54 | 80 | 0.54 | 0.119 | 0.302 |
1″ | 2.84 | 160 | 1.315 | 0.25 | 0.815 |
3/8″ | 0.57 | 40 | 0.675 | 0.091 | 0.493 |
1-1/4″ | 2.27 | 40 | 1.66 | 0.14 | 1.38 |
3/8″ | 0.74 | 80 | 0.675 | 0.126 | 0.423 |
1-1/4″ | 3.76 | 160 | 1.66 | 0.25 | 1.16 |
1/2″ | 0.85 | 40 | 0.84 | 0.109 | 0.622 |
24″ | 483.12 | 140 | 24 | 2.062 | 19.876 |
1/2″ | 1.09 | 80 | 0.84 | 0.147 | 0.546 |
1/2″ | 1.71 | XXH | 0.84 | 0.294 | 0.252 |
3/4″ | 1.47 | 80 | 1.05 | 0.154 | 0.742 |
3/4′ | 2.44 | XXH | 1.05 | 0.308 | 0.434 |
1″ | 2.17 | 80 | 1.315 | 0.179 | 0.957 |
1″ | 3.66 | XXH | 1.315 | 0.358 | 0.599 |
1-1/4″ | 3 | 80 | 1.66 | 0.191 | 1.278 |
1-1/4″ | 5.21 | XXH | 1.66 | 0.382 | 0.896 |
Nominal (MM) | Ooter diameter MM | Pipes size (inch) | Schedule 20 | Schedule 30 | Schedule STD | Schedule 40 | Schedule 60 | Schedule Extra | Strong (XS) | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3 | 10.3 | 1/8 | 0.37 | 1.73 | 1.73 | 0.357 | 2.41 | 0.47 | ||||||
6 | 13.7 | ¼ | 0.63 | 2.24 | 2.24 | 0.625 | 3.02 | 0.804 | ||||||
10 | 17.1 | 3/8 | 0.84 | 2.31 | 2.31 | 0.84 | 3.2 | 1.1 | ||||||
15 | 21.3 | ½ | 1.26 | 2.77 | 2.77 | 1.26 | 3.73 | 1.62 | ||||||
20 | 26.7 | ¾ | 1.69 | 2.87 | 2.87 | 1.68 | 3.91 | 2.2 | ||||||
25 | 33.4 | 1 | 2.5 | 3.38 | 3.38 | 2.5 | 4.55 | 3.24 | ||||||
32 | 42.2 | 11/4 | 3.39 | 3.56 | 3.56 | 3.38 | 4.85 | 4.47 | ||||||
40 | 48.3 | 11/2 | 4.05 | 3.68 | 3.68 | 4.05 | 5.08 | 5.41 | ||||||
50 | 60.3 | 2 | 5.44 | 3.9 | 3.9 | 5.44 | 5.5 | 7.48 | ||||||
65 | 73 | 21/2 | 8.63 | 5.2 | 5.16 | 8.63 | 7 | 11.41 | ||||||
80 | 88.9 | 3/8 | 11.3 | 5.5 | 5.5 | 11.3 | 7.62 | 15.3 | ||||||
90 | 1.6 | 31/2 | 13.57 | 5.74 | 5.74 | 13.57 | 8.08 | 18.63 | ||||||
100 | 114.3 | 4 | 16.07 | 6.02 | 6.02 | 16.07 | 8.56 | 22.3 | ||||||
125 | 141.3 | 5 | 21.77 | 6.6 | 6.55 | 21.77 | 9.53 | 30.9 | ||||||
150 | 168.3 | 6 | 28.26 | 7.11 | 7.11 | 28.26 | 10.97 | 42.5 | ||||||
200 | 219.1 | 8 | 33.3 | 6.35 | 7 | 36.8 | 42.5 | 8.2 | 8.2 | 42.5 | 53.1 | 10.3 | 12.7 | 64.6 |
250 | 273 | 10 | 41.7 | 6.35 | 7.8 | 51.3 | 60.3 | 9.27 | 9.27 | 60.3 | 81.5 | 12.7 | 12.7 | 81.5 |
300 | 323.9 | 12 | 49.7 | 6.35 | 8.4 | 65.2 | 73.8 | 9.53 | 10.3 | 79.7 | 109 | 14.3 | 12.7 | 97.4 |
350 | 355.6 | 14 | 68.1 | 7.92 | 9.53 | 81.3 | 81.3 | 9.53 | 11.13 | 94.3 | 126.4 | 15.1 | 12.7 | 107 |
400 | 406.4 | 16 | 77.9 | 7.92 | 9.5 | 93.3 | 93.3 | 9.53 | 12.7 | 123 | 160 | 16.7 | 12.7 | 123 |
450 | 457.2 | 18 | 87.8 | 7.92 | 11.1 | 122 | 105 | 9.53 | 14.3 | 156 | 206 | 19 | 12.7 | 130 |
500 | 508 | 20 | 117.2 | 9.53 | 12.7 | 155.1 | 177.2 | 9.53 | 15.1 | 183 | 248 | 20.6 | 12.7 | 155.1 |
550 | 558.8 | 22 | 129 | 9.53 | 12.7 | 171 | 129 | 9.53 | 294 | 22.2 | 12.7 | 171 | ||
600 | 609.6 | 24 | 141 | 9.53 | 14.3 | 210 | 141 | 9.53 | 17.4 | 255 | 355 | 24.5 | 12.7 | 187 |
Check Carbon Steel SA53 Gr B Seamless Pipe Supplier which is in high demand globally
ASTM A53 Grade B ERW Pipes | ASTM A53 Type F Thin Wall Pipes |
ASTM A53 Type E Grade B Square Pipe | ASTM A53 Grade A Large Diameter Pipes |
A53 Gr B material | Tuberia ASTM A53 Gr B |
A53 Galvanized Pipes | ASME SA 53 Hot Dip Galvanized Pipes |
Pipe A53 Grade B | ASTM A53 Type S Lined Pipes |
A53 Grade B Seamless Pipes | ASTM A53 Type E Natural Gas Pipes |
A53 Material | ASTM A53 Pipes |
ASTM A53 gr b Tube | ASTM A53 Type E Grade B Nace Pipes |
ASTM A53 Schedule 40 ERW Pipes | A53 Steel Sch 40 Pipes |
ASTM A53b Welded Pipes | Carbon Steel ASTM A53 Epoxy Lined Pipes |
ASTM A53 Grade B Schedule 40 Pipes | SA 53 Heavy Wall Pipes |
Thick Wall SA 53 Gr B Pipes | ASTM A53 sch40 Internally Coated Pipes |

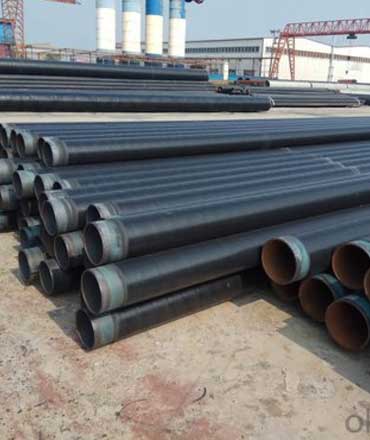

Thin Wall A53 Grb Pipes | A53grb Double Wall Pipes |
Large Diameter ASTM A53 Type F Pipes | ASTM A53 Steel Line Pipes |
ASTM A53 Grade A Coated Pipes | ASTM A53a Cement Lined Pipes |
A53 Type F Hot Dip Galvanized Pipes | A53 Grade B Pipes |
ASME SA 53 Lined Pipes | A53 Grade B Pipe Material |
ASTM A53 Type S Natural Gas Pipes | ASTM A53 Grade B Black Steel Pipes |
ASTM A53 Type E Nace Pipes | A53 Grade B Erw Pipes |
ASTM A53 Epoxy Lined Pipes | A53 Grade B Type E Pipes |
A53 Steel Heavy Wall Pipes | ASTM A53 Grade B Type E Pipes |
A53 Grade B Tube | ASTM A53 Type E Grade B Pipes |
ASTM A53 gr b Seamless Pipes | ASTM A53 Grade B Standard Pipes |
ASTM A53 Grade B Schedule 40 Pipes | Sa53 Grade B Pipes |
SA 53 Gr B Galvanized Pipes | ASTM A53 Grade B Type S Pipes |
A53 Grb Thick Wall Pipes | ASTM A53 Grade B Schedule 80 Pipes |
Do you know
what P.M. Metal supply in the Middle East, USA, Africa, and Far East Asia?

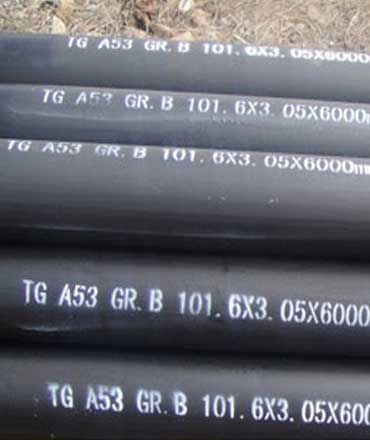

ASTM A53 Grade B ERW Pipe
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
ASME SA 53 Lined Pipe
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
A53 Grade B Seamless Pipe
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
SA 53 Gr B Galvanized Pipe
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
ASTM A53 Grade B Black Steel Pipe
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
A53 Pipe Material
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
