ASTM A514 Low Alloy Steel Sheet and SA 387 Strip/ Coil Material Supplier in India
What is Alloy Steel Plate vs Alloy Steel Sheet
Plates and sheets are important features of metal grades. These modules are distinguished based on key features.
- Plates are designed with greater thickness than standard sheets in this range.
- Alloy steel plates are employed in applications where there is a requirement of strength and stability. Alloy steel sheets are used to provide an aesthetical appeal to the component and focus more radically on weight-saving.
4130 Alloy Steel Plate vs 4140 alloy steel plate
- The 4140 alloy steel plate is designed with a superior chemical composition compared to the 4130 grade.
- 4130 alloy steel plate showcases higher durability than the 4140 plates.
- 4130 alloy plates offer enhanced machinability and weldability than the 4140 modules.
- Alloy steel 4140 steel plates possess superior mechanical properties than the 4130 grade.
What is Chromoly Sheet and Chromoly Plate?
Chromoly components are low alloy steel that has superior content of chromium and molybdenum. Plates and sheets within this grade can be distinguished based on their functionality and thickness.
- Chromoly plates are designed in thickness above 6mm extending up to 150mm. These versatile plates provide support and rigidity to different applications across stress-induced setups.
- Chromoly sheets are a grade of metal that is designed in thickness below 6mm but higher than 0.5mm. These sheets add a glowing finish to the module and are not preferred in applications that require stability or support.
What is Hot Rolled Alloy Ateel Plate?
A hot rolled alloy steel grade is a component that is processed at temperatures above 1700 degrees F. When the plates are processed at extreme temperatures they reach their recrystallization values allowing the subsequent components to be produced efficiently. The high-strength plates provide support and rigidity to different applications across stress-induced setups.
Table of Content
Check ASTM A514 Alloy Steel Plate equivalent and composition, Know more about Low Alloy Steel Plates hardness, Finishes, Specification, Properties and Chart by Retired Engineers of JSW Steel Limited.
Specification Of Alloy Steel Plate
| Alloy Steel Plate Material Specification | ASTM A387 / ASME SA387 |
|---|---|
| Length | 5800mm, 3000mm, 12000mm, 6000mm, 2440mm, 2000mm, 15000mm, etc |
| Thickness | From 1mm upto 300mm |
| Finish | Cold rolled sheet (CR) and Hot rolled plate (HR) |
| Width | 3000mm, 1500mm, 3500mm, 1000mm, 1219mm, 1800mm, 2000mm, 2500mm, 4050mm, etc |
| Surface | 2D, 2B, BA, NO.4, NO.1, NO.8, mirror, 8K, checkered, hair line, embossed, sand blast, etching, Brush Manufacturer and Supplier |
| Form | Foils, Coils, Rolls, Shim Sheet, Plain Sheet, Strip Manufacturer and Supplier |
Hot Rolled Alloy Steel Plate Chemical Composition
| S | C | SI | Mn | Cr | P | Mo | |
|---|---|---|---|---|---|---|---|
| Grade 5 | 0.03 | 0.15 max | 0.5 max | 0.3 – 0.6 | 4.00 – 6.00 | 0.035 | 0.45 – 0.65 |
| Grade 9 | 0.03 | 0.15 max | 1.0 max | 0.30 – 0.6 | 8.0 – 10.0 | 0.03 | 0.9 – 1.1 |
| Grade 11 | 0.035 | 0.05 – 0.17 | 0.5 – 0.80 | 0.4 – 0.65 | 1.0 – 1.5 | 0.035 | 0.45 – 0.65 |
| Grade 12 | 0.035 | 0.05 – 0.17 | 0.15 – 0.4 | 0.4 – 0.65 | 0.8 – 1.15 | 0.035 | 0.45 – 0.6 |
| Grade 22 | 0.035 | 0.05 – 0.15 | 0.5 max | 0.3 – 0.6 | 2.0 – 2.5 | 0.035 | 0.9 – 1.1 |
Low Alloy Steel Plate Material Mechanical Properties
| Tensile Properties (ksi) | Yield Properties (ksi) | Tensile Properties (MPa) | Yield Properties (MPa) | Elongational 2 inches (%) | ||
|---|---|---|---|---|---|---|
| A 387 Grade 5 | Class 1 | 60-85 | 30 | 415-585 | 205 | 18 |
| Class 2 | 75-100 | 45 | 515-690 | 310 | 18 | |
| A 387 Grade 9 | Class 1 | 60-85 | 30 | 415-585 | 205 | 18 |
| Class 2 | 75-100 | 45 | 515-690 | 310 | 18 | |
| A 387 Grade 11 | Class 1 | 60-85 | 35 | 415-585 | 240 | 22 |
| Class 2 | 70-90 | 45 | 485-620 | 310 | 22 | |
| A 387 Grade 12 | Class 1 | 50-80 | 33 | 380-550 | 230 | 22 |
| Class 2 | 65-85 | 40 | 450-585 | 275 | 22 | |
| A 387 Grade 22 | Class 1 | 60-85 | 30 | 415-585 | 205 | 18 |
| Class 2 | 75-100 | 45 | 515-690 | 310 | 18 | |
Alloy Steel Plate Grades
Alloy Steel 4340 Plate Dimension
4130 Alloy Steel Sheet Imperial Dimensions
| Plate Surface finish | Width (max in) | Gauge (in) |
|---|---|---|
| BA Mexinox only | 48 | 18–28 |
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 72* | 10–24 |
| Temper rolled plate Mexinox only | 48 | 13–29 |
| 2D – Cold rolled, heat treated, pickled plate | 60 | 12–24 |
| Polished plate (not brushed) | 60 | 11–24 |
ASTM A514 Alloy Steel Plate Metric Dimensions
| Plate Surface finish | Width (max mm) | Thickness (mm) |
|---|---|---|
| 2E – Cold rolled, heat treated, mechanically descaled plate | 2032 | 0.4–8.0 |
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 2032 | 0.25–8.0 |
| 2H – Work hardened plate | 1524 | 0.4–6.35 |
| 2D – Cold rolled, heat treated, pickled plate | 1524 | 0.4–6.35 |
| 2R – Cold rolled, bright annealed plate | 1524 | 0.25–3.5 |
| Polished, brushed plate | 1524 | 0.5–4.0 |

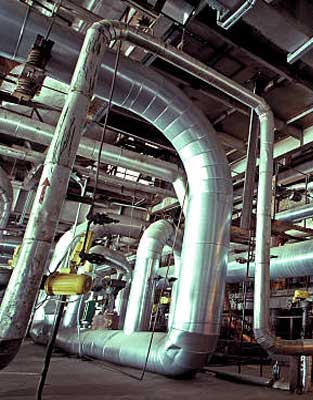

HSLA Plate Application
- Food, Beverage
- Forged Fittings for Chemical
- Petroleum Refining
- Oil and Gas
- Thermal, Nuclear and Solar Power Plants
- Power Generation
- Marine & Dredging
- Petrochemicals and Refineries
- Dairy Industry
Prime Hot Rolled Alloy Steel Plate Tensile Requirements
Ferritic Alloy Steel Class 1 Plates
| Grade | Reduc'n of Area* | Tensile (MPa) | Elong. (200mm) | Elong. (50mm) | Yield (MPa) |
|---|---|---|---|---|---|
| 2, 12 | - | 380 - SSAB | 18% min | 22% min | 230 min |
| 11 | - | 415 - 585 | 19% min | 22% min | 240 min |
| 22, 21, 5, 9 | 40% min | 415 - 585 | ---- | 18% min | 205 min |
| 21L, 22L | 40% min | 415 - 585 | ---- | 18% min | 205 min |
IBR Alloy Steel Class 2 Plates
| Grade | Yield (MPa) | Tensile (MPa) | Elong. (200 mm) | Elong. (50 mm) | Reduc'n of Area* |
|---|---|---|---|---|---|
| 12 | 275 min | 450 - 585 | 19% min | 22% min | - |
| 2 | 310 min | 485 - 620 | 18% min | 22% min | - |
| 22, 21, 5, 9 | 310 min | 515 - 690 | ---- | 18% min | 40% min |
| 11 | 310 min | 515 - 690 | 18% min | 22% min | - |
| 91 | 415 min | 585 - 760 | ---- | 18% min | - |
Types of Alloy Steel Plate Products
Low Alloy Steel Plates
Alloy Steel Wear Plates
Alloy Steel 4340 Plate
4130 Alloy Steel Sheet
4140 Alloy Steel Sheet
4130 Alloy Steel Plate
10mm Thick Alloy Steels Sheet
Hot Rolled Iron/Alloy Steels Plate Coil
12mm Thick Steel Alloy Steel Plate
Hot rolled Aisi 4340 Alloy Tool Steel Sheet
Cold Rolled Alloy Steel Plate
ASTM 4140 Low-Alloy High-Tensile Plate
10mm Low Alloy Heat Resistant Plate
AISI 4140 Alloy Steel Plate
ASME SA387 Plate
Alloy Steel Foils
Prime Hot Rolled Alloy Steel Plate
HSLA Plate
4130 Chromoly Plate Thickness
| Item Thickness (inches) | ||
|---|---|---|
| 0.025" | 0.75" | 4" |
| 0.032" | 0.875" | 3.5" |
| 0.036" | 1" | 0.109" |
| 0.04" | 1.125" | 0.125" |
| 0.05" | 1.25" | 0.16" |
| 0.063" | 1.5" | 0.19" |
| 0.071" | 1.75" | 0.25" |
| 0.08" | 2" | 0.3125" |
| 0.09" | 2.5" | 0.375" |
| 0.095" | 3" | 0.5" |
| 0.1" | 0.625" | |
Chromoly Steel Plate Size Chart
| Size (in mm) | Size (in inches) |
|---|---|
| 3.18 | .125" |
| 3.40 | .134" |
| 3.96 | .156" |
| 4.75 | .187" |
| 6.35 | .250" |
| 7.92 | .312" |
| 9.53 | .375" |
| 12.7 | .500" |
| 15.9 | .600" |
| 19.1 | .750" |
| 22.2 | .875" |
| 25.4 | 1" |
| 28.6 | 1.125" |
| 31.8 | 1.250" |
| 38.1 | 1.500" |
| 44.5 | 1.750" |
| 50.8 | 2" |
| 63.5 | 2.500" |
| 76.2 | 3" |
Supplier and Exporter of Alloy Steel Plates material in Mumbai, View Scm415 Chromoly Strip, AS Coil, and Alloy Steel Sheet Weight Chart online and we also provide instant delivery of Alloy Steel Plate In India
High Strength Alloy Steel Plate Weight Chart
| Thickness (inches) | Density | Plate Weight per Unit Area |
|---|---|---|
| 1/4 | 0.315 lbs/in³8.72 g/cm³ | 0.08 lbs/in²56.245568 kg/m² |
| 3/16 | 0.315 lbs/in³8.72 g/cm³ | 0.06000 lbs/in²42.184176 kg/m² |
| 7/8 | 0.315 lbs/in³8.72 g/cm³ | 0.274 lbs/in²192.6410704 kg/m² |
| 3/8 | 0.315 lbs/in³8.72 g/cm³ | 0.121 lbs/in²85.0714216 kg/m² |
| 1 | 0.315 lbs/in³8.72 g/cm³ | 0.313 lbs/in²220.0607848 kg/m² |
| 1/2 | 0.315 lbs/in³8.72 g/cm³ | 0.161 lbs/in²113.1942056 kg/m² |
| 1 1/2 | 0.315 lbs/in³8.72 g/cm³ | 0.47 lbs/in²330.442712 kg/m² |
| 5/8 | 0.315 lbs/in³8.72 g/cm³ | 0.196 lbs/in²137.8016416 kg/m² |
| 1 3/4 | 0.315 lbs/in³8.72 g/cm³ | 0.549 lbs/in²385.9852104 kg/m² |
| 3/4 | 0.315 lbs/in³8.72 g/cm³ | 0.235 lbs/in²165.221356 kg/m² |
| 2 1/4 | 0.315 lbs/in³8.72 g/cm³ | 0.705 lbs/in²495.664068 kg/m² |
| 1 1/4 | 0.315 lbs/in³8.72 g/cm³ | 0.391 lbs/in²274.9002136 kg/m² |
| 2 3/4 | 0.315 lbs/in³8.72 g/cm³ | 0.862 lbs/in²606.0459952 kg/m² |
| 2 | 0.315 lbs/in³8.72 g/cm³ | 0.627 lbs/in²440.8246392 kg/m² |
| 2 1/2 | 0.315 lbs/in³8.72 g/cm³ | 0.784 lbs/in²551.2065664 kg/m² |
| 3 | 0.315 lbs/in³8.72 g/cm³ | 0.941 lbs/in²661.5884936 kg/m² |
Chrome Moly Plate Value Added Services
- Heat Treatment
- Cladding
- Pickling, Polish
- Annealed
- Cutting
- Rolling
- Forging
- Bending
- Minor Fabrication Etc.
HS Code Of Alloy Steel Plate
Alloy Steel Plate HS Code Import
| HS CODE | DESCRIPTION |
|---|---|
| 7217 | Wire Of Iron Or Non-Alloy Steel |
| 7225 | Flat-Rolled Products Of Other Alloy Steel, Of A Width Of 600 Mm Or More |
| 72173010 | Of a thickness of 18 SWG and below |
| 72254019 | Other |
| 7208 | Flat-Rolled Products Of Iron Or Non-Alloy Steel, Of Width Of 600 Mm Or More, Hot-Rolled, Not Clad, A Plated Or Coated |
| 72254013 | High tensile quality |
| 72085110 | Plates |
| 72254012 | Pressure vessel quality |
HS Code For Alloy Steel Plate Export
| HS CODE | DESCRIPTION |
|---|---|
| 8204 | Hand-Operated Spanners And Wrenches (Including Torque Meter Wrenches But Not Including Tap Wrenches); Interchangeable S |
| 7210 | Flat-Rolled Products Of Iron Or Non-Alloy Steel, Of A Width Of 600 Mm Or More, Clad, Plated Or Coated |
| 82041110 | Spanners |
| 72104900 | Other |
| 7325 | Other Cast Articles Of Iron Or Steel |
| 72107000 | Painted, varnished or coated with plastics |
| 73259920 | Of alloy steel |
| 72109090 | Other |
4130 Normalized Plate Testing
Metallurgical tests are -
- Chemical composition analysis
- Positive material identifications
- Ultrasonic test
- Micro/ macro test
- Pitting corrosion test
- Radiography
- Intergranular corrosion test
Destructive tests are -
- Hardness test
- Tensile test
- Thermal performance test
- Hydro testing
- Flattening test
- Mechanical properties testing
- Flaring test
Don't forget to check and compare our price of Alloy Steel Wear Plates, 4140 Alloy Steel Sheet. Check price list of AISI 4130 Chromoly Steel Plate and Alloy Steel Plates Suppliers in Mumbai
Alloy Steel Plate Price Per Kg In India
| Products | Thickness | Width | Length | Type | Temper | Price |
|---|---|---|---|---|---|---|
| ASTM 8620 Alloy 10-20mm Thick Special Steels Plates Price | 3/8 in | 2.0 in | 11 3/4 in | Precision | Heat Treated | $116.96 / each |
| high quality Nm 500 Steels Plates Alloy Steels Wear Resistant Steels Plates | 1/2 in | 2.0 in | 11 3/4 in | $108.65 / each | ||
| Hot Rolled Iron Alloy Plates Coil/ Strip / Sheet | 1/2 in | 6.0 in | 5 3/4 in | $138.59 / each | ||
| hot rolled steels sheet sa414 grade g, prime hot rolled alloy steels plates | 5/8 in | 2.0 in | 11 3/4 in | $146.16 / each | ||
| manufacture 4x8 alloy steels plates cutting 10mm thick hii p265gh boiler plates steels | 5/8 in | 12.0 in | 11 3/4 in | $464.42 / each | ||
| high strength tensile 40Cr 42CrMo sae 4130 4140 AS Plates Suppliers | 3/4 in | 2.0 in | 11 3/4 in | $130.83 / each | ||
| Mild Steels AS Plates SS400 SS41 S45C ASTM Cold Rolled Steels Sheet | 1 in | 4.0 in | 11 3/4 in | $160.19 / each |
AISI 4140 Steel Plate Inventory
| Hot Rolled Alloy Steels Plates | 4150 Plates |
| High Strength Alloy Plates | 8620 Plates |
| High Strength Low AS Plates | 4130 Steel Sheet |
| Prime Hot Rolled AS Plates | Chromoly Plates |
| Alloy Plate Material | Low Alloy Sheet |
| Low AS Plate Material | 4140 Steels Plates |
| Alloy Steel Plates | AS Metal |
| Low Alloy Steels Plates | 4340 Steels Plate |
| Alloy Steels Wear Plates | Chrome Moly Plate |
| AS 4340 Plate | 4140 Steels Sheet |
| Alloy Steels Sheet | AISI 4140 Plates |
| 4130 Alloy Steels Sheet | Chrome Plate |
| 4140 AS Sheet | 4340 Sheet |
| 6150 Alloy Steels Sheet | AISI 4130 Plate |
| ASTM A514 AS Plate | 4130 Chromoly Sheet |
| HSLA Plate | 4130 Normalized Plate |
| 4130 Chromoly Plate | 4140 Annealed Plate |
| 4130 Normalized Sheet | 4130 Alloy Plate |
| 4140 AS | AISI 4140 Plate |
