304/ 316 SS Socket Weld Elbow and Stainless Steel Threaded Pipe Fittings manufacturer in India

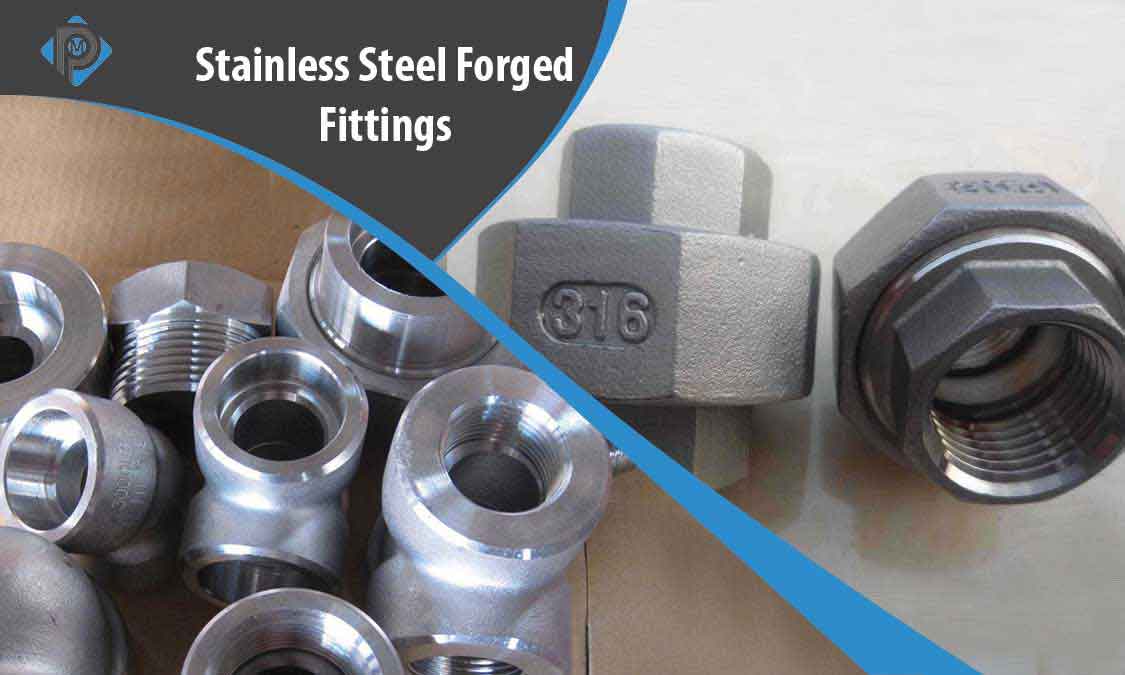

Stainless Steel Forged Fittings

What is Stainless Steel Forged Fittings?
Stainless steel forged fitting is a metal grade belonging to a ferrous group of alloys. The fittings in this grade contain a minimum of 11% chromium, giving them excellent corrosion resistance properties. The SS fittings are manufactured as they are forged at high temperatures in mills. The robust grade of fittings are employed to influence the flow of fluids and gases. The aesthetically appealing items can be readily welded in place following standard welding procedures.

What are 304 Stainless Steel Socket Weld Fittings used for?
Stainless steel 304 socket weld fittings are used in connecting high pressure small diameter pipes. The versatile range of fittings are commonly seen in plumbing, commercial gas systems, oil and steam systems, construction, energy industry, shipbuilding, refining of crude oil, household applications, and so on.

Difference between ASME B16.11 Stainless Steel Threaded vs Socket Weld Fittings

  • ASME B16.11 threaded pipe fitting is made with threads that correspond to subsequent pipe modules. Stainless steel socket weld fittings are pipe attachment detail that is inserted in a recessed area.
  • A socket weld fitting is weled to a subsequent module with a single fillet weld. A threaded fitting has threads and doesn’t require welding procedures.
  • A threaded pipe fitting is preferred in low-pressure systems where the load on the system is less. SS socket weld fittings are used in high pressure applications.
  • Socket weld fittings are used in applications where there is a need for a permanent long-lasting fit. Threaded pipe fittings are not permanent and can be dismantled or removed  easily.

What is the grade of Stainless Steel Forged Pipe Fittings?
Forged pipe fittings in the stainless steel grades are designed in grades 3000, 6000, and 9000. The grades represent the maximum pressure holding capacity each of the fittings in the grade can represent. Pipes in schedules of 80/XS require class 3000 fittings, whereas the 6000 pressure class can be used for pipes of schedule 160. The 9000 grade can be used in pipes having thicker walls.

Looking for Stainless Steel Elbow Manufacturers? View BSP/ NPT Screwed Nipple, Hex Bushings, Union, Couplings and Stainless Steel Street Elbow in Mumbai, get NPS 1/2 - 2 SS Socket Weld Elbow chart and dimensions.

Stainless Steel Forged Fittings Specification

Specifications ASTM/ASME A182/ SA182
Pressure Rating Threaded Fittings 3000 LBS, 9000 LBS, 2000 LBS, 6000 LBS
Cast Iron BSPT, NPT, BSPP
Connection Welding
Standards MSS SP-79, 95, 83, 97, BS 3799, ASME 16.11
Manufacturers
  • Threaded Galvanised Fittings Metal far, Italy
  • Nps Threaded Fittings make Erne Fittings, Austria
  • Threaded Bsp Fittings make Melesi, Italy
  • Npt Threaded Pipe Fittings BKL- Thai Benkan, Thailand
  • ASME B16.11 Stainless Steel Threaded Fittings make TecnoForge, Italy
  • Npt Threaded Fittings make Ulma, Spain
  • Forged Threaded Fittings make BENKAN Corporation, Japan
  • Forged Threaded Pipe Fittings make Mega, Italy
Size From 1/8” to 4” NB (Screwed-Threaded)
Origin USA / Japan / West Europe / Indian / Korean
Stainless Steel Forged Fittings Distributor of Elbow 90 Degree, Tee, Elbow 45 Degree, Cross, Coupling, Union, Welding Outlet, Half Coupling, Boss, Cap, Outlet, Insert
Finishing Stainless Steel: Pickled
End Welding, Threaded, JIC
Test Certificates 100% Radiography Test Report
EN 10204/3.1B
Raw Materials Certificate
Third Party Inspection Report, etc
Tips to order Size + Pressure Class + Type + Grade
2" + 3000 LBS + SW + ASTM A182
Marking Stainless Steel: Marked by electro-etched, jet printed or stamping
From 1/2" upto 4": Marked with brand, heat code, material, B16 (For ASME B16.11 products), pressure and size
3/8" under: Brand only
Threaded Adaptors Fittings Industrial Applications
  • Heavy oil refineries.
  • Bitumen upgraders.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Material Test Certificates (MTC) as per EN 10204 3.2 and EN 10204 3., Test Certificates certifying NACE MR0175, NACE MR0103
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India

ASTM A182 Fittings Pressure Class 2000LBS, 3000LBS, 6000LBS
Size 1/8"~4" (DN6~DN100)
Products ASTM A182 Round Head Plug, ASTM A182 Bull Plug, ASTM A182 Boss, ASTM A182 Outlet, ASTM A182 Hex Nipple, ASTM A182 Swage Nipple, SS Elbow 90 Degree, SS Elbow 45 Degree, ASTM A182 Reducing Coupling, ASTM A182 Cap, ASTM A182 Hex Head Bushing, ASTM A182 Hex Head Plug, ASTM A182 Square Head Plug, SS Tee, ASTM A182 Cross, ASTM A182 Union, ASTM A182 Street Elbow, ASTM A182 Coupling, ASTM A182 Half Coupling
Why use SS Threaded Fittings?
  • While using SS Threaded Fitting, leakage integrity is good for low-pressure, low-temperature installations where vibration is not encountered.
  • Installation productivity is moderately high, and specialized installation skill requirements are not extensive.

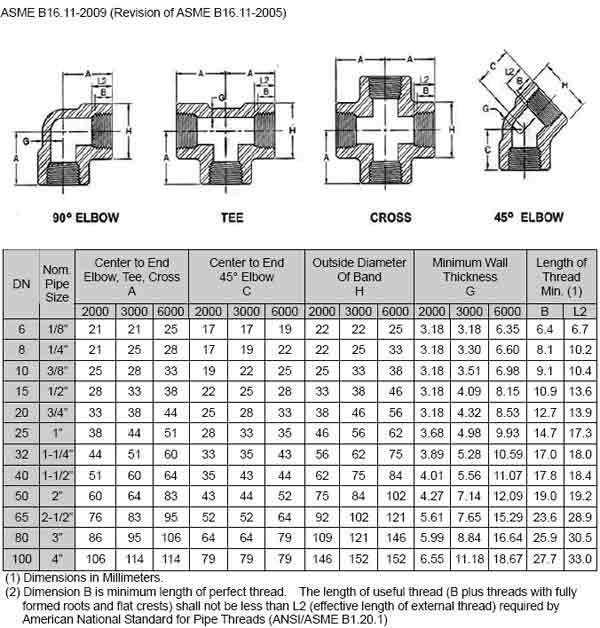

Dimension Specifications ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Stainless Steel Socket Weld Fittings Price List

Products Types Forged Fitting Size Price
IS02037 NIPPLE FORG 25 304L(A1209001ZZ0000252F)(STAINLESS STEEL FITTINGS) 45° Elbow 1/4 in x 1/4 in $6.65
3/8 in x 3/8 in $8.00
1/2 in x 1/2 in $16.13
3/4 in x 3/4 in $18.97
FOC ITEM - 1543112EP0001504K DIAPHRAGM WLD ALVE1.5EPDM 316L FORGED [ STAINLESS STEEL FITTINGS ] 90° Elbow 1/2 in x 1/2 in $12.52
3/4 in x 3/4 in $22.59
1 in x 1 in $23.07
1 1/4 in x 1 1/4 in $59.67
A1208001ZZ0000631F 1S02037 NUT FORG. 63.5 304(STAINLESS STEEL FITTINGS) Cap 1/4 in $5.54
3/8 in $6.46
1/2 in $6.75
3/4 in $8.55
A1209017ZZ0000514F 1S02037 L.WELD MALES FORG. 51 316L(STAINLESS STEEL FITTINGS) Cross 1/2 in x 1/2 in x 1/2 in x 1/2 in $30.13
3/4 in x 3/4 in x 3/4 in x 3/4 in $43.80
1 in x 1 in x 1 in x 1 in $73.47
1 1/4 in x 1 1/4 in x 1 1/4 in x 1 1/4 in $46.22
STAINLESS STEEL FORGED FITTINGS 0.75 600# WN RTJ SOLID, F304/304L (PIPE FITTINGS) Tee 3/8 in x 3/8 in x 3/8 in $13.87
1/2 in x 1/2 in x 1/2 in $18.47
3/4 in x 3/4 in x 3/4 in $30.30
1 in x 1 in x 1 in $30.39
STAINLESS STEEL FORGED FITTINGS 2.5 600# RF,F316/313L {PIPE FITTINGS) Coupling 1/8 in x 1/8 in $5.43
1/4 in x 1/4 in $6.44
3/8 in x 3/8 in $8.39
1/2 in x 1/2 in $12.77
3/4 in x 3/4 in $17.67
PIPE FITTING OF IRON OR STEEL (STAINLESS STEEL FORGED FITTINGS)DN 300 x PN 16 x TYPE-01 x FORM B1 x EN 1092-1 ](A Half Coupling 1/8 in x 1/8 in $3.66
1/4 in x 1/4 in $4.25
3/8 in x 3/8 in $4.24
1/2 in x 1/2 in $6.14
3/4 in x 3/4 in $8.86
STAINLESS STEEL FORGED FITTINGS 3 150# WN RF STD, DRG.202100F, F316/316L {PIPE FITTINGS) Union 1/8 in x 1/8 in $12.60
1/4 in x 1/4 in $14.96
3/8 in x 3/8 in $18.60
1/2 in x 1/2 in $20.14
TUBE OR PIPE FITTING OF IRON OR STEEL (STAINLESS STEEL FORGED FLANGES)DN 200 x PN 40 x TYPE-11 x FORM B1 x EN 1092-1 ](A Hex Bushing 1/4 in x 1/8 in $8.99
3/8 in x 1/8 in $10.81
3/8 in x 1/4 in $11.78

Types of Stainless Steel Forged Fittings

Stainless Steel 90° Elbow
Stainless Steel 90° Elbow
Stainless Steel 90° Elbow
Steel 45° Elbow
Steel 45° Elbow
Steel 45° Elbow
SA182 Stainless Steel Threaded Half Coupling
SA182 Stainless Steel Threaded Half Coupling
SA182 Stainless Steel Threaded Half Coupling
304 Stainless Steel Tee
304 Stainless Steel Tee
304 Stainless Steel Tee
ASTM A182 Stainless Steel Cross
ASTM A182 Stainless Steel Cross
ASTM A182 Stainless Steel Cross
Stainless Steel 316 Full Coupling
Stainless Steel 316 Full Coupling
Stainless Steel 316 Full Coupling
SA182 Stainless Steel Half Coupling
SA182 Stainless Steel Half Coupling
SA182 Stainless Steel Half Coupling
Stainless Steel 316L Reducing Coupling
Stainless Steel 316L Reducing Coupling
Stainless Steel 316L Reducing Coupling
ASTM A182 F304 Pipe Cap
ASTM A182 F304 Pipe Cap
ASTM A182 F304 Pipe Cap
A182 F304L Stainless Steel Hex Head Bushing
A182 F304L Stainless Steel Hex Head Bushing
A182 F304L Stainless Steel Hex Head Bushing
ASTM A182 F316 Hex Head Plug
ASTM A182 F316 Hex Head Plug
ASTM A182 F316 Hex Head Plug
Stainless Steel Square Head Plug
Stainless Steel Square Head Plug
Stainless Steel Square Head Plug
ANSI B16.11 Round Head Plug
ANSI B16.11 Round Head Plug
ANSI B16.11 Round Head Plug
SS Union
SS Union
SS Union
ANSI B16.11 Stainless Steel Hex Nipple
ANSI B16.11 Stainless Steel Hex Nipple
ANSI B16.11 Stainless Steel Hex Nipple
ASTM A182 Street Elbow
ASTM A182 Street Elbow
ASTM A182 Street Elbow
Stainless Steel Bull Plug
Stainless Steel Bull Plug
Stainless Steel Bull Plug
ANSI B16.11 Boss
ANSI B16.11 Boss
ANSI B16.11 Boss
316L Stainless Steel Swage Nipple
316L Stainless Steel Swage Nipple
316L Stainless Steel Swage Nipple
SS ForgedPipe Nipple
SS ForgedPipe Nipple
SS ForgedPipe Nipple
304L Stainless Steel Adapter
304L Stainless Steel Adapter
304L Stainless Steel Adapter
SS Branch Outlet
SS Branch Outlet
SS Branch Outlet
Stainless Steel 90° Elbow Outlet
Stainless Steel 90° Elbow Outlet
Stainless Steel 90° Elbow Outlet
304 Stainless Steel Lateral Outlet
304 Stainless Steel Lateral Outlet
304 Stainless Steel Lateral Outlet
ASTM A182 Stainless Steel Nipple Branch Outlet
ASTM A182 Stainless Steel Nipple Branch Outlet
ASTM A182 Stainless Steel Nipple Branch Outlet
Stainless Steel 316 Outlets
Stainless Steel 316 Outlets
Stainless Steel 316 Outlets
SA182 Stainless Steel Weldolet
SA182 Stainless Steel Weldolet
SA182 Stainless Steel Weldolet
A182 F304L Stainless Steel Nipolet
A182 F304L Stainless Steel Nipolet
A182 F304L Stainless Steel Nipolet
ASTM A182 F316 Latrolet
ASTM A182 F316 Latrolet
ASTM A182 F316 Latrolet
Stainless Steel Elbolet
Stainless Steel Elbolet
Stainless Steel Elbolet
ANSI B16.11 Sweepolet
ANSI B16.11 Sweepolet
ANSI B16.11 Sweepolet
SS Insert Weldolet
SS Insert Weldolet
SS Insert Weldolet
ANSI B16.11 Stainless Steel Brazolet
ANSI B16.11 Stainless Steel Brazolet
ANSI B16.11 Stainless Steel Brazolet
ASTM A182 Coupolet
ASTM A182 Coupolet
ASTM A182 Coupolet
Stainless Steel Flexolet Butt Weld
Stainless Steel Flexolet Butt Weld
Stainless Steel Flexolet Butt Weld
ASTM A182 F304 Threadolet
ASTM A182 F304 Threadolet
ASTM A182 F304 Threadolet
Stainless Steel 316L Sockolet
Stainless Steel 316L Sockolet
Stainless Steel 316L Sockolet
ASTM A182 Socket Weld Reducers
ASTM A182 Socket Weld Reducers
ASTM A182 Socket Weld Reducers
Steel Socket Weld Equal Tee
Steel Socket Weld Equal Tee
Steel Socket Weld Equal Tee
SS Socket Weld Elbolet
SS Socket Weld Elbolet
SS Socket Weld Elbolet
Stainless Steel 316 Threaded Elbolet
Stainless Steel 316 Threaded Elbolet
Stainless Steel 316 Threaded Elbolet
ASTM A182 F304 Threaded Full Couling
ASTM A182 F304 Threaded Full Couling
ASTM A182 F304 Threaded Full Couling
SS Socket Weld Unequal Tee
SS Socket Weld Unequal Tee
SS Socket Weld Unequal Tee
Stainless Steel Socket Weld Pipe Nipples
Stainless Steel Socket Weld Pipe Nipples
Stainless Steel Socket Weld Pipe Nipples
Steel Flexolet Socket Weld
Steel Flexolet Socket Weld
Steel Flexolet Socket Weld
304 Stainless Steel Socket Weld Fittings
304 Stainless Steel Socket Weld Fittings
304 Stainless Steel Socket Weld Fittings
ASTM A182 Stainless Steel Flexolet Threaded
ASTM A182 Stainless Steel Flexolet Threaded
ASTM A182 Stainless Steel Flexolet Threaded
Stainless Steel 316 Threaded Fittings
Stainless Steel 316 Threaded Fittings
Stainless Steel 316 Threaded Fittings
Stainless Steel Fittings
Stainless Steel Fittings
Stainless Steel Fittings
SS Screwed Fittings
SS Screwed Fittings
SS Screwed Fittings
ANSI B16.11 Stainless Steel Elbow
ANSI B16.11 Stainless Steel Elbow
ANSI B16.11 Stainless Steel Elbow
ASTM A182 Forged Elbow
ASTM A182 Forged Elbow
ASTM A182 Forged Elbow
Stainless Steel Cap
Stainless Steel Cap
Stainless Steel Cap
ANSI B16.11 Coupling
ANSI B16.11 Coupling
ANSI B16.11 Coupling
SS Forged Tee
SS Forged Tee
SS Forged Tee
316 Stainless Steel Cross
316 Stainless Steel Cross
316 Stainless Steel Cross
SS Inserts
SS Inserts
SS Inserts
Steel Plug
Steel Plug
Steel Plug
ASTM A182 F304 Bushing
ASTM A182 F304 Bushing
ASTM A182 F304 Bushing
ASTM A182 F316 2000 Lbs Forged Fittings
ASTM A182 F316 2000 Lbs Forged Fittings
ASTM A182 F316 2000 Lbs Forged Fittings
ASTM A182 3000 Lbs Forged Fittings
ASTM A182 3000 Lbs Forged Fittings
ASTM A182 3000 Lbs Forged Fittings
SA182 Stainless Steel 6000 Lbs Forged Fittings
SA182 Stainless Steel 6000 Lbs Forged Fittings
SA182 Stainless Steel 6000 Lbs Forged Fittings
Steel 9000 Lbs Forged Fittings
Steel 9000 Lbs Forged Fittings
Steel 9000 Lbs Forged Fittings

Ss Socket Weld Fittings Temperature Rating

Temperature Ratings Types Of Pressure Ratings Class
Class 150# Class 300#
1/4 - 1 (Inch) 1 1/4 - 2 (Inch) 2 1/2 - 3 (Inch)
(oF) (oC)
-20 to 150 -29 to 66 300 2000 1500 1000
200 93 265 1785 1350 910
250 121 225 1575 1200 825
300 149 185 1360 1050 735
350 177 150 1150 900 650
400 204 - 935 750 560
450 232 - 725 600 475
500 260 - 510 450 385
550 288 - 300 300 300

Stainless Socket Weld Fittings Grades & Materials Chart

ASME B16.11 Stainless Steel Threaded Fittings ASTM A182F321H, F321, F347, F11, F304L, F316TI, F310S, F316LN, F904L, F304, F310H, F91, F316H, F309S, F316L, F317L, F309H, F22, F347H, F317, F304H, F306, ASTM A312/A403 TP304,TP316, TP304L, TP316L

  • NPT Threads conform to ASME B1.20.1
  • The dimensions for Stainless Steel Npt Threaded Fittings conform to ASME B16.11
  • The material for Stainless Steel Threaded Fittings conforms to ASME A182
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India

Ss Forged Fittings Weight Chart

SIZE QTY A WEIGHT B
¼ 160 0.81 0.20 0.88
130 0.97 0.26 1.00
½ 100 1.12 0.57 1.31
¾ 75 1.31 0.71 1.5
1 40 1.5 1.08 1.81
1 ¼ 25 1.75 1.68 2.19
1 ½ 18 2.00 2.38 2.44
2 10 2.38 3.55 2.97
2 ½ 4 3.00 6.22 3.62
3 2 3.38 10.36 4.31
4 1 4.19 23.91 5.75
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India

Stainless Steel Elbow Pressure Rating

Pressure-Temperature ratings for malleable iron threaded fittings (psig)  kPa
Temperature Class
150 300
1 1/4 - 2 inches 1/4 - 1 inches 2 1/2 - 3 inches
(oC) (oF)
-29 to 66 -20 to 150 300 1500 2000 1000
93 200 265 1350 1785 910
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300

Check ASME B16.11/ KS B 1542 Stainless Steel Socket Weld Pipe Fittings sizes, Best price of JIS B 2316 Stainless Steel 45 Degree Street Elbow, ASTM A182 Stainless Steel Socket Weld Fittings in Mumbai

304 Stainless Steel Socket Weld Fittings Standards

MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
MSS SP-95 Swage(d) Nipples and Bull Plugs
ASME B16.9 Factory-Made Wrought Buttwelding Fittings
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
ASME B16.11 Forged Fittings, Socket – Welding and Threaded

Class 150 Stainless Steel Socket Weld Fittings Dimensions

Diameter Of
(A)
Diameter Of
(B)
Size Of Pipes In Inch ASME B16.11 Weight in Pounds
2.68 3.57 2-1/2 2.78
0.80 0.80 1/4 0.10
0.94 0.97 3/8 0.15
0.69 0.66 1/8 0.06
1.11 1.17 1/2 0.22
1.24 1.38 3/4 0.32
1.72 2.07 1-1/4 0.76
3.72 5.24 4 6.72
1.87 2.36 1-1/2 0.99
1.43 1.74 1 0.52
2.25 2.86 2 1.49
3.05 4.23 3 4.41

Class 300 SS Socket Weld Fittings Dimensions

Normal Size Of Pipes In Inch Length Of Thread Wall Thickness Outer Diameter Center-End
(J) (B) (G) (D) (45 Deg) (90 Deg)
(C) (A)
1/2 13.6 10.9 3.18 33 22 28
1/4 13.9 12.7 3.18 38 25 33
1 17.3 14.7 3.68 46 28 38
18 17 3.89 56 33 44
18.4 17.8 4.01 62 35 51
2 19.2 19 4.27 75 43 60
28.9 23.6 5.61 92 52 76
3 30.5 25.9 5.99 109 64 86
4 33 27.7 6.55 146 79 106

Stainless Steel Forged Pipe Fittings Machineries List

  • Portable Temperature Indicator
  • Conventional Machine
  • Elbow Beveling Machine
  • Heat Treatment For Forged Fittings
  • Tee Cold Forming Machines
  • Tee Beveling Machine
  • Radial Driling Machine
  • Oil Fired Heat Treatment Furnace
  • CNC Lath
  • Elbow Cold Forming Machines
  • Hydraulic Press 300 Tons Capacity
  • Hydraulic Press 150 Tons Capacity

Forged Stainless Steel Pipe Fittings Class and Size

Description Class Designation
3000 2000 6000
Elbows 45 and 90 degrees
Tees, Crosses, Coupling
Half-Coupling, Cap
1/2 – 2 1/2 – 4 1/2 – 2
1/2 – 2 1/2 – 4 1/2 – 2
1/2 – 2 1/2 – 4 1/2 – 2
Pipe Wall SCH 160 SCH 80 / XS XXS
P.M. Metal is a industrial Stainless Steel Coupling, and SS Pipe Union Suppliers in India since 2001, Get Stainless Socket Weld Fittings, Split Tee, Concentric Reducer, Insert (MSS SP-79), Cross and Flanged Tee at factory price in India

ASTM A182 Stainless Steel 304 Forged Fittings Dimensions

Stainless Steel Forged Elbow Dimensions NPS 1/2 to 4 – 90°/45° – Class 3000

stainless steel Forged Fittings dimensions
  • SS Forged Elbow Dimensions are in millimeters unless otherwise indicated.
  • Forged Bore (B) – Maximum and minimum dimensions.
  • Bore Diameter (D) – Maximum and minimum dimensions.
  • Forged wall thickness – (C) – Average of Forged wall thickness.
  • SS Forged Elbow Dimensional tolerances center to bottom of Forged – (A)
    NPS 1/2 and NPS 3/4 = +/- 1.5 mm
    NPS 1 to NPS 2 = +/- 2 mm
    NPS 2½ to NPS 4 = +/- 2.5 mm

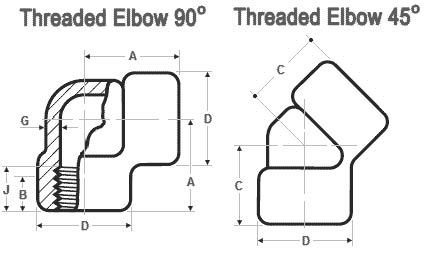

ASTM A182 Forged Fitting Dimensions – 2000 LBS

forged fitting dimensions – 2000 LBS

NPS Outside Diameter
of Band
Minimum Length
of Thread
Center to End Minimum
Wall Thickness
D B J 90°
A
45°
C
G
1/2 33 10.9 13.6 28 22 3.18
3/4 38 12.7 13.9 33 25 3.18
1 46 14.7 17.3 38 28 3.68
56 17 18 44 33 3.89
62 17.8 18.4 51 35 4.01
2 75 19 19.2 60 43 4.27
92 23.6 28.9 76 52 5.61
3 109 25.9 30.5 86 64 5.99
4 146 27.7 33 106 79 6.55

Stainless Steel Forged Fitting Dimensions – 3000 LBS

forged fitting dimensions – 3000 LBS

NPS Minimum Length
of Thread
Minimum
Wall Thickness
Outside Diameter
of Band
Center to End
J B G D 90°
A
45°
C
1/2 13.6 10.9 4.09 38 33 25
3/4 13.9 12.7 4.32 46 38 28
1 17.3 14.7 4.98 56 44 33
18 17 5.28 62 51 35
18.4 17.8 5.56 75 60 43
2 19.2 19 7.14 84 64 44
28.9 23.6 7.65 102 83 52
3 30.5 25.9 8.84 121 95 64
4 33 27.7 11.18 152 114 79

SS Forged Fitting Dimensions – 6000 LBS

NPS Minimum Length
of Thread
Minimum
Wall Thickness
Outside Diameter
of Band
Center to End
J B G D 45°
C
90°
A
1/2 13.6 10.9 8.15 46 28 38
3/4 13.9 12.7 8.53 56 33 44
1 17.3 14.7 9.93 62 35 51
18 17 10.59 75 43 60
18.4 17.8 11.07 84 44 64
2 19.2 19 12.09 102 52 83
28.9 23.6 15.29 121 64 95
3 30.5 25.9 16.64 146 79 106
4 33 27.7 18.67 152 79 114

ANSI B16.11 Forged Fitting Dimensions – 9000 LBS

Class 9000 Stainless Steel Socket Weld Fittings Dimensions

Stainless Steel Forged Fittings Sizes

Products Size
ASTM A182 SS Forged Tees ASTM A182 SS Unions
  • Pressure Ratings -2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
  • Sizes 1/8″– 4″
ASTM A182 SS Bushings ASTM A182 SS Pipe Nipple
ASTM A182 SS Forged Cross ASTM A182 SS Inserts
ASTM A182 SS Forged Caps ASTM A182 SS Couplings
ASTM A182 SS Forged Plug ASTM A182 SS Street Elbows
ASTM A182 SS 90° Elbows ASTM A182 SS 45° Elbows

NPS Minimum Length
of Thread
Center to End
A
Outside Diameter
of Band
D
Minimum
Wall Thickness
J B
1/2 13.6 10.9 28 33 3.18
3/4 13.9 12.7 33 38 3.18
1 17.3 14.7 38 46 3.68
1 ¼ 18 17 44 56 3.89
1 ½ 18.4 17.8 51 62 4.01
2 19.2 19 60 75 4.27
2 ½ 28.9 23.6 76 92 5.61
3 30.5 25.9 86 109 5.99
4 33 27.7 106 146 6.55
ASME B16.11 Stainless Steel Threaded Fittings Manufacturers In India

Stainless Steel 316 Forged Fittings Chemical Composition

Type Grade ASTM A240 Chemical Composition
Others(JIS) ASTM(A240M) S C Cr Si Mo Mn Others P Ni
Austenitic Steels SUS304 304 ≤0.030 ≤0.07 17.5/19.5 ≤0.75 ≤2.00 N≤0.10 ≤0.045 8.0/10.5
304H ≤0.030 0.04/0.10 18.0/20.0 ≤0.75 ≤2.00 ≤0.045 8.0/10.5
SUS304L 304L ≤0.030 ≤0.030 17.5/19.5 ≤0.75 ≤2.00 N≤0.10 ≤0.045 8.0/12.0
SUS304N1 304N ≤0.030 ≤0.08 18.0/20.0 ≤0.75 ≤2.00 N:0.10/0.16 ≤0.045 8.0/10.5
SUS304LN 304LN ≤0.030 ≤0.030 18.0/20.0 ≤0.75 ≤2.00 N:0.10/0.16 ≤0.045 8.0/12.0
SUS309S 309S ≤0.030 ≤0.08 22.0/24.0 ≤0.75 ≤2.00 ≤0.045 12.0/15.0
SUS310S 310S ≤0.030 ≤0.08 24.0/26.0 ≤1.50 ≤2.00 ≤0.045 19.0/22.0
SUS316 316 ≤0.030 ≤0.08 16.0/18.0 ≤0.75 2.00/3.00 ≤2.00 N≤0.10 ≤0.045 10.0/14.0
SUS316L 316L ≤0.030 ≤0.030 16.0/18.0 ≤0.75 2.00/3.00 ≤2.00 N≤0.10 ≤0.045 10.0/14.0
316H ≤0.030 0.04/0.10 16.0/18.0 ≤0.75 2.00/3.00 ≤2.00 ≤0.045 10.0/14.0
SUS316LN 316LN ≤0.030 ≤0.030 16.0/18.0 ≤0.75 2.00/3.00 ≤2.00 N:0.10/0.16 ≤0.045 10.0/14.0
SUS317L 317L ≤0.030 ≤0.030 18.0/20.0 ≤0.75 3.0/4.0 ≤2.00 N≤0.10 ≤0.045 11.0/15.0
SUS317LN 317LN ≤0.030 ≤0.030 18.0/20.0 ≤0.75 3.0/4.0 ≤2.00 N:0.10/0.22 ≤0.045 11.0/15.0
SUS321 321 ≤0.030 ≤0.08 17.0/19.0 ≤0.75 ≤2.00 N≤0.10Ti:5ʷʢC+Nʣ/0.70 ≤0.045 9.0/12.0
SUS347 347 ≤0.030 ≤0.08 17.0/19.0 ≤0.75 ≤2.00 Nb:10ʷC/1.00 ≤0.045 9.0/13.0
SUS890L 904L ≤0.035 ≤0.020 19.0/23.0 ≤1.00 4.00/5.00 ≤2.00 N≤0.10Cu:1.0/2.0 ≤0.045 23.0/28.0
S31254 ≤0.010 ≤0.020 19.5/20.5 ≤0.80 6.0/6.5 ≤1.00 N:0.18/0.25Cu:0.50/1.00 ≤0.030 17.5/18.5
SUS317J2 ≤0.030 ≤0.06 23.00/26.00 ≤1.50 0.50/1.20 ≤2.00 N:0.25/0.40 ≤0.045 12.00/16.00

SA182 Stainless Steel 304L Forged Fittings Mechanical Properties

Type Mechanical Properties for Stainless Steel Plates
Others(JIS) ASTM(A240M) Properties Hardness
Yield Properties (Mpa) Elongational (%) Tensile Properties (Mpa) HBW HRBW
AusteniticSteels SUS304 304 ≥205 ≥40 ≥515 ≤201 ≤92
304H ≥205 ≥40 ≥515 ≤201 ≤92
SUS304L 304L ≥170 ≥40 ≥485 ≤201 ≤92
SUS304N1 304N ≥240 ≥30 ≥550 ≤217 ≤95
SUS304LN 304LN ≥205 ≥40 ≥515 ≤217 ≤95
SUS309S 309S ≥205 ≥40 ≥515 ≤217 ≤95
SUS310S 310S ≥205 ≥40 ≥515 ≤217 ≤95
SUS316 316 ≥205 ≥40 ≥515 ≤217 ≤95
SUS316L 316L ≥170 ≥40 ≥485 ≤217 ≤95
316H ≥205 ≥40 ≥515 ≤217 ≤95
SUS316LN 316LN ≥205 ≥40 ≥515 ≤217 ≤95
SUS317L 317L ≥205 ≥40 ≥515 ≤217 ≤95
SUS317LN 317LN ≥240 ≥40 ≥550 ≤217 ≤95
SUS321 321 ≥205 ≥40 ≥515 ≤217 ≤95
SUS347 347 ≥205 ≥40 ≥515 ≤201 ≤92
SUS890L N08904/904L ≥220 ≥35 ≥490 ≤196 ≤90
S31254 ≥310 ≥35 ≥655 ≤223 ≤96
SUS317J2 ≥345 ≥40 ≥690 ≤250 ≤100

Stainless Steel 316L Forged Fittings HS Code

Description HSN Code
Stainless Steel Forged Fittings 73072200
KNPC approved SS Forged Fittings, Stainless Steel Forged Pipe Fittings manufacturer in India in Pressure Class 3000, 6000 and 9000, check maximum allowed pressure of 304 Stainless Steel Socket Weld Fittings, call us for a free sample!

ASTM A182 F304 Stainless Steel Coupling Equivalent

S G4304 EN10095 ASTM AS UNS CNS KS
SUS201 1.4372 201 201-2 S20100 201 STS201
SUS202 1.4373 202 S20200 202 STS202
SUS301 1.4319 301 301 S30100 301 STS301
SUS304 1.4301 304 304 S30400 304 STS304
SUS304L 1.4306 304L 304L S30403 304L STS304L
SUS304N1 1.4315 304N 304N1 S30451 304N1 STS304N1
SUS304N2 XM21 304N2 S30452 304N2 STS304N2
SUS304LN 304LN 304LN S30453 304LN STS304LN
SUS305 1.4303 305 305 S30500 305 STS305
SUS309S 1.4833 309S 309S S30908 309S STS309S
SUS310S 1.4845 310S 310S S31008 310S STS310S
SUS316 1.4401 316 316 S31600 316 STS316
SUS316Ti 1.4571 316Ti 316Ti S31635 316Ti
SUS316L 1.4404 316L 316L S31603 316L STS316L
SUS316N 316N 316N S31651 316N STS316N
SUS316LN 1.4429 316LN 316LN S31653 316LN STS316LN
SUS316J1 316J1 316J1 STS316J1
SUS316J1L 316J1L STS316J1L
SUS317 317 317 S31700 317 STS317
SUS317L 1.4438 317L 317L S31703 317L STS317L
SUS321 1.4541 321 321 S32100 321 STS321
SUS347 1.455 347 347 S34700 347 STS347
SUS329J1 1.4477 329 329J1 S32900 329J1 STS329J1
SUS329J3L 1.4462 329J3L S31803 329J3L STS329J3L
SUS405 1.4002 405 405 S40500 405 STS405
SUH409 1.4512 409 409L S40900 409L STS409
SUS410L 410L 410L STS410L
SUS430 1.4016 430 430 S43000 430 STS430
SUS434 1.4113 434 434 S43400 434 STS434
1.4509 439 S43940 439
SUS444 1.4521 444 444 S44400 444 STS444
SUS403 403 403 S40300 403 STS403
SUS410 1.4006 410 410 S41000 410 STS410
SUS420J1 1.4021 420 420 S42000 420J1 STS420J1
SUS420J2 1.4028 420J2 420J2 STS420J2
SUS440A 440A 440A S44002 440A STS440A

A182 F304L Stainless Steel Half Coupling Tolerance

Dimensions Of SS Forged Fittings Up to 2 inch NB 2 1/2 & 3 Inch NB
• Bore Of Socket Weld + 0.25 + 0.38
- 0.00 - 0.00
• Body Bore + 0.00 + 0.00
- 1.52 - 3.00
A 1/4" NB (Size) ± 0.8 ± 2.50
3/8" TO 3/4" NB (Size) ± 1.6
1"T0 2"NB (Size) ± 2.0

NPT Thread dimensions of Stainless Steel Screwed Fittings

DN-NPT in Inch Tapping
Drill Size mm
Major Diameter
mm
Pitch
mm
TPI
1/16 6.00 7.895 0.941 27
1/8 8.25 10.242 0.941 27
1/4 10.70 13.616 1.411 18
3/8 14.10 17.055 1.411 18
1/2 17.40 21.223 1.814 14
3/4 22.60 26.568 1.814 14
1 28.50 33.228 2.209 11.5
1.1/4 37.00 41.985 2.209 11.5
1.1/2 43.50 48.054 2.209 11.5
2 55.00 60.092 2.209 11.5
2.1/2 65.50 72.699 3.175 8
3 81.50 88.608 3.175 8
3.1/2 94.30 101.316 3.175 8
4 107.00 113.973 3.175 8
5 134.384 141.300 3.175 8
6 161.191 168.275 3.175 8
8 211.673 219.075 3.175 8
10 265.311 273.050 3.175 8
12 315.793 323.850 3.175 8

Stainless Steel Forged Fittings Inventory

Stainless Steel Forged Fittings SS Threaded Fittings
Stainless Steel Socket Weld Fittings SS Forged Threaded Plug
Ss Socket Weld Fittings Stainless Steel Forged Threaded Swage Nipple
Stainless Socket Weld Fittings ANSI B16.11 Forged Socket Weld Fittings
Ss Forged Fittings SS Socket Weld Reducer Insert
Stainless Steel Elbow Stainless Steel Socket weld 90 deg Elbow
304 Stainless Steel Socket Weld Fittings SS 45 deg Elbow
Stainless Steel Forged Pipe Fittings Stainless Steel Socket weld Cross
Forged Stainless Steel Pipe Fittings SS Socket weld Forged Coupling
ASTM A182 Stainless Steel 304 Forged Fittings Stainless Steel Socket weld Pipe Cap
Stainless Steel 316 Forged Fittings SS Socket Weld Tees
SA182 Stainless Steel 304L Forged Fittings SS Forged Socket weld Fittings
Stainless Steel 316L Forged Fittings Stainless Steel Socket weld Union
ASTM A182 F304 Stainless Steel Coupling Ss Threaded Pipe Fittings
A182 F304L Stainless Steel Half Coupling Stainless Steel Screwed Pipe Fittings
ASTM A182 F316 Stainless Steel Full Coupling Stainless Steel Union Fittings
ASTM A182 Stainless Steel Forged Fittings Stainless Steel Couplings
ANSI B16.11 Forged Fittings Stainless Steel BSP Fittings
Stainless Steel Forged High Pressure Fittings Stainless Steel Threaded Pipe Fittings
ANSI B16.11 Stainless Steel Forged Threaded Fittings SS Union Coupling
ASTM A182 Threaded Fittings Stainless Steel Street Elbow
SS Fittings Stainless Steel 45 Degree Street Elbow
Stainless Steel Threaded Elbow 2 Inch Stainless Steel Coupling
SS Forged Threaded Tee Stainless Steel Pipe Union
Stainless Steel Full and Half Coupling NPT Stainless Steel Fittings
Stainless Steel Threaded Bush Stainless Steel Half Coupling
Stainless Steel Threaded Fittings Stainless Steel Forged Fittings

ASTM A182 F316 Stainless Steel Full Coupling Applications

ASTM A182 F316 Stainless Steel Full Coupling Applications
  • Gas Processing
  • Pharmaceutical Equipment
  • Specialty Chemicals
  • Power Generation
  • Sea Water Equipment
  • Pharmaceuticals
  • Chemical Equipment
  • Off-Shore Oil Drilling Companies
  • Pulp and Paper Industry
  • Heat Exchangers
  • Condensers
  • Petrochemicals

Searching for

Stainless Steel Forged Fittings Manufacturer in your country? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

Stainless Steel Elbow

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

304 Stainless Steel Socket Weld Fittings

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

Stainless Steel Forged Pipe Fittings

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

Stainless Steel 316 Forged Fittings

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

ANSI B16.11 Forged Fittings

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

SS Forged Fittings

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
