Stainless Steel 316Ti Pipe and ASTM A312 TP316Ti Seamless/ ERW Tube

ASTM A312 TP316Ti Seamless Pipe and SS 316Ti Tubes supplier in Mumbai, India

What is Stainless Steel 316Ti Pipe
Stainless steel 316ti pipe is an austenitic grade stabilized by titanium. The superior chemical concentration of chromium, nickel, and molybdenum gives these pipe grades enhanced corrosion and oxidation resistance properties. These modules showcase outstanding resistance against pitting in chloride and sulfur-reducing environments. They offer good creep and stress rupture properties and have good tolerance to sensitization in temperatures up to 900 degrees F. The good strength coupled with superior mechanical properties allows the pipes of this grade to work in different systems.

Difference Between 316ti Stainless Steel Pipe And Tube
Pipes and tubes form an important component of the 316Ti stainless steel grade. These components can be distinguished from each other based on certain features.

A stainless steel 316ti pipe is available in a circular or round shape only. A tube in the 316ti stainless steel grade can be shaped in the form of a square, circle, and rectangular shapes.
SS 316ti pipe is designed with a nominal diameter and schedule number. SS 316ti tube is generally available with outside diameter and wall thickness.
Pipes accommodate larger applications, while tubes are used in smaller diameter applications.

What is ASTM A312 TP316Ti vs SA 312 TP 316Ti Pipe?
ASTM A312 TP316Ti and SA 312 TP 316Ti Pipe material are nearly identical to each other; however, both have minor differences. An ASTM grade cover shapes, sizes, and structural qualities, while SA grade publishes design codes and standards for different pressure-rated applications.

ASTM A312 TP316Ti Seamless and Welded Pipe
ASTM A312 TP316Ti grade is designed with seamless and welded configurations. Both these types of components can be distinguished based on certain features.

ASTM A312 TP316Ti welded pipes are designed by welding pieces of sheet or strip together using different welding procedures. A seamless pipe or tube in this grade is manufactured by passing hot steel billets through extruded metal.
Welded pipe grades are cheaper to produce when compared to standard seamless grades in this grade.
SS 316ti seamless components have 20% higher load-bearing capacity and strength when compared to items of welded configurations.

Table of Content

Stainless Steel 316Ti Pipe Specification And Grade
SS 316Ti Seamless Pipe Chemical Structure
Stainless Steel 316Ti Tube Mechanical Properties Table
316Ti SS Welded Pipe Equivalent Grades
ASTM A312 TP 316Ti ERW Pipe Physical Properties
Marking On SA 312 TP 316Ti Schedule 40 Pipe
Tensile and Yield Strength of 316Ti Stainless Steel Seamless Tubing
Elevated Temperature of ASME SA 312 Grade 316Ti Round Pipe
Creep Properties of UNS S316Ti00 Pipe
WNR. 1.4571 Tube Applications

Types of ASTM A312 Gr TP 316Ti Polished Pipe
AISI 316Ti Pipe Pressure Rating Chart
316Ti Stainless Steel Exhaust Pipe Melting Point
SS grade 1.4571 Pipe Material Weight Chart
1.4571 SS 316Ti SCH 10 Pipes Size
ASTM A312 TP316Ti Material Processing / Welding
ASTM A312 Grade TP316Ti Tubing Schedule Chart
ASTM A312 Gr TP316Ti Seamless Pipe Pressure Gauge
Characteristics of A312 TP316Ti Pipes
Stainless Steel 316Ti Tube Price list
Inventory of A312 TP 316Ti Material

View UNS S31635 Seamless Tube and 316Ti Stainless Steel Tubing specifications, chemical / mechanical properties and pressure rating chart.

Stainless Steel 316Ti Pipe Specification And Grade

Specification and Grade	ASTM/ ASME A 312/ SA 312
Pipes Sch.	Schedule120, Schedule80, Schedule40, Schedule30, Schedule20, XS, STD, Schedule160, Schedule60, XXS, Schedule80, Schedule140
Outside Diameter (OD)	1/8" To 30″NB Inch
Different Types	LSAW/ ERW / Welded /Seamless / Fabricated Pipes
Dimension Table	ASTM, ASME and API
most popular for	Stainless Steel 316 Large Diameter Pipe
Available Sizes	1/2″ NB to 16″ NB
common Pipes length	Single Random & Double Random, Cut Length
erw pipes Sizes Metric	1/2″ NB to 24″ NB
Pipes End Types	Plain End, Beveled End, Theaded
Sizes Available of efw pipes	6″ NB to 100″ NB
basic Form of pipes	Hydraulic, Round Form Etc

SS 316Ti Seamless Pipe Chemical Structure

ELEMENT	MIN	MAX
Mo	2	3
Fe	Balance
C	-	0.08
Si	-	0.75
Ni	10	14
Mn	-	2
N	-	0.1
P	-	0.45
Ti	5x%(C+N)
S	-	0.03
Cr	16	18

Stainless Steel 316Ti Tube Mechanical Properties Table

TEMPER	ANNEALED
R.p. 0.2% Yield	30	ksi (min)
Tensile Rm	75	ksi (min)
R.p. 0.2% Yield	205	MPa (min)
Tensile Rm	515	MPa (min)
Elongation (2” or 4D gl)	35	% (min)

Exporter of AISI 316Ti Polished Tubing & SA 312 TP 316Ti Schedule 40 Pipe in all sizes, Check 316Ti Seamless Tube and UNS S31635 Round Pipe HS/ IS Code & schedule chart in mm.

316Ti SS Welded Pipe Equivalent Grades

SS Grade	GOST	UNS No	Old British		JIS - Japanese	Euronorm
			BS	En - European		WNR. No	AFNOR
TP 316Ti	08Ch17N13M2T	UNS S31635	320S31	X6CrNiMoTi17-12-2	SUS 316Ti	1.4571	Z6CNDT17‐12

ASTM A312 TP 316Ti ERW Pipe Physical Properties

Thermal Expansion	16.5	μm/μm/°C
Specific Heat (0-100°C)	500	J.kg-1.°K-1
Modulus Elasticity	193	GPa
Electrical Resistivity	7.4	μohm/cm
Thermal Conductivity	14.6	W.m -1.°K-1
Density	7.99	g/cm3

Marking On SA 312 TP 316Ti Schedule 40 Pipe

Material grade
Heat Number
Size
Manufacturer’s name

Tensile and Yield Strength of 316Ti Stainless Steel Seamless Tubing

		PRODUCT FORM
		L	C	TW	H	TS	P
Thickness (mm) Max		160	8	60	12	60	75
Yield Strength	Rp1.0 N/mm2	2354)	2703)	2256)	2603)	2256)	2603)
Yield Strength	Rp0.2 N/mm2	2004)	2403)	1906)	2203)	1906)	2203)
Tensile Strength	Rm N/mm2	500 - 7004)	540 - 6903)	490 - 6906)	540 - 6903)	490 - 690	520 - 6703)

PED approved ASTM A312 TP 316Ti Welded Pipe and Stainless Steel 316Ti Pipe Supplier in India, check 1.4571 SS 316Ti Pipe Dimensions & wall thickness according to ASME B36.19.

Elevated Temperature of ASME SA 312 Grade 316Ti Round Pipe

TEST TEMPERATURE (°F/°C)	TENSILE STRENGTH KSI (MPA)	YIELD STRENGTH 0.2% OFFSET KSI (MPA)	ELONGATION IN 2-INCH GAUGE (%)
200 / 93	75.2 (518)	30.2 (208)	39.5
400 / 204	66.0 (455)	26.0 (179)	28.0
600 / 316	64.2 (443)	23.1 (159)	26.0
800 / 427	62.7 (433)	21.2 (146)	25.0
1000 / 538	61.3 (423)	21.0 (145)	23.0
1200 / 649	54.4 (375)	21.1 (146)	19.5
1400 / 760	37.9 (261)	21.1 (146)	23.0
1600 / 871	22.5 (155)	16.2 (112)	48.0
1800 / 982	11.3 (78)	8.0 (55)	41.0

Creep Properties of UNS S316Ti00 Pipe

1% Elongation1) for		Rupture2) for
Temperature °C	1,000 h N/mm2	10,000 h N/mm2	10,000 h N/mm2	100,000 h N/mm2	1,000 h N/mm2
800	18	18	10	7	35
600	100	130	90	80	170
900	10	8.5	4	3	15
700	45	40	30	18	80

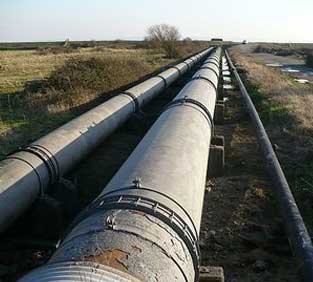

WNR. 1.4571 Tube Applications

Retorts, muffles, annealing cover
Kilns
Radiant Tubes
Saggers
Heat Exchangers
Food processing equipment
Coal gasifier internal component
Conveyor belts, oven linings, furnace parts, rollers, fans

AISI 316Ti Pipe Pressure Rating Chart

Pipe Size (inches)	Pipe Schedule	Temperature (°F)
Pipe Size (inches)	Pipe Schedule	100	200	300	400	500	600	650	700	750
4"	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
1"	40	3048	2629	2362	2171	2019	1924	1867	1824	1810
5"	40	1342	1158	1040	956	889	847	822	805	797
1"	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
8"	40	1073	926	832	765	711	678	657	644	637
1"	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
4"	40	1531	1321	1187	1091	1014	967	938	919	909
1.5"	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
5"	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
1.5"	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
4"	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
1.5"	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
6"	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
2"	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
8"	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
2"	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
8"	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
2"	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
10"	40	974	840	755	694	945	615	596	584	578
3"	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
10"	80	1609	1388	1247	1147	1066	1016	986	966	956
3"	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
3"	160	3840	3312	2976	2736	2544	2424	2352	2304	2280
5"	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
6"	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
6"	40	1219	1052	945	869	808	770	747	732	724
10"	160	3147	2714	2439	2242	2085	1986	1927	1880	1868

316Ti Stainless Steel Exhaust Pipe Melting Point

Stainless Steel 316Ti seamless tube

Melting Point (Deg F): 2650

SS grade 1.4571 Pipe Material Weight Chart

Nominal size [inches]	Wall thickness [inches]	Wall thickness [mm]	Outside diameter [inches]	Outside diameter [mm]	Weight [lb/ft]	Weight [kg/m]
1/8	0.095	2.41	0.405	10.3	0.31	0.47
1/4	0.119	3.02	0.54	13.7	0.54	0.8
1/2	0.147	3.73	0.84	21.3	1.09	1.62
3/4	0.154	3.91	1.05	26.7	1.47	2.2
1	0.179	4.55	1.315	33.4	2.17	3.24
1 1/4	0.191	4.85	1.66	42.2	3	4.47
1 1/2	0.2	5.08	1.9	48.3	3.63	5.41
2	0.218	5.54	2.375	60.3	5.02	7.48
2 1/2	0.276	7.01	2.875	73	7.66	11.41
3	0.3	7.62	3.5	88.9	10.25	15.27
3 1/2	0.318	8.08	4	101.6	12.5	18.63
4	0.337	8.56	4.5	114.3	14.98	22.32
5	0.375	9.53	5.563	141.3	20.78	30.97
6	0.432	10.97	6.625	168.3	28.57	42.56
8	0.5	12.7	8.625	219.1	43.39	64.64
10	0.594	15.09	10.75	273	64.43	96.01
12	0.688	17.48	12.75	323.8	88.63	132.08
14	0.75	19.05	14	355.6	106.13	158.1
16	0.844	21.44	16	406.4	136.61	203.53
18	0.938	23.83	18	457	170.92	254.55
20	1.031	26.19	20	508	208.87	311.17
24	1.125	30.96	24	610	296.58	442.08

1.4571 SS 316Ti SCH 10 Pipes Sizes

Marine grade 316Ti Stainless Steel Tubing Size In Inch

OD mm	Sch	WT mm	Kg/m	in.
13.72	10S	1.65	0.50	1/4
13.72	40S	2.24	0.64	1/4
13.72	80S	3.02	0.81	1/4
17.15	10S	1.65	0.64	3/8
17.15	40S	2.31	0.86	3/8
17.15	80S	3.20	1.12	3/8
21.34	10S	2.11	1.02	1/2
21.34	40S	2.77	1.29	1/2
21.34	80S	3.73	1.65	1/2
26.67	10S	2.11	1.30	3/4
26.67	40S	2.87	1.71	3/4
26.67	80S	3.91	2.23	3/4
33.40	10S	2.77	2.13	1
33.40	40S	3.38	2.54	1
33.40	80S	4.55	3.29	1
33.40	160	6.352)	4.30	1
42.16	10S	2.77	2.73	1¼
42.16	40S	3.56	3.44	1¼
42.16	80S	4.85	4.53	1¼
42.16	160	6.352)	5.69	1¼
48.26	10S	2.77	3.16	1½
48.26	40S	3.68	4.11	1½
48.26	80S	5.08	5.49	1½
60.33	10S	2.77	3.99	2
60.33	40S	3.91	5.52	2
60.33	80S	5.54	7.60	2
60.33	160	8.742)	11.29	2
73.03	10S	3.05	5.35	2½
73.03	40S	5.16	8.77	2½
73.03	80S	7.01	11.59	2½
88.90	10S	3.05	6.56	3
88.90	40S	5.49	11.47	3
88.90	80S	7.62	15.51	3
88.90	160	11.132)	21.67	3
101.60	10S	3.05	7.53	3½
101.60	40S	5.74	13.78	3½
101.60	80S	8.08	18.92	3½
114.30	10S	3.05	8.50	4
114.30	40S	6.02	16.32	4
114.30	80S	8.56	22.67	4
114.30	160	13.492)	34.05	4
141.30	40S	6.55	22.10	5
141.30	80S	9.53	31.44	5
141.30	160	15.882)	49.87	5
168.28	10S	3.4	14.04	6
168.28	40S	7.11	28.69	6
168.28	80S	10.97	43.21	6
168.28	120	14.27	54.75	6
168.28	160	18.262)	68.59	6
219.08	40S	8.18	43.20	8
219.08	80S	12.7	65.63	8
219.08	120	18.23	91.30	8
219.08	160	23.012)	112.97	8

316Ti Tube Heat Exchanger Sizes In Mm

Wall Thickness	Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"

High quality SS grade 1.4571 Thin Wall Pipe in cut to length, and Get ASTM A312 TP 316Ti Welded Pipe in various OD and schedule including Sch-5S, 10S, 40S.

ASTM A312 TP316Ti Material Processing / Welding

Coefficient of linear thermal expansion 10-6 K-1 between 20°C and 100°C

200°C	15.5
400°C	17.0
600°C	17.5
800°C	18.5
1000°C	19.0

Buy Sumitomo, Sandvik, AISI 316Ti Polished Pipe and jindal 316ti pipe at lowest price and we supply SS 316Ti Tubes & ASTM A312 TP 316 Ti Seamless Pipe according to ASME/ ASTM, standards

ASTM A312 Grade TP316Ti Tubing Schedule Chart

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

ASTM A312 Gr TP316Ti Seamless Pipe Pressure Gauge

Pipes O.D. (in.)	Wall Thickness of Pipes/Tubes (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
3/8		3100	4400	6100
1/8	7900	10100
3/4			2200	3000	4000	4600
1/4	3700	4800	7000	9500
1				2200	2900	3400	3900	4300
5/16		3700	5400	7300
1/2		2300	3200	4400

Fractional Sizes of Maximum Allowable Working Pressure (Psi)

Pipes OD	Wall Thickness (Inches)
Pipes OD	.010	.012	.016	.020	.028	.035	.049	.065	.083	.095	.109	.120
3/8						3,530	5,107	7,029
1/16	6,422	7,872	10,768	13,484
1/2						2,595	3,721	5,078	6,699
1/8				6,422	9,325	11,823
5/8						2,051	2,927	3,970	5,200	6,056
3/16				4,081	5,935	7,630	11,005
7/8						1,446	2,051	2,764	3,592	4,161	4,842	5,391
1/4					4,305	5,518	8,053	10,946
1						5,040	7,140	9,595	12,445	14,390	16,715	18,585
3/4						1,696	2,412	3,259	4,249	4,933	5,755	6,422

Metric Sizes of Maximum Allowable Working Pressure (Bar)

Pipes OD	Wall Thickness (Inches)
Pipes OD	0.5	0.6	0.7	0.8	1.0	1.2	1.5	1.6	1.8	2.0	2.2	2.5	3.0
12				169	215	262	335	360	411	464
3	464	567	672	775	965
14					182	222	282	303	345	389	433	500	612
4	335	411	491	567	723	873
16					158	192	244	262	298	335	372	430	528
6			310	360	464	567	723	775
18					140	169	215	230	262	294	326	377	464
8			227	262	335	411	528	567
22					113	137	173	186	211	236	262	301	369
10				206	262	320	411	442
25					99	120	152	162	184	206	228	262	320

Characteristics of A312 TP316Ti Pipes

Strength and toughness at cryogenic temperatures
Moderate strength at high temperature
Resistance to hot corrosion
Oxidation resistance to 2000°F

Stainless Steel 316Ti Tube Price list

Price of ASTM A312 TP316Ti Stainless Steel Pipe Supplier	Nominal Pipe Size	Overall Length	Price Stainless Steel 316Ti Pipe Manufacturer in India (INR)	Grade 316Ti Stainless Steel Pipe / Tube Price in USD	ASTM A312 TP316Ti ERW Pipe Price in UAE Dirham
316Ti Stainless Steel Seamless Pipes	1/8 in	10 ft	INR 7416.34	$99.00	363.62 UAE Dirham
Stainless Steel 316Ti Schedule 40 Pipes	1/4 in	10 ft	INR 7940.73	$106.00	1767.22 UAE Dirham
Stainless Steel DIN 1.4404 Welded Pipes	3/8 in	10 ft	INR 9813.54	$131.00	481.15 UAE Dirham
AISI 316Ti Stainless Steel Pipes	1/2 in	10 ft	INR 10637.58	$142.00	521.55 UAE Dirham
SS 316Ti Pipes	1 1/4 in	10 ft	INR 13034.78	$174.00	639.09 UAE Dirham

Inventory of A312 TP 316Ti Material

Stainless Steel 316Ti Pipes	Stainless Steel 316Ti Tube
Stainless Steel 316Ti Tube	A312 TP 316Ti Material
316Ti SS Welded Pipes	A312 TP316Ti Smls
ASTM A312 TP 316Ti ERW Pipes	2 inch 316Ti Stainless Steel Pipes
SA 312 TP 316Ti Schedule 40 Pipes	A312 Gr TP 316Ti Welded Pipes
316Ti Stainless Steel Seamless Tubing	A312 Type 316Ti ERW Pipes
ASME SA 312 Grade 316Ti Round Pipes	A312 Gr 316Ti Round Pipes
UNS S316Ti00 Pipes	A312 316Ti Pipes
WNR. 1.4571 Tube	Sa-312-316Ti Hollow Pipes
316Ti Stainless Steel Exhaust Pipes	SA312 Type 316Ti Stainless Steel Tube
SS grade 1.4571 Pipes Material	316Ti Stainless Steel Pipes
1.4571 SS 316Ti SCH 10 Pipes	Stainless Steel 316Ti Schedule 40 Tube
Marine grade 316Ti Stainless Steel Tubing	Stainless Steel 316Ti Seamless Pipes
316Ti Tube Heat Exchanger	316Ti Exhaust Tube
ASTM A312 TP316Ti Material	SS 316Ti ERW Pipes
ASTM A312 Grade TP316Ti Tubing	SS 316Ti Pipes
ASTM A312 Gr TP316Ti Seamless Pipes	316Ti Welded Tube
SS 316Ti Tubes	ASTM A312 TP316Ti Seamless Pipe
