ASTM A312 TP317L Seamless Pipe and SS 317L Welded Tube Supplier in India

Stainless Steel 317L Pipe

What is Stainless Steel 317l Pipe and Tube
Stainless steel 317l belongs to a low carbon austenitic grade. The piping modules from this grade possess outstanding chemical composition consisting of nickel, chromium, and molybdenum. The superior content allows these modules to possess enhanced corrosion and oxidation resistance properties across stress-induced environments. 317L pipes work well in reducing aqueous environments. The low carbon grade tubes can be readily welded in place using standard welding procedures. The modules in this grade can be readily hardened following the standard cold-rolling process.

Stainless Steel 317L Seamless vs Welded Pipe
Seamless and welded pipes are the two configurations used to manufacture stainless steel 317l grade. Both these components can be distinguished based on certain features.

  • Stainless steel 317l seamless pipe is designed by passing hot steel billets through the metal grade. Similarly, a stainless steel 317l welded pipe is designed by welding sheets or strips to shape the piping system.
  • SS 317l seamless pipes have superior strength and load-bearing capacity than a SS 317l welded grade.
  • A welded pipe module is cheaper than a seamless pipe configuration.

What is 317L Polished Pipe?
A polished 317L pipe is designed possessing a superior surface finish. These pipes are polished until a point there are no dents or scratches present on the surface of the pipe to ensure enhanced corrosion resistance properties. A polished pipe also exhibits excellent aesthetical appeal when it is used in the system.

ASTM A312 TP317L vs ASME SA312 TP317L pipe
ASTM and ASME are two of the most important standards that are crucial in manufacturing the items in this grade. Both these manufacturing grades can be distinguished by certain factors.

  • ASTM A321 Gr Tp317l pipe covers shapes, sizes, and structural qualities of different piping items. ASME SA312 TP317L pipe comes under a standard that specifies design codes and standards for different pressure-rated applications.
  • An ASME grade covers nearly 600 technical standards. ASTM grade covers approximately 12,000 or more standards.

Exporter & supplier of 317L Stainless Steel Tubing & UNS S31703 ERW Pipe in various sizes and standards, Check SA 312 Stainless Steel Exhaust Tubing for automotive and marine exhaust applications

Stocking distributor of ASTM A312 TP 317L Polished Pipe and SS Grade 1.4438 Hollow Pipes in various sizes and shape, Do not forget to compare our Stainless Steel 317L Pipe with other Manufacturer in India

SS 317L Seamless Pipe Standard Size And Specification

Specifications ASTM/ASME A 312/ SA 312
Size 1/8″NB to 30″NB IN
Dimensions ASME, ASTM and API
Schedule Schedule20, Schedule30, Schedule40, STD, Schedule80, XS, Schedule60, Schedule80, Schedule120, Schedule140, Schedule160, XXS
SS 317L Pipes 1/2″ NB to 16″ NB
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
ERW 317L Pipes 1/2″ NB to 24″ NB
Form “U” Shape, Custom Pipes, Round Pipes, Hydraulic Pipes
EFW 317L Pipes 6″ NB to 100″ NB
End Beveled End, Plain End, Treaded
Length Double Random, Single Random, & Cut Length.

ASTM A312 TP 317L Welded Pipe Chemical Compatibility

Grade S C Mo Mn Cr Si Ni P N
317L min. 3.0-4.0 18.0 11.0
max. 0.030 0.08 2.0 20.0 1.0 15.0 0.040

Stainless Steel Grade 317L Pipe Mechanical Behaviour

Grade Elongation (% in 50mm) min Tensile Properties (MPa) min 0.2% Proof, Yield Properties (MPa) min Hardness
(HR B) Rockwell B max (HB) Brinell max
317L 35 515 205 75 205

Alloy 317L Pipe Physical Propeerties

Grade (J/kg.K) Specific Heat 0-1000C (kg/m3) Density (GPa) Elastic Modulus (m/m/0C) Mean Coeff. of Thermal Expansion (n.m) Electrical Resistivity (W/m.K) Thermal Conductivity
0-3150C 0-1000C 0-5380C at 5000C at 1000C
317L 500 8000 193 16.2 15.9 17.0 740 18.7 14.2

Equivalent Material Of Stainless Steel 317L Pipe

STANDARD JIS WERKSTOFF NR. GOST UNS EN BS AFNOR
SS 317L SUS 317L 1.4438 S31703 X2CrNiMo18-15-4
We stock Stainless Steel 317L Pipe and 1.4438 SS 317L Schedule 40 Pipe as per ASME B36.19. Stockholder & distributor of UNS S31703 Seamless Pipe in 3 meter/ 6 meter or custom length, check Weight, Sizes and Dimensions.

317L Stainless Steel Tubing Applications

WNR. 1.4401 Tube Applications
  • Retorts, muffles, annealing cover
  • Kilns
  • Radiant Tubes
  • Saggers
  • Heat Exchangers
  • Food processing equipment
  • Coal gasifier internal component
  • Conveyor belts, oven linings, furnace parts, rollers, fans

SA 312 TP 317L Seamless Tube Pressure Gauge

Pipes O.D.
(in.)
Wall Thickness of Pipes/Tubes (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
3/8 3100 4400 6100
1/8 7900 10100
3/4 2200 3000 4000 4600
1/4 3700 4800 7000 9500
1 2200 2900 3400 3900 4300
5/16 3700 5400 7300
1/2 2300 3200 4400

Fractional Sizes of Maximum Allowable Working Pressure (Psi)

Pipes OD Wall Thickness (Inches)
.010 .012 .016 .020 .028 .035 .049 .065 .083 .095 .109 .120
3/8 3,530 5,107 7,029
1/16 6,422 7,872 10,768 13,484
1/2 2,595 3,721 5,078 6,699
1/8 6,422 9,325 11,823
5/8 2,051 2,927 3,970 5,200 6,056
3/16 4,081 5,935 7,630 11,005
7/8 1,446 2,051 2,764 3,592 4,161 4,842 5,391
1/4 4,305 5,518 8,053 10,946
1 5,040 7,140 9,595 12,445 14,390 16,715 18,585
3/4 1,696 2,412 3,259 4,249 4,933 5,755 6,422

Metric Sizes of Maximum Allowable Working Pressure (Bar)

Pipes OD Wall Thickness (Inches)
0.5 0.6 0.7 0.8 1.0 1.2 1.5 1.6 1.8 2.0 2.2 2.5 3.0
12 169 215 262 335 360 411 464
3 464 567 672 775 965
14 182 222 282 303 345 389 433 500 612
4 335 411 491 567 723 873
16 158 192 244 262 298 335 372 430 528
6 310 360 464 567 723 775
18 140 169 215 230 262 294 326 377 464
8 227 262 335 411 528 567
22 113 137 173 186 211 236 262 301 369
10 206 262 320 411 442
25 99 120 152 162 184 206 228 262 320

List Of ASME SA312 Stainless Steel 317L Cold Drawn Pipes Types

SS 317L Seamless Pipe
SS 317L Seamless Pipe
SS 317L Seamless Pipe
ASTM A312 TP 317L Welded Pipe
ASTM A312 TP 317L Welded Pipe
ASTM A312 TP 317L Welded Pipe
Stainless Steel Grade 317L Pipe
Stainless Steel Grade 317L Pipe
Stainless Steel Grade 317L Pipe
Stainless Steel 317L Hot Rolled Pipes
Stainless Steel 317L Hot Rolled Pipes
Stainless Steel 317L Hot Rolled Pipes
SS 317L Hollow Pipes
SS 317L Hollow Pipes
SS 317L Hollow Pipes
Inox 317L Tube
Inox 317L Tube
Inox 317L Tube
ASTM A358 TP 317L EFW Pipes
ASTM A358 TP 317L EFW Pipes
ASTM A358 TP 317L EFW Pipes
SS 317L Tubing
SS 317L Tubing
SS 317L Tubing
317L Stainless Steel LSAW Pipes
317L Stainless Steel LSAW Pipes
317L Stainless Steel LSAW Pipes

SS 317L UNS S31700 ERW Tubes Pressure Rating Chart

Pipes Size
(inches)
Pipes Schedule Temperature (°F)
100 200 300 400 500 600 650 700 750
4" 80 2213 1909 1715 1577 1466 1397 1355 1328 1314
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
5" 40 1342 1158 1040 956 889 847 822 805 797
1" 80 4213 3634 3265 3002 2791 2659 2580 2528 2501
8" 40 1073 926 832 765 711 678 657 644 637
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
4" 40 1531 1321 1187 1091 1014 967 938 919 909
1.5" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
5" 80 1981 1709 1535 1411 1312 1250 1213 1189 1176
1.5" 80 3182 2744 2466 2267 2108 2009 1949 1909 1889
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
1.5" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
6" 80 1913 1650 1483 1363 1267 1208 1172 1148 1136
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
2" 80 2747 2369 2129 1957 1820 1734 1682 1648 1631
8" 80 1692 1459 1311 1205 1121 1068 1036 1015 1005
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
10" 40 974 840 755 694 945 615 596 584 578
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
10" 80 1609 1388 1247 1147 1066 1016 986 966 956
3" 80 2553 2202 1979 1819 1691 1612 1564 1532 1516
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
6" 40 1219 1052 945 869 808 770 747 732 724
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868

Stainless Steel 317L Tube Weight Chart

Nominal size [inches] W.T [inches] W.T [mm] O.D [inches] O.D [mm] Weights [lbs / ft] Weights [kg / meter]
1/8 0.095 2.41 0.405 10.3 0.31 0.47
1/4 0.119 3.02 0.54 13.7 0.54 0.8
1/2 0.147 3.73 0.84 21.3 1.09 1.62
3/4 0.154 3.91 1.05 26.7 1.47 2.2
1 0.179 4.55 1.315 33.4 2.17 3.24
1 1/4 0.191 4.85 1.66 42.2 3 4.47
3 1/2 0.318 8.08 4 101.6 12.5 18.63
1 1/2 0.2 5.08 1.9 48.3 3.63 5.41
2 0.218 5.54 2.375 60.3 5.02 7.48
4 0.337 8.56 4.5 114.3 14.98 22.32
2 1/2 0.276 7.01 2.875 73 7.66 11.41
3 0.3 7.62 3.5 88.9 10.25 15.27
5 0.375 9.53 5.563 141.3 20.78 30.97
6 0.432 10.97 6.625 168.3 28.57 42.56
8 0.5 12.7 8.625 219.1 43.39 64.64
10 0.594 15.09 10.75 273 64.43 96.01
12 0.688 17.48 12.75 323.8 88.63 132.08
14 0.75 19.05 14 355.6 106.13 158.1
16 0.844 21.44 16 406.4 136.61 203.53
18 0.938 23.83 18 457 170.92 254.55
20 1.031 26.19 20 508 208.87 311.17
24 1.125 30.96 24 610 296.58 442.08

ASTM A 312 317L SS Cold Rolled Pipes Sizes

317L Stainless Steel Pipe Pipe Size In Inch

OD
mm
Sch WT
mm
Kg/m in.
13.72 10S 1.65 0.50 1/4
13.72 40S 2.24 0.64 1/4
13.72 80S 3.02 0.81 1/4
17.15 10S 1.65 0.64 3/8
17.15 40S 2.31 0.86 3/8
17.15 80S 3.20 1.12 3/8
21.34 10S 2.11 1.02 1/2
21.34 40S 2.77 1.29 1/2
21.34 80S 3.73 1.65 1/2
26.67 10S 2.11 1.30 3/4
26.67 40S 2.87 1.71 3/4
26.67 80S 3.91 2.23 3/4
33.40 10S 2.77 2.13 1
33.40 40S 3.38 2.54 1
33.40 80S 4.55 3.29 1
33.40 160 6.352) 4.30 1
42.16 10S 2.77 2.73
42.16 40S 3.56 3.44
42.16 80S 4.85 4.53
42.16 160 6.352) 5.69
48.26 10S 2.77 3.16
48.26 40S 3.68 4.11
48.26 80S 5.08 5.49
60.33 10S 2.77 3.99 2
60.33 40S 3.91 5.52 2
60.33 80S 5.54 7.60 2
60.33 160 8.742) 11.29 2
73.03 10S 3.05 5.35
73.03 40S 5.16 8.77
73.03 80S 7.01 11.59
88.90 10S 3.05 6.56 3
88.90 40S 5.49 11.47 3
88.90 80S 7.62 15.51 3
88.90 160 11.132) 21.67 3
101.60 10S 3.05 7.53
101.60 40S 5.74 13.78
101.60 80S 8.08 18.92
114.30 10S 3.05 8.50 4
114.30 40S 6.02 16.32 4
114.30 80S 8.56 22.67 4
114.30 160 13.492) 34.05 4
141.30 40S 6.55 22.10 5
141.30 80S 9.53 31.44 5
141.30 160 15.882) 49.87 5
168.28 10S 3.4 14.04 6
168.28 40S 7.11 28.69 6
168.28 80S 10.97 43.21 6
168.28 120 14.27 54.75 6
168.28 160 18.262) 68.59 6
219.08 40S 8.18 43.20 8
219.08 80S 12.7 65.63 8
219.08 120 18.23 91.30 8
219.08 160 23.012) 112.97 8

Stainless Steel 317L Hot Rolled Pipes Tube Sizes In Mm

Wall Thickness Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

Inox 317L Pipe Schedule Chart

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

TP 317L SS EFW Pipes Available Type Price

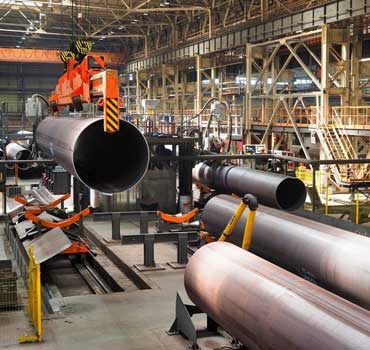

AiSi ASTM A312 SS 317L Price 3mm Thickness

$1.60 / Kilogram

AiSi ASTM A312 SS 317L Price 3mm Thickness

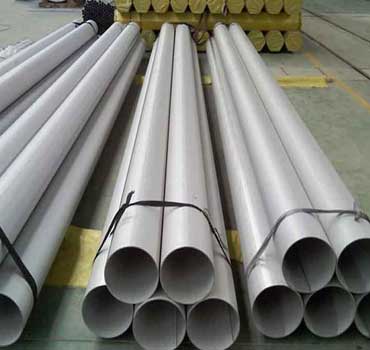

317L stainless steel tube ASTM 12M STELL PIPE ON SALE

$3,250.00 / Ton

317L stainless steel tube ASTM 12M STELL PIPE ON SALE

1/2 inch aisi ss317l stainless steel pipe price

$1.80 / Kilogram

1/2 inch aisi ss317l stainless steel pipe price

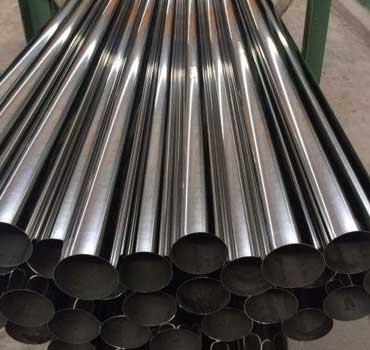

317l 3 inch price thin wall 28 mm diametere aisi Stainless steel

$1,200.00 / Ton

317l 3 inch price thin wall 28 mm diametere aisi Stainless steel

aisi 317l tube 1 meter diameter 1 inch

$1,020.00 / Ton

aisi 317l tube 1 meter diameter 1 inch

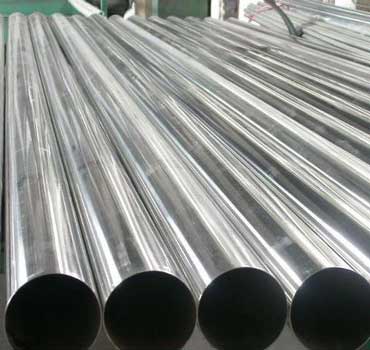

ASTM 6mm 317l stainless steel seamless pipe price

$1,200.00 / Ton

ASTM 6mm ID 317l stainless steel seamless pipe price

Looking for SS 317L Pipe Suppliers? Best quality and lowest price of ASTM A312 TP 317L Seamless Tubing and AISI 317L Pipe in Mumbai. Stainless Steel Grade 317L Round Tube in Schedule 40/ 80 wall thickness

Stock of Austenitic Stainless Steel TP 317L Tubes

SS TP 317L ERW Pipe SS Werkstoff nr. 1.4438 Welded Pipes
SS 317L Welded Pipe SS 317L Hollow Pipes
ASTM A213 SS 317L Round Pipes DIN 1.4438 Tube
ASTM A312 TP 317L Welded Pipe 317L Steel Hexagonal Pipes
AISI / JIS SS 317L Pipes ASTM A358 TP 317L EFW Pipes
Stainless Steel Grade 317L Pipe Austenitic Stainless Steel TP 317L Tubes
Stainless Steel TP 317L Pipes SS 317L Tubing
Alloy 317L Pipe SS 317L Seamless Tubing
ASME SA312 317L SS Pipes 317L Stainless Steel LSAW Pipes
317L Stainless Steel Tubing Stainless Steel 317L Seamless Pipes
TP 317L SS EFW Pipes TP317L Stainless Steel Seamless Pipe
SA 312 TP 317L ERW Tube Stainless Steel 317L Tubing
ASME SA312 Stainless Steel 317L Cold Drawn Pipes SS UNS S31703 Pipes
SS 317L UNS S31700 ERW Tubes Stainless Steel 317L Tube
ASTM A 312 317L SS Cold Rolled Pipes UNS S31703 Pipe
DIN 1.4438 317L Welded Tubing UNS S31703 Tube
ASME SA312 SS 317L Welded Pipe Stainless Steel 317L Welded Pipes
SS TP 317L Tube Inox 317L Tube
Stainless Steel 317L Hot Rolled Pipes ASTM A312 TP 317L Welded Tubes
ASME SA312 TP317L Tubing Inox 317L Pipe
ASTM A312 SS TP 317L Pipes SS 317L Pipe
Stainless Steel 317L Seamless Pipe 317L Stainless Steel Pipe
317L SS Pipes DIN 1.4438 Tube
SA 312 Stainless Steel Exhaust Tubing 317l SS Tubing
Stainless Steel 317L Welded Pipe ASTM A312 Stainless Steel TP317L Seamless Tubing

Searching for

Stainless Steel 3127L Pipe supplier in your country? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

ASTM A312 TP 317L Welded Pipe

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

Stainless Steel Grade 317L Pipe

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

317L Stainless Steel Tubing

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

TP 317L SS EFW Pipes

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

ASME SA312 TP317L Tubing

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

AISI / JIS SS 317L Pipes

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
