SS 202 Hollow Pipe and 304 Rectangle Tubing Supplier in Mumbai
Stainless Steel Rectangular Pipe vs Tube
Pipes and tubes are important features of a rectangular grade of stainless steel modules. Both these versatile components can be differentiated based on specific aspects.
- A stainless steel rectangular pipe is always round in shape. A rectangular SS tube can be availed in a square, rectangular and circular cross-section.
- A pipe is ordered based on its schedule number and nominal diameter. A tube grade is based on its outer diameter and wall thickness.
- A pipe grade can accommodate large applications when compared to the small diameters modules that a tube can hold.
- A versatile rectangular tube is stronger and more robust than a standard rectangular pipeA.

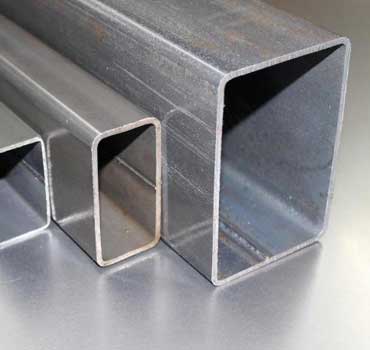

316 Vs 304 Stainless Steel Rectangular Tube
Stainless steel 316 and 304 are two of the most used stainless steel grades. Both this grades have their set of similarities and differences that sets them apart.
- A stainless steel 316 rectangular tubing is designed with a minimum chemical concentration of 16% chromium, 10% nickel, and 2% molybdenum. Similarly, a rectangular 304 has a chemical content of 18% chromium and 8% nickel.
- The presence of molybdenum in the 316 grade gives the rectangular tubing enhanced tolerance to pitting by acids in marine environments, which the 304 grade tubes are susceptible to.
- SS 304 rectangular tube is cheaper than a SS 316 tubing.
What Is Polished Stainless Steel Rectangular Tubing?
A polished stainless steel rectangular tubing is a bright and shiny aesthetically appealing piece of piping material. These modules are polished till the time they don’t showcase the presence of any ridges or scratches to eliminate any build-up of corrosion on the feature.
How Is Stainless Steel Box Tubing Made?
Stainless steel box tubing is generally produced by creating a round tube followed by shaping it into the appropriate shapes. Here the material is machined, cut, and then welded in place using different methods.
Table of Content
Stainless Steel Rectangular Structural Tubing Specification
| Sizes | 12.75 X 25.4, 10 X 20, 10 X 30, 20 X 40, 15 X 30, 20 x 50, 20 x 60, 25 X 50, 40 X 60, 45 X 75, 40 X 80, 50 X 100 |
|---|---|
| Finish | Polished Grit 120 - 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1 milimeter,Mirror Polished |
| Grade | TP - 316L, 304L, 304, 316, 201 |
| Length Tolerance | Fix Length: from 1200 milimeter up to 12000 milimeter with a tolerance up to -0/+ 5mm Commercial Length: 6000 mm +/- 30 mm |
| Standards | A358 - A790 - A312 - A409 - A778 - A554 - A789 |
Buy Rectangular Steel Pipe and SS Grade 202 Rectangular Tube at factory price in India,.Check 304 Stainless Steel Rectangular Tube Dimension and Austenitic Stainless Steel Welded Rectangular Pipe Weight chart
SS Rectangular Pipe Chemical Composition
| STAINLESS STEEL PIPE GRADES | S | UNS | Si | C | Ni | Mn | Mo | P | Nb | Cr | Ti | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TP304 | 0.03 | S30400 | 1 | 0.08 | 8.0-11.0 | 2 | 0.045 | 18.0-20.0 | ||||
| TP304L | 0.03 | S30403 | 1 | 0.035 | 8.0-13.0 | 2 | 0.045 | 18.0-20.0 | ||||
| TP316 | 0.03 | S3160 | 1 | 0.08 | 11.0-14.0 | 2 | 2.0-3.0 | 0.045 | 16.0-18.0 | |||
| TP316L | 0.03 | S31603 | 1 | 0.035 | 10.0-14.0 | 2 | 2.0-3.0 | 0.045 | 16.0-18.0 |
Rectangular Steel Pipe Mechanical Properties
| Material | Elongation %, Min | Temperure | Heat | Yield Strength | Tensile Strength |
|---|---|---|---|---|---|
| Min. | Treatment | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | 35 | 1900 (1040) | Solution | 30(205) | 75(515) |
| TP304L | 35 | 1900 (1040) | Solution | 25(170) | 70(485) |
| TP316 | 35 | 1900(1040) | Solution | 30(205) | 75(515) |
| TP316L | 35 | 1900(1040) | Solution | 25(170) | 70(485) |

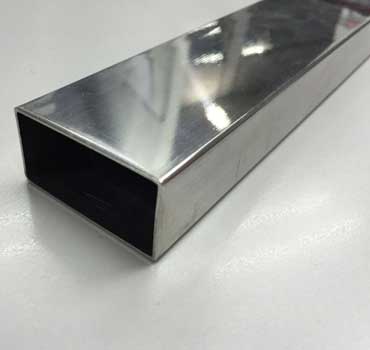

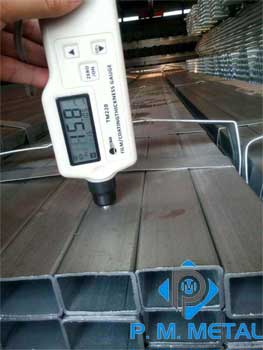

SS Grade 202 Rectangular Tube Guage Chart
Super Ferritic SS 304 Hollow Pipe and 316 Rectangle Tubing Manufacturer in Mumbai, Call Now to Get Stainless Steel Rect Tube Free sample
| GAUGE | TYPICAL VALUE (INCHES) | THICKNESS RANGE(INCHES) |
|---|---|---|
| 15 | 0.072 | 0.066 - 0.074 |
| 22 | 0.028 | 0.025 - 0.029 |
| 14 | 0.083 | 0.075 - 0.085 |
| 20 | 0.035 | 0.031 - 0.035 |
| 13 | 0.095 | 0.087 - 0.097 |
| 19 | 0.042 | 0.038 - 0.042 |
| 11 | 0.12 | 0.112 - 0.122 |
| 18 | 0.049 | 0.044 - 0.049 |
| 9 | 0.148 | 0.140 - 0.150 |
| 17 | 0.058 | 0.053 - 0.058 |
| 8 | 0.165 | 0.157 - 0.167 |
| 16 | 0.065 | 0.060 - 0.065 |
| 10 | 0.134 | 0.126 - 0.136 |
| 12 | 0.109 | 0.101 - 0.111 |
| 7 | 0.18 | 0.175 - 0.185 |

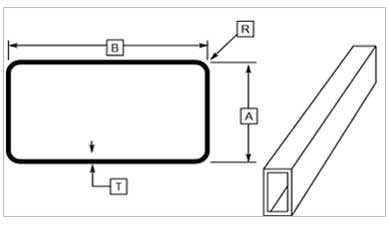

Stainless Steel Rectangular Box Section Sizes
| Wall Thickness | SS Rectangular Tube Sizes ( O.D.) |
|---|---|
| .065 | 1-5/8" ,16" ,5/16" ,2" ,1/2" ,1-3/4" ,3/4" ,1 1/2" ,1/4" 7/8" ,3" ,2 1/2" ,5/8" ,1 1/4" ,3/8" ,1" |
| .010 | 3/16" ,1/8" , 1/16" |
| .083 | 3/4" ,7/8" ,3" ,2 1/2" ,1/4" ,1" ,1 1/2" ,1/2" ,3/8" ,5/8" ,1 1/4" ,1 7/8" ,1 5/8" ,2" |
| .020 | 5/16" ,3/16" ,3/8" ,1/16" ,1/8" ,1/4" |
| .095 | 1 1/2" ,1 1/4" ,1/2" , 5/8" ,2" ,1" |
| .012 | 1/8" |
| .109 | 2" ,1/2" ,1 1/4" ,3/4" ,1" ,1 1/2" |
| .016 | 3/16" ,1/8" |
| .120 | 3" ,7/8" ,2" ,3/4" ,1 1/4" ,2 1/4" ,2 1/2" ,1" ,1/2" ,1 1/2" ,5/8" |
| .028 | 1/4" ,1" 1/8" ,3/8" ,3/16" ,1 1/2" ,5/16" ,3/4" ,1/2" ,2" |
| .125 | 3/4" ,3 1/4" ,1 1/4" ,1" ,1 1/2" ,2" ,3" |
| .035 | 5/16" ,5/8" ,2 1/4" ,1 1/4" ,1/2" ,3/8" ,1 5/8" ,1" ,1/4" ,1/8" ,7/16" ,2" ,3/4" ,16" ,1 1/2" ,7/8" ,3/16" |
| .250 | 3" |
| .049 | 3/16" ,2 1/4" ,1 1/4" ,3/4" ,1 1/8" ,7/8" ,5/16" ,1" ,5/8" ,1/4" ,16" ,1 1/2" ,1 5/8" ,1/2" ,2" ,3/8" |
| .134 | 1" |
| .375 | 3 1/2" |
Machine Technical Parameters For Square Tube Cutter
| Item | Parameters |
|---|---|
| Cutting method | flame/plasma |
| Square pipe cutting diameter | 80-400mm |
| Flame cutting pipe wall thickness | Vertical cutting 6~60mm bevel cutting 6-40mm |
| Plasma cutting tube wall thickness | Vertical cutting 1 ~ 25mm bevel cutting 6-18mm |
| Effective cutting workpiece length | 12000mm |
| Moving speed | 10~ 6000 mm/min |
| Cutting speed | 10~ 200m/min |
| Required workpiece ovality | ≤1% |
| Axial swing angle of cutting torch | α=±65° |
| Radial swing angle of cutting torch | β=±65° |
| Acceptable ambient temperature | -20C -50C |
| Chuck properties | Manual 3-jaw linkage self-centering |
| Cutting precision implementation standard | According to international standards IS09013-2002 and IS08206-1991 |
| Cutting length accuracy | Soil 1.5mm |
| Manual chuck tightening device | 1 set |
| Frequency | 5012 /601Z |
| Weight of pipe to be cut | 5000KG |

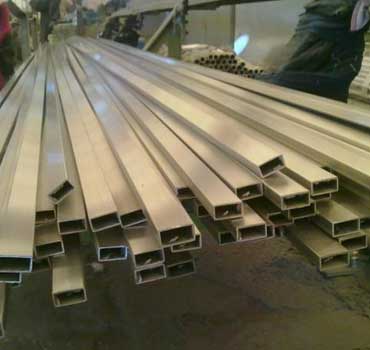

ERW 304 Stainless Steel Rectangular Tube Tolerance
| NPS Designator | Permissible Variations in Outside Diameter | |
|---|---|---|
| Over In. | Under In. | |
| Over 4 to 8, incl | 1/16 (0.062) | 1/32 (0.031) |
| 1/8 to 1-1/2, incl | 1/64 (0.015) | 1/32 (0.031) |
| Over 8 to 18, incl | 3/23 (0.093) | 1/32 (0.031) |
| Over 1-1/2 to 4, incl | 1/32 (0.031) | 1/32 (0.031) |
Stainless Steel Rectangular Pipe Weight Chart
| NPS | Wall Thickness | Outside Diameter | Stainless Steel Rectangular Pipe Weight Calculator | Stainless Steel Rectangular Tubing Weight Per Foot | |||
|---|---|---|---|---|---|---|---|
| inch | milimeter | inch | milimeter | kg/Mtr | Sched | Lb/ft | |
| 1/2″ | 0.147 | 3.734 | 1.621 | 80 STD | 1.088 | ||
| 0.109 | 2.769 | 0.840 | 21 | 1.268 | 40 STD | 0.851 | |
| 3/4″ | 0.113 | 2.870 | 1.050 | 27 | 1.684 | 40 STD | 1.131 |
| 0.154 | 3.912 | 2.195 | 80 STD | 1.474 | |||
| 1″ | 0.179 | 4.547 | 3.325 | 80 STD | 2.172 | ||
| 0.133 | 3.378 | 1.315 | 33 | 2.501 | 40 STD | 1.679 | |
| 1 1/4″ | 0.140 | 3.556 | 1.660 | 42 | 3.385 | 40 STD | 2.273 |
| 0.191 | 4.851 | 4.464 | 80 STD | 2.997 | |||
| 1 1/2″ | 0.200 | 5.080 | 5.409 | 80 STD | 3.361 | ||
| 0.145 | 3.683 | 1.900 | 48 | 4.048 | 40 STD | 2.718 | |
| 2″ | 0.218 | 5.537 | 7.480 | 80 STD | 5.022 | ||
| 0.154 | 3.912 | 2.375 | 60 | 5.441 | 40 STD | 3.653 | |
| 2 1/2″ | 0.203 | 5.516 | 2.875 | 73 | 8.629 | 40 STD | 5.793 |
| 0.276 | 7.010 | 11.411 | 80 STD | 7.661 | |||
| 3″ | 0.300 | 7.620 | 15.272 | 80 STD | 10.253 | ||
| 0.216 | 5.486 | 3.500 | 89 | 11.284 | 40 STD | 7.576 | |
| 4″ | 0.237 | 6.020 | 4.500 | 114 | 16.073 | 10.790 | |
| 0.337 | 8.560 | 22.318 | 14.983 | ||||
| 6″ | 0.375 | 9.525 | 37.285 | 25.031 | |||
| 0.188 | 4.775 | 6.625 | 168 | 19.252 | 12.924 | ||
| 0.500 | 12.700 | 48.719 | 32.708 | ||||
| 0.203 | 5.516 | 20.739 | 13.923 | ||||
| 0.432 | 10.973 | 42.561 | 80 XHY | 28.573 | |||
| 0.219 | 5.563 | 22.318 | 14.983 | ||||
| 0.312 | 7.925 | 31.334 | 21.036 | ||||
| 0.250 | 6.350 | 25.354 | 17.021 | ||||
| 0.280 | 7.112 | 58.263 | 40 STD | 18.974 | |||
| 8″ | 0.188 | 4.775 | 8.625 | 219 | 25.233 | 16.940 | |
| 0.322 | 8.179 | 42.352 | 40 | 28.554 | |||
| 0.203 | 5.156 | 27.198 | 18.259 | ||||
| 0.406 | 10.312 | 53.085 | 60 | 35.638 | |||
| 0.219 | 5.563 | 29.286 | 19.661 | ||||
| 0.500 | 12.700 | 64.627 | 80 XHY | 43.388 | |||
| 0.250 | 6.350 | 33.308 | 20 | 22.361 | |||
| 0.375 | 9.525 | 49.216 | 33.041 | ||||
| 0.277 | 7.036 | 36.786 | 30 | 24.696 | |||
| 10″ | 0.188 | 4.775 | 10.750 | 273 | 31.588 | 21.207 | |
| 0.500 | 12.700 | 81.530 | 60 XHY | 54.735 | |||
| 0.219 | 5.563 | 36.689 | 24.631 | ||||
| 0.594 | 15.088 | 95.969 | 80 | 64.429 | |||
| 0.250 | 6.350 | 41.759 | 20 | 28.035 | |||
| 0.438 | 11.125 | 71.852 | 48.238 | ||||
| 0.307 | 7.798 | 51.002 | 30 | 34.240 | |||
| 0.365 | 9.271 | 63.301 | 40 STD | 40.483 | |||
| 0.344 | 8.738 | 56.946 | 38.231 | ||||
| 12″ | 0.188 | 4.775 | 12.750 | 324 | 37.570 | 25.222 | |
| 0.375 | 9.525 | 73.824 | 49.562 | ||||
| 0.219 | 5.563 | 43.657 | 29.309 | ||||
| 0.406 | 10.312 | 79.727 | 53.525 | ||||
| 0.250 | 6.350 | 49.713 | 33.375 | ||||
| 0.500 | 12.700 | 97.438 | 65.415 | ||||
| 0.281 | 7.137 | 55.739 | 37.420 | ||||
| 0.562 | 14.275 | 108.966 | 73.154 | ||||
| 0.312 | 7.925 | 61.735 | 41.445 | ||||
| 14″ | 0.188 | 4.775 | 14.000 | 356 | 41.308 | 27.732 | |
| 0.375 | 9.525 | 81.281 | STD | 54.568 | |||
| 0.219 | 5.563 | 48.012 | 32.233 | ||||
| 0.438 | 11.125 | 94.498 | 40 | 63.441 | |||
| 0.250 | 6.350 | 54.685 | 20 | 36.713 | |||
| 0.500 | 12.700 | 107.381 | XHY | 72.090 | |||
| 0.281 | 7.137 | 61.327 | 41.172 | ||||
| 0.625 | 15.875 | 132.983 | 89.278 | ||||
| 0.312 | 7.925 | 67.939 | 45.611 | ||||
| 16” | 0.188 | 4.775 | 16.000 | 406 | 47.290 | 21.748 | |
| 0.344 | 8.738 | 85.677 | 57.519 | ||||
| 0.219 | 5.563 | 54.980 | 36.910 | ||||
| 0.375 | 9.525 | 93.213 | 30 STD |
62.578 | |||
| 0.250 | 6.350 | 62.639 | 10 | 42.053 | |||
| 0.438 | 11.125 | 108.433 | 72.797 | ||||
| 0.281 | 7.137 | 70.268 | 47.174 | ||||
| 0.500 | 12.700 | 123.289 | 40 XHY |
82.770 | |||
| 0.312 | 7.925 | 77.866 | 20 | 52.275 | |||
| 18″ | 0.219 | 5.563 | 18.000 | 457 | 61.948 | 41.588 | |
| 0.438 | 11.125 | 122.369 | 30 | 82.152 | |||
| 0.250 | 6.350 | 70.593 | 47.393 | ||||
| 0.500 | 12.700 | 139.198 | XHY | 93.450 | |||
| 0.281 | 7.137 | 79.208 | 53.176 | ||||
| 0.625 | 15.875 | 172.754 | 115.978 | ||||
| 0.312 | 7.925 | 87.792 | 20 | 58.939 | |||
| 0.562 | 14.275 | 155.904 | 40 | 104.666 | |||
| 0.375 | 9.525 | 105.144 | STD | 70.588 | |||
| 20″ | 0.250 | 6.350 | 20.000 | 508 | 78.547 | 52.733 | |
| 0.594 | 15.088 | 183.378 | 40 | 123.110 | |||
| 0.282 | 7.163 | 88.458 | 59.386 | ||||
| 0.625 | 15.875 | 192.640 | 129.328 | ||||
| 0.312 | 7.925 | 97.719 | 65.604 | ||||
| 0.500 | 12.700 | 155.106 | 30 XHY | 104.130 | |||
| 0.375 | 9.525 | 117.075 | 20 STD | 78.598 | |||
| 0.688 | 17.475 | 211.368 | 141.901 | ||||
| 0.438 | 11.125 | 136.305 | 91.508 | ||||
| 24″ | 0.250 | 6.350 | 24.000 | 610 | 94.456 | 63.413 | |
| 0.500 | 12.700 | 186.923 | XHY | 125.490 | |||
| 0.281 | 7.137 | 106.029 | 71.183 | ||||
| 0.625 | 15.875 | 232.410 | 156.028 | ||||
| 0.312 | 7.925 | 117.573 | 18.932 | ||||
| 0.688 | 17.475 | 255.148 | 40 | 171.293 | |||
| 0.375 | 9.525 | 140.938 | 20 STD | 64.618 | |||
| 0.750 | 19.050 | 277.401 | 186.233 | ||||
| 0.438 | 11.125 | 164.176 | 110.219 | ||||
| 30″ | 0.250 | 6.350 | 30.000 | 762 | 118.318 | 79.433 | |
| 0.500 | 12.700 | 234.647 | 20 XHY | 157.530 | |||
| 0.281 | 7.137 | 132.851 | 89.189 | ||||
| 0.625 | 15.875 | 292.066 | 30 | 196.078 | |||
| 0.312 | 7.925 | 147.353 | 10 | 98.925 | |||
| 0.688 | 17.475 | 320.817 | 215.380 | ||||
| 0.375 | 9.525 | 176.731 | STD | 118.648 | |||
| 0.750 | 19.050 | 348.988 | 234.293 | ||||
| 0.438 | 11.125 | 205.983 | 138.286 | ||||
| 36″ | 0.250 | 6.350 | 36.000 | 914 | 142.180 | 95.453 | |
| 0.500 | 12.700 | 282.372 | 20 XHY | 198.570 | |||
| 0.281 | 7.137 | 159.672 | 107.196 | ||||
| 0.625 | 15.875 | 351.723 | 236.128 | ||||
| 0.312 | 7.925 | 177.133 | 10 | 118.918 | |||
0.688 |
17.475 | 386.487 | 259.467 | ||||
| 0.375 | 9.525 | 215.525 | STD | 142.678 | |||
0.750 |
19.050 | 420.576 | 282.353 | ||||
| 0.438 | 11.125 | 247.790 | 166.353 | ||||
| 42″ | 0.312 | 7.925 | 42.000 | 1067 | 206.914 | 138.911 | |
| 0.500 | 12.700 | 33.097 | XHY | 221.610 | |||
| 0.375 | 9.525 | 248.319 | STD | 166.708 | |||
| 0.750 | 19.050 | 492.163 | 330.413 | ||||
| 48″ | 0.375 | 9.525 | 48.000 | 1219 | 284.112 | STD | 190.738 |
| 0.750 | 19.050 | 563.750 | 378.473 | ||||
| 0.438 | 11.125 | 331.404 | 222.487 | ||||
| 0.875 | 22.225 | 655.969 | 440.383 | ||||
| 0.500 | 12.700 | 377.822 | XHY | 253.650 | |||
Stainless Steel Rectangular Tubing For Sale

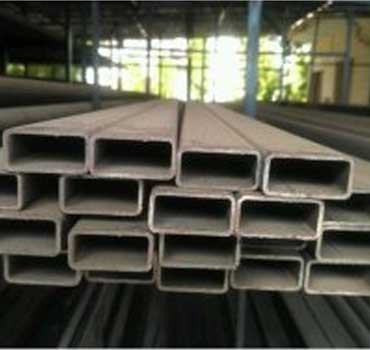

Size Schedule Chart of Stainless Steel Welded Rectangular Pipe
| SS Rectangle Pipe OD milimeter |
Sch | Pipe WT milimeter |
Kg/m | iAn. |
|---|---|---|---|---|
| 13.72 | 10S | 1.65 | 0.50 | 1/4 |
| 13.72 | 40S | 2.24 | 0.64 | 1/4 |
| 13.72 | 80S | 3.02 | 0.81 | 1/4 |
| 17.15 | 10S | 1.65 | 0.64 | 3/8 |
| 17.15 | 40S | 2.31 | 0.86 | 3/8 |
| 17.15 | 80S | 3.20 | 1.12 | 3/8 |
| 21.34 | 10S | 2.11 | 1.02 | 1/2 |
| 21.34 | 40S | 2.77 | 1.29 | 1/2 |
| 21.34 | 80S | 3.73 | 1.65 | 1/2 |
| 26.67 | 10S | 2.11 | 1.30 | 3/4 |
| 26.67 | 40S | 2.87 | 1.71 | 3/4 |
| 26.67 | 80S | 3.91 | 2.23 | 3/4 |
| 33.40 | 10S | 2.77 | 2.13 | 1 |
| 33.40 | 40S | 3.38 | 2.54 | 1 |
| 33.40 | 80S | 4.55 | 3.29 | 1 |
| 33.40 | 160 | 6.352) | 4.30 | 1 |
| 42.16 | 10S | 2.77 | 2.73 | 1¼ |
| 42.16 | 40S | 3.56 | 3.44 | 1¼ |
| 42.16 | 80S | 4.85 | 4.53 | 1¼ |
| 42.16 | 160 | 6.352) | 5.69 | 1¼ |
| 48.26 | 10S | 2.77 | 3.16 | 1½ |
| 48.26 | 40S | 3.68 | 4.11 | 1½ |
| 48.26 | 80S | 5.08 | 5.49 | 1½ |
| 60.33 | 10S | 2.77 | 3.99 | 2 |
| 60.33 | 40S | 3.91 | 5.52 | 2 |
| 60.33 | 80S | 5.54 | 7.60 | 2 |
| 60.33 | 160 | 8.742) | 11.29 | 2 |
| 73.03 | 10S | 3.05 | 5.35 | 2½ |
| 73.03 | 40S | 5.16 | 8.77 | 2½ |
| 73.03 | 80S | 7.01 | 11.59 | 2½ |
| 88.90 | 10S | 3.05 | 6.56 | 3 |
| 88.90 | 40S | 5.49 | 11.47 | 3 |
| 88.90 | 80S | 7.62 | 15.51 | 3 |
| 88.90 | 160 | 11.132) | 21.67 | 3 |
| 101.60 | 10S | 3.05 | 7.53 | 3½ |
| 101.60 | 40S | 5.74 | 13.78 | 3½ |
| 101.60 | 80S | 8.08 | 18.92 | 3½ |
| 114.30 | 10S | 3.05 | 8.50 | 4 |
| 114.30 | 40S | 6.02 | 16.32 | 4 |
| 114.30 | 80S | 8.56 | 22.67 | 4 |
| 114.30 | 160 | 13.492) | 34.05 | 4 |
| 141.30 | 40S | 6.55 | 22.10 | 5 |
| 141.30 | 80S | 9.53 | 31.44 | 5 |
| 141.30 | 160 | 15.882) | 49.87 | 5 |
| 168.28 | 10S | 3.4 | 14.04 | 6 |
| 168.28 | 40S | 7.11 | 28.69 | 6 |
| 168.28 | 80S | 10.97 | 43.21 | 6 |
| 168.28 | 120 | 14.27 | 54.75 | 6 |
| 168.28 | 160 | 18.262) | 68.59 | 6 |
| 219.08 | 40S | 8.18 | 43.20 | 8 |
| 219.08 | 80S | 12.7 | 65.63 | 8 |
| 219.08 | 120 | 18.23 | 91.30 | 8 |
| 219.08 | 160 | 23.012) | 112.97 | 8 |
View Martensitic Rectangular Steel Pipe and SS Grade 202 Rectangular Tube sizes and Dimension chart in MM

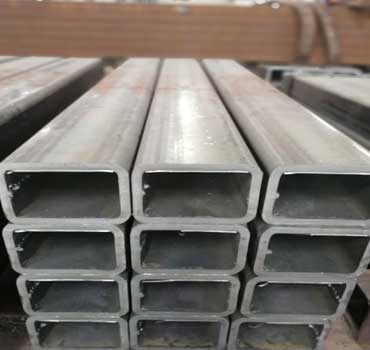

SS Rect Tube Schedule Chart
| NB SIZES | Schedule 5 | Schedule 10 | Schedule 40 | Schedule 80 | Schedule 160 |
|---|---|---|---|---|---|
| 1 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1/8″ | ✓ | ✓ | ✓ | ✓ | |
| 2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1/4″ | ✓ | ✓ | ✓ | ✓ | |
| 2 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3/8″ | ✓ | ✓ | ✓ | ✓ | |
| 3″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5″ | ✓ | ✓ | ✓ | ✓ | |
| 1″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6″ | ✓ | ✓ | ✓ | ✓ | |
| 1 1/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
Stainless Steel Rectangular Tubing Dimensions
| Nominal size in inches | Wall thickness in mm | Outside diameter in inches | Weight [lbs/feet] | Outside diameter in mm | Weight [kg/meter] | Wall thickness in inches |
|---|---|---|---|---|---|---|
| 1/8 6 | 1.73 | 0.41 | 0.24 | 10.3 | 0.37 | 0.068 |
| 1/4 8 | 2.24 | 0.54 | 0.42 | 13.7 | 0.63 | 0.088 |
| 3/8 10 | 2.31 | 0.68 | 0.57 | 17.1 | 0.84 | 0.091 |
| 1/2 15 | 2.77 | 0.84 | 0.85 | 21.3 | 1.27 | 0.109 |
| 3/4 20 | 2.87 | 1.05 | 1.13 | 26.7 | 1.69 | 0.113 |
| 1 25 | 3.38 | 1.32 | 1.68 | 33.4 | 2.5 | 0.133 |
| 1 1/4 32 | 3.56 | 1.66 | 2.27 | 42.2 | 3.39 | 0.14 |
| 1 1/2 40 | 3.68 | 1.9 | 2.72 | 48.3 | 4.05 | 0.145 |
| 2 50 | 3.91 | 2.375 | 3.65 | 60.3 | 5.44 | 0.154 |
| 2 1/2 65 | 5.16 | 2.875 | 5.79 | 73 | 8.63 | 0.203 |
| 3 80 | 5.49 | 3.5 | 7.58 | 88.9 | 11.29 | 0.216 |
| 3 1/2 90 | 5.74 | 4 | 9.11 | 101.6 | 13.57 | 0.226 |
| 4 100 | 6.02 | 4.5 | 10.79 | 114.3 | 16.07 | 0.237 |
| 5 125 | 6.55 | 5.563 | 14.62 | 141.3 | 21.77 | 0.258 |
| 6 150 | 7.11 | 6.625 | 18.97 | 168.3 | 28.26 | 0.28 |
| 8 200 | 8.18 | 8.625 | 28.55 | 219.1 | 42.55 | 0.322 |
| 10 250 | 9.27 | 10.75 | 40.48 | 273 | 60.31 | 0.365 |
| 12 300 | 10.31 | 12.75 | 53.52 | 323.8 | 79.73 | 0.406 |
| 14 350 | 11.13 | 14 | 54.57 | 355.6 | 94.55 | 0.437 |
| 16 400 | 12.7 | 16 | 82.77 | 406.4 | 123.3 | 0.5 |
| 18 450 | 14.27 | 18 | 104.67 | 457 | 155.8 | 0.562 |
| 20 500 | 15.09 | 20 | 123.11 | 508 | 183.42 | 0.594 |
| 24 600 | 17.48 | 24 | 171.29 | 610 | 255.41 | 0.688 |
| 32 800 | 17.48 | 32 | 230.08 | 813 | 342.91 | 0.688 |
304 Stainless Steel Rectangular Tube Nominal Wall Thickness
| NPS Designator | Outside Diameter in. | Schedule 10S in. | Schedule 40S in. | Schedule 80S in. | Schedule 160 in. | Schedule XX in. |
|---|---|---|---|---|---|---|
| 1 1/2 | 1.900 | 0.109 | 0.145 | 0.200 | .281 | .400 |
| 1/4 | 0.540 | 0.065 | 0.088 | 0.119 | ||
| 2 1/2 | 2.875 | 0.120 | 0.203 | 0.276 | .375 | .552 |
| 3/8 | 0.675 | 0.065 | 0.091 | 0.126 | ||
| 3 | 3.500 | 0.120 | 0.216 | 0.300 | .438 | .600 |
| 1/2 | 0.840 | 0.083 | 0.109 | 0.147 | .188 | .294 |
| 4 | 4.500 | 0.120 | 0.237 | 0.337 | .534 | .674 |
| 3/4 | 1.050 | 0.083 | 0.113 | 0.154 | .218 | .308 |
| 5 | 5.563 | 0.134 | 0.258 | 0.375 | .625 | .750 |
| 1.0 | 1.315 | 0.109 | 0.133 | 0.179 | .250 | .358 |
| 8 | 8.625 | 0.148 | 0.322 | 0.500 | .906 | .875 |
| 1 1/4 | 1.660 | 0.109 | 0.140 | 0.191 | .250 | .382 |
| 12 | 12.750 | 0.180 | 0.375 | 0.500 | 1.312 | |
| 2 | 2.375 | 0.109 | 0.154 | 0.218 | .343 | .436 |
| 14 | 14.000 | 0.188 | 0.375 | 0.500 | 1.406 | |
| 3 1/2 | 4.000 | 0.120 | 0.226 | 0.318 | .636 | |
| 6 | 6.625 | 0.134 | 0.280 | 0.432 | .719 | .864 |
| 10 | 10.750 | 0.165 | 0.365 | 0.500 | 1.125 | |
| 16 | 16.000 | 0.188 | 0.375 | 0.500 | 1.594 |

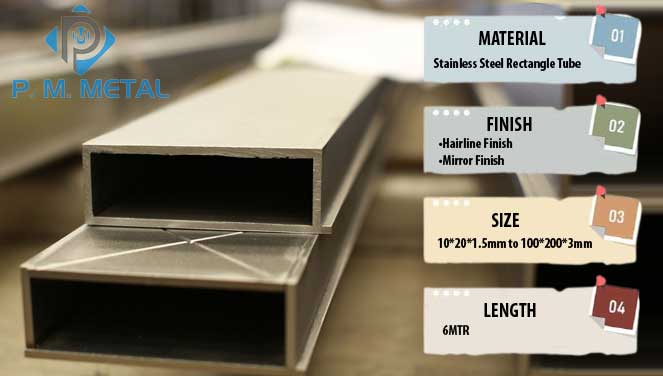

Steel Large Diameter Rectangular Tube
SS 304 Rectangular Pipe Pressure Rating
| Pressure Rating (psig) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Size (inches) |
Pipe Schedule | Temperature (oF) | ||||||||
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||
| 1" | 160 | 6140 | 5296 | 4759 | 4375 | 4068 | 3876 | 3761 | 3684 | 3646 |
| 40 | 3048 | 2629 | 2362 | 2171 | 2019 | 1924 | 1867 | 1824 | 1810 | |
| 80 | 4213 | 3634 | 3265 | 3002 | 2791 | 2659 | 2580 | 2528 | 2501 | |
| 1 1/2" | 40 | 2257 | 1947 | 1750 | 1608 | 1496 | 1425 | 1383 | 1354 | 1340 |
| 80 | 3182 | 2744 | 2466 | 2267 | 2108 | 2009 | 1949 | 1909 | 1889 | |
| 160 | 4619 | 3984 | 3580 | 3291 | 3060 | 2916 | 2829 | 2772 | 2743 | |
| 2" | 160 | 4499 | 3880 | 3486 | 3205 | 2980 | 2840 | 2755 | 2699 | 2671 |
| 40 | 1902 | 1640 | 1474 | 1355 | 1260 | 1201 | 1165 | 1141 | 1129 | |
| 80 | 2747 | 2369 | 2129 | 1957 | 1820 | 1734 | 1682 | 1648 | 1631 | |
| 3" | 40 | 1806 | 1558 | 1400 | 1287 | 1196 | 1140 | 1106 | 1084 | 1072 |
| 80 | 2553 | 2202 | 1979 | 1819 | 1691 | 1612 | 1564 | 1532 | 1516 | |
| 160 | 3840 | 3312 | 2976 | 2736 | 2544 | 2424 | 2352 | 2304 | 2280 | |
| 4" | 80 | 2213 | 1909 | 1715 | 1577 | 1466 | 1397 | 1355 | 1328 | 1314 |
| 40 | 1531 | 1321 | 1187 | 1091 | 1014 | 967 | 938 | 919 | 909 | |
| 160 | 3601 | 3106 | 2791 | 2566 | 2386 | 2273 | 2206 | 2161 | 2138 | |
| 5" | 40 | 1342 | 1158 | 1040 | 956 | 889 | 847 | 822 | 805 | 797 |
| 80 | 1981 | 1709 | 1535 | 1411 | 1312 | 1250 | 1213 | 1189 | 1176 | |
| 160 | 3414 | 2945 | 2646 | 2433 | 2262 | 2155 | 2091 | 2049 | 2027 | |
| 6" | 160 | 3289 | 2836 | 2549 | 2343 | 2179 | 2076 | 2014 | 1973 | 1953 |
| 40 | 1219 | 1052 | 945 | 869 | 808 | 770 | 747 | 732 | 724 | |
| 80 | 1913 | 1650 | 1483 | 1363 | 1267 | 1208 | 1172 | 1148 | 1136 | |
| 8" | 40 | 1073 | 926 | 832 | 765 | 711 | 678 | 657 | 644 | 637 |
| 160 | 3175 | 2738 | 2460 | 2262 | 2103 | 2004 | 1944 | 1905 | 1885 | |
| 80 | 1692 | 1459 | 1311 | 1205 | 1121 | 1068 | 1036 | 1015 | 1005 | |
| 10" | 40 | 974 | 840 | 755 | 694 | 645 | 615 | 596 | 584 | 578 |
| 80 | 1609 | 1388 | 1247 | 1147 | 1066 | 1016 | 986 | 966 | 956 | |
| 160 | 3147 | 2714 | 2439 | 2242 | 2085 | 1986 | 1927 | 1880 | 1868 | |
SS Rectangular Tubing Minimum Wall Thickness on Inspection
| Nominal Thickness | Nominal Thickness | Minimum Thickness on Inspection | Nominal Thickness | Minimum Thickness on Inspection | Minimum Thickness on Inspection | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 0.068 | 1.7 | 0.294 | 7.5 | 0.060 | 1.5 | 0.750 | 19.0 | 0.257 | 6.5 | 0.658 | 16.6 |
| 0.068 | 2.2 | 0.300 | 7.6 | 0.077 | 2.0 | 0.812 | 20.6 | 0.262 | 6.7 | 0.710 | 18.0 |
| 0.091 | 2.3 | 0.307 | 7.8 | 0.080 | 2.0 | 0.843 | 21.4 | 0.269 | 6.8 | 0.736 | 18.7 |
| 0.095 | 2.4 | 0.308 | 7.8 | 0.083 | 2.1 | 0.854 | 21.7 | 0.270 | 6.9 | 0.756 | 19.2 |
| 0.113 | 2.9 | 0.312 | 7.9 | 0.099 | 2.5 | 0.875 | 22.2 | 0.273 | 6.9 | 0.766 | 19.5 |
| 0.119 | 3.0 | 0.318 | 8.1 | 0.104 | 2.6 | 0.906 | 23.0 | 0.278 | 7.1 | 0.783 | 20.1 |
| 0.125 | 3.2 | 0.322 | 8.2 | 0.109 | 2.8 | 0.937 | 23.8 | 0.282 | 7.2 | 0.820 | 20.8 |
| 0.126 | 3.2 | 0.330 | 8.4 | 0.110 | 2.8 | 0.968 | 24.6 | 0.289 | 7.3 | 0.847 | 21.5 |
| 0.133 | 3.4 | 0.337 | 8.6 | 0.116 | 2.9 | 1.000 | 25.4 | 0.295 | 7.5 | 0.875 | 22.2 |
| 0.140 | 3.6 | 0.343 | 8.7 | 0.122 | 3.1 | 1.031 | 26.2 | 0.300 | 7.6 | 0.902 | 22.9 |
| 0.145 | 3.7 | 0.344 | 8.7 | 0.127 | 3.2 | 1.062 | 27.0 | 0.301 | 7.6 | 0.929 | 23.6 |
| 0.147 | 3.7 | 0.358 | 9.1 | 0.129 | 3.3 | 1.083 | 27.8 | 0.313 | 8.0 | 0.956 | 24.3 |
| 0.154 | 3.9 | 0.365 | 9.3 | 0.135 | 3.4 | 1.125 | 28.6 | 0.319 | 8.1 | 0.984 | 25.0 |
| 0.156 | 4.0 | 0.375 | 9.5 | 0.136 | 3.5 | 1.156 | 29.4 | 0.328 | 8.3 | 1.012 | 25.7 |
| 0.179 | 4.5 | 0.382 | 9.7 | 0.157 | 4.0 | 1.218 | 30.9 | 0.334 | 8.5 | 1.066 | 27.1 |
| 0.187 | 43.7 | 0.400 | 10.2 | 0.164 | 4.2 | 1.250 | 31.8 | 0.350 | 8.9 | 1.094 | 27.8 |
| 0.188 | 4.8 | 0.406 | 10.3 | 0.164 | 4.2 | 1.281 | 32.5 | 0.355 | 9.0 | 1.121 | 28.5 |
| 0.191 | 4.9 | 0.432 | 10.4 | 0.167 | 4.2 | 1.312 | 33.3 | 0.378 | 9.6 | 1.148 | 29.2 |
| 0.200 | 5.1 | 0.436 | 11.1 | 0.175 | 4.4 | 1.343 | 34.1 | 0.382 | 9.7 | 1.175 | 29.8 |
| 0.203 | 5.2 | 0.437 | 11.1 | 0.178 | 4.5 | 1.375 | 34.9 | 0.382 | 9.7 | 1.203 | 30.6 |
| 0.216 | 5.5 | 0.438 | 11.1 | 0.189 | 4.8 | 1.406 | 35.7 | 0.383 | 9.7 | 1.230 | 31.2 |
| 0.218 | 5.5 | 0.500 | 12.7 | 0.191 | 4.9 | 1.436 | 36.5 | 0.438 | 11.1 | 1.258 | 32.0 |
| 0.219 | 5.6 | 0.531 | 13.5 | 0.192 | 4.9 | 1.500 | 36.1 | 0.465 | 11.8 | 1.312 | 33.3 |
| 0.226 | 5.7 | 0.552 | 14.0 | 0.196 | 5.0 | 1.531 | 38.9 | 0.483 | 12.3 | 1.340 | 34.0 |
| 0.237 | 6.0 | 0.562 | 14.3 | 0.207 | 5.2 | 1.562 | 39.7 | 0.492 | 12.5 | 1.367 | 34.7 |
| 0.250 | 6.4 | 0.593 | 15.1 | 0.219 | 5.6 | 1.593 | 40.5 | 0.519 | 13.2 | 1.394 | 35.4 |
| 0.258 | 6.6 | 0.600 | 15.2 | 0.226 | 5.7 | 1.750 | 44.5 | 0.525 | 13.3 | 1.531 | 38.9 |
| 0.276 | 7.0 | 0.625 | 15.9 | 0.242 | 6.1 | 1.781 | 45.2 | 0.547 | 13.9 | 1.558 | 39.6 |
| 0.277 | 7.0 | 0.656 | 16.6 | 0.242 | 6.1 | 1.812 | 46.0 | 0.573 | 14.6 | 1.586 | 49.3 |
| 0.279 | 7.1 | 0.674 | 17.1 | 0.244 | 6.2 | 1.968 | 50.0 | 0.590 | 15.0 | 1.772 | 43.7 |
| 0.280 | 7.1 | 0.687 | 17.4 | 0.245 | 6.2 | 2.062 | 52.4 | 0.601 | 15.3 | 1.804 | 45.8 |
| 0.281 | 7.1 | 0.719 | 18.3 | 0.246 | 6.2 | 2.343 | 59.5 | 0.629 | 16.0 | 2.050 | 52.1 |

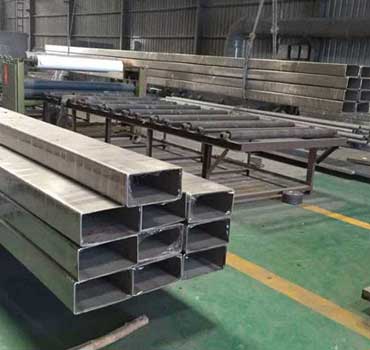

Steel Seamless Rectangular Pipe Application
- Automotive fabrications
- Architecture – furniture, doors and windows, gates
- Fabrication of containers
- Structural support for industrial plants, building, bridges
- General engineering purpose
- Bicycles
- Conveyors
Supplier & Exporter of ERW 304 Stainless Steel Rectangular Tube in Mumbai, check our online inventory, also buy Jindal make SS Welded Galvanized Rectangle Pipe at dealer price in India
SS Hollow Rectangular Pipe Stocks
| Rectangular Steel Pipe | SS Grade 202 Rectangular Tube |
| 304 Stainless Steel Rectangular Tube | Austenitic Stainless Steel Welded Rectangular Pipe |
| 316 Stainless Steel Rectangular Tubing | SS Rectangular Pipe |
| 316 Rectangle Tubing | Stainless Steel Rectangular Hollow Tube |
| SS Rect Tube | ERW 304 Stainless Steel Rectangular Tube |
| SS Welded Galvanized Rectangle Pipe | Stainless Steel Rectangular Structural Tubing |
| Stainless Steel Rectangular Pipe | Stainless Steel Rectangular Structural Pipe |
| SS 304 Hollow Pipe | Stainless Steel Welded Rectangular Pipe |
| Ss Hollow Rectangular Pipe | Stainless Steel Rectangular Tubing |
| Ss Rectangular Pipe | Ss 304 Rectangular Pipe |
| Stainless Steel Rectangular Tube | Stainless Rectangular Tube |
| Ss Rectangular Tube | Stainless Steel Box Tubing |
| Ss 304 Rectangular Tube | Steel Rectangle Pipe |
| Stainless Steel Rectangular Pipe | Stainless Steel Rectangular Hollow Section |
| 304 Stainless Rectangle Tube | Stainless Rectangular Box Section |
| Rectangular Ss Pipe | Stainless Steel Rectangular Section |
| Polished Stainless Steel Rectangular Tubing | Rectangular Stainless Steel Pipe |
Jindal SS 304 Rectangular Pipe Price List
| Price of Stainless Steel Rectangular Structural Tubing | Stainless Steel Rectangular Pipe Price In India (INR) | Jindal Ms Rectangular Pipe Price List | Jindal Steel Rectangular Pipe 304 Price in UAE Dirham |
|---|---|---|---|
| 2x2x1 8 steel pipe square weight Ss Rectangular Tube Price | INR 37242.25 | $500.00 | 1836.60 UAE Dirham |
| High Quality Galvanized Square And Rectangular Steel Pipes And Tubes | INR 22345.35 | $300.00 | 1101.96 UAE Dirham |
| High quality Corrugated square tubing galvanized steel pipe iron Ss Rectangular Pipe Price | INR 29798.68 | $530.00 | 1946.80 UAE Dirham |
| Mild Rectangular Steel Pipe Price Per Kg / HSS A500 Steel Tube | INR 29792.20 | $400.00 | 1469.28 UAE Dirham |
| Hot Dipped 20X20mm Ms Galvanized Square Pipe Rectangular Hollow Section | INR 48422.86 | $650.00 | 2387.58 UAE Dirham |
Searching for
Stainless Steel Rectangular Pipe supplier in your country? Checklist of material we export in the following areas.
Rectangular Steel Pipe
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
SS Grade 202 Rectangular Tube
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
304 Stainless Steel Rectangular Tube
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
Austenitic Stainless Steel Welded Rectangular Pipe
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
316 Stainless Steel Rectangular Tubing
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
SS Rectangular Pipe
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
