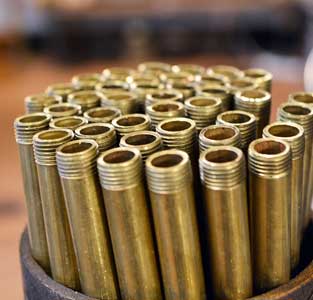

What Is Gunmetal Pipe and Tube
Pipes and tubes are common piping modules of the gunmetal range, and both components can be used interchangeably in the system. These components can be differentiated based on certain features.
What Does Gunmetal Branch Pipe Finish Mean?
A gunmetal branch pipe is designed with a range of alloys and different metallic substances. The branch finish is a design that is achieved after the grade is polished till it becomes aesthetically appealing. The pipes in this grade are designed with a dark grey or blackish color finish.
What Is Gun Metal Material Made From?
Gun metal is designed with a material composition of bronze, copper, tin, and zinc. The material proportion varies but is generally designed with a chemical content of 88% copper, 8-10% of tin, and 2-4% of zinc.
Will Gunmetal Pipe Tarnish?
Gunmetal pipe is designed with a combination of zinc and copper. When these constituents react with oxygen they form a layer of tarnish that deteriorates the material over time.
Hgm Gunmetal Pipe
An Hgm gunmetal pipe is a common fixture in high pressure and temperatures systems. These versatile pipes are seen in exhaust systems and showcase superior strength and torsion.
Size | 63 mm |
---|---|
Diameter | 15mm pipes |
Sizes Of Nozzles | 12mm, 6mm, 15mm, 25mm and 20mm |
Colour/Finish | Gun Metal |
Material | LTB-2 of IS:318 |
Height | 180mm |
Conforming Specification | IS 903 |
Performance Test | --- |
Hydrostatic (Body Test) | Tested at 21 KGF/CM2 |
Other Range | 52 and 38 mm |
Single Piece Length | 3 meter, 6 meter, 18 meter, 36 meter, >36 meter |
---|---|
Application | Drinking Water, Utilities Water, Chemical Handling, Gas Handling, Food Products |
Size/Diameter | 1/2 inch, 1 inch, 2 inch, 3 inch, 4 inch, >4 inch |
Products | Price in INR | Price in USD Dollar | Price in UAE Dirham |
---|---|---|---|
OEM Gun Metal Branch Pipe, Size: 63 mm | ₹ 2,450 | 32.79 | 120.45 |
Seamless Tripple Purpose Nozzle MMD Approved- Gun Metal | ₹ 2,750 | 36.81 | 135.20 |
Aluminium Branch Pipe, For Fire Hose, Size: 63 mm | ₹ 900 | 12.05 | 44.25 |
Seamless Gun Metal Leaded Pipe | ₹ 600 | 8.03 | 29.50 |
K-903 Branch Pipe With Nozzle | ₹ 1,150 | 15.39 | 56.54 |
Short Branch Pipes, 1.5 Kg, Outside Diameter: 63 Mm | ₹ 900 | 12.05 | 44.25 |
Welded Branch Pipe | ₹ 650 | 8.70 | 31.96 |
Type | [ M ]Material |
---|---|
BC6 | Gun Metal |
Part Number | D | L | Type | t |
---|---|---|---|---|
BC6 | 30 | 100 | PP | 5 |
D Dimension Tolerance
or Less | or More | Tolerance |
---|---|---|
40 | 30 | +0.7 ~ +2.0 |
50 | 45 | +0.9 ~ +2.0 |
100 | 55 | +1.0 ~ +2.0 |
130 | 110 | +1.5 ~ +3.0 |
150 | 140 | +1.5 ~ +3.5 |
t Dimension Tolerance
or Less | or More | Tolerance |
---|---|---|
100 | 30 | +1.0 ~ +2.25 |
110 | +1.25 ~ +2.75 | |
130 | 120 | +1.25 ~ +3.10 |
150 | 140 | +1.75 ~ +4.0 |
L Dimension Tolerance
L | D | ||
---|---|---|---|
or More | or Less | 101 and more | 100 and less |
10 | 999 | 0 ~ +2.0 | 0 ~ +1.0 |
1000 | 2000 | 0 ~ +2.0 |
L 1mm increment |
Part Number | |||||||
---|---|---|---|---|---|---|---|---|
Type | D | t | ||||||
10~2000 | BC6 | 30 | 5 | 7.5 | ||||
35 | 5 | 7.5 | 10 | |||||
40 | 5 | 7.5 | 10 | |||||
45 | 5 | 7.5 | 10 | 12.5 | ||||
50 | 5 | 7.5 | 10 | 12.5 | 15 | |||
55 | 7.5 | 10 | 12.5 | 15 | ||||
60 | 5 | 7.5 | 10 | 12.5 | 15 | |||
65 | 7.5 | 10 | 12.5 | 15 | 17.5 | |||
70 | 7.5 | 12.5 | 15 | 17.5 |
HS CODE | DESCRIPTION |
---|---|
7318 | Screws, Bolts, Nuts, Coach-Screws, Screw Hooks, Rivets, Cotters, Cotter-Pins, Washers (Including Spring Washers) And Si |
8424 | Mechanical Appliances (Whether Or Not Handoperated) For Projecting, Dispersing Or Spraying Liquids Or Powders; Fire Ext |
73182990 | Other |
84248990 | Other |
84818020 | Taps, cocks and similar appliances of non-ferrous metal |
7415 | Nails, Tacks, Drawing Pins, Staples (Other Than Those Of Heading 8305) And Similar Articles, Of Copper Or Of Iron Or St |
7307 | Tube Or Pipe Fittings (For Example, Couplings, Elbows, Sleeves), Of Iron Or Steel |
74152900 | Other |
8481 | Taps, Cocks, Valves And Similar Appliances For Pipes, Boiler Shells, Tanks, Vats Or The Like, Including Pressure-Reduci |
73079990 | Other |
HS CODE | DESCRIPTION |
---|---|
3917 | Tubes, Pipes And Hoses, And Fittings Therefor (For Example, Joints, Elbows, Flanges), Of Plastics |
8308 | Clasps, Frames With Clasps, Buckles, Buckle-Clasps, Hooks, Eyes, Eyelets And The Like, Of Base Metal, Of A Kind Used Fo |
39174000 | Fittings |
83089099 | Other |
