ASTM A312 TP321 Seamless Pipe and SS 321 Welded Tube Supplier in India

Stainless Steel 321 Pipe

Different between SS 321 Seamless/Welded/ERW Tube
Tubes in the SS 321 grade are commonly manufactured in seamless, welded, or erw configurations. All these configurations can be separated based on key features.

  • A seamless tube is produced by passing hot steel billets through an extruding metal and shaping it precisely. This standard are the strongest grade used in manufacturing tubes in the SS 321 grade.
  • A welded tube is manufactured by welding pieces of sheet or strips either longitudinally or horizontally.
  • Erw pipes are produced by cold rolling flat strips and then passing them through a series of dies to get a longitudinal seam.

What is ASTM A312 TP 321 Round Pipe
ASTM A312 Tp 321 round pipe covers standard specifications of seamless or welded austenitic stainless steel pipes. The circular cross-section pipes are designed to perform well in high temperatures and different corrosive media.

Different between SS 321 vs ss321h Pipe
SS 321 and ss321h pipes are designed with nearly identical characteristics and features. The major difference between both these piping components is the presence of carbon content. A SS 321h has a carbon content of 0.04% up to 0.10%. Themaximum carbon content in the SS 321 pipe grade is 0.08%.

What is the difference between ASTM A312 TP 321 and ASME SA 312 TP 321
ASTM and ASME are important standards that are used in manufacturing piping modules in the 321 grade. Both these grades can be distinguished based on certain features.

  • ASTM A312 TP 321 grade covers structural qualities and different features of piping items. ASME SA 312 TP 321 covers standard design codes for a range of pressure-rated applications.

Stainless Steel 321 Cold Rolled and Hot Rolled Plate
Stainless steel 321 plate is an austenitic grade that can be produced either by hot or cold rolling procedures. In a hot rolling process, the metal is processed at high temperatures followed by cold rolling. Here the plates are rolled at room temperature, giving them good tolerances and strengths.

How Do You Anneal 321 Stainless Steel Pipe
The SS321 pipes are heated at temperatures between 950 to 1120 degrees C, followed by rapid cooling. The pipes can be stabilized with heat of 870-900 degrees C for 1 hour. The metal is stress-relieved for 1-2 hours at 700 degrees C followed by air cooling.

Table of Content

Get instant delivery of AISI 321 ERW Pipe in Mumbai, Check Price and weight of werkstoff nr.1.4541 SS Pipe and UNS S32100 Stainless Steel Pipes in India. Get exact sizing of AISI 321 Tubing.

Stainless Steel 321 Pipes Comparing Standards Specification

Specifications ASTM/ASME A 312/ SA 312
Size 1/8″NB to 30″NB IN
Dimensions ASME, ASTM and API
Schedule Schedule20, Schedule30, Schedule40, STD, Schedule80, XS, Schedule60, Schedule80, Schedule120, Schedule140, Schedule160, XXS
SS 321 Pipes 1/2″ NB to 16″ NB
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
ERW 321 Pipes 1/2″ NB to 24″ NB
Form “U” Shape, Custom Pipes, Round Pipes, Hydraulic Pipes
EFW 321 Pipes 6″ NB to 100″ NB
End Beveled End, Plain End, Treaded
Length Double Random, Single Random, & Cut Length.

SS 321 Pipe Chemical Composition

Grade S C Cr Mn Mo Si N P Ni Other
321 min.
max		 0.030 -
0.08		 17.0
19.0		 2.00 - 0.75 0.10 0.045 9.0
12.0		 Ti=5(C+N)
0.70

AISI 321 Stainless Steel Pipe Properties

Grade Elongation (% in 50mm) min Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Hardness
Brinell (HB) max Rockwell B (HR B) max
321 40 515 205 217 95

Equivalent Material Of ASTM A312 TP321 Stainless Steel Pipe

Grade Swedish SS UNS No Old British Euronorm Japanese JIS
En BS Name No
321 2337 S32100 58B, 58C 321S31 X6CrNiTi18-10 1.4541 SUS 321

SS TP 321 Welded Pipes Physical Properties

Grade Electrical Resistivity (n.m) Density (kg/m3) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Elastic Modulus (GPa) Specific Heat 0-1000C (J/kg.K)
0-3150C 0-1000C 0-5380C at 5000C at 1000C
321 720 8027 17.2 16.6 18.6 22.2 16.1 193 500
Looking for 321 Exhaust Tubing and AISI 321 Schedule 40 Pipe for High temperature applications? SS 321 Seamless Tube available in 3/4"-24" size range as per ASME B36.19M/ B36.19.

TP321 Stainless Steel EFW Tubing Applications

WNR. 1.4401 Tube Applications
  • Retorts, muffles, annealing cover
  • Kilns
  • Radiant Tubes
  • Saggers
  • Heat Exchangers
  • Food processing equipment
  • Coal gasifier internal component
  • Conveyor belts, oven linings, furnace parts, rollers, fans

SS UNS S32100 Seamless Tubes Pressure Gauge

Pipes O.D.
(in.)		 Wall Thickness of Pipes/Tubes (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
3/8 3100 4400 6100
1/8 7900 10100
3/4 2200 3000 4000 4600
1/4 3700 4800 7000 9500
1 2200 2900 3400 3900 4300
5/16 3700 5400 7300
1/2 2300 3200 4400

Fractional Sizes of Maximum Allowable Working Pressure (Psi)

Pipes OD Wall Thickness (Inches)
.010 .012 .016 .020 .028 .035 .049 .065 .083 .095 .109 .120
3/8 3,530 5,107 7,029
1/16 6,422 7,872 10,768 13,484
1/2 2,595 3,721 5,078 6,699
1/8 6,422 9,325 11,823
5/8 2,051 2,927 3,970 5,200 6,056
3/16 4,081 5,935 7,630 11,005
7/8 1,446 2,051 2,764 3,592 4,161 4,842 5,391
1/4 4,305 5,518 8,053 10,946
1 5,040 7,140 9,595 12,445 14,390 16,715 18,585
3/4 1,696 2,412 3,259 4,249 4,933 5,755 6,422

Metric Sizes of Maximum Allowable Working Pressure (Bar)

Pipes OD Wall Thickness (Inches)
0.5 0.6 0.7 0.8 1.0 1.2 1.5 1.6 1.8 2.0 2.2 2.5 3.0
12 169 215 262 335 360 411 464
3 464 567 672 775 965
14 182 222 282 303 345 389 433 500 612
4 335 411 491 567 723 873
16 158 192 244 262 298 335 372 430 528
6 310 360 464 567 723 775
18 140 169 215 230 262 294 326 377 464
8 227 262 335 411 528 567
22 113 137 173 186 211 236 262 301 369
10 206 262 320 411 442
25 99 120 152 162 184 206 228 262 320

List Of 321 SS Pipes Types

Stainless Steel 321 Pipes
Stainless Steel 321 Pipes
Stainless Steel 321 Pipes
SS TP 321 Welded Pipes
SS TP 321 Welded Pipes
SS TP 321 Welded Pipes
SA 213 TP 321 Seamless Tube
SA 213 TP 321 Seamless Tube
SA 213 TP 321 Seamless Tube
Stainless Steel SUS 321 EFW Pipe
Stainless Steel SUS 321 EFW Pipe
Stainless Steel SUS 321 EFW Pipe
AISI 321 Schedule 40 Pipe
AISI 321 Schedule 40 Pipe
AISI 321 Schedule 40 Pipe
321 Stainless Steel Tubing
321 Stainless Steel Tubing
321 Stainless Steel Tubing
ASTM A312 Stainless Steel 321 Capillary Tubing
ASTM A312 Stainless Steel 321 Capillary Tubing
ASTM A312 Stainless Steel 321 Capillary Tubing
AISI 321 ERW Pipe
AISI 321 ERW Pipe
AISI 321 ERW Pipe
Grade 321 UNS S32100 Stainless Steel Pipe
Grade 321 UNS S32100 Stainless Steel Pipe
Grade 321 UNS S32100 Stainless Steel Pipe

Cres 321 Tubing Pressure Rating Chart

Pipes Size
(inches)		 Pipes Schedule Temperature (°F)
100 200 300 400 500 600 650 700 750
4" 80 2213 1909 1715 1577 1466 1397 1355 1328 1314
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
5" 40 1342 1158 1040 956 889 847 822 805 797
1" 80 4213 3634 3265 3002 2791 2659 2580 2528 2501
8" 40 1073 926 832 765 711 678 657 644 637
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
4" 40 1531 1321 1187 1091 1014 967 938 919 909
1.5" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
5" 80 1981 1709 1535 1411 1312 1250 1213 1189 1176
1.5" 80 3182 2744 2466 2267 2108 2009 1949 1909 1889
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
1.5" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
6" 80 1913 1650 1483 1363 1267 1208 1172 1148 1136
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
2" 80 2747 2369 2129 1957 1820 1734 1682 1648 1631
8" 80 1692 1459 1311 1205 1121 1068 1036 1015 1005
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
10" 40 974 840 755 694 945 615 596 584 578
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
10" 80 1609 1388 1247 1147 1066 1016 986 966 956
3" 80 2553 2202 1979 1819 1691 1612 1564 1532 1516
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
6" 40 1219 1052 945 869 808 770 747 732 724
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868

Stainless Steel 321 Seamless Pipes Weight Chart

Nominal size [inches] Wall thickness [inches] Wall thickness [mm] Outside diameter [inches] Outside diameter [mm] Weight [lb/ft] Weight [kg/m]
1/8 0.095 2.41 0.405 10.3 0.31 0.47
1/4 0.119 3.02 0.54 13.7 0.54 0.8
1/2 0.147 3.73 0.84 21.3 1.09 1.62
3/4 0.154 3.91 1.05 26.7 1.47 2.2
1 0.179 4.55 1.315 33.4 2.17 3.24
1 1/4 0.191 4.85 1.66 42.2 3 4.47
1 1/2 0.2 5.08 1.9 48.3 3.63 5.41
2 0.218 5.54 2.375 60.3 5.02 7.48
2 1/2 0.276 7.01 2.875 73 7.66 11.41
3 0.3 7.62 3.5 88.9 10.25 15.27
3 1/2 0.318 8.08 4 101.6 12.5 18.63
4 0.337 8.56 4.5 114.3 14.98 22.32
5 0.375 9.53 5.563 141.3 20.78 30.97
6 0.432 10.97 6.625 168.3 28.57 42.56
8 0.5 12.7 8.625 219.1 43.39 64.64
10 0.594 15.09 10.75 273 64.43 96.01
12 0.688 17.48 12.75 323.8 88.63 132.08
14 0.75 19.05 14 355.6 106.13 158.1
16 0.844 21.44 16 406.4 136.61 203.53
18 0.938 23.83 18 457 170.92 254.55
20 1.031 26.19 20 508 208.87 311.17
24 1.125 30.96 24 610 296.58 442.08

Get SS grade 1.4541 Polished Pipe and 321 Stainless Steel Seamless Tubing in Specific gauge, View UNS S32100 ERW Pipe in our online inventory at competitive pricing

Stainless Steel 321 Tube Sizes

AISI 321 ERW Pipe Size In Inch

OD
mm		 Sch WT
mm		 Kg/m in.
13.72 10S 1.65 0.50 1/4
13.72 40S 2.24 0.64 1/4
13.72 80S 3.02 0.81 1/4
17.15 10S 1.65 0.64 3/8
17.15 40S 2.31 0.86 3/8
17.15 80S 3.20 1.12 3/8
21.34 10S 2.11 1.02 1/2
21.34 40S 2.77 1.29 1/2
21.34 80S 3.73 1.65 1/2
26.67 10S 2.11 1.30 3/4
26.67 40S 2.87 1.71 3/4
26.67 80S 3.91 2.23 3/4
33.40 10S 2.77 2.13 1
33.40 40S 3.38 2.54 1
33.40 80S 4.55 3.29 1
33.40 160 6.352) 4.30 1
42.16 10S 2.77 2.73 1¼
42.16 40S 3.56 3.44 1¼
42.16 80S 4.85 4.53 1¼
42.16 160 6.352) 5.69 1¼
48.26 10S 2.77 3.16 1½
48.26 40S 3.68 4.11 1½
48.26 80S 5.08 5.49 1½
60.33 10S 2.77 3.99 2
60.33 40S 3.91 5.52 2
60.33 80S 5.54 7.60 2
60.33 160 8.742) 11.29 2
73.03 10S 3.05 5.35 2½
73.03 40S 5.16 8.77 2½
73.03 80S 7.01 11.59 2½
88.90 10S 3.05 6.56 3
88.90 40S 5.49 11.47 3
88.90 80S 7.62 15.51 3
88.90 160 11.132) 21.67 3
101.60 10S 3.05 7.53 3½
101.60 40S 5.74 13.78 3½
101.60 80S 8.08 18.92 3½
114.30 10S 3.05 8.50 4
114.30 40S 6.02 16.32 4
114.30 80S 8.56 22.67 4
114.30 160 13.492) 34.05 4
141.30 40S 6.55 22.10 5
141.30 80S 9.53 31.44 5
141.30 160 15.882) 49.87 5
168.28 10S 3.4 14.04 6
168.28 40S 7.11 28.69 6
168.28 80S 10.97 43.21 6
168.28 120 14.27 54.75 6
168.28 160 18.262) 68.59 6
219.08 40S 8.18 43.20 8
219.08 80S 12.7 65.63 8
219.08 120 18.23 91.30 8
219.08 160 23.012) 112.97 8

werkstoff nr. 1.4541 321 SS Tube Sizes In Mm

Wall Thickness Sizes ( O.D.)
.010 1/8" , 1/16" , 3/16"
.020 1/8" , 1/16" , 3/16" , 5/16" , 1/4" , 3/8"
.012 1/8"
.016 3/16" , 1/8"
.028 3/16" , 1/8" , 1/4" , 3/8" , 5/16" , 2" , 1/2" , 1" , 3/4" , 1 1/2"
.035 3/16" , 1/8" , 5/16" , 7/16" , 1/4" , 2 1/4" , 16" , 3/4" , 3/8" , 7/8" , 1/2" , 1" , 5/8" , 1 1/4" , 1 5/8" , 1 1/2" , 2"
.049 1/4" , 3/8" , 16" , 3/16" , 3/4" , 1" , 5/16" , 1 1/8" , 1/2" , 1 1/4" , 5/8" , 1 1/2" , 7/8" , 1 5/8" , 2 1/4" , 2"
.065 5/16" , 1/2" , 5/8" , 1/4" , 7/8" , 1 1/4" , 3/8" , 1 1/2" , 16" , 1 5/8" , 3/4" , 1 3/4" , 1" , 2" , 3" , 2 1/2"
.083 3/8" , 5/8" , 2 1/2" , 1/4" , 7/8" , 1/2" , 1 1/4" , 3/4" , 1 5/8" , 1" , 1 7/8" , 1 1/2" , 2" , 3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 3/4" , 1/2" , 1" , 1 1/2" , 1 1/4" , 2"
.120 5/8" , 1/2" , 3/4" , 1" , 2 1/2" , 7/8" , 1 1/4" , 2" , 1 1/2" , 2 1/4" , 3"
.125 1" , 3/4" , 3 1/4" , 1 1/4" , 2" , 1 1/2" , 3"
.134 1"
.250 3"
.375 3 1/2"

SA 213 TP 321 Seamless Tube Schedule Chart

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

Grade 321 UNS S32100 Stainless Steel Pipe Price

42.4mm diameter round tube stainless steel pipe 321

$1,400.00 / Ton

42.4mm diameter round tube stainless steel pipe 321

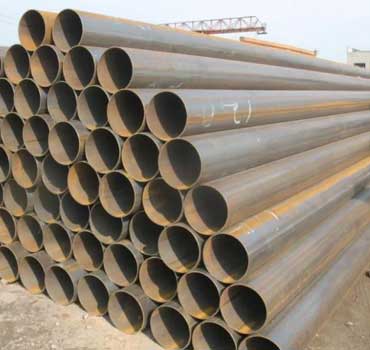

Stainless steel round tube 321

$1,100.00 / Ton

Stainless steel round tube 321

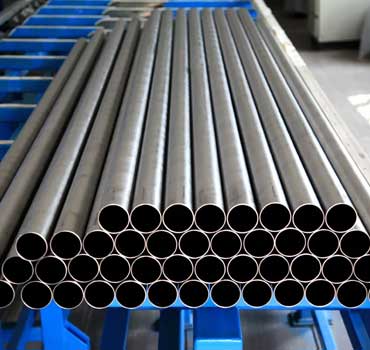

42.4mm diameter round tube aisi 321 stainless steel pipe

$2600 / Ton

42.4mm diameter round tube aisi 321 stainless steel pipe

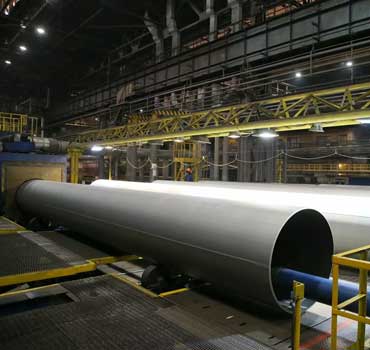

hot sale astm aisi 1000mm diameter stainless steel 321 pipe

$2,720.00 / Ton

hot sale astm aisi 1000mm diameter stainless steel 321 pipe

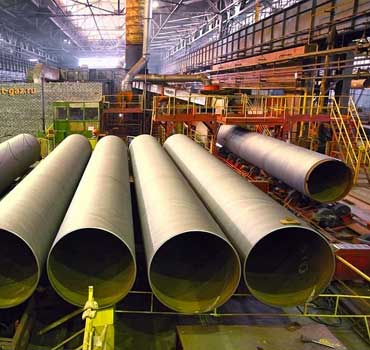

Low Price Food Grade 321 Seamless Stainless Steel Tube SS Pipe

$1,050.00 / Ton

Low Price Food Grade 321 Seamless Stainless Steel Tube SS Pipe

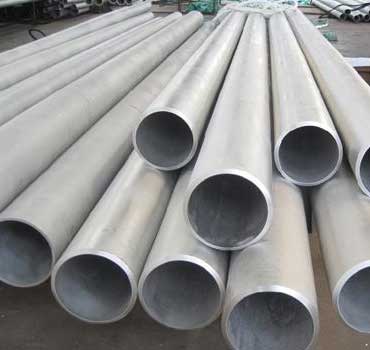

321 5mm stainless steel pipe 1200mm diameter steel tube price

$800.00 / Ton

321 5mm stainless steel pipe 1200mm diameter steel tube price

Get Grit 120 - 600 finish SS grade 1.4541 Polished Pipe and 321 Stainless Steel Seamless Tubing in specific gauge, View 321 UNS S32100 ERW Pipe in our online inventory at competitive pricing

SS 321 Pipe Inventory

ASME SA 312 321 Stainless Steel Pipes AISI 321 Stainless Steel Pipe
ASTM A312 TP321 Welded Pipe SS A312 TP321 Custom Pipe
ASTM A312 TP321 Stainless Steel Pipe TP321 Stainless Steel EFW Tubing
Schedule 40 321 Stainless Steel Pipe High pressure UNS S32100 Pipe
SS UNS S32100 Seamless Tubes 321 SS Pipes
ASME SA312 TP 321 EFW Pipe UNS S32100 Seamless Steel Pipe
Cres 321 Tubing Stainless Steel 321 Seamless Pipes
Stainless Steel 321 Cold Drawn Tube Schedule 5S Stainless Steel 1.4541 Pipes
Stainless Steel 321 Tube werkstoff nr. 1.4541 321 SS Pipe
4 inch ASTM A312 TP321 Seamless Pipe Stainless Steel 1.4541 Cold Drawn Seamless Pipes
SS 321 Pipe ASME SA312 SS 321 ERW Pipes
ASTM A312 TP321 Welded Pipes ASME SA312 TP 321 Cold Drawn Pipes
ASTM A312 SS TP321 Pipes SS 321 Seamless Tubes
Stainless Steel 321 Pipe Stainless Steel 321 Seamless Steel Precision Pipe
321 Exhaust Tubing 321 Stainless Steel Seamless Tubing
321 Stainless Steel Cold Drawn Welded Tube SS A312 TP321 ERW Pipe
Stainless Steel 321 Pipes SS TP321 Welded Pipes
SS 1.4541 Electropolished Pipe ASTM A312 TP321 Pipes
SA 312 TP321 Seamless Tube Stainless Steel SUS 321 EFW Pipe
AISI 321 Schedule 40 Pipe 321 Stainless Steel Tubing
ASTM A312 Stainless Steel 321 Capillary Tubing AISI 321 ERW Pipe
Grade 321 UNS S32100 Stainless Steel Pipe SS 321 Tube
SS A312 TP321 Precision Pipe 321 SS Cold Drawn Seamless Pipes
Products
Other
Industry
  • PM Metal Industry
  • PM Metal Industry
  • PM Metal Industry
  • PM Metal Industry

Searching for

Stainless Steel 321 Pipe supplier in your country? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

SS 321 Pipe

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

Cres 321 Tubing

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

AISI 321 Stainless Steel Pipe

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

Stainless Steel 321 Seamless Pipes

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

SS A312 TP321 Welded Pipes

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

AISI 321 Schedule 40 Pipe

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.

© 2022 All Rights Reserved by P.M. Metal.
