Hot Dip Galvanized Square Tube and Pre-Galvanized Steel Pipes manufacturer in India

Galvanized Steel Pipe

What is Galvanized Pipe?
A galvanized pipe grade is manufactured by coating steel with a layer of zinc to create a protective layer. The boundary of zinc gives these modules enhanced resistance against corrosive and oxidative media. The pipe grades are very strong and are a feature in water supply and outdoor systems. The versatile grade of galvanized pipes can be put in place either through threaded or welded configurations. Apart from this, they possess a uniform design and can be fitted across different environments.

What is the difference between Cold Galvanized Pipe and hot Dipped Galvanised Tube?
Galvanized pipes can be processed in cold and hot galvanizing processes and can be differentiated on certain aspects.

  • Hot dipped galvanized tube is produced by passing it through a molten zinc bath at temperatures around 449 degrees C. After its removal the metal reacts with oxygen to form zinc carbonate, which resists different corrosive media.
  • Cold galvanized pipe is a module that is painted using a rich layer of zinc to protect it against corrosive material. The paint binds the piping components effectively in place.

ASTM A123 Galvanized Steel Pipe vs ASTM A153 Hot Galvanizing Pipe

  • ASTM A153 hot galvanized pipe is used in galvanizing single module items. ASTM A123 pipes are used in covering assemblies and large galvanizing fabricators.
  • ASTM A123 galvanized steel pipe is a feature in hardware and fasteners that are spun to remove or handle excess zinc. A153 grade pipes cover the standard specification of small steel parts that are employed in removing excess zinc.

How Strong Is Galvanized Steel Pipe?
Galvanized pipes are high-strength pipes designed with a yield strength that can withhold pressures up to 30,000 psi. These versatile grades are employed to deliver water, transporting sewage and other material due to their strength and corrosion resistance properties.

Mild Steel Seamless Galvanized Pipe Supplier in Mumbai, Check Pre-Galvanizing Pipe price in India

View Galvanised Steel Tube Dimension chart, we stock Schedule 40 Hot Dip Galvanized Pipe and Electro-Galvanizing Pipe as per ASTM A123/ A123m specification

Galvanized Iron Pipe Specification

Standard EN ISO 1461
Layer Thickness Hot galvanized:- 35 upto 650 μm
Cold galvanized:- 5 upto 15 μm
Nominal diameter 1/2 upto 4 inch
Various process of Galvanized Pipe Manufacturers In India
  • Finished pickling
  • washing
  • plating
  • drying
  • hanging plating
  • cooling
  • medicine
  • cleaning
  • grinding
  • hot galvanized finish
Wall thickness 2 upto 4.5 mm
Types of Galvanizing coating appearance
  • Spangled
  • Shiny
  • Shiny and dull
  • Matte grey
Coating types galvanized steel pipe manufacturers in India
  • Hot dipped galvanized steel pipe
  • Cold galvanized pipe or electric galvanized pipe
  • Zinc coated galvanized pipe
  • Powder coated galvanized steel pipe
  • Epoxy coating galvanized pipe
  • PVC coated galvanized pipe
Test pressure 10.2 upto 168.3 mm 3 MPa
177.8 upto 323.9 mm 5 MPa
Test Reports magnetic gauge test, Laboratory testing reports

Galvanized Pipe Price Per Foot

Products Nominal Pipe Size Globally Sourced Made in USA*
1106 PRESTABO PIPE 28 X 1.5, STEEL / GALVANIZED (5040 MTR) (FOR OWN USE) 1/8 in $1.70 $2.38
SQUARE PRE-GALVANIZED STEEL PIPE. 15*15*1.4 OTHER DETAILSAS PER INVOICE PACKING LIST 1/4 in $1.93 $2.75
ERW STEEL PIPES /TUBES (GALVANIZED) OTHER THAN ASTM STANDARDS (SQUARE /RECTANGULAR) SIZE 50X25 MM LENGTH 5.80 METERS 3/8 in $2.12 $2.73
CARBON STEEL LSAW PIPES (BARE) (NON GALVANIZED) (SIZE:36 OD X 22.23MM WT) AS PER API 5L X 60 PSL2, DTLS AS PER INV/PL 1/2 in $1.48 $2.46
QUICK FIT PIPE. GALVANIZED 14 NORDFAB 3200-1400 (CAN MAKINGINDUSTRY) (QTY 1 NOS U/PRICE 94.60 USD) 3/4 in $1.76 $2.89
GALVANIZED PIPE 33.3MM X 1.6MM ,3.11 MTR (630 PCS) 1 in $2.49 $4.08
605384 11039 PRESTABO PIPE 22X100, STEEL/GALVANIZED (20 PCS@ EUR 0.70/PCS) 1-1/4 in $3.83 $5.40

Types of Galvanized Steel Pipe

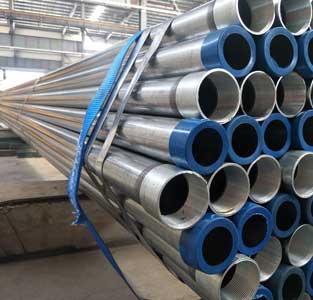

Galvanized Pipe
Galvanized Pipe
Galvanized Pipe

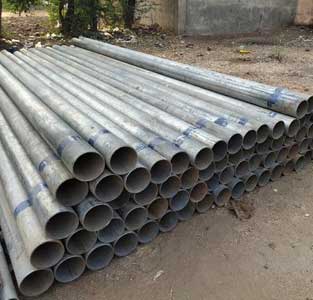

Galvanized Steel Pipe
Galvanized Steel Pipe
Galvanized Steel Pipe

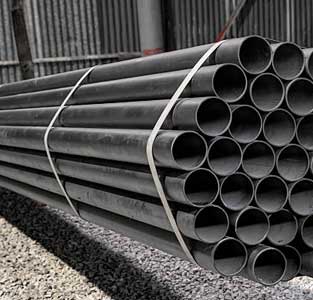

ASTM A123 Grade B Galvanized Iron Pipe
ASTM A123 Grade B Galvanized Iron Pipe
ASTM A123 Grade B Galvanized Iron Pipe

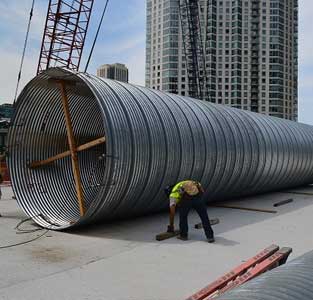

Galvanized Culvert Pipe
Galvanized Culvert Pipe
Galvanized Culvert Pipe

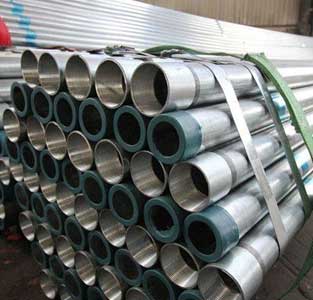

ASTM A153 Galvanized Water Pipe
ASTM A153 Galvanized Water Pipe
ASTM A153 Galvanized Water Pipe

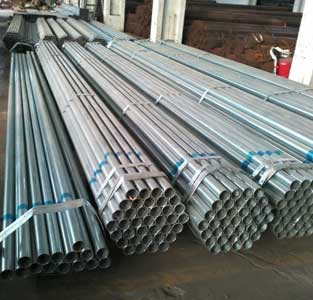

Schedule 40 Galvanized Steel Pipe
Schedule 40 Galvanized Steel Pipe
Schedule 40 Galvanized Steel Pipe
Galvanized Drain Pipe
Galvanized Drain Pipe
Galvanized Drain Pipe
ASTM D7803 Galvanized Square Pipe
ASTM D7803 Galvanized Square Pipe
ASTM D7803 Galvanized Square Pipe

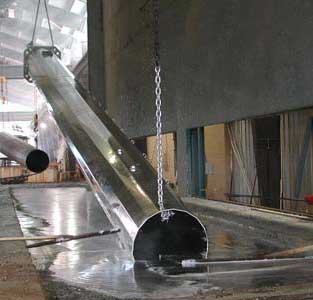

ASTM A123m Galvanized Gi Pipe
ASTM A123m Galvanized Gi Pipe
ASTM A123m Galvanized Gi Pipe

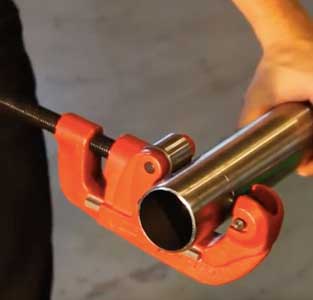

Galv Tube
Galv Tube
Galv Tube

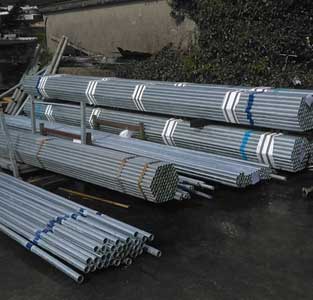

Gi Pipe
Gi Pipe
Gi Pipe

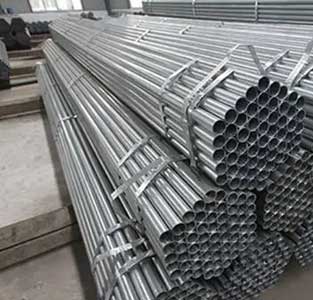

ASTM A53 Zinc Coated Galvanized Pipe
ASTM A53 Zinc Coated Galvanized Pipe
ASTM A53 Zinc Coated Galvanized Pipe

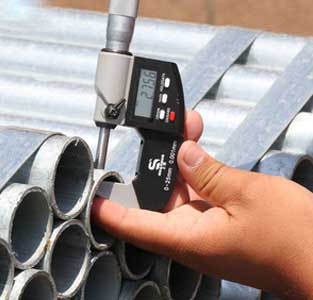

ASTM A106 Seamless Galvanized Pipe
ASTM A106 Seamless Galvanized Pipe
ASTM A106 Seamless Galvanized Pipe
Gi Coated Pipe
Gi Coated Pipe
Gi Coated Pipe

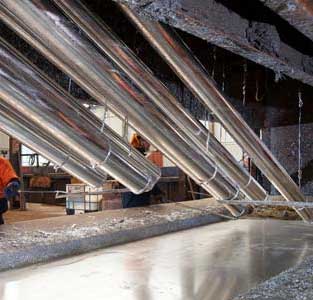

ASTM A123 Hot Dip Galvanized
ASTM A123 Hot Dip Galvanized
ASTM A123 Hot Dip Galvanized

Schedule 40 Galvanized Pipe Weight Per Foot

Nominal Wall thickness grid Galvanized pipe ( 6 m fixed length) Outer Diameter mm Minimum wall Welded pipe ( 6 m fixed length)
inner diameter mm inch Meter weight kg Root weight kg Thick mm Meter weight kg Root weight kg
DN40 3.5 1.5 4.1 24.6 48.3 3.06 3.87 23.22
DN20 2.8 3/4 1.76 10.56 26.9 2.45 1.66 9.96
DN25 3.2 1 2.554 15.32 33.7 2.8 2.41 14.46
DN15 2.8 1/2 1.357 8.14 21.3 2.45 1.28 7.68
DN32 3.5 1.25 3.56 21.36 42.4 3.06 3.36 20.16
DN80 4 3 8.88 53.28 88.9 8.38 50.28
DN50 3.8 2 5.607 33.64 60.3 3.325 5.29 31.74
DN65 4 2.5 7.536 45.21 76.1 3.5 7.11 42.66
DN100 4 4 11.53 69.18 114.3 10.88 65.28
DN150 4.5 6 19.27 115.62 168.3 18.18 109.08
DN125 4.5 5 15.942 98.65 140 15.04 90.24
DN200 6 8 219.1 31.53 189.18
DN200 6.5 8 36.12 216.72 219.1
Stockist and supplier of Schedule 40 Galvanized Steel Pipe in Mumbai, Get instant delivery of ASTM F1083 Hot-Dipped Zinc-Coated (Galvanized) Welded Pipe and Hdg Steel Pipe in India

ASTM A123 Galvanized Steel Pipe Pressure Rating

Size in Inch Wall Thickness (in) Inside Diameter (in) Schedule Outside Diameter (in) Temperature (oF)
100 200 300 400
Allowed Stress (psi)
20000 20000 20000 20000
Maximum Pressure (psi)
1 0.133 1.049 40 1.315 4402 4402 4402 4402
0.179 0.957 80 1.315 6110 6110 6110 6110
0.25 0.815 160 1.315 8969 8969 8969 8969
0.358 0.599 1.315 13922 13922 13922 13922
3/4 0.113 0.824 40 1.05 4710 4710 4710 4710
0.154 0.742 80 1.05 6647 6647 6647 6647
0.219 0.612 160 1.05 10014 10014 10014 10014
0.308 0.434 1.05 15331 15331 15331 15331
1/2 0.109 0.622 40 0.84 5792 5792 5792 5792
0.147 0.546 80 0.84 8140 8140 8140 8140
0.188 0.464 160 0.84 10905 10905 10905 10905
0.294 0.252 0.84 19444 19444 19444 19444
2 0.109 2.157 10 2.375 1906 1906 1906 1906
0.154 2.067 40 2.375 2736 2736 2736 2736
0.218 1.939 80 2.375 3963 3963 3963 3963
0.25 1.875 2.375 4598 4598 4598 4598
0.281 1.813 2.375 5227 5227 5227 5227
0.344 1.687 160 2.375 6553 6553 6553 6553
0.436 1.503 2.375 8607 8607 8607 8607
1 1/4 0.14 1.38 40 1.66 3618 3618 3618 3618
0.191 1.278 80 1.66 5069 5069 5069 5069
0.25 1.16 160 1.66 6849 6849 6849 6849
0.382 0.896 1.66 11282 11282 11282 11282
2 1/2 0.12 2.635 10 2.875 1727 1727 1727 1727
0.203 2.469 40 2.875 2993 2993 2993 2993
0.216 2.443 2.875 3197 3197 3197 3197
0.25 2.375 2.875 3738 3738 3738 3738
0.276 2.323 80 2.875 4159 4159 4159 4159
0.375 2.125 160 2.875 5825 5825 5825 5825
0.552 1.771 2.875 9074 9074 9074 9074
3 0.12 3.26 3.5 1410 1410 1410 1410
0.156 3.188 3.5 1849 1849 1849 1849
0.172 3.156 3.5 2046 2046 2046 2046
0.188 3.124 3.5 2245 2245 2245 2245
0.216 3.068 40 3.5 2597 2597 2597 2597
0.25 3 3.5 3030 3030 3030 3030
0.281 2.938 3.5 3432 3432 3432 3432
0.3 2.9 80 3.5 3681 3681 3681 3681
0.438 2.624 160 3.5 5563 5563 5563 5563
0.6 2.3 3.5 7947 7947 7947 7947
1 1/2 0.145 1.61 40 1.9 3251 3251 3251 3251
0.2 1.5 80 1.9 4598 4598 4598 4598
0.281 1.338 160 1.9 6710 6710 6710 6710
0.4 1.1 1.9 10127 10127 10127 10127
3 1/2 0.12 3.76 10 4 1230 1230 1230 1230
0.226 3.548 140 4 2367 2367 2367 2367
0.25 3.5 4 2632 2632 2632 2632
0.281 3.438 4 2977 2977 2977 2977
0.318 3.364 80 4 3396 3396 3396 3396
0.636 2..728 4 7287 7287 7287 7287
6 0.109 6.407 5 6.625 667 667 667 667
0.134 6.357 10 6.625 822 822 822 822
0.156 6.313 6.625 960 960 960 960
0.188 6.249 6.625 1161 1161 1161 1161
0.203 6.219 6.625 1256 1256 1256 1256
0.219 6.187 6.625 1358 1358 1358 1358
0.25 6.125 6.625 1556 1556 1556 1556
0.28 6.065 40 6.625 1750 1750 1750 1750
0.312 6.001 6.625 1958 1958 1958 1958
0.344 5.937 6.625 2167 2167 2167 2167
0.375 5.875 6.625 2372 2372 2372 2372
0.432 5.761 80 6.625 2752 2752 2752 2752
0.5 5.625 6.625 3213 3213 3213 3213
0.562 5.501 120 6.625 3640 3640 3640 3640
0.625 5.375 6.625 4082 4082 4082 4082
0.719 5.187 160 6.625 4754 4754 4754 4754
0.864 4.897 6.625 5824 5824 5824 5824
1 4.625 6.625 6867 6867 6867 6867
1.125 4.375 6.625 7860 7860 7860 7860
5 0.188 5.187 5.563 1389 1389 1389 1389
0.219 5.125 5.563 1626 1626 1626 1626
0.258 5.047 40 5.563 1927 1927 1927 1927
0.281 5.001 5.563 2106 2106 2106 2106
0.312 4.939 5.563 2349 2349 2349 2349
0.344 4.875 5.563 2602 2602 2602 2602
0.375 4.813 80 5.563 2850 2850 2850 2850
0.5 4.563 120 5.563 3874 3874 3874 3874
0.625 4.313 160 5.563 4938 4938 4938 4938
0.75 4.063 5.563 6045 6045 6045 6045
4 0.12 4.26 10 4.5 1090 1090 1090 1090
0.156 4.188 4.5 1426 1426 1426 1426
0.188 4.124 4.5 1729 1729 1729 1729
0.203 4.094 4.5 1872 1872 1872 1872
0.219 4.062 4.5 2026 2026 2026 2026
0.237 4.026 40 4.5 2199 2199 2199 2199
0.25 4 4.5 2326 2326 2326 2326
0.281 3.938 60 4.5 2629 2629 2629 2629
0.312 3.876 4.5 2936 2936 2936 2936
0.337 3.826 80 4.5 3186 3186 3186 3186
0.438 3.624 120 4.5 4222 4222 4222 4222
0.531 3.438 160 4.5 5212 5212 5212 5212
0.674 3.152 4.5 6807 6807 6807 6807
10 0.188 10.374 10.75 709 709 709 709
0.203 10.374 10.75 767 767 767 767
0.219 10.312 10.75 828 828 828 828
0.237 10.276 10.75 898 898 898 898
0.25 10.25 20 10.75 948 948 948 948
0.279 10.192 10.75 1060 1060 1060 1060
0.307 10.136 30 10.75 1169 1169 1169 1169
0.344 10.062 10.75 1314 1314 1314 1314
0.365 10.02 40 10.75 1396 1396 1396 1396
0.375 10 10.75 1435 1435 1435 1435
0.438 9.874 10.75 1685 1685 1685 1685
0.5 9.75 60 10.75 1932 1932 1932 1932
0.562 9.626 10.75 2182 2182 2182 2182
0.594 9.562 80 10.75 2312 2312 2312 2312
0.625 9.5 10.75 2439 2439 2439 2439
0.719 9.312 100 10.75 2827 2827 2827 2827
0.812 9.126 10.75 3216 3216 3216 3216
0.844 9.062 120 10.75 3351 3351 3351 3351
1 8.75 140 10.75 4020 4020 4020 4020
1.125 8.5 160 10.75 4569 4569 4569 4569
8 0.188 8.25 8.625 887 887 887 887
0.203 8.219 8.625 960 960 960 960
0.219 8.187 8.625 1037 1037 1037 1037
0.237 8.151 8.625 1124 1124 1124 1124
0.25 8.125 20 8.625 1187 1187 1187 1187
0.277 8.071 30 8.625 1319 1319 1319 1319
0.312 8.001 8.625 1490 1490 1490 1490
0.322 7.981 40 8.625 1539 1539 1539 1539
0.344 7.937 8.625 1648 1648 1648 1648
0.375 7.875 8.625 1802 1802 1802 1802
0.406 7.813 60 8.625 1957 1957 1957 1957
0.438 7.749 8.625 2117 2117 2117 2117
0.5 7.625 80 8.625 2432 2432 2432 2432
0.562 7.501 8.625 2750 2750 2750 2750
0.594 7.437 100 8.625 2915 2915 2915 2915
0.625 7.375 8.625 3077 3077 3077 3077
0.719 7.187 120 8.625 3573 3573 3573 3573
0.812 7.001 140 8.625 4073 4073 4073 4073
0.875 6.875 8.625 4416 4416 4416 4416
0.906 6.813 160 8.625 4587 4587 4587 4587
12 0.188 12.374 12.75 597 597 597 597
0.203 12.374 12.75 645 645 645 645
0.219 12.312 12.75 697 697 697 697
0.237 12.276 12.75 755 755 755 755
0.25 12.25 20 12.75 797 797 797 797
0.281 12.188 12.75 897 897 897 897
0.312 12.126 12.75 998 998 998 998
0.33 12.09 30 12.75 1057 1057 1057 1057
0.344 12.062 12.75 1103 1103 1103 1103
0.375 12 12.75 1205 1205 1205 1205
0.406 11.938 40 12.75 1307 1307 1307 1307
0.438 11.874 12.75 1413 1413 1413 1413
0.5 11.75 12.75 1619 1619 1619 1619
0.562 11.626 60 12.75 1828 1828 1828 1828
0.625 11.5 12.75 2041 2041 2041 2041
0.688 11.374 80 12.75 2256 2256 2256 2256
0.75 11.25 12.75 2469 2469 2469 2469
0.844 11.062 100 12.75 2796 2796 2796 2796
1 10.75 120 12.75 3347 3347 3347 3347
1.125 10.5 140 12.75 3797 3797 3797 3797
1.312 10.126 160 12.75 4485 4485 4485 4485
14 0.25 13.5 10 14 725 725 725 725
0.281 13.438 14 816 816 816 816
0.312 13.376 20 14 908 908 908 908
0.344 13.312 14 1003 1003 1003 1003
0.375 13.25 30 14 1095 1095 1095 1095
0.406 13.188 14 1188 1188 1188 1188
0.438 13.124 40 14 1284 1284 1284 1284
0.459 13.082 14 1347 1347 1347 1347
0.5 13 14 1471 1471 1471 1471
0.562 12.876 14 1659 1659 1659 1659
0.594 12.812 60 14 1757 1757 1757 1757
0.625 12.75 14 1852 1852 1852 1852
0.688 12.624 14 2046 2046 2046 2046
0.75 12.5 80 14 2239 2239 2239 2239
0.812 12.376 14 2433 2433 2433 2433
0.938 12.124 100 14 2832 2832 2832 2832
1.094 11.812 120 14 3334 3334 3334 3334
1.25 11.5 14O 14 3846 3846 3846 3846
1.406 11.188 160 14 4368 4368 4368 4368
18 0.219 17.562 18 491 491 491 491
0.237 17.526 18 532 532 532 532
0.25 17.5 18 562 562 562 562
0.281 17.438 18 632 632 632 632
0.312 17.376 20 18 703 703 703 703
0.344 17.312 18 776 776 776 776
0.375 17.25 18 847 847 847 847
0.406 17.188 18 919 919 919 919
0.438 17.124 30 18 993 993 993 993
0.469 17.062 18 1064 1064 1064 1064
0.5 17 18 1136 1136 1136 1136
0.562 16.876 40 18 1281 1281 1281 1281
0.625 16.75 18 1429 1429 1429 1429
0.688 16.624 60 18 1577 1577 1577 1577
0.75 16.5 18 1724 1724 1724 1724
0.812 16.376 18 1872 1872 1872 1872
0.938 16.124 80 18 2175 2175 2175 2175
1.156 15.688 100 18 2708 2708 2708 2708
1.275 15.25 120 18 3004 3004 3004 3004
1.562 14.876 140 18 3730 3730 3730 3730
1.781 14.438 160 18 4298 4298 4298 4298
16 0.188 15.624 16 474 474 474 474
0.203 15.594 16 513 513 513 513
0.219 15.562 16 554 554 554 554
0.237 15.526 16 600 600 600 600
0.25 15.5 10 16 633 633 633 633
0.281 15.438 16 713 713 713 713
0.312 15.376 20 16 792 792 792 792
0.344 15.312 16 875 875 875 875
0.375 15.25 30 16 955 955 955 955
0.406 15.188 16 1036 1036 1036 1036
0.438 15.124 16 1120 1120 1120 1120
0.469 15.062 16 1201 1201 1201 1201
0.5 15 40 16 1282 1282 1282 1282
0.562 14.876 16 1446 1446 1446 1446
0.625 14.75 16 1613 1613 1613 1613
0.656 14.688 60 16 1696 1696 1696 1696
0.688 14.624 16 1781 1781 1781 1781
0.75 14.5 16 1948 1948 1948 1948
0.812 14.376 80 16 2116 2116 2116 2116
1.031 13.938 100 16 2718 2718 2718 2718
1.219 13.562 120 16 3245 3245 3245 3245
1.438 13.124 140 16 3874 3874 3874 3874
1.594 12.812 160 16 4330 4330 4330 4330

Galv Pipe Size Chart

AVAILABLE SIZES
Size Wall Thickness Nominal
Pipe Size
Length
(In.)
OD ID Weight
(Lb/Ft)
1/2" SCH 40 0.147" 1/2" 252.00" 0.84" 0.546" 0.850
3/4" SCH 40 0.113" 3/4" 252.00" 1.05" 0.824" 1.130
1" SCH 40 0.179" 1" 252.00" 1.315" 0.957" 1.679
1-1/4" SCH 40 0.14" 1-1/4" 252.00" 1.66" 1.38" 2.273
1-1/2" SCH 40 0.145" 1-1/2" 252.00" 1.9" 1.61" 2.730
1-1/2" SCH 40 0.145" 1-1/2" 288.00" 1.9" 1.61" 2.730
2" SCH 40 0.154" 2" 252.00" 2.375" 2.067" 3.679
2-1/2" SCH 40 0.203" 2-1/2" 252.00" 2.875" 2.469" 5.790
3" SCH 40 0.216" 3" 252.00" 3.5" 3.068" 7.570
3-1/2" SCH 40 0.226" 3-1/2" 252.00" 4" 3.548" 9.810
4" SCH 40 0.237" 4" 252.00" 4.5" 4.026" 10.790

Cold Galvanized Pipe Process

Cold Galvanized Pipe Process

Chemical Degreasing Washing Hot Water Electrolysis Degreasing Washing Strong Corrosive Galvanized Iron Alloy Washing Drying Passivation

Galvanized Pipe Advantages

  • Less upkeep/lower long-term costs
  • The cheapest initial investment
  • Reliability
  • Longevity
  • Damaged portions are automatically protected
  • The toughest finish
  • Inspections are simple to carry out
  • Complete security
  • Erection time is shorter
Looking for Galvanized Pipe Manufacturers in India? Buy 1 inch or 2 Inch Gi Pipe, Galvanized Square Tubing and Galv Tube at factory price in Mumbai

Threaded Galvanized Pipe Thickness

Wall thickness S 1.8 5.75mm 5%
length Usual length Allowable deviation
2 inches or less 5-0
2.5 inches – 4 inches 5-0
5 inches or more 15-0
Special length 20-0
Outer diameter D 8″ ± 0.60mm
5″-6″ ± 0.50mm
4″ ± 0.40mm
3″-“ ± 0.30mm
2″ or less ± 0.20mm

How to Weld Galvanized Steel pipes?

How to weld galvanized steel pipes

Cold galvanized steel pipe which is galvanized, the method is used to protect the galvanized metal to prevent corrosion.

  • The new steel surface treatment
  • Old steel surface treatment
  • Electric weld surface treatment

Galvanized Pipe Dimensions Chart

Nominal Bore
in mm
Outside Galvanized Pipe Diameter Chart in
mm
Maximum Minimum
Thickness
mm in
20 27.3 26.5 2.6
15 21.8 21.0 2.6
125 140.8 138.5 4.8
25 34.2 33.3 3.2
40 48.8 47.90 3.2
32 42.9 42.0 3.2
50 60.8 59.7 3.6
65 76.6 75.3 3.6
80 89.5 88.0 4.0
100 115.0 113.10 4.5
150 166.50 163.90 4.80

Galvanized Steel Pipe Chemical Compostion

Manganese Carbon Sulphar Phosphorus
1.40% 0.20% 0.030% 0.035%

Hot Dipped Galvanized Steel Pipe Process

Hot Dipped Galvanized Steel Pipe Process
  • a cleaning cycle – decreasing and chemical clean
  • fluxing – helps to wet the surface of the steel
  • galvanizing – immersion of steel into bath of molten zinc
  • post treatment (optional)

Galvanized Steel Square Tubing Mechanical Properties

Yield Stress %Elongation Tensile Strength
195 N/mm2(Min.) 20% (Min.) 320 to 520 N/mm2

How to Fix Galvanized Pipe?

  • Cut out the damaged pipe segment with a reciprocating saw.
  • Cut the galvanised pipe back to where a PVC pipe already exists in the line. It's worth noting that cutting along the threads isn't necessary.
  • Take out the broken pipe.
  • At the end of each cut, use a rubber coupler.
  • To fit, measure and cut a piece of PVC pipe.
  • To install the couplings, slip the PVC pipe into them.
  • Tighten the coupling clamps with a wrench or nut driver.

Galvanized Steel Pipe Manufacturing Process

Galvanized Pipe Manufacturing Process

Grade B Galvanized Pipe HS Code

Description HSN Code
Galvanized Pipe 73051211

Galvanized Mild Steel Pipe Thickness

Product Name Wall Thickness (Inches) Outer Diameter (Inches) #/FT Type
1/2" SCH 40 0.109 0.84 0.851 A53-A GALV
3/4" SCH 40 0.113 1.05 1.131 A53-A GALV
3/4" SCH 80 0.154 1.05 1.474 A53-A GALV
1" SCH 40 0.133 1.315 1.679 A53-A GALV
1-1/4" SCH 10 0.109 1.66 1.806 A53-A GALV
1-1/4" SCH 40 0.14 1.66 2.273 A53-A GALV
1-1/4" SCH 80 0.191 1.66 2.997 A53-A GALV
1-1/2" SCH 10 0.109 1.9 2.085 A53-A GALV
1-1/2" SCH 40 0.145 1.9 2.718 A53-A GALV
1-1/2" SCH 80 0.2 1.9 3.631 A53-A GALV

Hdg Steel Pipe Uses

Hdg Steel Pipe Uses
  • Marine environments
  • Plumbing
  • Ballards
  • Hot and cold liquid transportation
  • Fencing
  • Construction
  • Railings
  • Exposed environments

Gi Pipe Inventory

Galvanized Steel Pipe Pre-Galvanized Steel Pipes
Galvanized Iron Pipe Hdg Steel Pipe
2 Inch Galvanized Pipe Galvanized Pipe For Water
2 Galvanized Pipe Galvanized Gi Pipe
Galvanized Square Tubing Gi Pipe Dip Galvanized
1 Inch Galvanized Pipe Gi Galvanized Water Line Pipe
3 Inch Galvanized Pipe Hot Dip Galvanized Steel Pipe
Galvanized Culvert Pipe Seamless Galvanized Pipe
Galvanized Water Pipe Hot Dip Galvanized Square Pipe
Schedule 40 Galvanized Steel Pipe Pre Galvanized Square Tubing
Galvanised Steel Tube Hot-Dip Galvanizing Pipe
4 Inch Galvanized Pipe Pre-Galvanizing Pipe
4 Galvanized Pipe Electro-Galvanizing Pipe
Black Galvanized Pipe Galv Tube
2 Inch Galvanized Pipe 20 Ft Mild Steel Seamless Galvanized Pipe
Galvanized Fence Pipe Schedule 40 Hot Dip Galvanized Pipe
Galv Pipe ASTM F1083 Hot-Dipped Zinc-Coated (Galvanized) Welded Pipe
Galvanized Drain Pipe Gi Pipe
2x2 Galvanized Square Tubing Hot Dipped Galvanized Seamless Carbon Steel Pipe
Threaded Galvanized Pipe ASTM A53 Zinc Coated Galvanized Pipe
Galvanized Plumbing Pipe Hot Dipped Galvanized Steel Pipe
Galvanised Water Pipe Carbon Steel Galvanized Pipe
Hot Dip Galvanized Pipe ASTM A106 Seamless Galvanized Pipe
Galvanized Square Pipe API 5L Galvanized Pipe
Schedule 40 Galvanized Pipe Seamless Galvanized carbon Steel Pipes
4x4 Galvanized Square Tubing Gi Coated Pipe
Galvanized Steel Culvert Pipe ASTM A53 Galvanized Pipe
Galvanized Steel Square Tubing ASTM A106 Grade B Galvanized Pipe
Galvanized Metal Pipe API 5L Gr. B Galvanized Pipe
Galvanized B Pipe Powder Coated Galvanized Steel Pipe
Grade B Galvanized Pipe API 5L Gr B Sch40 4 Inch Galvanized Seamless Steel Pipe
B Galvanized Steel Pipes 1/4 Inch Schedule 40 API 5L X42 Galvanized Seamless Steel Pipe
Galvanized B Vent Pipe ASME SA 106 Seamless Galvanized carbon Steel Pipes
Class C Galvanized Pipe Hot Dip Galvanized Seamless Steel Pipe
Dipped Galvanized Steel Hot Dip Seamless Galvanized Pipe
Hot Dip Galvanized Square Tube Galvanized Iron (Gi) Pipes
Galvanized Mild Steel Pipe Galvanized Steel (Gi) Pipes

Galvanized Pipe Application

  • Manufacturing
  • General fabrication
  • Automotive
  • Construction
  • Lighting columns
  • Walkways
  • Frames
  • Repairs
  • And more
  • Trailers

Searching for

Galvanized Pipe Manufacturers In India? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

Galvanized Culvert Pipe

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

Galv Pipe

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

Galvanized B Pipe

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

Hdg Steel Pipe

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

Mild Steel Seamless Galvanized Pipe

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

Schedule 40 Hot Dip Galvanized Pipe

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
