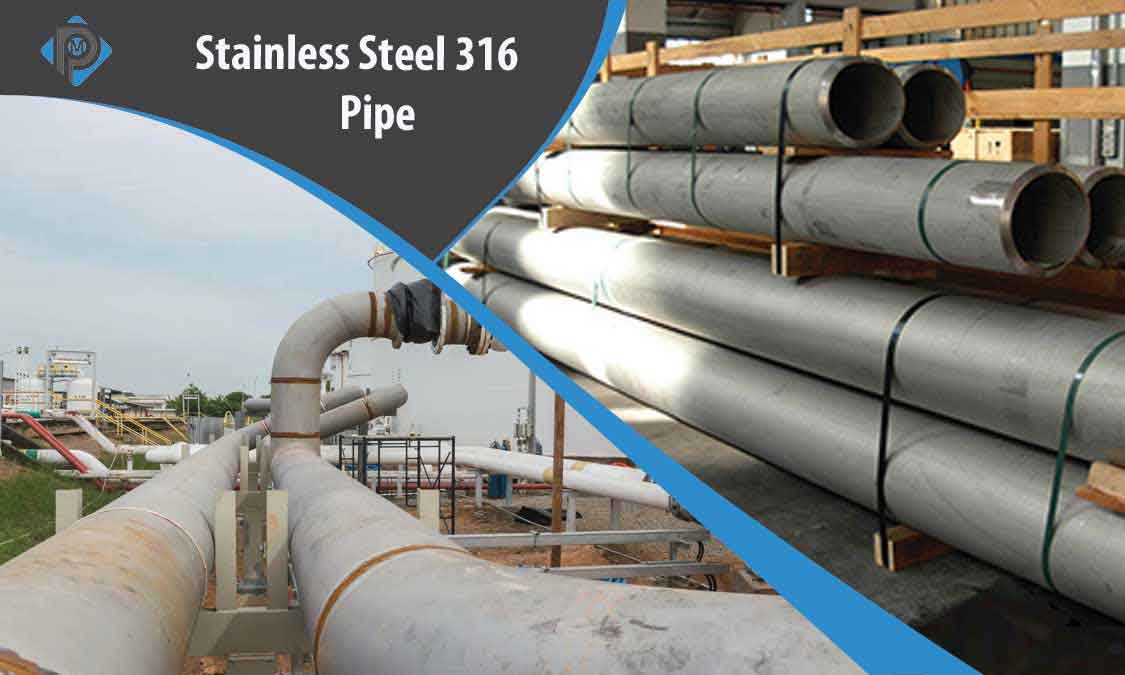

What Is Stainless Steel 316l Pipe
Stainless steel 316l pipe is a low carbon austenitic alloy. The pipes in this grade are designed with a superior chemical composition of chromium, nickel coupled with molybdenum. The outstanding composition gives these modules enhanced corrosion and oxidation resistance. The pipes are resistant against carbide precipitation and can be welded in place easily following standard welding procedures.
What Is L In 316l Stainless Steel Pipe
The L in austenitic stainless steel 316l pipe grade signifies the content of lower carbon within the pipe.
Different Between Stainless Steel 316l Seamless And Welded Pipe
Grade 316l pipes are generally designed in welded and seamless configurations. Both these piping components can be distinguished based on certain features.
ASTM A312 Gr Tp316l Pipe Vs ASME Sa 312 Grade 316 Pipe
ASTM and ASME are important standards that play a pivotal role in manufacturing the pipes in the 316 grade. Both the grade are nearly identical but can be differentiated on certain aspects.
Different Between Stainless Steel 316l seamless Pipe and SS 316l erw pipe

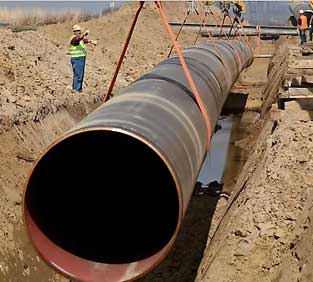

What Is 316l Stainless Steel Used For
Stainless steel 316l grade is commonly seen in the following industries.
Products | Standards | Steel Grade | Specifications | Coating | FOB Mumbai | ||||
---|---|---|---|---|---|---|---|---|---|
OD | WT | Length | USD/ TON | ||||||
INCH | MM | SCH | MM | M | |||||
316L Stainless Steel Seamless Pipes | ASTM A312 | 316L |
1/4" | 13.72 |
S-40 | 2.24 | 6.0 | Pickling | $ 5070 |
ASME SA312 TP316L Stainless Steel Seamless Pipe | ASME SA312 | TP316L | 3/8" | 17.14 | S-40 | 2.31 | 6.0 | Pickling | $ 5070 |
ASTM A269 TP 316L Stainless Steel SMLS Pipe | ASTM A 312 | TP 316L | 1/2" | 21.34 | S-40 | 2.77 | 6.0 | Pickling | $ 5000 |
316L Stainless Steel SMLS Pipe | A312 | Grade 316L | 3/4" | 26.67 | S-40 | 2.87 | 6.0 | Pickling | $ 4861 |
SS GOST 03Ch17N14M3 Seamless Pipe | SA312 | Gr. 316L | 1" | 33.40 | S-40 | 3.38 | 6.0 | Pickling | $ 4722 |
SS Grade F316L Seamless Pipe | ASTM A312M | Gr 316L | 1.5" | 48.26 | S-40 | 3.68 | 6.0 | Pickling | $ 4722 |
Stainless Steel 316L SMLS Pipe | ASME SA312 | UNS S31603 | 2" | 60.32 | S-40 | 3.91 | 6.0 | Pickling | $ 4722 |
SS UNS S31603 SMLS Pipe | A312 | 1.4404 | 2.5" | 73.02 | S-40 | 5.16 | 6.0 | Pickling | $ 4722 |
150# ANSI SS 316L Seamless Pipe | A 312 | GR TP316L | 3" | 88.90 | S-40 | 5.49 | 6.0 | Pickling | $ 4722 |
SS 316L SMLS Pipe | SA312 | 316L | 4" | 114.30 | S-40 | 6.02 | 6.0 | Pickling | $ 4722 |
ASTM A312 TP 316L Seamless Pipe | ASTM A312 | SUS 316L | 6" | 168.28 | S-40 | 7.1 | 6.0 | Pickling | $ 4861 |
Specification and Grade | ASTM/ ASME A 312/ SA 312 |
---|---|
Pipes Sch. | Schedule120, Schedule80, Schedule40, Schedule30, Schedule20, XS, STD, Schedule160, Schedule60, XXS, Schedule80, Schedule140 |
Outside Diameter (OD) | 1/8" To 30″NB Inch |
Different Types | LSAW/ ERW / Welded /Seamless / Fabricated Pipes |
Dimension Table | ASTM, ASME and API |
most popular for | Stainless Steel 316 Large Diameter Pipe |
Available Sizes | 1/2″ NB to 16″ NB |
common Pipes length | Single Random & Double Random, Cut Length |
erw pipes Sizes Metric |
1/2″ NB to 24″ NB |
Pipes End Types | Plain End, Beveled End, Theaded |
Sizes Available of efw pipes | 6″ NB to 100″ NB |
basic Form of pipes | Hydraulic, Round Form Etc |
ASTM A312 | S | C | Cr | Mn | Mo | Si | Ni | P | N | |
TP316L | min. | - | - | 16.0 | - | 2.0 | - | 10.0 | - | - |
max. | 0.03 | 0.08 | 18.0 | 2.0 | 3.0 | 0.75 | 14.0 | 0.045 | 0.10 |
ASTM A312 | Elongation (% in 50mm) min | Tensile Stress (MPa) min | Yield Stress 0.2% Proof (MPa) min | Hardness | |
Brinell (HB) max | Rockwell B (HR B) max | ||||
TP316L | 40 | 515 | 205 | 217 | 95 |
STANDARD | SS 316L |
---|---|
UNS | S31603 |
ASTM | A312 |
JIS | SUS 316L |
ASME | SA 312 |
AFNOR | Z3CND17-11-02 / Z3CND18-14-03 |
WERKSTOFF NR. / DIN | 1.4404 / 1.4435 |
GRADE | Yield Properties |
---|---|
316L | 170 |
MATERIAL SURFACE | ABSOLUTE ROUGHNESS COEFFICIENT Ε MM |
---|---|
Drawn Copper/ Brass | 0.0015 |
Aluminum Alloy, Lead | 0.001 - 0.002 |
316L Stainless Steel | 0.015 |
1% Elongation1) for | Rupture2) for | ||||
---|---|---|---|---|---|
Temperature °C | 1,000 h N/mm2 | 10,000 h N/mm2 | 10,000 h N/mm2 | 100,000 h N/mm2 | 1,000 h N/mm2 |
800 | 18 | 18 | 10 | 7 | 35 |
600 | 100 | 130 | 90 | 80 | 170 |
900 | 10 | 8.5 | 4 | 3 | 15 |
700 | 45 | 40 | 30 | 18 | 80 |
GRADE | BRINELL HARDNESS (HB) MAX | ROCKWELL B HARDNESS (HR B) MAX |
---|---|---|
316L | 217 | 95 |
Check below 316l tubing pressure rating for seamless or welded and drawn, fully annealed stainless steel tubing products conforming to ASTM A312.
Pipe Size (inches) |
Pipe Schedule | Temperature (°F) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||
4" | 80 | 2213 | 1909 | 1715 | 1577 | 1466 | 1397 | 1355 | 1328 | 1314 |
1" | 40 | 3048 | 2629 | 2362 | 2171 | 2019 | 1924 | 1867 | 1824 | 1810 |
5" | 40 | 1342 | 1158 | 1040 | 956 | 889 | 847 | 822 | 805 | 797 |
1" | 80 | 4213 | 3634 | 3265 | 3002 | 2791 | 2659 | 2580 | 2528 | 2501 |
8" | 40 | 1073 | 926 | 832 | 765 | 711 | 678 | 657 | 644 | 637 |
1" | 160 | 6140 | 5296 | 4759 | 4375 | 4068 | 3876 | 3761 | 3684 | 3646 |
4" | 40 | 1531 | 1321 | 1187 | 1091 | 1014 | 967 | 938 | 919 | 909 |
1.5" | 40 | 2257 | 1947 | 1750 | 1608 | 1496 | 1425 | 1383 | 1354 | 1340 |
5" | 80 | 1981 | 1709 | 1535 | 1411 | 1312 | 1250 | 1213 | 1189 | 1176 |
1.5" | 80 | 3182 | 2744 | 2466 | 2267 | 2108 | 2009 | 1949 | 1909 | 1889 |
4" | 160 | 3601 | 3106 | 2791 | 2566 | 2386 | 2273 | 2206 | 2161 | 2138 |
1.5" | 160 | 4619 | 3984 | 3580 | 3291 | 3060 | 2916 | 2829 | 2772 | 2743 |
6" | 80 | 1913 | 1650 | 1483 | 1363 | 1267 | 1208 | 1172 | 1148 | 1136 |
2" | 40 | 1902 | 1640 | 1474 | 1355 | 1260 | 1201 | 1165 | 1141 | 1129 |
8" | 160 | 3175 | 2738 | 2460 | 2262 | 2103 | 2004 | 1944 | 1905 | 1885 |
2" | 80 | 2747 | 2369 | 2129 | 1957 | 1820 | 1734 | 1682 | 1648 | 1631 |
8" | 80 | 1692 | 1459 | 1311 | 1205 | 1121 | 1068 | 1036 | 1015 | 1005 |
2" | 160 | 4499 | 3880 | 3486 | 3205 | 2980 | 2840 | 2755 | 2699 | 2671 |
10" | 40 | 974 | 840 | 755 | 694 | 945 | 615 | 596 | 584 | 578 |
3" | 40 | 1806 | 1558 | 1400 | 1287 | 1196 | 1140 | 1106 | 1084 | 1072 |
10" | 80 | 1609 | 1388 | 1247 | 1147 | 1066 | 1016 | 986 | 966 | 956 |
3" | 80 | 2553 | 2202 | 1979 | 1819 | 1691 | 1612 | 1564 | 1532 | 1516 |
3" | 160 | 3840 | 3312 | 2976 | 2736 | 2544 | 2424 | 2352 | 2304 | 2280 |
5" | 160 | 3414 | 2945 | 2646 | 2433 | 2262 | 2155 | 2091 | 2049 | 2027 |
6" | 160 | 3289 | 2836 | 2549 | 2343 | 2179 | 2076 | 2014 | 1973 | 1953 |
6" | 40 | 1219 | 1052 | 945 | 869 | 808 | 770 | 747 | 732 | 724 |
10" | 160 | 3147 | 2714 | 2439 | 2242 | 2085 | 1986 | 1927 | 1880 | 1868 |
SPECIFICATION | A-312 | SA-312 |
---|---|---|
Product Shape | Welded pipe | Seamless & Welded pipe |
SS Grade | TP316L | TP316L |
UNS designation | S31603 | S31603 |
Nominal Composition | 16Cr-12Ni-2Mo | 16Cr-12Ni-2Mo |
Sizes/ Thickness [mm] | - | - |
III-Applic. and Maximum temperature limit [°C] | NP | 427 |
P Number | 8 | 8 |
I-Applic. and Maximum temperature limit [°C] |
454 | 454 |
Group Number | 1 | 1 |
VIII-1-Applic. and Maximum temperature limit [°C] | 454 | 454 |
Minimum Tensile Strength [MPa] |
485 | 485 |
XII-Applic. and Maximum temperature limit [°C] | 343 | 343 |
Minimum Yield Strength [MPa] |
170 | 170 |
External Pressure Chart No. |
HA-4 | HA-4 |
GRADE | SPECIFIC HEAT 0-100 °C (J/KG.K) | MEAN CO-EFF OF THERMAL EXPANSION (ΜM/M/°C) | ELEC RESISTIVITY (NΩ.M) | THERMAL CONDUCTIVITY TEMPERATURE (W/M.K) | |||
---|---|---|---|---|---|---|---|
0-100 °C | 0-538 °C | 0-315 °C | AT 100 °C | AT 500 °C | |||
316L | 500 | 15.9 | 17.5 | 16.2 | 740 | 16.3 | 21.5 |
Nominal size [inches] | Wall thickness [inches] | Wall thickness [mm] | Outside diameter [inches] | Outside diameter [mm] | Weight [lb/ft] | Weight [kg/m] |
---|---|---|---|---|---|---|
1/8 | 0.095 | 2.41 | 0.405 | 10.3 | 0.31 | 0.47 |
1/4 | 0.119 | 3.02 | 0.54 | 13.7 | 0.54 | 0.8 |
1/2 | 0.147 | 3.73 | 0.84 | 21.3 | 1.09 | 1.62 |
3/4 | 0.154 | 3.91 | 1.05 | 26.7 | 1.47 | 2.2 |
1 | 0.179 | 4.55 | 1.315 | 33.4 | 2.17 | 3.24 |
1 1/4 | 0.191 | 4.85 | 1.66 | 42.2 | 3 | 4.47 |
1 1/2 | 0.2 | 5.08 | 1.9 | 48.3 | 3.63 | 5.41 |
2 | 0.218 | 5.54 | 2.375 | 60.3 | 5.02 | 7.48 |
2 1/2 | 0.276 | 7.01 | 2.875 | 73 | 7.66 | 11.41 |
3 | 0.3 | 7.62 | 3.5 | 88.9 | 10.25 | 15.27 |
3 1/2 | 0.318 | 8.08 | 4 | 101.6 | 12.5 | 18.63 |
4 | 0.337 | 8.56 | 4.5 | 114.3 | 14.98 | 22.32 |
5 | 0.375 | 9.53 | 5.563 | 141.3 | 20.78 | 30.97 |
6 | 0.432 | 10.97 | 6.625 | 168.3 | 28.57 | 42.56 |
8 | 0.5 | 12.7 | 8.625 | 219.1 | 43.39 | 64.64 |
10 | 0.594 | 15.09 | 10.75 | 273 | 64.43 | 96.01 |
12 | 0.688 | 17.48 | 12.75 | 323.8 | 88.63 | 132.08 |
14 | 0.75 | 19.05 | 14 | 355.6 | 106.13 | 158.1 |
16 | 0.844 | 21.44 | 16 | 406.4 | 136.61 | 203.53 |
18 | 0.938 | 23.83 | 18 | 457 | 170.92 | 254.55 |
20 | 1.031 | 26.19 | 20 | 508 | 208.87 | 311.17 |
24 | 1.125 | 30.96 | 24 | 610 | 296.58 | 442.08 |
OD mm |
Sch | WT mm |
Kg/m | in. |
---|---|---|---|---|
13.72 | 10S | 1.65 | 0.50 | 1/4 |
13.72 | 40S | 2.24 | 0.64 | 1/4 |
13.72 | 80S | 3.02 | 0.81 | 1/4 |
17.15 | 10S | 1.65 | 0.64 | 3/8 |
17.15 | 40S | 2.31 | 0.86 | 3/8 |
17.15 | 80S | 3.20 | 1.12 | 3/8 |
21.34 | 10S | 2.11 | 1.02 | 1/2 |
21.34 | 40S | 2.77 | 1.29 | 1/2 |
21.34 | 80S | 3.73 | 1.65 | 1/2 |
26.67 | 10S | 2.11 | 1.30 | 3/4 |
26.67 | 40S | 2.87 | 1.71 | 3/4 |
26.67 | 80S | 3.91 | 2.23 | 3/4 |
33.40 | 10S | 2.77 | 2.13 | 1 |
33.40 | 40S | 3.38 | 2.54 | 1 |
33.40 | 80S | 4.55 | 3.29 | 1 |
33.40 | 160 | 6.352) | 4.30 | 1 |
42.16 | 10S | 2.77 | 2.73 | 1¼ |
42.16 | 40S | 3.56 | 3.44 | 1¼ |
42.16 | 80S | 4.85 | 4.53 | 1¼ |
42.16 | 160 | 6.352) | 5.69 | 1¼ |
48.26 | 10S | 2.77 | 3.16 | 1½ |
48.26 | 40S | 3.68 | 4.11 | 1½ |
48.26 | 80S | 5.08 | 5.49 | 1½ |
60.33 | 10S | 2.77 | 3.99 | 2 |
60.33 | 40S | 3.91 | 5.52 | 2 |
60.33 | 80S | 5.54 | 7.60 | 2 |
60.33 | 160 | 8.742) | 11.29 | 2 |
73.03 | 10S | 3.05 | 5.35 | 2½ |
73.03 | 40S | 5.16 | 8.77 | 2½ |
73.03 | 80S | 7.01 | 11.59 | 2½ |
88.90 | 10S | 3.05 | 6.56 | 3 |
88.90 | 40S | 5.49 | 11.47 | 3 |
88.90 | 80S | 7.62 | 15.51 | 3 |
88.90 | 160 | 11.132) | 21.67 | 3 |
101.60 | 10S | 3.05 | 7.53 | 3½ |
101.60 | 40S | 5.74 | 13.78 | 3½ |
101.60 | 80S | 8.08 | 18.92 | 3½ |
114.30 | 10S | 3.05 | 8.50 | 4 |
114.30 | 40S | 6.02 | 16.32 | 4 |
114.30 | 80S | 8.56 | 22.67 | 4 |
114.30 | 160 | 13.492) | 34.05 | 4 |
141.30 | 40S | 6.55 | 22.10 | 5 |
141.30 | 80S | 9.53 | 31.44 | 5 |
141.30 | 160 | 15.882) | 49.87 | 5 |
168.28 | 10S | 3.4 | 14.04 | 6 |
168.28 | 40S | 7.11 | 28.69 | 6 |
168.28 | 80S | 10.97 | 43.21 | 6 |
168.28 | 120 | 14.27 | 54.75 | 6 |
168.28 | 160 | 18.262) | 68.59 | 6 |
219.08 | 40S | 8.18 | 43.20 | 8 |
219.08 | 80S | 12.7 | 65.63 | 8 |
219.08 | 120 | 18.23 | 91.30 | 8 |
219.08 | 160 | 23.012) | 112.97 | 8 |
316L Stainless steel Pipe Wall Thickness | Sizes ( O.D.) |
---|---|
.010 | 1/16" , 1/8" , 3/16" |
.020 | 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8" |
.012 | 1/8" |
.016 | 1/8" , 3/16" |
.028 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2" |
.035 | 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.049 | 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4" |
.065 | 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3" |
.083 | 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3" |
.095 | 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2" |
.109 | 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" |
.120 | 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3" |
.125 | 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4" |
.134 | 1" |
.250 | 3" |
.375 | 3 1/2" |
GRADE | COUNTRY | ASTM A312 Gr TP316L Seamless Pipe HS CODE |
---|---|---|
SS 316L Pipe | Maldives | 73042400 |
United Arab Emirates (UAE) | 73041990 | |
Singapore | 73049000 | |
Qatar | 73041990 | |
Italy | 73044100 | |
Saudi Arabia (KSA) | 73049000 | |
Oman | 73049000 |
1/8" IPS(.405"O. D.) | 3 1/2" IPS( 4.000"O. D.) |
---|---|
SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
1/4" IPS(.540"O. D.) | 4" IPS(4.500"O. D.) |
SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
3/8" IPS(.675"O. D.) | 5" IPS( 5.563"O. D.) |
SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
1/2" IPS(.840"O. D.) | 6" IPS(6.625"O. D.) |
SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
3/4" IPS(1.050"O. D.) | 8 ” IPS(8.625"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
1" IPS:(1.315′O. D.) | 10" IPS(10.750"O. D.) |
SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
1-1/4" IPS(1.660"O. D.) | 12" IPS(12.750"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
1-1/2" IPS(1.900"O. D.) | 14" IPS(14.000"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
2" IPS(2.375"O. D.) | 16" IPS(16.000"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
2 1/2" IPS(2.875"O. D.) | 18" IPS (18.000"O. D.) |
SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
3" IPS( 3.500"O. D.) | |
SCH 5, 10, 40, 80, 160, XXH |
Pipes O.D. (in.) |
Wall Thickness of Pipes/Tubes (inches) | |||||||
---|---|---|---|---|---|---|---|---|
.028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
Working Pressure (psig) | ||||||||
3/8 | 3100 | 4400 | 6100 | |||||
1/8 | 7900 | 10100 | ||||||
3/4 | 2200 | 3000 | 4000 | 4600 | ||||
1/4 | 3700 | 4800 | 7000 | 9500 | ||||
1 | 2200 | 2900 | 3400 | 3900 | 4300 | |||
5/16 | 3700 | 5400 | 7300 | |||||
1/2 | 2300 | 3200 | 4400 |
Pipes OD | Wall Thickness (Inches) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
.010 | .012 | .016 | .020 | .028 | .035 | .049 | .065 | .083 | .095 | .109 | .120 | |
3/8 | 3,530 | 5,107 | 7,029 | |||||||||
1/16 | 6,422 | 7,872 | 10,768 | 13,484 | ||||||||
1/2 | 2,595 | 3,721 | 5,078 | 6,699 | ||||||||
1/8 | 6,422 | 9,325 | 11,823 | |||||||||
5/8 | 2,051 | 2,927 | 3,970 | 5,200 | 6,056 | |||||||
3/16 | 4,081 | 5,935 | 7,630 | 11,005 | ||||||||
7/8 | 1,446 | 2,051 | 2,764 | 3,592 | 4,161 | 4,842 | 5,391 | |||||
1/4 | 4,305 | 5,518 | 8,053 | 10,946 | ||||||||
1 | 5,040 | 7,140 | 9,595 | 12,445 | 14,390 | 16,715 | 18,585 | |||||
3/4 | 1,696 | 2,412 | 3,259 | 4,249 | 4,933 | 5,755 | 6,422 |
Pipes OD | Wall Thickness (Inches) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.2 | 1.5 | 1.6 | 1.8 | 2.0 | 2.2 | 2.5 | 3.0 | |
12 | 169 | 215 | 262 | 335 | 360 | 411 | 464 | ||||||
3 | 464 | 567 | 672 | 775 | 965 | ||||||||
14 | 182 | 222 | 282 | 303 | 345 | 389 | 433 | 500 | 612 | ||||
4 | 335 | 411 | 491 | 567 | 723 | 873 | |||||||
16 | 158 | 192 | 244 | 262 | 298 | 335 | 372 | 430 | 528 | ||||
6 | 310 | 360 | 464 | 567 | 723 | 775 | |||||||
18 | 140 | 169 | 215 | 230 | 262 | 294 | 326 | 377 | 464 | ||||
8 | 227 | 262 | 335 | 411 | 528 | 567 | |||||||
22 | 113 | 137 | 173 | 186 | 211 | 236 | 262 | 301 | 369 | ||||
10 | 206 | 262 | 320 | 411 | 442 | ||||||||
25 | 99 | 120 | 152 | 162 | 184 | 206 | 228 | 262 | 320 |
WALL THICKNESS | LENGTH | ss 316l pipe weight calculator |
---|---|---|
All Diameters = - 12.5% + tolerance not specified |
+ 6.40 mm / - 0 mm |
Weight = + 10% / - 1.5% |
Stainless Steel 316L Pipe | Stainless Steel 316L Tube |
SS 316L Seamless Pipe | A312 TP316L Smls |
Sa 312 316l Pipe | A312 TP 316L Material |
316L SS Welded Pipe | Astm A312 316l Stainless Tubing |
ASTM A312 TP 316L ERW Pipe | 2 inch 316L Stainless Steel Pipe |
Astm A312 Gr Tp316l Pipe | A312 Gr TP 316L Welded Pipe |
316L Stainless Steel Seamless Tubing | A312 Type 316L ERW Pipe |
ASME SA 312 Grade 316L Round Pipe | A312 Gr 316L Round Pipe |
UNS S31603 Pipe | A312 316L Pipe |
Ss316l Seamless Pipe | Sa312 Tp316l Stainless Pipe |
WNR. 1.4404 Tube | Sa-312-316L Hollow Pipe |
ASTM A312 Gr TP 316L Polished Pipe | SA 312 TP 316L Schedule 40 Pipe |
AISI 316L Pipe | SA 312 Gr 316L Polished Pipe |
316L Stainless Steel Exhaust Pipe | SA312 Type 316L Stainless Steel Pipe |
SS grade 1.4404 Pipe Material | Stainless Steel 316l Welded Pipe |
1.4404 SS 316L SCH 10 Pipe | Stainless Steel 316L Schedule 40 Pipe |
Marine grade 316L Stainless Steel Tubing | Stainless Steel 316L Seamless Pipe |
316L Tube Heat Exchanger | 316L Exhaust Pipe |
ASTM A312 TP316L Material | SS 316L ERW Pipe |
ASTM A312 Grade TP316L Tubing | 316l schedule 80 pipe |
ASTM A312 Gr TP316L Seamless Pipe | A312 TP316L Pipe |
Astm A312 Gr Tp316l Pipe | Ss316l Seamless Pipe |
Check
the list of countries where we supplied ASTM A312 SS 316L Pipe Manufacturers in India
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
