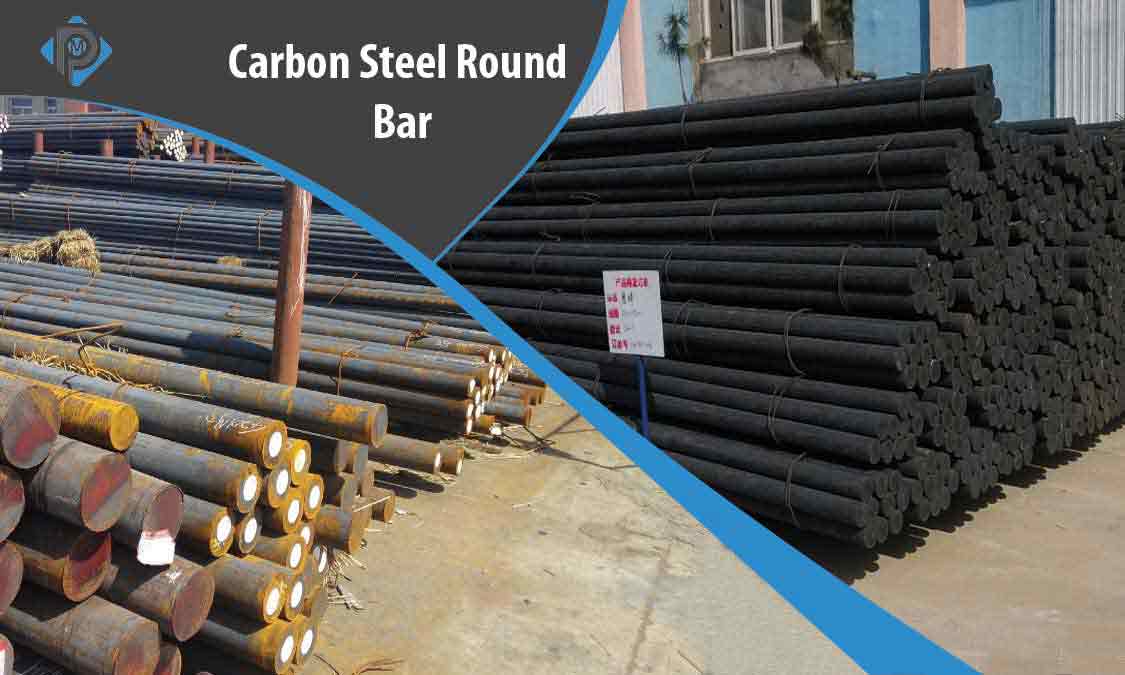

AISI 1045 Carbon Steel Round Bar and Aisi 1045 Carbon Steel Hex Bar supplier in India
What is Carbon Steel Round Bar vs Rod?
Carbon steel is a versatile grade that can be designed as round bars and rods. Both these components are used interchangeably and can be distinguished from certain key features.
- A carbon steel rod is straight in size and can be shaped in circular cross sections. A rod is completely sealed with no openings.
- A carbon steel round bar is designed with a uniform cross-section area that is smaller in size compared to its actual length. A round bar can be characterized by a hollow opening.
AISI 1045 Carbon Steel Round Bar vs Sae 1018 Round Bar
Carbon steel is the commonly used round bar grade. These bars are designed in 1018 and 1045 grades and both can be differentiated based on certain features.
- AISI 1045 carbon steel round bar is designed with a higher carbon content of 0.45% as compared to the Sae 1018 round bar having a carbon content of 0.18%.
- 1018 grade round bars have a tensile strength of 64,000psi with a yield strength of 54,000psi. They can be elongated by minimum of 15%. The 1045 round has a tensile strength of 91,000psi with a yield strength of 77,000psi. They can be elongated by a minimum of 12%.
- The carbon grade of 1045 possesses a hardness of 179 Brinell. Similarly, the 1018 grade exhibits a hardness of 126 Brinell.
- 1018 round bar is generally cost-effective when compared to a 1045 carbon steel round bar.
1144 Carbon Steel Rod vs 12l14 Cold Rolled Round Bar
- The tensile strength of an 1144 carbon steel rod lies between 750mpa up to 840mpa. Similarly, the tensile strength of the 12l14 cold rolled round bar lies between 440mpa up to 620mpa.
- 1144 carbon steel rod is designed with higher Brinell hardness compared to 12l14 cold rolled round bar.
- The 12l14 grade bars showcase a slightly higher melting range than the 1144 carbon steel rod.
Table of Content
Carbon Steel Round Bar Specifications
| Carbon Steel Rod Specifications | ASME SA105, ASTM A105 |
|---|---|
| Types of Bar | Flat Bars, Round Bars, Square Bars, Hex Bars, bright Bars, Rod Manufacturer and Supplier |
| Square Bars |
AF2mm to 14mm, AF6.35mm, 12.7mm, 19.0mm, 9.5mm, 15.98mm,25.4mm |
| Dimensions | DIN, ASME, EN, JIS, BS, ASTM, AISI |
| Flat Bars |
From 1/2” to 10” in thickness range of 2 to 150mm, |
| Round Bars |
From 3.0 to 50.8 mm and from 50.8 to 300mm |
| Dual certified Manufacturer | Dual certified Carbon Steel Round Bar Manufacturer in India, accordance to certify ASME SA105 and Astm A105 American specifications |
| Rectangular Bars |
From 6.35 x 25.4mm, 6.35 x 12.7mm, 12.7 x 25.4mm |
| Finish | Polish, Bright, Black |
| Hex Bars | AF5.8mm to 17mm |
| Length | From 1 to 6 Meters, Custom Cut Lengths |
| Form | Square, Round, Hex (A/F), Billet, Rectangle, Ingot, Forging Etc. |
Carbon Steel Rod Price
Don't forget to compare our price with other Carbon Steel Round Bar Price In India
| Products | Thickness (Decimal) | Width - Carbon Steel | Grade - Carbon Steel | Finish - Carbon Steel | Price |
|---|---|---|---|---|---|
| RELEVANT FORGING QUALITY CARBON STEEL ROUND BARS GRADE - SA266 GR2, UNTREATED 600MM | 0.125 in | 1/4 in | Low Carbon Steel | Unpolished | $2.58 / each |
| CARBON STEEL ROUND BAR 1215 1.000 X 6 R/L | 0.125 in | 3/8 in | Low Carbon Steel | Unpolished | $2.13 / each |
| HR CARBON STEEL ROUND BAR 50MM X 6MTR [GRADE: S275JR] [ORIGIN:OMAN] | 0.125 in | 1/2 in | Low Carbon Steel | Unpolished | $2.47 / each |
| CONTINUOUS CAST ROUND BARS,UNTREATED 600MM GRADE:SA105-SA266GR3/4-SA350LF2 (NON-ALLOY CARBON STEEL INGOTS) | 0.125 in | 5/8 in | Low Carbon Steel | Unpolished | $3.01 / each |
| METAL CARBON STEEL ROUND BAR - 1018 - 1.250 DIA 3 R/L - 94.80KGS - 15PCS | 0.125 in | 3/4 in | Low Carbon Steel | Unpolished | $3.64 / each |
| (OTHER BARS & RODS OF IRON OR NON-ALLOYSTEEL) CARBON STEEL BRIGHT ROUND BARS GRADE: AISI 1030 (DETAILS AS PER INVOICE) | 0.125 in | 1 in | Low Carbon Steel | Unpolished | $4.54 / each |
| SAE 1040/SAE 1045 IN LENGTH OF 6 METERS(+0-200 MM) CARBON STEEL BRIGHT BARS ROUNDS TOL:H11 (ALL DETS.AS PER INV.) | 0.125 in | 1 1/8 in | Low Carbon Steel | Unpolished | $4.67 / each |
Types of Carbon Round Bar
Carbon Steel Polished Round Bar
Carbon T-Bar
High Carbon Steel Triangle Bar
Low Carbon Steel Flat Bar
Aisi 1045 Bright Bar
Medium Carbon Steel Hollow Bar
Aisi 1045 Hot Rolled Round Bar
Astm A350 Lf2 Threaded Bar
Aisi 1018 Cold Rolled Half Round Bar
C45 Rods
CS Hexagonal Bar
AISI 1045 Rebar
Hot Rolled CS Cold Drawn Bar
Hot Rolled SAE 1018 Hot Rolled Bar
Carbon Steel Precision Ground Stock
AISI 1018 Rectangular Bar
Carbon Steel AISI G10180 Half-Round Bar
Carbon Steel AISI 1018 Rod
ASTM A350 Lf2 Flat Bar Size
| sizes in mm | Thickness (mm) | Size (inch) | Thickness (in Inches) |
|---|---|---|---|
| 22 | 17 & 18 | 7/8 | 2/3 - 5/7 |
| 25 | 5 to 20 | 1 | 3/16 - 4/5 |
| 30 | 5 to 20 | 1-3/16 | 3/16 - 4/5 |
| 32 | 6 to 20 | 1-1/4 | 1/4 - 4/5 |
| 35 | 5 to 20 | 1-3/8 | 3/16 - 3/16 |
| 40 | 5 to 25 | 1-4/7 | 3/16 - 1 |
| 45 | 5 to 25 | 1-7/9 | 3/16 - 1 |
| 47 | 17,25 & 32 | 1-6/7 | 2/3, 1 & 1-1/4 |
| 50 | 5 to 32 | 2 | 3/16 - 1-1/4 |
| 55 | 5 to 25 | 2-1/16 | 3/16 - 1 |
| 57 | 32 | 2-1/4 | 1-1/4 |
| 60 | 5 to 35 | 2-3/8 | 3/16 - 1-3/8 |
| 63 | 10 to 30 | 2-1/2 | 3/8 - 1-3/16 |
| 65 | 10 to 30 & 35 | 2-5/9 | 3/8 - 1-3/16, & 1-3/8 |
| 70 | 6 to 25 & 40 | 2-3/4 | 1/4 - 1, & 1-4/7 |
| 75 | 8 to 25 | 3 | 5/16 - 1 |
| 80 | 8 to 20 | 3-1/8 | 5/16 - 4/5 |
| 90 | 8 to 20 | 3-1/2 | 5/16- 4/5 |
| 100 | 8, 10, 12 | 4 | 5/16, 3/8, 1/2 |
High Carbon Steel Round Bar Yeild Strength
| Metric | Imperial | Hanical Properties |
|---|---|---|
| 250 MPa | 36300 psi | Tensile Strength, Yield |
| 20.0 % | 20.0 % | Elongation at Break (in 200 mm) |
| 0.260 | 0.260 | Poissons Ratio |
| 79.3 GPa | 11500 ksi | Shear Modulus |
| 23.0 % | 23.0 % | Elongation at Break (in 50 mm) |
| 200 GPa | 29000 ksi | Modulus of Elasticity |
| 400 - 550 MPa | 58000 - 79800 psi | Tensile Strength, Ultimate |
| 140 GPa | 20300 ksi | Bulk Modulus (typical for steel) |
Low Carbon Steel Round Bar Condition
- Annealing, Normalized, Quench+Temper
- Surface: Black Finish, Peeled, Rough Turned
Aisi 1018 Hex Bar Size Chart
| hex bars Wt per Ft | hex bars Size in Inches | hex bars Wt per 12′ |
|---|---|---|
| 0.104 | 3/16″ | 1.248 |
| 0.180 | 1/4″ | 2.160 |
| 0.290 | 5/16″ | 3.480 |
| 0.600 | 3/8″ | 4.920 |
| 0.560 | 7/16″ | 6.72 |
| 0.740 | 1/2″ | 8.880 |
| 0.930 | 9/16″ | 11.16 |
| 1.150 | 5/8″ | 13.80 |
| 1.390 | 11/16″ | 16.68 |
| 1.660 | 3/4″ | 19.92 |
| 1.950 | 13/16″ | 23.40 |
| 2.300 | 7/8″ | 27.60 |
| 2.600 | 15/16″ | 31.20 |
| 2.90 | 1″ | 34.80 |
| 3.30 | 1-1/16″ | 39.60 |
| 3.700 | 1-1/8″ | 44.40 |
| 4.600 | 1-1/4″ | 55.20 |
| 5.100 | 1-5/16″ | 61.20 |
| 5.600 | 1-3/8″ | 67.20 |
| 6.100 | 1-7/16″ | 73.20 |
| 6.600 | 1-1/2″ | 79.20 |
| 7.800 | 1-5/8″ | 93.60 |
| 9.030 | 1-3/4″ | 108.36 |
| 10.400 | 1-7/8″ | 124.80 |
| 11.80 | 2″ | 141.60 |
| 14.920 | 2-1/4″ | 179.04 |
| 16.920 | 2-3/8″ | 203.04 |
| 18.42 | 2-1/2″ | 221.04 |
| 26.53 | 3″ | 318.36 |
Supplier and Manufacturer of AISI 1018 Cold Drawn/ Hot Rolled bar, 1095 carbon steel hollow, and angle bar in India, Also Check Price Of En9 Rectangular Bar And Tensile Strength of En18 Steel and High Carbon Steel Flat Bar Stock
Medium Carbon Steel Round Bar Processing
| Round bars Production Cutting | We can provide production cutting for product diameters up to 4″. We utilize Amanda Production Equipment to achieve these precision cuts with tight tolerances. |
|---|---|
| Round bars Cutting | Products cut include Round bars, Flat bars, Hex bars, Square bars, Tubing and Hollow bars, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″ diameter |
| Round bars Polishing | Products polished included all tubular products, with OD & ID polishing available, Round bars, Square bars, Hex & Flat bars, Angles, Uneven Leg Angles, beams, and other shapes. |
Carbon Steel Round Bar Dimensions
| Metric | US Bar | ASTM/ Canadian | Japanese | ||||
|---|---|---|---|---|---|---|---|
| Bars Size | Diam. (mm) | Diam. (Inch) | Bars Size | Diam. (mm2) | Bars Size | Bars Size | Diam. (mm) |
| 5 | 5 | 0.250 | #2 | 100 | 10M | 6 | 6 |
| 5.5 | 5.5 | 0.375 | #3 | 200 | 15M | 10 | 10 |
| 6 | 6 | 0.500 | #4 | 300 | 20M | 13 | 13 |
| 7 | 7 | 0.625 | #5 | 500 | 25M | 16 | 16 |
| 8 | 8 | 0.750 | #6 | 700 | 30M | 19 | 19 |
| 9 | 9 | 0.875 | #7 | 1000 | 35M | 22 | 22 |
| 10 | 10 | 1.000 | #8 | 1500 | 45M | 25 | 25 |
| 11 | 11 | 1.125 | #9 | 2500 | 55M | 29 | 29 |
| 12 | 12 | 1.250 | #10 | 32 | 32 | ||
| 14 | 14 | 1.375 | #11 | 35 | 35 | ||
| 16 | 16 | 1.500 | #12 | 38 | 38 | ||
| 18 | 18 | 1.625 | #13 | 41 | 41 | ||
| 20 | 20 | 1.750 | #14 | 44 | 44 | ||
| 22 | 22 | 1.875 | #15 | 48 | 48 | ||
| 25 | 25 | 2.000 | #16 | 51 | 51 | ||
| 28 | 28 | 2.250 | #18 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Carbon Steel Round Bar Manufacturer In Mumbai | |||||||
AISI 1018 Cold Rolled Steel Hex Bar Equivalent
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| ASTM A105 | - | K03504 |
Carbon Steel Round Bar Grades
- Carbon Steel A350 LF2 Round Bars
- Carbon Steel A105 Round Bars
- Carbon Steel AISI 1045 Round Bars
- Carbon Steel AISI 1018 Round Bars
- Carbon Steel En Series Round Bars
Get Aisi 1018 Cold Rolled Steel Bar and Hot Rolled en19 round bar Manufacturers In India, Visit our 2mm 5mm 6mm diameter en9 square bar in India, Call Now to Get En32b hex bar, Astm A350 Lf2 Round Bar and Carbon Steel Rod Free sample
CS Round Bar Chemical Composition
| C% | Si% | Mn% | Ni% | Cr% | Mo% | S% | P% | |
|---|---|---|---|---|---|---|---|---|
| EN3B | 0.25Max | 0.35Max | 1.0Max | – | – | – | 0.06Max | 0.06Max |
| EN8 | 0.35/0.45 | 0.05/0.35 | 0.60/1.00 | – | – | – | 0.06Max | 0.06Max |
| EN16 | 0.30/0.40 | 0.10/0.35 | 1.30/1.80 | – | – | 0.20/0.35 | 0.05Max | 0.05Max |
| EN9 | 0.50/0.60 | 0.05/0.35 | 0.50/0.80 | – | – | – | 0.06Max | 0.06Max |
| EN19 | 0.35/0.45 | 0.10/0.35 | 0.50/0.80 | – | 0.90/1.50 | 0.20/0.40 | 0.05Max | 0.05Max |
| EN1A | 0.07/0.15 | 0.10Max. | 0.80/1.20 | – | – | – | 0.20/0.30 | 0.07Max |
| EN24 | 0.35/0.45 | 0.10/0.35 | 0.45/0.70 | 1.30/1.80 | 0.90/1.40 | 0.20/0.35 | 0.05Max | 0.05Max |
Weight Of Carbon Steel Round Bar
| SIZE IN INCHES | HEXAGON | ROUND | OCTAGON | SQUARE | SIZE IN INCHES | OCTAGON | ROUND | HEXAGON | SQUARE |
|---|---|---|---|---|---|---|---|---|---|
| 1/16 | .012 | .010 | .011 | .013 | 11/16 | 1.333 | 1.262 | 1.392 | 1.607 |
| 5/64 | .019 | .017 | .018 | .022 | 45/64 | 1.394 | 1.320 | 1.456 | 1.681 |
| 3/32 | .025 | .023 | .024 | .029 | 23/32 | 1.487 | 1.380 | 1.521 | 1.756 |
| 7/64 | .034 | .031 | .033 | .039 | 47/64 | 1.521 | 1.440 | 1.588 | 1.834 |
| 1/8 | .046 | .042 | .044 | .053 | 3/4 | 1.586 | 1.502 | 1.656 | 1.913 |
| 9/64 | .058 | .053 | .056 | .067 | 25/32 | 1.721 | 1.630 | 1.797 | 2.075 |
| 5/32 | .072 | .065 | .069 | .083 | 13/16 | 1.862 | 1.763 | 1.944 | 2.245 |
| 11/64 | .087 | .079 | .083 | .100 | 27/32 | 2.008 | 1.901 | 2.096 | 2.421 |
| 3/16 | .104 | .094 | .099 | .120 | 7/8 | 2.159 | 2.045 | 2.254 | 2.603 |
| 13/64 | .121 | .110 | .116 | .140 | 29/32 | 2.316 | 2.193 | 2.418 | 2.792 |
| 7/32 | .141 | .128 | .135 | .163 | 15/16 | 2.479 | 2.347 | 2.588 | 2.988 |
| 15/64 | .162 | .147 | .155 | .187 | 31/32 | 2.646 | 2.506 | 2.763 | 3.191 |
| 1/4 | .184 | .167 | .176 | .213 | 1 | 2.820 | 2.670 | 2.945 | 3.400 |
| 17/64 | .207 | .188 | .199 | .240 | 1-1/16 | 3.183 | 3.015 | 3.324 | 3.838 |
| 9/32 | .233 | .211 | .223 | .269 | 1-1/8 | 3.569 | 3.380 | 3.727 | 4.303 |
| 19/64 | .259 | .235 | .248 | .300 | 1-3/16 | 3.977 | 3.766 | 4.152 | 4.795 |
| 5/16 | .288 | .261 | .275 | .332 | 1-1/4 | 4.407 | 4.172 | 4.601 | 5.313 |
| 21/64 | .318 | .288 | .304 | .360 | 1-5/16 | 4.858 | 4.600 | 5.072 | 5.857 |
| 11/32 | .348 | .316 | .334 | .402 | 1-3/8 | 5.332 | 5.049 | 5.567 | 6.428 |
| 23/64 | .381 | .345 | .364 | .439 | 1-7/16 | 5.827 | 5.518 | 6.085 | 7.026 |
| 3/8 | .414 | .376 | .397 | .478 | 1-1/2 | 6.345 | 6.008 | 6.625 | 7.650 |
| 25/64 | .450 | .408 | .431 | .519 | 1-9/16 | 6.885 | 6.519 | 7.189 | 8.301 |
| 13/32 | .486 | .441 | .466 | .561 | 1-5/8 | 7.446 | 7.051 | 7.775 | 8.978 |
| 27/64 | .524 | .475 | .502 | .605 | 1-11/16 | 8.030 | 7.604 | 8.385 | 9.682 |
| 7/16 | .564 | .511 | .540 | .651 | 1-3/4 | 8.634 | 8.178 | 9.018 | 10.41 |
| 29/64 | .604 | .548 | .579 | .698 | 1-13/16 | 9.265 | 8.773 | 9.673 | 11.17 |
| 15/32 | .647 | .587 | .620 | .747 | 1-7/8 | 9.911 | 9.388 | 10.35 | 11.95 |
| 31/64 | .692 | .627 | .662 | .798 | 1-15/16 | 10.58 | 10.02 | 11.05 | 12.76 |
| 1/2 | .736 | .668 | .705 | .850 | 2 | 11.28 | 10.68 | 11.78 | 13.60 |
| 33/64 | .783 | .710 | .750 | .904 | 2-1/16 | 11.99 | 11.36 | 12.53 | 14.46 |
| 17/32 | .831 | .754 | .796 | .960 | 2-1/8 | 12.73 | 12.06 | 13.30 | 15.35 |
| 35/64 | .881 | .799 | .844 | 1.017 | 2-3/16 | 13.49 | 12.78 | 14.09 | 16.27 |
| 9/16 | .932 | .845 | .892 | 1.076 | 2-1/4 | 14.27 | 13.52 | 14.91 | 17.21 |
| 37/64 | .985 | .893 | .943 | 1.136 | 2-5/16 | 15.08 | 14.28 | 15.75 | 18.18 |
| 19/32 | 1.038 | .941 | .994 | 1.199 | 2-3/8 | 15.91 | 15.06 | 16.61 | 19.18 |
| 39/64 | 1.094 | .992 | 1.048 | 1.263 | 2-7/16 | 16.75 | 15.87 | 17.49 | 20.20 |
| 5/8 | 1.150 | 1.043 | 1.102 | 1.328 | 2-1/2 | 17.62 | 16.69 | 18.40 | 21.25 |
| 41/64 | 1.209 | 1.096 | 1.207 | 1.395 | 2-9/16 | 18.52 | 17.53 | 19.34 | 22.33 |
| 21/32 | 1.268 | 1.150 | 1.214 | 1.464 | 2-5/8 | 19.43 | 18.40 | 20.29 | 23.43 |
| 43/64 | 1.329 | 1.205 | 1.272 | 1.535 | 2-11/16 | 20.37 | 19.29 | 21.27 | 24.56 |
| Carbon Steel Bar Manufacturers In India | |||||||||
| Shape | Pounds Per Foot |
| Square | D2 x 3.4 |
| Round | D2 x 2.67 |
| Flat | Thickness (in.) x Width (in.) x 3.4 |
| Hexagon | D2 x 2.945 |
CS Square Bar Length
1 to 6 Meters, Custom Cut Lengths ISO Certified AISI 1045 hot rolled steel bar Manufacturer in Mumbai, India, Sizes Of ASTM a350 LF2 round bar In MM.
High Carbon Steel Hollow Bar Size
| Size | Chucked true to OD | Chucked true to ID | |||||||
|---|---|---|---|---|---|---|---|---|---|
| ID, mm |
OD, mm |
Max. OD, in. |
Max. OD, mm |
Min. ID, in. |
Min. ID, mm |
Max. OD, mm |
Max. OD, in. |
Min. ID, mm |
Min. ID, in. |
| 20 | 32 | 1.220 | 31 | 0.862 | 21.9 | 30 | 1.185 | 21 | 0.827 |
| 16 | 32 | 1.220 | 31 | 0.709 | 18 | 30 | 1.181 | 17 | 0.669 |
| 25 | 36 | 1.378 | 35 | 1.059 | 26.9 | 34.1 | 1.343 | 26 | 1.024 |
| 20 | 36 | 1.378 | 35 | 0.866 | 22 | 34 | 1.339 | 21 | 0.827 |
| 16 | 36 | 1.378 | 35 | 0.713 | 18.1 | 33.9 | 1.335 | 17 | 0.669 |
| 28 | 40 | 1.535 | 39 | 1.177 | 29.9 | 38.1 | 1.500 | 29 | 1.142 |
| 25 | 40 | 1.535 | 39 | 1.063 | 27 | 38 | 1.496 | 26 | 1.024 |
| 20 | 40 | 1.535 | 39 | 0.870 | 22.1 | 37.9 | 1.492 | 21 | 0.827 |
| 32 | 45 | 1.732 | 44 | 1.335 | 33.9 | 43.1 | 1.697 | 33 | 1.299 |
| 28 | 45 | 1.732 | 44 | 1.181 | 30 | 43 | 1.693 | 29 | 1.142 |
| 20 | 45 | 1.732 | 44 | 0.874 | 22.2 | 42.8 | 1.685 | 21 | 0.827 |
| 36 | 50 | 1.929 | 49 | 1.496 | 38 | 48 | 1.890 | 37 | 1.457 |
| 32 | 50 | 1.929 | 49 | 1.343 | 34.1 | 47.9 | 1.886 | 33 | 1.299 |
| 25 | 50 | 1.929 | 49 | 1.071 | 27.2 | 47.8 | 1.882 | 26 | 1.024 |
| 40 | 56 | 2.165 | 55 | 1.654 | 42 | 54 | 2.126 | 41 | 1.614 |
| 36 | 56 | 2.165 | 55 | 1.500 | 38.1 | 53.9 | 2.122 | 37 | 1.457 |
| 28 | 56 | 2.165 | 55 | 1.193 | 30.3 | 53.7 | 2.114 | 29 | 1.142 |
| 50 | 63 | 2.441 | 62 | 2.043 | 51.9 | 61.1 | 2.406 | 51 | 2.008 |
| 45 | 63 | 2.441 | 62 | 1.850 | 47 | 61 | 2.402 | 46 | 1.811 |
| 40 | 63 | 2.441 | 62 | 1.661 | 42.2 | 60.8 | 2.394 | 41 | 1.614 |
| 36 | 63 | 2.441 | 62 | 1.508 | 38.3 | 60.7 | 2.390 | 37 | 1.457 |
| 32 | 63 | 2.441 | 62 | 1.354 | 34.4 | 60.6 | 2.386 | 33 | 1.299 |
| 56 | 71 | 2.752 | 69.9 | 2.283 | 58 | 68.9 | 2.713 | 57 | 2.244 |
| 45 | 71 | 2.752 | 69.9 | 1.862 | 47.3 | 68.6 | 2.701 | 46 | 1.811 |
| 40 | 71 | 2.752 | 69.9 | 1.669 | 42.4 | 68.5 | 2.697 | 41 | 1.614 |
| 36 | 71 | 2.752 | 69.9 | 1.516 | 38.5 | 68.4 | 2.693 | 37 | 1.457 |
| 60 | 75 | 2.906 | 73.8 | 2.441 | 62 | 72.8 | 2.866 | 61 | 2.402 |
| 50 | 75 | 2.906 | 73.8 | 2.055 | 52.2 | 72.6 | 2.858 | 51 | 2.008 |
| 40 | 75 | 2.906 | 73.8 | 1.673 | 42.5 | 72.3 | 2.846 | 41 | 1.614 |
| 63 | 80 | 3.102 | 78.8 | 2.559 | 65 | 77.8 | 3.063 | 64 | 2.520 |
| 50 | 80 | 3.102 | 78.8 | 2.053 | 52.4 | 77.4 | 3.047 | 51 | 2.008 |
| 45 | 80 | 3.102 | 78.8 | 1.870 | 47.5 | 77.3 | 3.043 | 46 | 1.811 |
| 40 | 80 | 3.102 | 78.8 | 1.677 | 42.6 | 77.2 | 3.039 | 41 | 1.614 |
| 67 | 85 | 3.295 | 83.7 | 2.720 | 69.1 | 82.6 | 3.252 | 68 | 2.677 |
| 55 | 85 | 3.295 | 83.7 | 2.260 | 57.4 | 82.3 | 3.240 | 56.0 | 2.205 |
| 45 | 85 | 3.295 | 83.7 | 1.874 | 47.6 | 82.1 | 3.232 | 46.0 | 1.811 |
| 71 | 90 | 3.488 | 88.6 | 2.878 | 73.1 | 87.6 | 3.449 | 72.1 | 2.839 |
| 63 | 90 | 3.488 | 88.6 | 2.571 | 65.3 | 87.3 | 3.437 | 64.0 | 2.520 |
| 56 | 90 | 3.488 | 88.6 | 2.303 | 58.5 | 87.1 | 3.429 | 57.0 | 2.244 |
| 50 | 90 | 3.488 | 88.6 | 2.071 | 52.6 | 87.0 | 3.425 | 51.0 | 2.008 |
| 75 | 95 | 3.681 | 93.5 | 3.041 | 77.3 | 92.4 | 3.641 | 76.2 | 2.997 |
| 67 | 95 | 3.681 | 93.5 | 2.728 | 69.3 | 92.2 | 3.630 | 68.0 | 2.677 |
| 50 | 95 | 3.681 | 93.5 | 2.075 | 52.7 | 91.8 | 3.614 | 51.0 | 2.008 |
| 80 | 100 | 3.878 | 98.5 | 3.240 | 82.3 | 97.4 | 3.835 | 81.2 | 3.197 |
| 71 | 100 | 3.878 | 98.5 | 2.890 | 73.4 | 97.2 | 3.827 | 72.1 | 2.839 |
| 63 | 100 | 3.878 | 98.5 | 2.579 | 65.5 | 97.0 | 3.819 | 64.0 | 2.520 |
| 56 | 100 | 3.878 | 98.5 | 2.311 | 58.7 | 96.8 | 3.811 | 57.0 | 2.244 |
| 80 | 106 | 4.110 | 104.4 | 3.248 | 82.5 | 103.1 | 4.059 | 81.2 | 3.197 |
| 71 | 106 | 4.110 | 104.4 | 2.894 | 73.5 | 103.0 | 4.055 | 72.1 | 2.839 |
| 63 | 106 | 4.110 | 104.4 | 2.587 | 65.7 | 102.7 | 4.043 | 64.0 | 2.520 |
| 56 | 106 | 4.110 | 104.4 | 2.319 | 58.9 | 102.5 | 4.035 | 57.0 | 2.244 |
| 90 | 112 | 4.343 | 110.3 | 3.642 | 92.5 | 109.2 | 4.299 | 91.4 | 3.598 |
| 80 | 112 | 4.343 | 110.3 | 3.252 | 82.6 | 108.9 | 4.287 | 81.2 | 3.197 |
| 71 | 112 | 4.343 | 110.3 | 2.902 | 73.7 | 108.7 | 4.280 | 72.1 | 2.839 |
| 63 | 112 | 4.343 | 110.3 | 2.591 | 65.8 | 108.5 | 4.272 | 64.0 | 2.520 |
| 90 | 118 | 4.575 | 116.2 | 3.650 | 92.7 | 114.9 | 4.524 | 91.4 | 3.598 |
| 80 | 118 | 4.575 | 116.2 | 3.260 | 82.8 | 114.6 | 4.512 | 81.2 | 3.197 |
| 71 | 118 | 4.575 | 116.2 | 2.906 | 73.8 | 114.5 | 4.508 | 72.1 | 2.839 |
| 63 | 118 | 4.575 | 116.2 | 2.598 | 66.0 | 114.2 | 4.496 | 64.0 | 2.520 |
| 100 | 125 | 4.846 | 123.1 | 4.043 | 102.7 | 121.9 | 4.799 | 101.5 | 3.996 |
| 90 | 125 | 4.846 | 123.1 | 3.654 | 92.8 | 121.7 | 4.791 | 91.4 | 3.598 |
| 80 | 125 | 4.846 | 123.1 | 3.264 | 82.9 | 121.4 | 4.780 | 81.2 | 3.197 |
| 71 | 125 | 4.846 | 123.1 | 2.913 | 74.0 | 121.3 | 4.772 | 72.1 | 2.839 |
| 106 | 132 | 5.118 | 130.0 | 4.283 | 108.8 | 128.8 | 5.071 | 107.6 | 4.236 |
| 90 | 132 | 5.118 | 130.0 | 3.661 | 93.0 | 128.4 | 5.055 | 91.4 | 3.598 |
| 80 | 132 | 5.118 | 130.0 | 3.272 | 83.1 | 128.1 | 5.043 | 81.2 | 3.197 |
| 71 | 132 | 5.118 | 130.0 | 2.921 | 74.2 | 121.2 | 5.035 | 72.1 | 2.839 |
| 112 | 140 | 5.429 | 137.9 | 4.528 | 115 | 136.6 | 5.378 | 113.7 | 4.476 |
| 100 | 140 | 5.429 | 137.9 | 4.059 | 103.1 | 136.3 | 5.366 | 101.5 | 3.996 |
| 90 | 140 | 5.429 | 137.9 | 3.669 | 93.2 | 136.1 | 5.358 | 91.4 | 3.598 |
| 80 | 140 | 5.429 | 137.9 | 3.280 | 83.3 | 135.8 | 5.346 | 81.2 | 3.197 |
| 125 | 150 | 5.815 | 147.7 | 5.043 | 128.1 | 146.5 | 5.768 | 126.9 | 4.996 |
| 106 | 150 | 5.815 | 147.7 | 4.303 | 109.3 | 146 | 5.748 | 107.6 | 4.236 |
| 95 | 150 | 5.815 | 147.7 | 3.874 | 98.4 | 145.7 | 5.736 | 96.4 | 3.795 |
| 80 | 150 | 5.815 | 147.7 | 3.291 | 83.6 | 145.3 | 5.720 | 81.2 | 3.197 |
| 132 | 160 | 6.205 | 157.6 | 5.327 | 135.3 | 156.3 | 6.154 | 134 | 5.276 |
| 122 | 160 | 6.205 | 157.6 | 4.937 | 125.4 | 156 | 6.142 | 123.8 | 4.874 |
Hot Rolled CS Round Bar Application
| Off-Shore Oil Drilling Companies | Pharmaceutical Equipment |
| Power Generation | Chemical Equipment |
| Petrochemicals | Sea Water Equipment |
| Gas Processing | Heat Exchangers |
| Specialty Chemicals | Condensers |
| Pharmaceuticals | Pulp and Paper Industry |
CS Rod Delivery Condition
Carbon Steel 1018 Rod Tolerance
| Permitted variation | Carbon steel bar Dia and sizes |
|---|---|
| MM | MM |
| + 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 + 0 to - 0.160 + 0 to - 0.185 + 0 to - 0.210 + 0 to - 0.230 + 0 to - 0.250 |
≧ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 120 > 120 ≦ 180 > 180 ≦ 250 > 250 ≦ 315 > 315 ≦ 400 > 400 |
| Tolerances for Hot Rolled CS Round Bar | ||
|---|---|---|
| Shapes / Section | Sizes, Dia or width across flats | Permitted variation |
| milimeter | milimeter | |
| Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
| Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
| Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
| Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
Exporter and supplier of ASTM A105 Rod and AISI 1045 Hot Rolled Steel Bar in Mumbai, Get maximum sizes in ready stock of Carbon Steel Bright, Hex Bar, En45/ En47 Steel Round Bar
CS En45 Round Bar Size Chart
| Product Name | Diameter (mm) |
|---|---|
| Cold Drawn Round Bar | 6~101.6 |
| Hot Rolled Round Bar | 25~600 |
| Cold Drawn Hexagon Bar | 9.5~65 |
| Hot Rolled Square Bar | 21~54 |
| Cold Drawn Square Bar | 6~50.8 |
| Forged Bar | 200~1000 |
Carbon Steel Round Bars Hs Code
| HS Code Of Carbon Steel Round Bar | Product Description |
|---|---|
| 7215 | Other bars and rods of iron or non-alloy steel |
| 7307 | Tube or pipe fittings (for example, couplings, elbows, sleeves), of iron or steel |
| 721550 | Other not further worked than cold-formed or cold-finished: |
| 730791 | Flanges: |
| 7228301 | Bright bars: |
| 73079190 | Other |
| 72155090 | Other |
| 72283019 | Other |
AISI 1018 Carbon Steel Bright Bar Hardness
- 50-55HRC
Hot Rolled SAE 1018 Rod Standards
| Standard | Description |
|---|---|
| ASTM A565 | Specification for Martensitic Carbon Steel Bars, Forgings, and Forging Stock for High Temperature Service |
| ASTM A36 | Specification for Carbon Steel Bars and Shapes |
| ASTM A582 | Specification for Free Machining Carbon Steel Bars |
| ASTM A314 | Specification for Carbon Steel Billets and Bars for Forging |
| ASTM A666 | Specification For Annealed or Cold-Worked Carbon Steel Flat bars |
| ASTM A493 | Specification for Carbon Steel Wire and Wire Rods for Cold Heading and Cold Forging |
| ASTM A476 | Standard specification for Carbon Steel and heat-resisting steel bars and shapes for used in boilers and other pressure vessels. |
| ASTM A564 | Specification for Hot-Rolled And Cold-Finished Age-Hardening Carbon Steel Bars and Shapes |
| ASTM A484 | Standard specification general requirements for Carbon Steel and heat-resisting bars, billets and forgings. |
| Carbon Steel Bar Manufacturer In India | |
AISI 1018 Threaded Bar Packing
- Wooden Boxes
- Bundles (hexagonal)
- Packaging for Rod as per customer’s requirements
- Crates (steel/wooden)
Also Stock High Tensile Rods, Flat Bar, Shaft, Rounds In Killed Carbon And Quenched Carbon Steel. check length, sizes and dimensions of Carbon Steel Solid Round Bar
Carbon Steel Round Bar Sizes
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 19 x 19 | 2.479 | 7 x 7 | 0.337 | 38 x 38 | 9.916 |
| 20 x 20 | 2.747 | 8 x 8 | 0.44 | 40 x 40 | 10.988 |
| 21 x 21 | 3.029 | 9 x 9 | 0.556 | 42 x 42 | 12.114 |
| 22 x 22 | 3.324 | 10 x 10 | 0.687 | 45 x 45 | 13.906 |
| 24 x 24 | 3.956 | 11 x 11 | 0.831 | 48 x 48 | 15.822 |
| 25 x 25 | 4.292 | 12 x 12 | 0.989 | 50 x 50 | 17.168 |
| 26 x 26 | 4.642 | 13 x 13 | 1.161 | 53 x 53 | 19.29 |
| 28 x 28 | 5.384 | 14 x 14 | 1.346 | 55 x 55 | 20.774 |
| 30 x 30 | 6.181 | 15 x 15 | 1.545 | 60 x 60 | 24.723 |
| 32 x 32 | 7.032 | 16 x 16 | 1.758 | 65 x 65 | 29.015 |
| 34 x 34 | 7.939 | 17 x 17 | 1.985 | 70 x 70 | 33.65 |
| 36 x 36 | 8.9 | 18 x 18 | 2.225 | 75 x 75 | 38.629 |
Carbon Steel AISI 1018 Forged Bars Inventory
| Carbon Round Bar | AISI 1018 Cold Rolled Steel Hex Bar |
| High Carbon Steel Round Bar | CS Round Bar |
| Low Carbon Steel Round Bar | Cold rolled en19 Round Bar |
| Carbon Steel Bright Bar | En32b Hex Bar |
| Carbon Steel Round Bar Astm | AISI 1045 Round Bar |
| Asme Carbon Steel Round Bar | CS Square Bar |
| Aisi 1045 Carbon Steel Round Bar | Carbon Steel Flat Bar |
| High Strength Carbon Steel Round Bar | Low Carbon Steel Hollow Bar |
| Low Temperature Carbon Steel Round Bar | AISI 1018 Round Bar |
| Carbon Steel Round Bar Mills | Hot Rolled CS Round Bar |
| Medium Carbon Steel Round Bar | CS Rod |
| Carbon Steel Solid Round Bar | AISI 1018 Carbon Steel Round Bar |
| Aisi 1045 Hot Rolled Steel Bar | Hot Rolled SAE 1018 Rod |
| Astm A350 Lf2 Round Bar | 1018 Cold Rolled Steel Flat Bar |
| Aisi 1018 Cold Rolled Steel Bar | Carbon Steel 1018 Rod |
| EN9 Round Bar | AISI 1018 Square Bar |
| En8 Bright Bar | AISI 1018 Carbon Steel Bright Bar |
| En19 Round Bar | AISI 1018 Threaded Bar |
| En9 Square Bar | Carbon Steel AISI G10180 Hexagonal Bar |
| C45 Round Bar | Carbon Steel AISI 1018 Forged Bars |
Searching for
Carbon Steel Round Bar Suppliers in your country? Checklist of material we export in the following areas.
Carbon Round Bar
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
High Carbon Steel Round Bar
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
AISI 1045 Carbon Steel Round Bar
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
ASTM A350 Lf2 Round Bar
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
EN9 Round Bar
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
CS Rod
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
