ASTM A403 SS Buttweld Elbow and Tee Fittings supplier in Mumbai

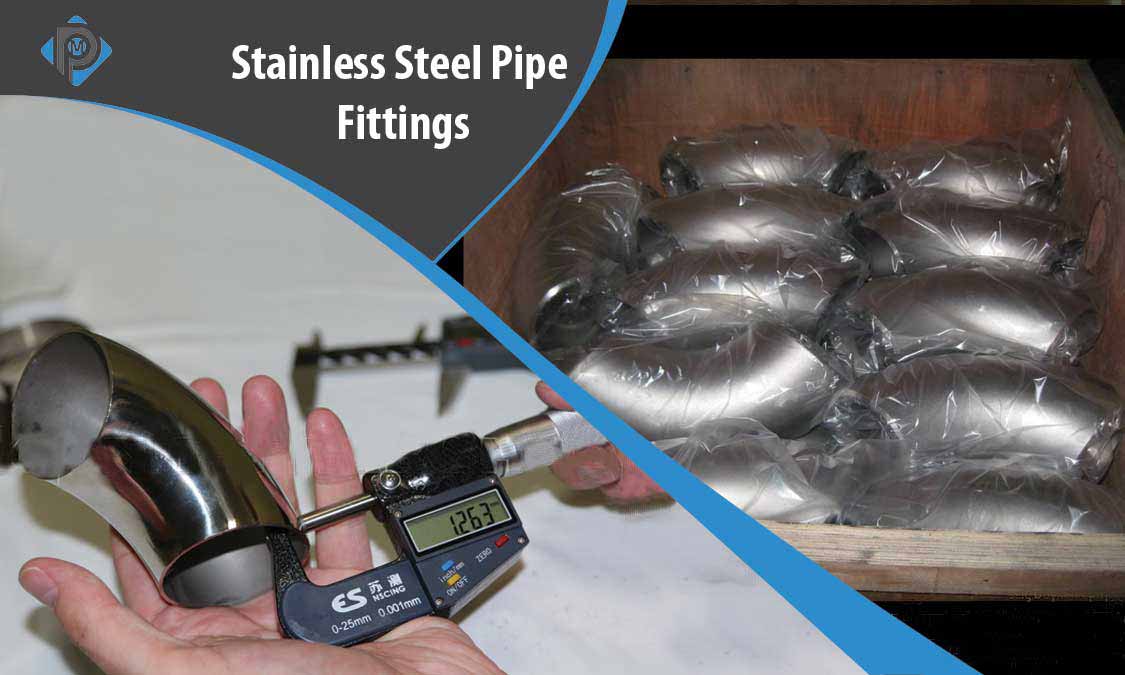

Stainless Steel Pipe Fittings Manufacturers

What is Stainless Steel Pipe Fittings?
Stainless steel pipe fittings belong to a ferrous group of alloys. These versatile fitting are designed with a minimum of 11% of chromium content that forms a protective layer on the subsequent product. The coating protects the fitting against different corrosive and oxidative contaminants that would deteriorate it on the long run. The fittings of the SS grade can be alloyed with a range of alloys giving them excellent strength and torsion in different environments. The exceptional properties coupled with their ability to withstand high temperatures allow them to influence the flow characteristics in different systems.

Difference between MSS SP-43 Stainless Steel buttweld fitting and MSS SP-79 Stainless Steel Fitting

  • MSS SP-43 stainless steel buttweld fitting is produced with the simplest process where a metal is welded by creating a metal-to-metal seal. MSS SP-9 stainless steel fitting covers a range of fittings that are produced in socket weld configurations.
  • Buttweld fitting types are the strongest and the best grade in the piping grade. Socket weld fittings are less common in the piping industry.

How are ASTM A403 Stainless Steel Fittings made?
ASTM A403 stainless steel fitting grade is a wrought fitting that is used for pressure piping applications. The fittings in this grade possess superior strength and are designed by rolling or forging austenitic grade of steel. Under the A403 type, several types of fittings in seamless and welded grade can be specified and designed. The configuration of fittings in this grade doesn’t cover cast steel fittings.

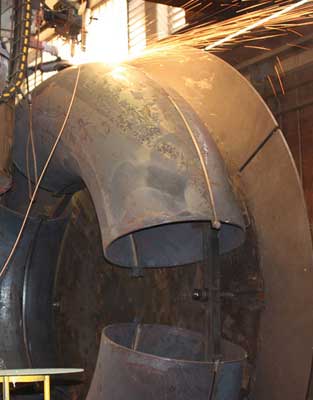

What are ANSI B16.9 Stainless Steel Buttweld Fittings used for?
The ANSI B16.9 stainless steel Buttweld fittings belong to a versatile grade that is widely used in the piping industry. The robust fittings are used to change the direction of the flow, join piping grades of different sizes or terminate the flow in the system. These fittings are a common feature in waste treatment, chemical processing plants, nuclear power generation, pulp and paper processing, breweries, petrochemical industry, and cryogenic plants amongst some.

Searching for ASTM A403 Buttweld Tee or ASME B16.9 Elbow? Exporter of Stainless Steel long/ short radius elbow and MSS SP-79 / MSS SP-43 Stainless Steel Buttweld Fittings in India

Stainless Steel Fittings Specification

Specification List ASTM A403/ A182, ASME SA403/ SA182
Bending Radius Custom, R=1D, 6D, 2D, 5D, 10D, 8D, 3D
Specialized manufacturer of 45º Elbows, Crosses, Tees, Reducers, Stub End, 90º Elbows, Pipe Bend, Pipe Cap
Schedule Schedule 80s, XXS, 160s, 10s, 40s.
Grades of Stainless Steel Pipe Fittings Suppliers 309S, 310S, 310H, 304L, 347H, 904L 304, 321, 317, 321H, 201, 316LN, 304H, 316H, 317L, 309H, 316L, 316, 347, 316TI, 202
Origin Russian, Japanese, Korean, Indian, European
Type Welded / Fabricated / Seamless
Stainless Steel Pipe Fittings Dimensions MSS-SP-43 and ANSI/ASME B16.9, B16.28
Size From ½”NB upto 48″NB in

Stainless Pipe Fittings Chemical Composition

Type S Mn Si C Cr Mb Ni P
309S 2.00 1.00 0.08 22.00/24.00 0.045
310 0.030 2.00 1.5 0.25 24.00/26.00 19.00/22.00 0.045
310S 0.030 2.00 1.5 0.08 24.00/26.00 19.00/22.00 0.045
317L 0.030 2.00 0.75 0.03 18.00/20.00 3.00/4.00 11.00/15.00 0.045
321 0.030 2.00 1.00 0.08 17.00/19.00 0.75/0.75 9.00/12.00 0.040
302 0.030 2.00 1.00 0.15 17.00/19.00 8.00/10.00 0.045
304* 0.030 2.00 1.00 0.08 18.00/20.00 8.00/10.50 0.045
304L* 0.030 2.00 1.00 0.03 18.00/20.00 8.00/12.00 0.045
309 0.030 2.00 1.00 0.20 22.00/24.00 12.00/15.00 0.045
316* 0.030 2.00 1.00 0.08 16.00/18.00 2.00/3.00 10.00/14.00 0.045
316L* 0.030 2.00 1.00 0.03 16.00/18.00 2.00/3.00 10.00/14.00 0.045
317 0.030 2.00 1.00/1.00 0.08 18.00/20.00 3.00/4.00 11.00/15.00 0.045
347 0.030 2.00 0.5/1.00 0.08 17.00/19.00 0.5/0.75 9.00/12.00 0.040

Ss Pipe Fittings Mechanical Properties

Type Hardness
(Brinell) max
Tensile Properties
(ksi) min
Elongational
min
UNS Hardness
(Rockwell B) max
Yield Properties
(ksi) min
302 183 75 40% in 2″ S30200 88 30
304* 183 75 40% in 2″ S30400 88 30
304L* 183 70 40% in 2″ S30403 88 30
309 217 75 40% in 2″ S30900 95 30
309S 217 75 40% in 2″ S30908 95 30
310 217 75 40% in 2″ S31000 95 30
310S 217 75 40% in 2″ S31008 95 30
316* 217 75 40% in 2″ S31600 95 30
316L* 217 70 35% in 2″ S31603 95 25
317 217 75 35% in 2″ S31700 95 30
317L 217 75 35% in 2″ S31703 95 30
321 183 75 40% in 2″ S32100 88 30
347 183 75 40% in 2″ S34700 88 30

Stainless Steel Pipe Fittings Equivalent Length

STANDARD EN UNS BS WERKSTOFF NR. GOST JIS AFNOR
SS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 S31600 316S31 / 316S33 1.4401 / 1.4436 SUS 316 Z7CND17‐11‐02
SS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 S31603 316S11 / 316S13 1.4404 / 1.4435 03Ch17N14M3 / 03Ch17N14M2 SUS 316L Z3CND17‐11‐02 / Z3CND18‐14‐03
SS 316H S31609 1.4401
SS 316Ti X6CrNiMoTi17-12-2 S31635 320S31 1.4571 08Ch17N13M2T SUS 316Ti Z6CNDT17‐123
SS 317 S31700 1.4449 SUS 317
SS 304 X5CrNi18-10 S30400 304S31 1.4301 08Х18Н10 SUS 304 Z7CN18‐09
SS 304L X2CrNi18-9 / X2CrNi19-11 S30403 3304S11 1.4306 / 1.4307 03Х18Н11 SUS 304L Z3CN18‐10
SS 304H S30409 1.4301
SS 310 X15CrNi25-20 S31000 310S24 1.4841 20Ch25N20S2 SUS 310
SS 310S X8CrNi25-21 S31008 310S16 1.4845 20Ch23N18 SUS 310S
SS 310H S31009
SS 317L X2CrNiMo18-15-4 S31703 1.4438 SUS 317L
SS 321 X6CrNiTi18-10 S32100 1.4541 SUS 321
SS 321H X12CrNiTi18-9 S32109 1.4878 SUS 321H
SS 347 X6CrNiNb18-10 S34700 1.4550 08Ch18N12B SUS 347
SS 347H X6CrNiNb18-12 S34709 1.4961 SUS 347H
SS 904L X1NiCrMoCu25-20-5 N08904 904S13 1.4539 STS 317J5L SUS 904L Z2 NCDU 25-20

ASME B16.25 Stainless Steel Buttweld Fittings Grades

  • Stainless Steel 317 Pipe Fittings
  • Stainless Steel 317L Pipe Fittings
  • Stainless Steel 347 Pipe Fittings
  • Stainless Steel 347H Pipe Fittings
  • Stainless Steel 410 Pipe Fittings
  • Stainless Steel 446 Pipe Fittings
  • Stainless Steel 904L Pipe Fittings

Stainless Steel Reducer WP Grade

GRADE NOM. PIPE SIZE SCHEDULE
WP-W 1/2″ – 12″ Schedule 40S
  1/2″ – 24″ Schedule 10S

NACE MR 01-75 | ASTM A262E | PMI TESTED
CERTIFICATE EN 10204/3.1B

GRADE NOM. PIPE SIZE SCHEDULE
WP-S 1/2″ – 12″ Schedule 10S
1/2″ – 12″ Schedule 80S
1/2″ – 12″ Schedule 40S

Manufacturer of Stainless Steel Stub End, Reducer, End Cap Fittings as per ASME B16.9, Check SS Pipe Fittings, EN 10253-2 Stainless Steel Welded/ Seamless Fittings Schedule, Dimensions & Weight Chart

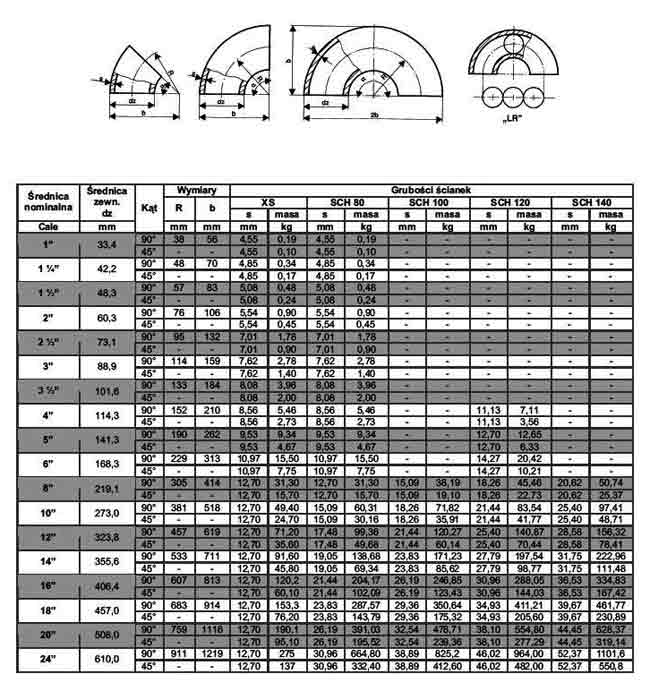

Stainless Steel Buttweld Fittings Dimensions

OUTSIDE DIA NOMINAL PIPE SIZE 180° RETURNS 45° ELBOWS 90° ELBOWS
(inch) Long Radius Long Radius Short Radius Long Radius
(inch) (milimeter) Back to face
(inch)
Center to Center
(inch)
Radius
(inch)
Center to Face
(inch)
Center to Face
(inch)
Center to Face
(inch)
3.500 88.9 3 6 1/4 9 6 2 3 4 1/2
4.000 101.6 3 1/2 7 1/4 10 1/2 7 2 1/4 3 1/2 5 1/4
4.500 114.3 4 8 1/4 12 8 2 1/2 4 6
5.563 141.3 5 10 5/16 15 10 3 1/8 5 7 1/2
0.840 21.3 1/2 1 7/8 2 5/8 1 1/2
1.050 26.7 3/4 1 11/16 2 1/4 7/16 1 1/8
1.315 33.4 1 2 3/16 3 7/8 1 1 1/2
1.660 42.2 1 1/4 2 3/4 3 3/4 1 1 1/4 1 7/8
1.900 48.3 1 1/2 3 1/4 4 1/2 3 1 1/8 1 1/2 2 1/4
2.375 60.3 2 4 3/16 6 4 1 3/8 2 3
2.875 73.0 2 1/2 5 3/16 7 1/2 5 1 3/4 2 1/2 3 3/4
6.625 168.3 6 12 5/16 18 12 3 3/4 6 9
8.625 219.1 8 16 5/16 24 12 5 8 12
10.750 273.1 10 20 3/8 30 15 6 1/4 10 15
12.750 323.9 12 24 3/8 36 18 7 1/2 12 18

ASME B16.9 SS Welded Pipe Fittings Schedule Chart

Stainless Steel Buttweld Fittings Manufacturers in India
Sizes 1/2″ – 12″
Schedules Schedule 10S to 80S
Fittings Types 90º SRs, 90º LRs, 45º Elbows,
Concentric Reducers and Eccentric Reducers,
Reducing Tees, Tees, and Stub Ends Fittings

Stainless Steel Seamless Pipe Fittings Pressure Rating

Normal Size Of Pipe
(inches)
Wall
Thick.
(inch)
Pipe Sch OD (inch)
Temperature (oF)
400 100 600 200 650 300 700 500 750
Allowable Stress (psi)
15500 16700 13500 16700 13200 16700 12900 14400 12600
1" 0.133 40 1.315 2047 2205 1783 2205 1743 2205 1703 1902 1664
0.179 80 1.315 2841 3061 2475 3061 2420 3061 2365 2640 2310
0.250 160 1.315 4170 4493 3632 4493 3552 4493 3471 3874 3390
1 1/2" 0.145 40 1.900 1512 1629 1317 1629 1287 1629 1258 1404 1229
0.200 80 1.900 2138 2303 1862 2303 1821 2303 1779 1986 1738
0.281 160 1.900 3120 3362 2717 3362 2657 3362 2597 2899 2536
2" 0.154 40 2.375 1272 1371 1108 1371 1083 1371 1059 1182 1034
0.218 80 2.375 1843 1985 1605 1985 1569 1985 1534 1712 1498
0.344 160 2.375 3047 3283 2654 3283 2595 3283 2536 2831 2477
3" 0.216 40 3.500 1208 1301 1052 1301 1028 1301 1005 1122 982
0.300 80 3.500 1712 1844 1491 1844 1458 1844 1425 1590 1391
0.438 160 3.500 2587 2787 2253 2787 2203 2787 2153 2403 2103
4" 0.237 40 4.500 1023 1102 891 1102 871 1102 851 950 831
0.337 80 4.500 1482 1596 1291 1596 1262 1596 1233 1377 1204
0.531 160 4.500 2424 2611 2111 2611 2064 2611 2017 2552 1970
5" 0.258 40 5.563 896 965 780 965 763 965 746 832 728
0.375 80 5.563 1325 1428 1154 1428 1129 1428 1103 1231 1077
0.625 160 5.563 2296 2474 2000 2474 1955 2474 1911 2133 1866
6" 0.280 40 6.625 814 877 709 877 693 877 677 756 661
0.432 80 6.625 1280 1379 1115 1379 1090 1379 1065 1189 1040
0.719 160 6.625 2211 2382 1925 2382 1883 2382 1840 2054 1797
8" 0.322 40 8.625 716 771 623 771 610 771 596 665 582
0.500 80 8.625 1131 1218 985 1218 963 1218 941 1050 919
0.906 160 8.625 2133 2298 1858 2298 1817 2298 1775 1982 1734
10" 0.365 40 10.750 649 699 565 699 553 699 540 603 528
0.594 80 10.750 1075 1159 937 1159 916 1159 895 999 874
1.125 160 10.750 2124 2289 1850 2289 1809 2289   1974
Stainless Steel Pipe Fittings Manufacturers In Mumbai

Stainless Weld Fittings Grade

WPgrade-grade-class Insert grades (321-321H) and class (S,W,WX, or WU). Applies to fittings meeting all chemical and physical requirements of both grades.
CR Corrosion resistant grade. S through WU Classes do not apply.
WP-WU UT all welds with or without filler metal.
WP-WX RT all welds with or without filler metal.
WP-S SMLS
WP-W Welded, RT or UT all pipe starting material welds made with filler metal. All fitting welds except as excluded in A/SA403 paragraph 5.4.3.
If UT is substituted for RT, all welds must be examined 100% for their length as required by A/SA403 paragraph 5.6

Types Of Stainless Steel Pipe Fittings

Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Buttweld Fittings
Stainless Steel Fittings
Stainless Steel Fittings
Stainless Steel Fittings
SS Pipe Fittings
SS Pipe Fittings
SS Pipe Fittings
SS Fittings
SS Fittings
SS Fittings
ASTM A403 Fittings
ASTM A403 Fittings
ASTM A403 Fittings
Steel Pipe Fittings
Steel Pipe Fittings
Steel Pipe Fittings
Stainless Pipe Fittings
Stainless Pipe Fittings
Stainless Pipe Fittings
Stainless Steel Compression Fitting
Stainless Steel Compression Fitting
Stainless Steel Compression Fitting
Stainless Steel Elbow
Stainless Steel Elbow
Stainless Steel Elbow
Stainless Steel Tee
Stainless Steel Tee
Stainless Steel Tee
Stainless Steel Reducer
Stainless Steel Reducer
Stainless Steel Reducer
Stainless Steel End Cap
Stainless Steel End Cap
Stainless Steel End Cap
Stainless Steel Stub End
Stainless Steel Stub End
Stainless Steel Stub End
Stainless Steel Hydraulic Fitting
Stainless Steel Hydraulic Fitting
Stainless Steel Hydraulic Fitting
Stainless Steel Press Fitting
Stainless Steel Press Fitting
Stainless Steel Press Fitting
Stainless Steel Bends
Stainless Steel Bends
Stainless Steel Bends
Stainless Steel Water Pipe Fitting
Stainless Steel Water Pipe Fitting
Stainless Steel Water Pipe Fitting
A403 Material
A403 Material
A403 Material
ASME B16.9 SS Welded Pipe Fitting
ASME B16.9 SS Welded Pipe Fitting
ASME B16.9 SS Welded Pipe Fitting
Stainless Steel Buttweld Elbow
Stainless Steel Buttweld Elbow
Stainless Steel Buttweld Elbow
Stainless Steel Butt Weld Pipe Fitting
Stainless Steel Butt Weld Pipe Fitting
Stainless Steel Butt Weld Pipe Fitting
Stainless Steel Seamless Pipe Fitting
Stainless Steel Seamless Pipe Fitting
Stainless Steel Seamless Pipe Fitting
Austenitic SS Fittings
Austenitic SS Fittings
Austenitic SS Fittings
ASME B16.9 SS Pipe Elbow
ASME B16.9 SS Pipe Elbow
ASME B16.9 SS Pipe Elbow

Austenitic SS Fittings Angularity Tolerance

ASME B16.9 Buttweld Fittings Tolerance ( Cap, Tee, Elbow, Reducer) 45 Deg. & 90 Deg.
Tee and Elbow
Pipe Lap Joint
Stub End and Reducer
Buttweld Fitting Dimension (NPS) Wall Thk T Outside
Dia
at Bevel
Inside
Dia
at End
Center-to-End
Dimension
A ,C ,B
Over-all
Length H
1/2 to 2-1/2 Not less than 87.5%
of nominal thickness
+0.06 +/- 0.06 +/- 0.12
-0.03
3 to 3-1/2 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12
4 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.12
5 to 8 +/- 0.06 +/- 0.06 +/- 0.06 +/- 0.25
10 to 18 +0.16 +/- 0.12 +/- 0.09 +/- 0.25
-0.12
20 to 24 +0.25 +/- 0.19 +/- 0.09 +/- 0.25
-0.19
26 to 30 +0.25 +/- 0.19 +/- 0.19 +/- 0.38
-0.19
32 to 48 +0.25 +/- 0.19 +/- 0.19 +/- 0.38
-0.19
Find the Best Wholesale SS Buttweld Caps Suppliers in Mumbai, ANSI B16.9 Stainless Steel Buttweld Fittings specialized in custom sizes, call now for Stainless Steel Pipe Fittings free sample

SS Buttweld Fittings ASTM Standards

Mss SP75 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers
ASME B16.9 Factory-Made Wrought Buttwelding Fittings Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers
MSS SP95 Swage(d) Nipples and Bull Plugs
ASME B16.28 Short Radius Elbows, Short Radius 180-deg Returns
BS3799 Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry
MSS SP43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers
ASME B16.11 Socket Welding and Threaded forged Fittings

Stainless Steel Stub End, Cap, Tee Dimensions

Nominal Outside Caps Stub Ends Straight Tees Straight Crosses
Pipe Diameter
Size
(inches) (mm) (inches) Length Lap Diameter Long Length Short Length Center to End Center to End
(inches) (inches) (inches) (inches) (inches) (inches)
1/2 21.3 0.84 1 1 3/8 3 2 1
3/4 26.7 1.05 1 1 11/16 3 2 1 1/8
1 33.4 1.315 1 1/2 2 4 2 1 1/2 1 1/2
1 1/4 42.2 1.66 1 1/2 2 1/2 4 2 1 7/8 1 7/8
3 1/2 101.6 4 2 1/2 5 1/2 6 3 3 3/4 3 3/4
1 1/2 48.3 1.9 1 1/2 2 7/8 4 2 2 1/4 2 1/4
2 60.3 2.375 1 1/2 3 5/8 6 2 1/2 2 1/2 2 1/2
2 1/2 73 2.875 1 1/2 4 1/8 6 2 1/2 3 3
3 88.9 3.5 2 5 6 2 1/2 3 3/8 3 3/8
4 114.3 4.5 2 1/2 6 3/16 6 3 4 1/8 4 1/8
8 219.1 8.625 4 10 5/8 8 4 7 7
10 273.1 10.75 5 12 3/4 10 5 8 1/2 8 1/2
5 141.3 5.563 3 7 5/16 8 3 4 7/8 4 7/8
6 168.3 6.625 3 1/2 8 1/2 8 3 1/2 5 5/8 5 5/8
12 323.9 12.75 6 15 10 6 10 10

EN 10253-4 Stainless Steel Nipple Size

SS Pipe Fittings Items Stainless Steel Pipe Fittings Manufacturers in India
A403 WP304/316 Bend (Long & Short) A403 WP304/316 Stubend (Long & Short) A403 WP304/316 Elbow ( 180o, 90o & 45o) A403 WP304/316 Tee (Equal & Unequal) R=2D,3D,5D,10D Etc A403 WP304/316 Reducer (Con & Ecc) CAP A403
WP304/316 Nipple (Barrel)
A403 Stainless Steel Buttweld (B/W) Fittings Material Sch. & Swg.
Size
(in mm)
SS Fittings Specification
A403 Stainless Steel Seamless Fittings Sch. 5 to Sch. XXs 15 NB to 300 NB A-403 B/W ANSI B16.9

ASTM A403 Reducer Dimension

OUTSIDE
DIA
NOMINAL
PIPE SIZE IN INCH
REDUCERS
(inches) (mm) Reduced from
(inches)
Concentric & Eccentric Length
(inches)
Reduced to
(inches)
0.840 21.3 1/2 1 1/2 1/4
1 1/2 3/8
1.050 26.7 3/4 2 3/8
2 1/2
1.315 33.4 1 2 3/8
2 1/2
2 3/4
1.660 42.2 1 1/4 2 1/2
2 3/4
2 1
1.900 48.3 1 1/2 2 1/2 1/2
2 1/2 3/4
2 1/2 1
2 1/2 1 1/4
2.375 60.3 2 3 3/4
3 1
3 1 1/4
3 1 1/2
2.875 73.0 2 1/2 3 1/2 1
3 1/2 1 1/4
3 1/2 1 1/2
3 1/2 2
3.500 88.9 3 3 1/2 1
3 1/2 1 1/2
3 1/2 2
3 1/2 2 1/2
4.000 101.6 3 1/2 4 1 1/4
4 1 1/2
4 2
4 2 1/2
4 3
4.500 114.3 4 4 1 1/2
4 2
4 2 1/2
4 3
4 3 1/2
5.563 141.3 5 5 2
5 2 1/2
5 3
5 3 1/2
5 4
6.625 168.3 6 5 1/2 2 1/2
5 1/2 3
5 1/2 3 1/2
5 1/2 4
5 1/2 5
8.625 219.1 8 6 3
6 3 1/2
6 4
6 5
6 6
10.750 273.1 10 7 4
7 5
7 6
7 8
12.750 323.9 12 8 5
8 6
8 8
8 10

SS Buttweld Pipe Fittings Value Added Services

  • Hardness Test
  • Mechanical Testing Such as Tensile of Area
  • Positive Material Identification – PMI Testing
  • Chemical Analysis – Spectro Analysis
  • Micro and MacroTest
  • Flattening Test
  • Flaring Test
  • Pitting Resistance Test
  • Intergranular Corrosion (IGC) Test

Stainless Steel Pipe Fittings Hs Code

Code Of HS Description No Of Shipments
7307 Tube Or Pipe Fittings (For Example, Couplings, Elbows, Sleeves), Of Iron Or Steel
73072200 Threaded Elbows, Bends And Sleeves 482
73072900 Other 11954
73072300 BW Fitting 384
73079990 Other 1350
73079190 Other
Looking for Stainless Steel Buttweld Pipe Fittings Manufacturer in India? Get Stainless Steel Welded Pipe Fittings, Stub Ends, Olets, Long Radius and Short Radius Elbows are produced accordance to B16.9, MSS-SP-75

SS ASTM A403 Pipe Bend Sizes

Normal Size Of Pipe Kilogram LBS
1 0.34 0.75
0.63 1.38
0.68 1.5
2 1.59 3.5
3.18 7
3 4.99 11
7.26 16
4 9.07 20
5 16.33 36
6 29.48 65
8 53.52 118

Stainless Steel Pipe Fittings Standards

  • ISO 5251
  • MSS-SP-43
  • BS 1640
  • ISO 3419
  • ASME/ANSI B16.28
  • ASME/ANSI B16.9
  • GOST
  • DIN/EN10253
  • MSS-SP-75
  • JIS B2311/2312/2313

ASME B16.9 Stainless Steel Fittings Application

ASME B16.9 Stainless Steel Fittings Application
  • Petrochemical Industries
  • Gas Processing Industries
  • Food Processing Industries
  • Power Generation Industries
  • Oil & Gas Industries
  • Chemical Industries
  • Sugar Industries
  • Fertilizers Industries

ASTM A403 Stainless Steel Buttweld Fittings Tolerance

Products Size in Inch Wall Thik. Welded Seamless
Cap 1/2″-80″ 10S~ 160
Tee 1/2″-24″ 10S~XXS
8″-104″ 5S~80S/XS
Elbow 1/2″-24″ 10S~XXS
8″-104″ 5S~80S/XS
Reducer 1/2″-24″ 10S~XXS
8″-104″ 5S~80S/XS
Lap Joint Stub End 1/2″-24″ 5S~80S/XS
8″-80″ 5S~80S/XS
Manufacturer of ASTM A 403 Stainless Steel Fittings, SS Buttweld Fittings in India, First compare Stainless Steel Lateral Wye, Long Radius 45/ 90 Degree Elbow from 1/2 in., get price of Stainless Steel Seamless Pipe Fittings and SS Pipe Bends in Mumbai

Stainless Steel Fittings Price List

Products Fitting Pipe Size Stainless Steel Price
108588 2203 SANPRESS-PIPE 35 X 1.5, STAINLESS STEEL / 1.4401 (SANITARY FITTINGS) 3/8 in x 3/8 in $8.00
STAINLESS STEEL PIPE FITTING (ELBOW) 1/2 in x 1/2 in $16.13
STAINLESS STEEL PIPE FITTINGS (LINERS) PN.NO-21/2010 SUBMITTED VIDE FILE.NO-S/3 GEN 357/16-17 GR.IV ACC DT-4.11.16 1-1/4 in x 1-1/4 in $34.45
STAINLESS STEEL FITTINGS: PIPE HOLDER-60069 6 INCH 3/4 in x 3/4 in $18.97
STAINLESS STEEL PIPE ( TF03 N9 00 ) 3 METERS (STEEL FITTING)(PARTS FOR INDUSTRIAL AUTOMATION IN MACHINE) 1-1/2 in x 1-1/2 in $51.04
FITTING / VALVES MADE OF STAINLESS STEEL / BRASS - IC96PBW16H08 PIPE 1X1/2 1 in x 1 in $35.35
TUBE OR PIPE FITTINGS (COUPLINGS, ELBOWS, SLEEVES) OF STAINLESS STEEL-SS COLLAR 3/4 NITRIDED (OTHER FITTINGS) 2 in x 2 in $58.37
STAINLESS STEEL PIPE FITTINGS-2 90 DEG.ELBOW ASTM A403 WX SCH.40 3 in x 3 in $279.54
TUBE OR PIPE FITTING OF IRON OR STEEL (STAINLESS STEEL FITTINGS) 4 in x 4 in $166.99

ASTM A403 Stainless Steel Fittings Inventory

Stainless Steel Pipe Fittings Stainless Steel Butt Weld Pipe Fittings
Stainless Steel Fittings Stainless Steel Weld Fittings
Stainless Pipe Fittings ASTM A403 Stainless Steel Fittings
Ss Pipe Fittings Stainless Steel Elbow
Stainless Steel Tube Fittings Stainless Steel Pipe Bends
Sch 80 Stainless Steel Pipe Fittings Stainless Steel Buttweld Elbow
Stainless Steel Reducer SS Fittings
Austenitic SS Fittings Stainless Steel Pipe Elbow Fitting
Stainless Steel 90 Degree Elbow Stainless Steel Buttweld Pipe Fittings
SS Buttweld Fittings ASTM A403 Stainless Steel Buttweld Fittings
Stainless Steel Threaded Pipe Stainless Steel Seamless Pipe Fittings
SS Buttweld Pipe Fittings ASME B16.9 Stainless Steel Fittings
Stainless Steel Tee Stainless Steel Buttweld Fittings
ASTM A 403 Stainless Steel Fittings Stainless Steel 45 Degree Elbow
Stainless Steel Elbow Fitting Stainless Steel Seamless Fittings
Sch 10 Stainless Steel Pipe Fittings Mss Sp-43 Stainless Steel Seamless Fittings
Stainless Steel Pipe Nipples Stainless Steel Welded Fittings
ASME B16 9 Stainless Steel Fittings Stainless 90 Degree Elbow
Stainless Steel Water Pipe Fittings Stainless Steel Tube End Fittings
Steel 90 Degree Elbow ASME B16.9 SS Welded Pipe Fittings
Stainless Steel Tee Fittings Stainless Steel Welded Pipe Fittings
Mss Sp-43 Stainless Steel Fitting Stainless Steel Pipe Caps
Stainless Steel Pipe Reducer Fabricated Stainless Steel Fittings

Weight Of Stainless Steel Pipe Fittings

NPS (Normal Size Of Steel Pipe) Schedule 40S Schedule 10S Schedule 80S
ASME B16.9 Butt weld 45 Deg Elbows ASME B16.9 Butt weld 90 Deg Elbows ASME B16.9 Butt weld Equal Tee ASME B16.9 Butt weld 45 Deg Elbow ASME B16.9 Butt weld 90 Deg Elbow ASME B16.9 Butt weld Equal Tee ASME B16.9 Butt weld 45 Deg Elbow ASME B16.9 Butt weld 90 Deg Elbow ASME B16.9 Butt weld Equal Tee
8 0.02 0.03 0.06 0.01 0.02 0.03 0.03 0.04 0.07
10 0.02 0.03 0.03 0.02 0.03 0.05 0.04 0.06 0.09
15 0.04 0.08 0.10 0.03 0.06 0.09 0.05 0.10 0.14
20 0.04 0.08 0.17 0.03 0.07 0.13 0.05 0.11 0.20
25 0.11 0.15 0.29 0.08 0.14 0.28 0.14 0.22 0.38
32 0.17 0.26 0.59 0.11 0.23 0.49 0.23 0.40 0.68
40 0.23 0.40 0.86 0.17 0.30 0.68 0.29 0.51 1.02
50 0.4 0.70 1.28 0.25 0.50 0.85 0.59 0.91 1.59
65 0.77 1.40 2.19 0.48 0.85 1.41 0.99 1.81 3.13
80 1.08 2.20 3.31 0.63 1.25 1.77 1.50 2.97 4.45
90 1.42 2.83 4.08 0.75 1.70 2.67 2.00 4.00 5.44
100 2.09 4.47 5.27 1.08 2.10 3.46 2.81 6.18 7.71
150 5.44 10.89 10.99 2.72 5.45 8.07 8.16 16.32 13.61
200 10.77 21.54 20.91 5.33 10.20 15.65 16.56 33.11 28.12
250 19.27 38.56 35.38 9.75 18.15 26.46 25.86 51.71 49.90
300 29.71 59.42 62.14 13.62 25.80 39.46 39.69 79.38 83.91

NPS For (Normal Size Of Steel Pipe) Schedule 40S Schedule 10S Schedule 80S
ANSI B16.9 Butt weld Con Reducer ANSI B16.9 Butt weld Ecc Reducer ANSI B16.9 Butt weld Reducing Or Unequal Tee ANSI B16.9 Butt weld Con Reducer ANSI B16.9 Butt weld Ecc Reducer ANSI B16.9 Butt weld Reducing Or Unequal Tee ANSI B16.9 Butt weld Con Reducer ANSI B16.9 Butt weld Ecc Reducer ANSI B16.9 Butt weld Reducing Or Unequal Tee
40x.25 0.26 0.26 0.76 0.19 0.19 0.60 0.34 0.34 0.90
50x25 0.40 0.40 1.10 0.28 0.28 0.73 0.54 0.54 1.37
50x40 0.45 0.45 1.15 0.31 0.31 0.76 0.59 0.59 1.43
80x.50 1.00 1.00 2.91 0.55 0.55 1.56 1.79 1.79 3.91
100x50 1.50 1.50 4.48 0.78 0.78 2.94 1.95 1.95 6.55
100x80 1.74 1.74 4.64 0.87 0.87 3.04 2.33 2.33 6.79
150x80 3.95 3.95 9.68 1.82 1.82 6.86 5.51 5.51 11.57
150x100 4.07 4.07 11.94 1.96 1.96 7.10 5.96 5.96 11.97
200x100 6.55 6.55 17.98 3.01 3.01 13.46 9.23 9.23 24.18
200x150 6.74 6.74 18.82 3.19 3.19 14.08 10.12 10.12 25.31

EN 10253-2 Stainless Steel Elbow Weight

EN 10253-2 Stainless Steel Elbow Weight

Searching for

Stainless Steel Pipe Fittings Manufacturers In India in your country? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

ASTM A403 SS Buttweld Elbow

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

Stainless Steel Fittings

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

ASME B16.9 Elbow

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

ASTM A 403 Stainless Steel Fittings

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

SS Buttweld Fittings

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

SS Pipe Fittings

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
