Nickel Alloy 625 Sheet and ASTM B443 UNS N06625 Strip Supplier in India

Inconel 625 Plate

What is Inconel 625 Plate, Sheet and Coil?
Plates, sheets, and coils are three common types of metal grade in the Inconel 625 range. These components have their said features and functions.

  • Inconel 625 Plate is designed in thickness of above 6mm extending up to 150mm. The plates are employed to provide stability and strength to different components.
  • Inconel 625 sheet is designed in thickness below 6mm and above 0.5mm. Sheets add an aesthetical appeal to the module and don’t more on weight-saving rather than providing stability to the different applications.
  • Inconel 625 coil is wound and coiled after the rolling process. The coils are designed in thickness between 1.2mm up to 20mm. They can be efficiently transported from one place to the other.

625 Inconel Hot Rolled Plate vs BS 3072NA21 Cold Rolled Plate?
Inconel 625 plates can be formed in the hot or cold rolling process. Both these processes are diverse and can be distinguished based on certain features.

  • Inconel 625 hot rolled plate is formed at high temperatures ranging up to 1700 degrees F in mills. BS 3072NA21 Cold Rolled plate is processed at room temperature soon after the hot rolling process.
  • Cold rolled plates have an aesthetical appeal and superior strength when compared to hot rolled plates.
  • Cold rolled Inconel 625 plates have a precise surface finish and edges. Hot rolled may showcase rounded or uneven edges.
  • Hot rolled plates of the Inconel 625 grade are cheaper than a cold rolled plate.

What is AMS 5869 Foil and Alloy 625 Strip?
Foils and coils are the thinnest metal grade of the Alloy 625. Both these modules can be distinguished based on certain features.

  • AMS 5869 foil is the thinnest item in this grade designed with a thickness of less than 0.2mm. The components are hammered or rolled and play a pivotal role in protecting different applications during heat treatment or against corrosive media.
  • Alloy 625 strips are designed in thickness between 0.2mm up to 0.5mm. Strips are an important feature in welding different grades in this range.

Looking for Inconel Plate suppliers for genuine price? Wide stock of ASME SB 443 Din 2.4856 Coil, Strips, foil in Hairline Mirror finish, best price of cut to size Inconel Sheet in India

We have a huge stock of JIS NCF 625 Cold Rolled and Hot Rolled Plates in all dimensions and thickness at best price in india, Contact now for Inconel Alloy 625 Shim Sheet and Alloy 625 Plate Suppliers in India

Alloy 625 Plate Specification

Dimensions
  • Cold rolled Inconel 625 Plate 0.5-6.4 mm
  • Hot rolled Inconel 625 Plate 3.0–10.0 mm
Other Trade Name
  • Alloy 625
  • Nickel 625
  • Haynes 625® (Haynes International)
  • Inconel 625® (Special Metals)
Form Plate, Sheet, Coils, Foils, Strip, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Width 10-2500mm
Specification
  • ASTM B 443 Gr 1
  • UNS N06625
  • ASME SB 443 Gr 1
  • UNS N06626-625LCF
  • AMS 5599
  • AMS 5869
  • ISO 6208
  • VdTüV 499
  • BS 3072NA21
  • EN 10095
  • DIN 17750
  • WERKSTOFF Nr 2.4856
Types Cold rolled sheet (CR), Hot rolled plate (HR), Annealed
International Standard
  • EN 2.4856
  • EN 10204
  • EMS95377
  • S1000 / S-SPEC-1
  • PWA LCS
  • RR SABRe Edition 2
  • DFARS Compliant
  • AeDMS S-400 GE Aviation S-SPEC-35
Thickness 0.1 to 100 mm Thk
Length 2m, 2.44m, 3m, or as required

Standard Specification

Inconel 625 Plate Specification: ASTM B443, AMS 5599, AMS 5869
UNS: N06625
International Specifications: ISO 6208, VdTüV 499, BS 3072NA21, EN 10095, DIN 17750, WERKSTOFF Nr 2.4856

Inconel 625 Sheet Price

Products Size (in inches) Size (in mm) Price in USD Price in UAE Dirham Price in INR
INCONEL 625 PLATE DISC TO ASTM B 443 GR.UNS NO. 6625 GR 2, SIZE : 290 MM x 40 MM .125" 3.18mm 1976.80 7260.78 147,553
INCONEL 625 PLATE 10 MM X 150 X 300 .134" 3.40mm 239.38 144.77 17,868
INCONEL 625 PLATE SIZE: 650MM X 405MM X20MM .156" 3.96mm 39.41 761 2,942
NICKEL ALLOY SHEET/PLATE GRADE INCONEL 625 .187" 4.75mm 10.20 37.45 761
NICKEL ALLOY INCONEL 625 PLATE AMS 5599 9.53MMX50.4 MMX 50.4MM .375X1.98X1.98 .250" 6.35mm 19.04 69.92 1,421

Types of Inconel 625 Plate

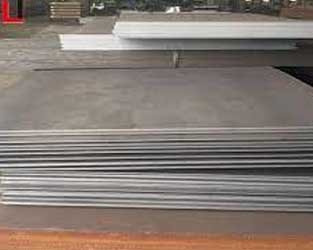

Inconel 625 Clad Plates
Inconel 625 Clad Plates
Inconel 625 Clad Plates
Nickel Alloy 625 Sheet
Nickel Alloy 625 Sheet
Nickel Alloy 625 Sheet

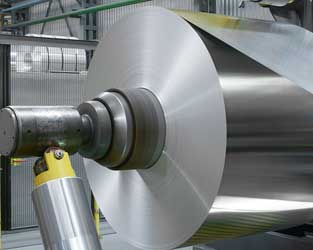

ASTM B443 UNS N06625 Strip
ASTM B443 UNS N06625 Strip
ASTM B443 UNS N06625 Strip

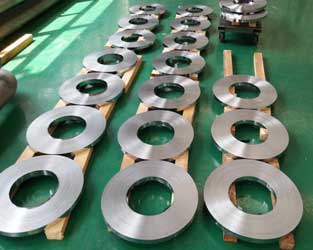

ASME SB 443 Din 2.4856 Coil
ASME SB 443 Din 2.4856 Coil
ASME SB 443 Din 2.4856 Coil

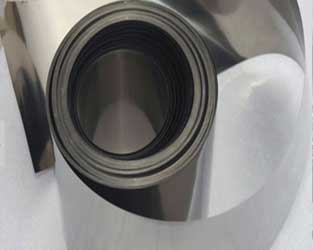

JIS NCF 625 Foil
JIS NCF 625 Foil
JIS NCF 625 Foil

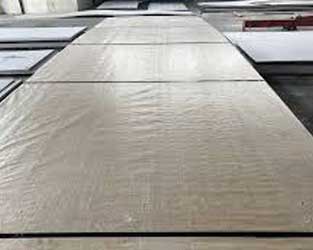

inconel Alloy 625 Shim Sheet
inconel Alloy 625 Shim Sheet
inconel Alloy 625 Shim Sheet

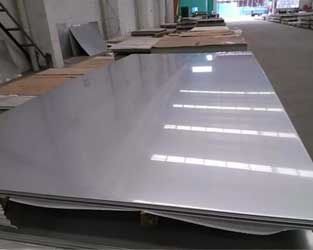

AMS 5599 Hot Rolled Plates
AMS 5599 Hot Rolled Plates
AMS 5599 Hot Rolled Plates

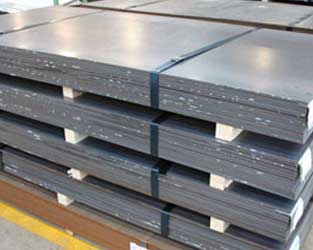

Alloy 625 Cold Rolled plate
Alloy 625 Cold Rolled plate
Alloy 625 Cold Rolled plate

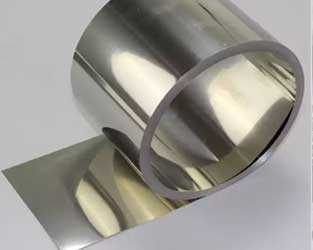

Alloy 625 Foil
Alloy 625 Foil
Alloy 625 Foil
ASTM B443 UNS N06625 Plates
ASTM B443 UNS N06625 Plates
ASTM B443 UNS N06625 Plates

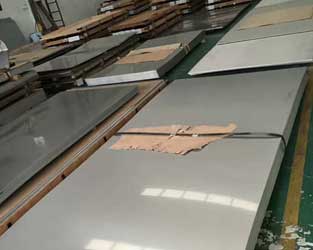

Alloy Inconel 625 Sheet
Alloy Inconel 625 Sheet
Alloy Inconel 625 Sheet
Inconel 625 Alloy Hot Rolled Plate
Inconel 625 Alloy Hot Rolled Plate
Inconel 625 Alloy Hot Rolled Plate

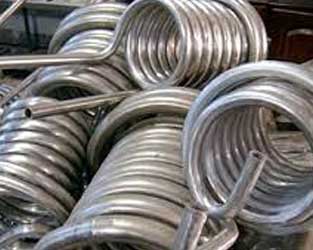

Nickel Alloy 625 Coil
Nickel Alloy 625 Coil
Nickel Alloy 625 Coil

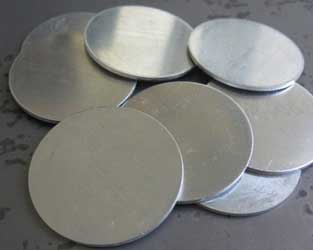

UNS N06625 Inconel 625 Circle
UNS N06625 Inconel 625 Circle
UNS N06625 Inconel 625 Circle

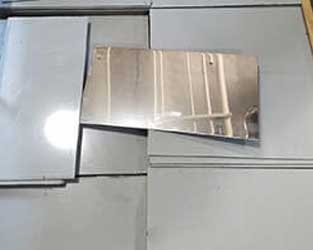

ASME SB 443 UNS N06625 Plate
ASME SB 443 UNS N06625 Plate
ASME SB 443 UNS N06625 Plate

ASME SB 443 UNS N06625 Plate Melting Range

Melting Range
2350 - 2460°F (1280 - 1350°C)

Alloy 625 Sheet Weight Chart

Stockist & supplier of Inconel Shim Stock, Alloy 625 Lcf Sheet and AMS 5599 Polished Plate in Mumbai, find here AMS 5599 Polished Plate/ Inconel Shim Stock complete information
Thickness (inches) Plate Weight per Unit Area Density
3/16 0.06000 lbs/in²42.184176 kg/m² 0.315 lbs/in³8.72 g/cm³
1/4 0.08 lbs/in²56.245568 kg/m² 0.315 lbs/in³8.72 g/cm³
3/8 0.121 lbs/in²85.0714216 kg/m² 0.315 lbs/in³8.72 g/cm³
1/2 0.161 lbs/in²113.1942056 kg/m² 0.315 lbs/in³8.72 g/cm³
5/8 0.196 lbs/in²137.8016416 kg/m² 0.315 lbs/in³8.72 g/cm³
3/4 0.235 lbs/in²165.221356 kg/m² 0.315 lbs/in³8.72 g/cm³
7/8 0.274 lbs/in²192.6410704 kg/m² 0.315 lbs/in³8.72 g/cm³
1 0.313 lbs/in²220.0607848 kg/m² 0.315 lbs/in³8.72 g/cm³
1 1/4 0.391 lbs/in²274.9002136 kg/m² 0.315 lbs/in³8.72 g/cm³
1 1/2 0.47 lbs/in²330.442712 kg/m² 0.315 lbs/in³8.72 g/cm³
1 3/4 0.549 lbs/in²385.9852104 kg/m² 0.315 lbs/in³8.72 g/cm³
2 0.627 lbs/in²440.8246392 kg/m² 0.315 lbs/in³8.72 g/cm³
2 1/4 0.705 lbs/in²495.664068 kg/m² 0.315 lbs/in³8.72 g/cm³
2 1/2 0.784 lbs/in²551.2065664 kg/m² 0.315 lbs/in³8.72 g/cm³
2 3/4 0.862 lbs/in²606.0459952 kg/m² 0.315 lbs/in³8.72 g/cm³
3 0.941 lbs/in²661.5884936 kg/m² 0.315 lbs/in³8.72 g/cm³

Inconel 625 Sheet Metal Gauge Datasheet

Aged Hardness, Room Temperature*

Form Aging Tme, hrs. Aging Temperature,
F (C)
Hardness,
Rockwell A
Plate,
1/2 in. (12.7 mm)
thick
-- Annealed** 58
1000
4000
8000
1400 (760) 65
66
65
1000
4000
8000
1200 (649) 68
68
68
1000
4000
8000
1600 (871) 60
60
60

Average Hardness and Tensile Data, Room Temperature

Condition Yield
Strength
at 0.2%
offset,ksi (MPa)
Form Elongation
in 2"
percent
Ultimate
Tensile
Strength,
ksi (MPa)
Hardness,
Rockwell
Annealed at
1925°F (1052°C),
rapid cooled
67.4 (465) Sheet,*
0.0.78-0.155"
thick
45 131.5 (907) B97
Annealed at
1925°F (1052°C),
rapid cooled
67.9 (468) Sheet
0.014-0.063"
thick
47 132.0 (910) B94
Annealed at
1925°F (1052°C),
rapid cooled

65.5 (452)
67.0 (462)
80.0 (552)
75.3 (519)
73.7 (508)
66.0 (455)
Plate,***
1/4"
1/2"
3/4"
1.00"
1-1/2"
1-3/4"

46
44
44
42
43
44

132.0 (910)
130.0 (896)
132.3 (912)
127.2 (877)
127.3 (878)
128.0 (883)

B94
B98
B98
B97
B97
C20

Single tests from a single heat.

Form Aging Temperature,
F (C)
Aging Tme, hrs. Yield
Strength
at 0.2%
offset,
Ksi (MPa)
Ultimate
Tensile
Strength,
Ksi (MPa)
Elongation
in 2 in.,
(50.8 mm),
percent
Plate,
1/2 in. (12.7 mm)
thick
Annealed** -- 66.2 (456) 127.7 (880) 46
1400 (760) 1000
4000
8000
16000
95.5 (658)
104.1 (718)
97.4 (672)
96.1 (663)
142.9 (985)
145.5 (1003)
142.6 (983)
140.4 (968)
17
12
13
12
1200 (649) 1000
4000
8000
16000
122.3 (843)
117.9 (813)
117.8 (812)
118.5 (817)
165.0 (1138)
163.6 (1128)
164.2 (1132)
165.4 (1140)
28
24
18
12
1600 (871) 1000
4000
8000
16000
68.3 (471)
66.4 (458)
63.7 (439)
63.4 (437)
130.0 (896)
130.0 (896)
127.0 (876)
128.4 (885)
30
29
26
32

Average of three tests from a single heat

Test
Temperature,
°F(°C)
Yield
Strength
at 0.2%
offset,ksi (MPa)
Ultimate
Tensile
Strength,
ksi (MPa)
Elongation
in 2"
percent
Room
200
400
600
800
1000
1200
1400
1600
1800
2000
72.0 (496)
67.3 (464)
62.2 (429)
59.5 (410)
59.2 (408)
58.8 (405)
57.0 (393)
55.3 (381)
34.9 (241)
10.8 (75)
6.1 (42)
138.8 (957)
133.3 (919)
129.4 (892)
125.6 (866)
122.2 (843)
119.9 (827)
119.6 (825)
88.4 (609)
52.1 (359)
25.0 (172)
13.3 (92)
38
41
44
45
45
46
47
70
69
108
89

Annealed at 1925°F (1052°C), rapid cooled

Test Temperature,
°F(°C)
Average Rupture Strength, ksi (MPa)
for Time Indicated
100 hrs 10 hrs 1000 hrs
1200 (649)
1400 (760)
1600 (871)
71 (490)
27 (186)
6.7 (46)
82 (565)
36 (248)
12 (83)
60 (414)
20 (138)**
3.7 (26)**

ASME SB 443 Din 2.4856 Coil Density

Density
0.303 lb/in3 (8.44 g/cm3

Inconel 625 Plate Features

Inconel 625 Plate Features
  • Chloride stress resistance
  • Salt, fresh water and alkaline chemical resistance
  • Heat and cold resistance
  • Stability during welding
  • Scaling and oxidization resistance
  • Corrosion cracking resistance

Various types of UNS N06625 Flat/ Clad/ 2D Plate in Mumbai warehouse, buy 4mm Thick Nickel Alloy 625 Plate Material and Inconel 625 Plate Suppliers at factory price in India

ASTM B443 UNS N06625 Strip Thickness

Hot rolled UNS N06625 Alloy 625 Plate 0.1875 to 2.000"
Cold rolled Inconel 625 Sheet & Coil 0.016 to 0.130"

JIS NCF 625 Foil Chemical Composition

Grade Cu C Ni Mn Fe Si Cr S
Inconel 625 0.10max 58.0 min 0.50 max 5.0 max 0.50 max 20.0 – 23.0 0.015max

Inconel 625 Clad Plates Mechanical Properties

Element Tensile Properties Density Yield Properties (0.2%Offset) Melting Point Elongation
Inconel 625 Psi – 1,35,000 , MPa – 930 8.4 g/cm3 Psi – 75,000 , MPa – 517 1350 °C (2460 °F) 42.5 %

Inconel Alloy 625 Shim Sheet Equivalent

STANDARD BS WNR Material Number AFNOR UNS GOST JIS EN
Inconel 625 NA 21 2.4856 NC22DNB4M N06625 ХН75МБТЮ NCF 625 NiCr22Mo9Nb

AMS 5599 Hot Rolled Plates Specific Gravity

Specific Gravity
8.44 g/cm3

Alloy 625 Cold Rolled plate Uses

  • Aerospace equipment
  • Jet Engine exhaust systems
  • Motor racing exhaust systems
  • Sour gas production tubes
  • Chemical Processing
  • Nuclear waste reprocessing equipment
  • Chimney Linings

Inconel 625 Lcf Sheet Size

Stocked Sizes
Size (in inches) Size (in mm)
.125" 3.18mm
.134" 3.40mm
.156" 3.96mm
.187" 4.75mm
.250" 6.35mm
.312" 7.92mm
.375" 9.53mm
.500" 12.7mm
.625" 15.9mm
.750" 19.1mm
.875" 22.2mm
1" 25.4mm
1.125" 28.6mm
1.250" 31.8mm
1.500" 38.1mm
1.750" 44.5mm
2" 50.8mm
2.500" 63.5mm
3" 76.2mm

Alloy 625 Strip Electrical Resistivity

Temperature microhm-cm
°F °C
70 21 128.9
100 38 129.6
200 93 131.9
400 204 133.9
600 316 134.9
800 427 135.9
1000 538 137.9
1200 649 137.9
1400 760 136.9
1600 871 135.9
1800 982 134.9
2000 1093 133.9

ASTM B443 Inconel 625 Coil Dimensions

Metric Dimensions

Plate Surface finish Width (max mm) Thickness (mm)
2R – Cold rolled, bright annealed plate 1524 0.25–3.5
2B – Cold rolled, heat treated, pickled, skin passed plate 2032 0.25–8.0
2E – Cold rolled, heat treated, mechanically descaled plate 2032 0.4–8.0
2D – Cold rolled, heat treated, pickled plate 1524 0.4–6.35
2H – Work hardened plate 1524 0.4–6.35
Polished, brushed plate 1524 0.5–4.0

Imperial Dimensions

Plate Surface finish Gauge (in) Width (max in)
BA Mexinox only 18–28 48
2B – Cold rolled, heat treated, pickled, skin passed Plate 10–24 72*
Polished plate (not brushed) 11–24 60
2D – Cold rolled, heat treated, pickled plate 12–24 60
Temper rolled plate Mexinox only 13–29 48

SB 443 Inconel 625 Clad Plate Maximum Width

Maximum Width Thickness
17.5" (444.5mm) as rolled edge 17.0" (431.8mm) with a slit edge 0.025"- 0.003" (0.635 - 0.08mm)
16.5" (419.1mm) as rolled edge 16.0" (406.4mm) with a slit edge 0.0029" - 0.001" (0.079 - 0.0254mm)
15.5" (393.7mm) as rolled edge 15.0" (381.0mm) with a slit edge 0.0009" - 0.0004" (0.025 - 0.01mm)
4.25" (107.95mm) as rolled edge 4.0" (101.6mm) with a slit edge 0.00039" - 0.00008" (0.0099 - 0.002mm)

Inconel 625 Alloy Hot Rolled Plate Thermal Conductivity

Temperature Range Linear Coefficients of Thermal Expansion1 · 10-6 Thermal Conductivity2 3
°F °C /°F /°C Btu/(hr/ft²/in/°F) W/m·K
-250 -157 - - 4.2 7.3
-200 -129 - - 4.3 7.4
-100 -73 - - 4.8 8.3
0 -18 - - 5.3 9.2
70 21 - - 5.7 9.9
100 38 - - 5.8 10.0
200 93 7.1 12.8 6.3 10.7
400 204 7.3 13.1 7.3 12.6
600 316 7.4 13.3 8.2 14.2
800 427 7.6 13.7 9.1 15.7
1000 538 7.8 14.0 10.1 17.5
1200 649 8.2 14.8 11.0 19.0
1400 760 8.5 15.3 12.0 20.8
1600 871 8.8 15.8 13.2 22.8
1700 927 9.0 16.2 - -
1800 982 - - 14.6 25.3

Inconel 625 Plate Application

Inconel 625 Plate Application
  • Tubing
  • Heat shields
  • Valves
  • Combustion and chimney liners
  • Distillation columns
  • Piping
  • Reaction vessels
  • Bubble caps
  • Furnace hardware
  • Heat exchangers
  • Equipment used to produce acid
  • Sour gas production tubes
  • Gas turbine engine duct work

ASTM B443 Alloy 625 Sheet Corrosion Resistance

Resistance of nickel alloys to impingement attack by seawater at 150 ft/sec (45.7 m/s)

Alloy Acetic Acid
Concentration
Corrosion/Erosion Rate
mm/a mpy
Alloy 625 10% 0.01-0.19 0.39-0.77

Corrosion-resistance of nickel alloys in four 24-hour tests in boiling acetic acid

Alloy Corrosion/Erosion Rate
mm/a mpy
Alloy 625 Nil Nil

Pitting resistance equivalency numbers (PREN) for corrosion resistant alloys

Alloy W Ni Nb Cr N Mo PREN
Alloy 625 62 3.5 22 9 40.8

ASME SB443 Inconel 625 Sheet Inventory

Inconel 625 Plate ASTM B443 UNS N06625 Plates
Inconel 625 Sheet SB 443 UNS N06625 Plates
Alloy 625 Plate ASME SB 443 UNS 06625 Plates
625 Plate Inconel 625 Strip
Alloy 625 Sheet ASTM B443 Inconel 625 Coil
Inconel 625 Clad Plates Alloy Inconel 625 Sheet
Inconel 625 Data Sheet Inconel 625 Foil
Alloy 625 Data Sheet ASTM B443 Alloy 625 Sheet
Inconel 625 Sheet Metal Gauge SB 443 Inconel 625 Clad Plate
Nickel Alloy 625 Sheet Inconel 625 Alloy Hot Rolled Plate
ASTM B443 UNS N06625 Strip SB 443 Alloy 625 Strip
ASME SB 443 Din 2.4856 Coil ASTM B443 Alloy 625 Plate
JIS NCF 625 Foil 625 Inconel Plate
inconel Alloy 625 Shim Sheet AMS 5599 Alloy 625 Inconel Plate
AMS 5599 Hot Rolled Plates ASTM B443 625 Alloy Plate
Alloy 625 Cold Rolled plate Nickel Alloy 625 Coil
2.4856 Plate Werkstoff No 2.4856 Plate
Inconel 625 Lcf Sheet SB 443 UNS 06625 Sheet
Inconel 625 Coil ASTM B443 UNS N06625 Coil
Alloy 625 Foil UNS N06625 Inconel 625 Circle
Alloy 625 Strip ASME SB 443 UNS N06625 Plate
Inconel 625 ASTM B443 Plates ASME SB443 Inconel 625 Sheet

Searching for

Inconel 625 Plate supplier in your country? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

Inconel 625 Plate

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

Inconel 625 Sheet

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

AMS 5599 Hot Rolled Plates

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

Alloy 625 Cold Rolled plate

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

Inconel 625 Foil

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

SB 443 Inconel 625 Clad Plate

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
