ASTM A182 Forged Flanges and SS Blind Flange supplier in Mumbai
What is Stainless Steel Flanges?
Stainless steel flanges belong to a ferrous group of alloys. Designed with a minimum of 11% chromium content, the flanges show enhanced corrosion and oxidation resistance properties. The flanges of stainless steel are used to connect a range of piping equipment in place. The versatile flanges are well suited in high-temperature applications giving them excellent strength and torsion. A SS flange type can be threaded or welded following standard procedures.

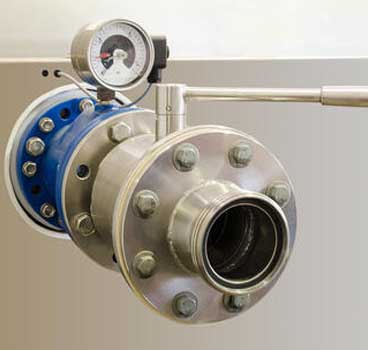

What are Stainless Steel Pipe Flange used for?
Stainless steel pipe flanges are designed in a range of sizes and dimensions to suit different applications. SS flanges are a common feature in oil and gas industries, chemical processing, petrochemical refineries, pulp and paper productions, and so on.
Stainless Steel Lap Joint Flange Vs Ss Slip On Flange
Lap joint and slip on flanges are versatile grades in the C276 alloy grade. Both these flanges can be distinguished from key features.
- A Stainless steel Lap Joint flange consists of a backing flange and a stub end which are welded in place using a butt-weld. SS Slip on the flange is slid on a piping grade and welded using one or more fillet welds.
- Lap joint flanges are utilized in high-pressure applications. Slip on flange is a item of choice in low pressure applications.
How do you measure Stainless Steel Weld Neck Flange?
Stainless steel weld neck flanges are measured based on the inside and outer diameter of the flange. The flange class and thickness are employed in tuning the flange to suit different needs. The hole size and pitch circle diameter also play a crucial role in determining the dimensions of these flanges.
What Grade Of Stainless Steel Plate Flange Will Not Rust?
All grades of stainless steel are designed possessing superior corrosion resistance properties. When exposed to a range of oxidants and reducing agents for a period of time, they will eventually rust after providing a long service life across stress-induced environments.
Table of Content
SS Flanges Specification
| Specifications | ASTM A182 Flange/ Stainless Steel Flanges |
|---|---|
| UNI Standard | 6, 16, 40, 25, 10 Bar |
| Available Sizes | 1/2 To 48 Inch |
| EN Standard | 6, 16, 40, 25, 10 Bar |
| Standards | ASME B16.5, DIN, ANSI Flanges, B16.47 Series A and B, B16.48, BS 10, EN 1092, ASME Flanges, BS Flanges, BS4504, EN Flanges, GOST Flanges, DIN Flanges |
| JIS Standard | 30, 20, 40, 5, 16 10, 63 K |
| ANSI Standard | Class 150 to Class 2500 LBS |
| Flange supporting material | Ring Joint Gasket Flange Bolts |
| DIN Standard | 16, 40, 10, 6, 25 Bar / PN64, PN10, PN16, PN6, PN25, PN40 |
| Equipment used | Pushing Machine, Sand-blasting machine, Press machine, Bending machine, electric bevelling machine |
| Main Types | Screwed / Forged / Plate/ Threaded |
| Flange Face Type | Large Tongue and Groove, Lap Joint Face, Large Male Female, Flat Face, Small Tongue, Raised Face, Small Male Female, Ring Joint Flanges manufacturer and Supplier |
| Technique | Heat treated machined Forged |
| Test | Magnetic particle detector UI trasonic flaw detector X ray detector Direct reading Spectrograph Hydrostatic testing machine |
| Flanges Marking | All SS Flange are marked as follows: Supplier or Manufacturer’s Name, Class, Dimension, Size, Bore, Material, Heat No. (Or according to the customer’s request) |
Stainless Flange Price List
| Product | Size | Flange Outside Diameter | Maximum Operating Pressure | Number of Bolt Holes | Price |
|---|---|---|---|---|---|
| STAINLESS STEEL CASTINGS (ROUGH) - 59490/ 1 / 1 BODY, FLANGE DN400 (DTLS AS PER INV.)STAINLESS STEEL MALLEABLE ROUGH/MACHINEDCASTINGS ( P-BDY-224, REV-D, 316L: FLANGED BODY ) | 1/2 in | 3-1/2 in | 150 psi | 4 | $36.12 |
| VALVE PARTS-STAINLESS STEEL-MACHINED CASTINGS 25X50 RE101 BODY FMC FLANGE (WE INTEND TO CLAIM REWARDS UNDER MEIS) | 3/4 in | 3-7/8 in | 150 psi | 4 | $32.18 |
| (1-1/4) 42MM OD STAINLESS STEEL PUMP GUARD SET FOR V4 (2 NOS.SS RODS,SS FLANGE,NUT, COTTER PIN) | 1 in | 4-1/4 in | 150 psi | 4 | $36.44 |
| STAINLESS STEEL FLANGE:DECKELRING DRW.16-142(SS 304) | 3 in | 7-1/2 in | 150 psi | 4 | $113.86 |
| (2) 60MM OD STAINLESS STEEL PUMP GUARDSET FOR V4 (2 NOS.SS RODS,SS FLANGE, NUT, COTTER PIN) | 4 in | 9 in | 150 psi | 8 | $155.69 |
| STAINLESS STEEL FLANGE(MADE OF SS)(USEDIN BEER LINE FITTING) -C127X1 | 5 in | 10 in | — | 8 | $168.97 |
| STAINLESS STEEL FLANGE:- DECKEL DRW,16-143 (SS304) | 6 in | 11 in | 150 psi | 8 | $197.25 |
Types of Stainless Steel Flanges
ASME B16.5 Stainless Steel Weld Neck Flanges
EN 1092-1 Stainless Steel WNRF Flange
Stainless Steel Socket Weld Flange
ASTM A182 SWRF Flanges
Austenitic Stainless Steel Slip On Flange
SS SORF Flanges
EN 1092-2 Stainless Steel Blind Flange
Ferritic Stainless Steel Grade BLRF Flanges
SS ASTM A182 Lapped Joint Flange
Martensitic Stainless Steel Orifice Flanges
EN 1092-1 Spectacle Blind Flange
Steel Tongue & Groove Flange
ASME B16.5 Nipo Flanges
Stainless Long Weld Neck Flange
ASTM SA182 Reducing Flanges
ANSI 150 Stainless Steel Ring Joint Flange
AWWA Stainless Steel Girth Flanges
High Pressure Stainless Steel Expander Flanges
PN16 Stainless Steel Screwed Flange
SS Threaded Flange

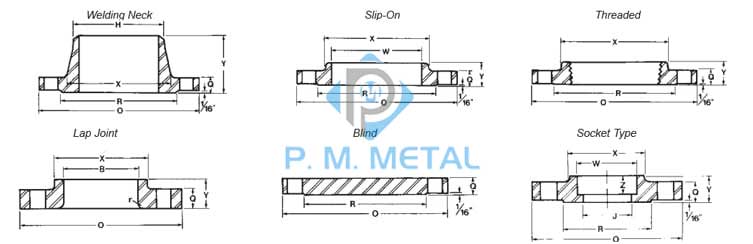

Austenitic Stainless Steel Pipe Flange Dimensions In Mm
| Nominal Pipe Size | Diameter of Hub at Base | Thickness of Flange | Diameter of Hub at Bevel | Outside Diameter of Flange | Diameter of Raised Face | Diameter or Bore | Depth of Socket | Length Thru Hub | Radius of Fillet | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Slip-on Socket | Lap Joint | Welding Neck | Slip-On Threaded Socket | Lap Joint | ||||||||
| X | Q | H | O | R | W | B | Z | Y | Y | Y | r | |
| 3/4 | 1-1/2 | 1/2 | 1.05 | 3-7/8 | 1-11/16 | 1.09 | 1.11 | 7/16 | 2-1/16 | 5/8 | 5/8 | 1/8 |
| 12 | 14-3/8 | 1-1/4 | 12.75 | 19 | 15 | 12.88 | 12.92 | 1-9/16 | 4-1/2 | 2-3/16 | 2-3/16 | 1/2 |
| 1 | 1-15/16 | 9/16 | 1.32 | 4-1/4 | 2 | 1.36 | 1.38 | 1/2 | 2-3/16 | 11/16 | 11/16 | 1/8 |
| 6 | 7-9/16 | 1 | 6.63 | 11 | 8-1/2 | 6.72 | 6.75 | 1-1/16 | 3-1/2 | 1-9/16 | 1-9/16 | 1/2 |
| 1-1/4 | 2-5/16 | 5/8 | 1.66 | 4-5/8 | 2-1/2 | 1.70 | 1.72 | 9/16 | 2-1/4 | 13/16 | 13/16 | 3/16 |
| 1-1/2 | 2-9/16 | 11/16 | 1.90 | 5 | 2-7/8 | 1.95 | 1.97 | 5/8 | 2-7/16 | 7/8 | 7/8 | 1/4 |
| 16 | 18 | 1-7/16 | 16.00 | 23-1/2 | 18-1/2 | 16.16 | 16.19 | 1-3/4 | 5 | 2-1/2 | 3-7/16 | 1/2 |
| 2 | 3-1/16 | 3/4 | 2.38 | 6 | 3-5/8 | 2.44 | 2.46 | 11/16 | 2-1/2 | 1 | 1 | 5/16 |
| 1/2 | 1-3/16 | 7/16 | .84 | 3-1/2 | 1-3/8 | .88 | .90 | 3/8 | 1-7/8 | 5/8 | 5/8 | 1/8 |
| 18 | 19-7/8 | 1-9/16 | 18.00 | 25 | 21 | 18.18 | 18.20 | 1-15/16 | 5-1/2 | 2-11/16 | 3-13/16 | 1/2 |
| 2-1/2 | 3-9/16 | 7/8 | 2.88 | 7 | 4-1/8 | 2.94 | 2.97 | 3/4 | 2-3/4 | 1-1/8 | 1-1/8 | 5/16 |
| 3 | 4-1/4 | 15/16 | 3.50 | 7-1/2 | 5 | 3.57 | 3.60 | 13/16 | 2-3/4 | 1-3/16 | 1-3/16 | 3/8 |
| 20 | 22 | 1-11/16 | 20.00 | 27-1/2 | 23 | 20.20 | 20.25 | 2-1/8 | 5-11/16 | 2-7/8 | 4-1/16 | 1/2 |
| 10 | 12 | 1-3/16 | 10.75 | 16 | 12-3/4 | 10.88 | 10.92 | 1-5/16 | 4 | 1-15/16 | 1-15/16 | 1/2 |
| 3-1/2 | 4-13/16 | 15/16 | 4.00 | 8-1/2 | 5-1/2 | 4.07 | 4.10 | 7/8 | 2-13/16 | 1-1/4 | 1-1/4 | 3/8 |
| 4 | 5-5/16 | 15/16 | 4.50 | 9 | 6-3/16 | 4.57 | 4.60 | 15/16 | 3 | 1-5/16 | 1-5/16 | 7/16 |
| 5 | 6-7/16 | 15/16 | 5.56 | 10 | 7.5/16 | 5.66 | 5.69 | 15/16 | 3-1/2 | 1-7/16 | 1-7/16 | 7/16 |
| 8 | 9-11/16 | 1-1/8 | 8.63 | 13-1/2 | 10-5/8 | 8.72 | 8.75 | 1-1/4 | 4 | 1-3/4 | 1-3/4 | 1/2 |
| 14 | 15-3/4 | 1-3/8 | 14.00 | 21 | 16-1/4 | 14.14 | 14.18 | 1-5/8 | 5 | 2-1/4 | 3-1/8 | 1/2 |
| 24 | 26-1/8 | 1-7/8 | 24.00 | 32 | 27-1/4 | 24.25 | 24.25 | 2-1/2 | 6 | 3-1/4 | 4-3/8 | 1/2 |
ANSI 150 SS Flange Dimensions In Mm
| Nominal Pipe sizes in Inches | Number of bolts used | Diameter of Flange in inches | Bolt Circle in Inches | Diameter of Bolts in Inches | Diameter of Bolt Holes in Inches |
|---|---|---|---|---|---|
| 1/2 | 4 | 3-1/2 | 2-3/8 | 1/2 | 0.62 |
| 3/4 | 4 | 3-7/8 | 2-3/4 | 1/2 | 0.62 |
| 1 | 4 | 4-1/4 | 3-1/8 | 1/2 | 0.62 |
| 20 | 20 | 27-1/2 | 25 | 1-1/8 | 1.25 |
| 14 | 12 | 21 | 18-3/4 | 1 | 1.12 |
| 1/4 | 4 | 3-3/8 | 2-1/4 | 1/2 | 0.62 |
| 1-1/4 | 4 | 4-5/8 | 3-1/2 | 1/2 | 0.62 |
| 6 | 8 | 11 | 9-1/2 | 3/4 | 0.88 |
| 1-1/2 | 4 | 5 | 3-7/8 | 1/2 | 0.62 |
| 2 | 4 | 6 | 4-3/4 | 5/8 | 0.75 |
| 12 | 12 | 19 | 17 | 7/8 | 1 |
| 3 | 4 | 7-1/2 | 6 | 5/8 | 0.75 |
| 3-1/2 | 8 | 8-1/2 | 7 | 5/8 | 0.75 |
| 4 | 8 | 9 | 7-1/2 | 5/8 | 0.75 |
| 18 | 16 | 25 | 22-3/4 | 1-1/8 | 1.25 |
| 2-1/2 | 4 | 7 | 5-1/2 | 5/8 | 0.75 |
| 5 | 8 | 10 | 8-1/2 | 3/4 | 0.88 |
| 8 | 8 | 13-1/2 | 11-3/4 | 3/4 | 0.88 |
| 10 | 12 | 16 | 14-1/4 | 7/8 | 1 |
| 16 | 16 | 23-1/2 | 21-1/4 | 1 | 1.12 |
| 24 | 20 | 32 | 29-1/2 | 1-1/4 | 1.38 |
EN 1092-2 Stainless Pipe Flanges Weight Chart
| Nominal Pipe Size | Lap Joint | Blind | Socket Weld | Threaded | Weld Neck | Slip On |
|---|---|---|---|---|---|---|
| 22 | 245 | 355 | 185 | 185 | 225 | 185 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 |
| 1 | 2 | 2 | 2 | 2 | 3 | 2 |
| 14 | 105 | 140 | 90 | 90 | 114 | 90 |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 |
| ½ | 1 | 2 | 2 | 1 | 2 | 1 |
| 16 | 140 | 180 | 98 | 98 | 140 | 106 |
| 18 | 160 | 220 | 130 | 130 | 165 | 130 |
| 1½ | 3 | 4 | 3 | 3 | 4 | 3 |
| 8 | 30 | 47 | 30 | 30 | 42 | 30 |
| 2 | 5 | 5 | 5 | 5 | 6 | 5 |
| 20 | 195 | 285 | 165 | 165 | 197 | 165 |
| 3 | 9 | 9 | 9 | 9 | 11.5 | 9 |
| 12 | 64 | 123 | 64 | 64 | 88 | 64 |
| 3½ | 11 | 13 | 11 | 12 | 12 | 11 |
| 6 | 19 | 27 | 19 | 19 | 26 | 19 |
| 2½ | 8 | 7 | 8 | 8 | 10 | 8 |
| 4 | 13 | 17 | 13 | 13 | 16.5 | 13 |
| 5 | 15 | 20 | 15 | 15 | 21 | 15 |
| 10 | 43 | 70 | 43 | 43 | 54 | 43 |
| 24 | 275 | 430 | 220 | 220 | 268 | 220 |
ASME B16.5 Class 300 Flange Dimensions
| Nominal Pipe Size in Inch | Diameter of Bolts in inch | Diameter of Bolt Holes in inch | Number of Bolt used | Bolt Circle in inch | Diameter of Flange in inch |
|---|---|---|---|---|---|
| 20 | 1-1/4 | 1.38 | 24 | 27 | 30-1/2 |
| 1/2 | 1/2 | 0.62 | 4 | 2-5/8 | 3-3/4 |
| 5 | 3/4 | 0.88 | 8 | 9-1/4 | 11 |
| 16 | 1-1/4 | 1.38 | 20 | 22-1/2 | 25-1/2 |
| 3/4 | 5/8 | 0.75 | 4 | 3-1/4 | 4-5/8 |
| 1 | 5/8 | 0.75 | 4 | 3-1/2 | 4-7/8 |
| 3-1/2 | 3/4 | 0.88 | 8 | 7-1/4 | 9 |
| 1-1/4 | 5/8 | 0.75 | 4 | 3-7/8 | 5-1/4 |
| 18 | 1-1/4 | 1.38 | 24 | 24-3/4 | 28 |
| 10 | 1 | 1.12 | 16 | 15-1/4 | 17-1/2 |
| 1/4 | 1/2 | 0.62 | 4 | 2-1/4 | 3-3/8 |
| 12 | 1-1/8 | 1.25 | 16 | 17-3/4 | 20-1/2 |
| 1-1/2 | 3/4 | 0.88 | 4 | 4-1/2 | 6-1/8 |
| 2 | 5/8 | 0.75 | 8 | 5 | 6-1/2 |
| 2-1/2 | 3/4 | 0.88 | 8 | 5-7/8 | 7-1/2 |
| 3 | 3/4 | 0.88 | 8 | 6-5/8 | 8-1/4 |
| 4 | 3/4 | 0.88 | 8 | 7-7/8 | 10 |
| 6 | 3/4 | 0.88 | 12 | 10-5/8 | 12-1/2 |
| 8 | 7/8 | 1 | 12 | 13 | 15 |
| 14 | 1-1/8 | 1.25 | 20 | 20-1/4 | 23 |
| 24 | 1-1/2 | 1.62 | 24 | 32 | 36 |
We offer 2 Inch, 4 Inch Tube Flange, Stainless Steel Forged Flanges and SS Flanges suppliers in UAE, Stainless Steel Socket Weld Flanges available in various face such as Raised, RTJ, Flat, Tongue and Groove according to EN 1092-1
Stainless Steel Blind Flange Thickness
| Nominal Pipe Size | Standard Wall | Outer Diameter | Schedule 30 | Schedule 60 | Schedule 20 | Schedule 80 | Schedule 10 | Schedule 120 | EXT Hvy | Schedule 40 | Schedule 140 | Schedule 100 | Schedule 160 | XX Hvy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ½ | 0.109 | 0.84 | 0.147 | 0.083 | 0.147 | 0.109 | 0.188 | 0.294 | ||||||
| ¾ | 0.113 | 1.05 | 0.154 | 0.083 | 0.154 | 0.113 | 0.219 | 0.308 | ||||||
| 1 | 0.133 | 1.315 | 0.179 | 0.109 | 0.179 | 0.133 | 0.25 | 0.358 | ||||||
| 1 ¼ | 0.14 | 1.66 | 0.191 | 0.109 | 0.191 | 0.14 | 0.25 | 0.382 | ||||||
| 1 ½ | 0.145 | 1.9 | 0.2 | 0.109 | 0.2 | 0.145 | 0.281 | 0.4 | ||||||
| 2 | 0.154 | 2.375 | 0.218 | 0.109 | 0.218 | 0.154 | 0.344 | 0.436 | ||||||
| 2 ½ | 0.203 | 2.875 | 0.276 | 0.12 | 0.276 | 0.203 | 0.375 | 0.552 | ||||||
| 3 | 0.216 | 3.5 | 0.3 | 0.12 | 0.3 | 0.216 | 0.438 | 0.6 | ||||||
| 3 ½ | 0.226 | 4 | 0.318 | 0.12 | 0.318 | 0.226 | 0.636 | |||||||
| 4 | 0.237 | 4.5 | 0.337 | 0.12 | 0.438 | 0.337 | 0.237 | 0.531 | 0.674 | |||||
| 5 | 0.258 | 5.563 | 0.375 | 0.134 | 0.5 | 0.375 | 0.258 | 0.625 | 0.75 | |||||
| 6 | 0.28 | 6.625 | 0.432 | 0.134 | 0.562 | 0.432 | 0.28 | 0.719 | 0.864 | |||||
| 8 | 0.322 | 8.625 | 0.277 | 0.406 | 0.25 | 0.5 | 0.148 | 0.719 | 0.5 | 0.322 | 0.812 | 0.594 | 0.906 | 0.875 |
| 10 | 0.365 | 10.75 | 0.307 | 0.5 | 0.25 | 0.594 | 0.165 | 0.844 | 0.5 | 0.365 | 1 | 0.719 | 1.125 | 1 |
| 12 | 0.375 | 12.75 | 0.33 | 0.562 | 0.25 | 0.688 | 0.18 | 1 | 0.5 | 0.406 | 1.125 | 0.844 | 1.312 | 1 |
| 14 | 0.375 | 14 | 0.375 | 0.594 | 0.312 | 0.75 | 0.25 | 1.094 | 0.5 | 0.438 | 1.25 | 0.938 | 1.406 | |
| 16 | 0.375 | 16 | 0.375 | 0.656 | 0.312 | 0.844 | 0.25 | 1.219 | 0.5 | 0.5 | 1.438 | 1.031 | 1.594 | |
| 18 | 0.375 | 18 | 0.438 | 0.75 | 0.312 | 0.938 | 0.25 | 1.375 | 0.5 | 0.562 | 1.562 | 1.156 | 1.781 | |
| 20 | 0.375 | 20 | 0.5 | 0.812 | 0.375 | 1.031 | 0.25 | 1.5 | 0.5 | 0.594 | 1.75 | 1.281 | 1.969 | |
| 22 | 0.375 | 22 | 0.25 | 0.5 | ||||||||||
| 24 | 0.375 | 24 | 0.562 | 0.969 | 0.375 | 1.219 | 0.25 | 1.812 | 0.5 | 0.688 | 2.062 | 1.531 | 2.344 | |
| 26 | 0.375 | 26 | 0.5 | |||||||||||
| 30 | 0.375 | 30 | 0.625 | 0.5 | 0.312 | 0.5 | ||||||||
| 36 | 0.375 | 36 | 0.625 | 0.5 | 0.312 | 0.5 | 0.75 | |||||||
| 40 | 0.375 | 40 | 0.5 | |||||||||||
| 42 | 0.375 | 42 | 0.5 | |||||||||||
| 48 | 0.375 | 48 | 0.5 |

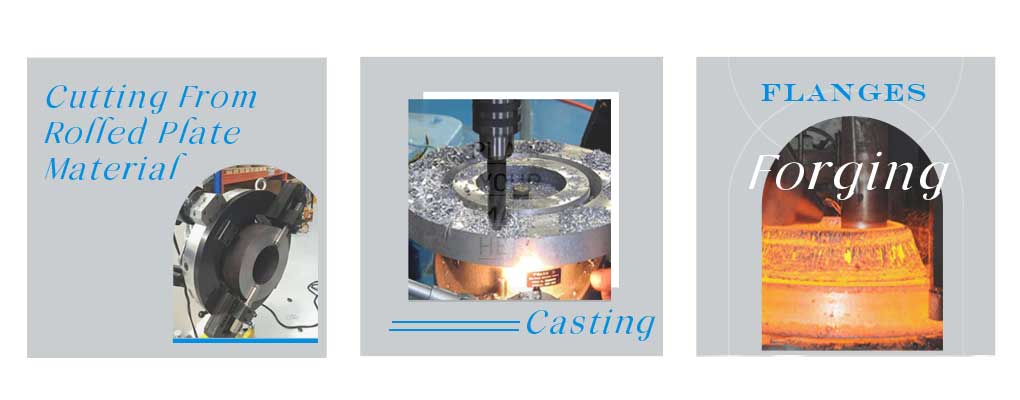

How Are Stainless Steel Flanges Made?
EN 1092-1 Class 400 SS Flange Dimensions
| Nominal Pipe Sizes in Inch | Diameter of Flange in inch | Number of Bolt used | Diameter of Bolt Holes in inch | Bolt Circle in inch | Diameter of Bolts in inch |
|---|---|---|---|---|---|
| 1/2 | 3-3/4 | 4 | 0.62 | 2-5/8 | 1/2 |
| 12 | 20-1/2 | 16 | 1.38 | 17-3/4 | 1-1/4 |
| 3/4 | 4-5/8 | 4 | 0.75 | 3-1/4 | 5/8 |
| 1 | 4-7/8 | 4 | 0.75 | 3-1/2 | 5/8 |
| 1-1/2 | 6-1/8 | 4 | 0.88 | 4-1/2 | 3/4 |
| 10 | 17-1/2 | 16 | 1.25 | 15-1/4 | 1-1/8 |
| 24 | 36 | 24 | 1.88 | 32 | 1-3/4 |
| 2 | 6-1/2 | 8 | 0.75 | 5 | 5/8 |
| 2-1/2 | 7-1/2 | 8 | 0.88 | 5-7/8 | 3/4 |
| 20 | 30-1/2 | 24 | 1.62 | 27 | 1-1/2 |
| 3 | 8-1/4 | 8 | 0.88 | 6-5/8 | 3/4 |
| 3-1/2 | 9 | 8 | 1 | 7-1/4 | 7/8 |
| 4 | 10 | 8 | 1 | 7-7/8 | 7/8 |
| 5 | 11 | 8 | 1 | 9-1/4 | 7/8 |
| 6 | 12-1/2 | 12 | 1 | 10-5/8 | 7/8 |
| 8 | 15 | 12 | 1.12 | 13 | 1 |
| 14 | 23 | 20 | 1.38 | 20-1/4 | 1-1/4 |
| 1/4 | 3-3/8 | 4 | 0.62 | 2-1/4 | 1/2 |
| 16 | 25-1/2 | 20 | 1.5 | 22-1/2 | 1-3/8 |
| 1-1/4 | 5-1/4 | 4 | 0.75 | 3-7/8 | 5/8 |
| 18 | 28 | 24 | 1.5 | 24-3/4 | 1-3/8 |
Stainless Steel Flanges Grades
- Stainless Steel 304 Flanges
- Stainless Steel 304L Flanges
- Stainless Steel 316 Flanges
- Stainless Steel 316L Flanges
- Stainless Steel 310 Flanges
- Stainless Steel 321 Flanges
- Stainless Steel 321H Flanges
- Stainless Steel 347 Flanges
- Stainless Steel 904L Flanges
ASTM A182 Cl 1500 SS Flange Dimension
| Nominal Pipe Sizes in Inch | Number of Bolt Used | Bolt Circle in inch | Diameter of Flange in inch | Diameter of Bolts in inch | Diameter of Bolt Holes in inch |
|---|---|---|---|---|---|
| 1/2 | 4 | 3-1/4 | 4-3/4 | 3/4 | 0.88 |
| 18 | 16 | 30-1/2 | 36 | 2-3/4 | 2.88 |
| 24 | 16 | 39 | 46 | 3-1/2 | 3.62 |
| 3 | 8 | 8 | 10-1/2 | 1-1/8 | 1.25 |
| 12 | 16 | 22-1/2 | 26-1/2 | 2 | 2.12 |
| 3/4 | 4 | 3-1/2 | 5-1/8 | 3/4 | 0.88 |
| 20 | 16 | 32-3/4 | 38-3/4 | 3 | 3.12 |
| 1 | 4 | 4 | 5-7/8 | 7/8 | 1 |
| 1-1/4 | 4 | 4-3/8 | 6-1/4 | 7/8 | 1 |
| 8 | 12 | 15-1/2 | 19 | 1-5/8 | 1.75 |
| 1-1/2 | 4 | 4-7/8 | 7 | 1 | 1.12 |
| 16 | 16 | 27-3/4 | 32-1/2 | 2-1/2 | 2.62 |
| 2 | 8 | 6-1/2 | 8-1/2 | 7/8 | 1 |
| 2-1/2 | 8 | 7-1/2 | 9-5/8 | 1 | 1.12 |
| 4 | 8 | 9-1/2 | 12-1/4 | 1-1/4 | 1.38 |
| 5 | 8 | 11-1/2 | 14-3/4 | 1-1/2 | 1.62 |
| 6 | 12 | 12-1/2 | 15-1/2 | 1-3/8 | 1.5 |
| 10 | 12 | 19 | 23 | 1-7/8 | 2 |
| 14 | 16 | 25 | 29-1/2 | 2-1/4 | 2.38 |
ASME B16.5 Stainless Steel Blind Flange Pressure Ratings
| Temperature (°C) | Class 900 | Class 300 | Class 150 | Class 1500 | Class 400 | Class 2500 | Class 600 |
|---|---|---|---|---|---|---|---|
| -29 - 38 | 155 | 51.7 | 19.8 | 259 | 68.9 | 431 | 103.4 |
| 100 | 155 | 51.5 | 17.7 | 258 | 68.7 | 429 | 103.0 |
| 50 | 155 | 51.7 | 19.5 | 259 | 68.9 | 431 | 103.4 |
| 150 | 151 | 50.2 | 15.8 | 251 | 66.8 | 418 | 100.3 |
| 475 | 51.3 | 17.1 | 3.7 | 85.4 | 22.8 | 142 | 34.2 |
| 200 | 146 | 48.6 | 13.8 | 243 | 64.8 | 405 | 97.2 |
| 300 | 129 | 42.9 | 10.2 | 214 | 57.0 | 357 | 85.7 |
| 250 | 139 | 46.3 | 12.1 | 232 | 61.7 | 386 | 92.7 |
| 325 | 124 | 41.4 | 9.3 | 207 | 55.0 | 344 | 82.6 |
| 350 | 120 | 40.0 | 8.4 | 200 | 53.4 | 334 | 80.0 |
| 400 | 104 | 34.7 | 6.5 | 174 | 46.3 | 290 | 69.4 |
| 375 | 114 | 37.8 | 7.4 | 189 | 50.4 | 315 | 75.7 |
| 425 | 86.3 | 28.8 | 5.5 | 144 | 38.4 | 240 | 57.5 |
| 450 | 69.0 | 23.0 | 4.6 | 115 | 30.7 | 192 | 46.0 |
| 500 | 34.7 | 11.6 | 2.8 | 57.9 | 15.4 | 96.5 | 23.2 |
| 538 | 17.7 | 5.9 | 1.4 | 29.5 | 7.9 | 49.2 | 11.8 |
Looking for Large Diameter Stainless Steel Flanges manufacturer in India? Buy directly from ASME B16.5 High Pressure Stainless Steel Flanges, we produce Stainless Pipe Flanges in plate, forging and casting methods
EN 1092-2 Class 2500 Flange Dimensions
| Nominal Pipe Sizes in Inch | Diameter of Flange in inch | Bolt Circle in inch | Number of Bolt Used | Diameter of Bolt Holes in inch | Diameter of Bolts in inch |
|---|---|---|---|---|---|
| 3/4 | 5-1/2 | 3-3/4 | 4 | 0.88 | 3/4 |
| 1 | 6-1/4 | 4-1/4 | 4 | 1 | 7/8 |
| 10 | 26-1/2 | 21-1/4 | 12 | 2.62 | 2-1/2 |
| 1-1/4 | 7-1/4 | 5-1/8 | 4 | 1.12 | 1 |
| 12 | 30 | 24-3/8 | 12 | 2.88 | 2-3/4 |
| 1-1/2 | 8 | 5-3/4 | 4 | 1.25 | 1-1/8 |
| 2 | 9-1/4 | 6-3/4 | 8 | 1.12 | 1 |
| 1/2 | 5-1/4 | 3-1/2 | 4 | 0.88 | 3/4 |
| 2-1/2 | 10-1/2 | 7-3/4 | 8 | 1.25 | 1-1/8 |
| 3 | 12 | 9 | 8 | 1.38 | 1-1/4 |
| 5 | 16-1/2 | 12-3/4 | 8 | 1.88 | 1-3/4 |
| 6 | 19 | 14-1/2 | 8 | 2.12 | 2 |
| 4 | 14 | 10-3/4 | 8 | 1.62 | 1-1/2 |
| 8 | 21-3/4 | 17-1/4 | 12 | 2.12 | 2 |
SS Class 600 Weld Neck Flange Dimensions
| Nominal Pipe Sizes in Inch | Diameter of Bolts in inch | Diameter of Bolt Holes in inch | Bolt Circle in inch | Number of Bolt Used | Diameter of Flange in inch |
|---|---|---|---|---|---|
| 12 | 1-1/4 | 1.38 | 19-1/4 | 20 | 22 |
| 1/4 | 1/2 | 0.62 | 2-1/4 | 4 | 3-3/8 |
| 1/2 | 1/2 | 0.62 | 2-5/8 | 4 | 3-3/4 |
| 3/4 | 5/8 | 0.75 | 3-1/4 | 4 | 4-5/8 |
| 10 | 1-1/4 | 1.38 | 17 | 16 | 20 |
| 1 | 5/8 | 0.75 | 3-1/2 | 4 | 4-7/8 |
| 1-1/4 | 5/8 | 0.75 | 3-7/8 | 4 | 5-1/4 |
| 16 | 1-1/2 | 1.62 | 23-3/4 | 20 | 27 |
| 1-1/2 | 3/4 | 0.88 | 4-1/2 | 4 | 6-1/8 |
| 18 | 1-5/8 | 1.75 | 25-3/4 | 20 | 29-1/4 |
| 2 | 5/8 | 0.75 | 5 | 8 | 6-1/2 |
| 24 | 1-7/8 | 2 | 33 | 24 | 37 |
| 2-1/2 | 3/4 | 0.88 | 5-7/8 | 8 | 7-1/2 |
| 3 | 3/4 | 0.88 | 6-5/8 | 8 | 8-1/4 |
| 3-1/2 | 7/8 | 1 | 7-1/4 | 8 | 9 |
| 4 | 7/8 | 1 | 8-1/2 | 8 | 10-3/4 |
| 5 | 1 | 1.12 | 10-1/2 | 8 | 13 |
| 6 | 1 | 1.12 | 11-1/2 | 12 | 14 |
| 8 | 1-1/8 | 1.25 | 13-3/4 | 12 | 16-1/2 |
| 14 | 1-3/8 | 1.5 | 20-3/4 | 20 | 23-3/4 |
| 20 | 1-5/8 | 1.75 | 28-1/2 | 24 | 32 |
Ferritic Stainless Steel Threaded Flange Torque Chart
| Size in Inch | Bolt Stress lb/in2 | Size in MM | Torque lbf.ft. | Number of Bolt | Bolt Diameter | Torque Nm |
|---|---|---|---|---|---|---|
| 10 | 40,000 | 250 | 194 | 12 | 7/8 | 263 |
| 3/4 | 30,000 | 20 | 26 | 4 | ½ | 36 |
| 6 | 45,000 | 150 | 137 | 8 | ¾ | 185 |
| 20 | 40,000 | 500 | 421 | 20 | 1 1/8 | 571 |
| 1 | 33,000 | 35 | 29 | 4 | ½ | 39 |
| 1 ½ | 50,000 | 40 | 44 | 4 | ½ | 60 |
| 1/2 | 25,000 | 15 | 22 | 4 | ½ | 30 |
| 18 | 40,000 | 450 | 421 | 16 | 1 1/8 | 571 |
| 2 | 50,000 | 50 | 86 | 4 | 5/8 | 117 |
| 12 | 40,000 | 300 | 194 | 12 | 7/8 | 263 |
| 3 | 50,000 | 80 | 86 | 4 | 5/8 | 117 |
| 16 | 40,000 | 400 | 289 | 16 | 1 | 392 |
| 4 | 40,000 | 100 | 69 | 8 | 5/8 | 93 |
| 8 | 45,000 | 200 | 137 | 8 | ¾ | 185 |
| 14 | 41,000 | 350 | 296 | 12 | 1 | 401 |
| 24 | 40,000 | 600 | 588 | 20 | 1 ¼ | 797 |
Stainless Steel Flanges Tolerance
| ASME B16.5 | Tolerance | |
|---|---|---|
| A | Outside Diameter (O.D.) |
|
| D | Inside Diameter |
|
| B | Diameter of contact face |
|
| J | Diameter of hub at base |
|
| H | Diameter of hub at point of welding |
|
| P | Drilling |
|
| Eccentricity of bolt circle with respect to facing |
|
|
| C | Thickness |
|
| K | Length of hub |
|
Stainless Steel Slip On Flange Chemical Compostion
| SS Grades | Sulfur | Manganese | Nickel | Silicon | Chromium | Carbon | Molybdenum | Phosphorus |
|---|---|---|---|---|---|---|---|---|
| 302 | 0.030 | 2 | 8/10 | 1 | 17/19 | 0.15 | 0.045 | |
| 304 | 0.030 | 2 | 8/10.50 | 1 | 18/20 | 0.08 | 0.045 | |
| 304L | 0.030 | 2 | 8/12 | 1 | 18/20 | 0.03 | 0.045 | |
| 309 | 0.030 | 2 | 12/15 | 1 | 22/24 | 0.20 | 0.045 | |
| 309S | 2 | 1 | 22/24 | 0.08 | 0.045 | |||
| 310 | 0.030 | 2 | 19/22 | 1.5 | 24/26 | 0.25 | 0.045 | |
| 310S | 0.030 | 2 | 19/22 | 1.5 | 24/26 | 0.08 | 0.045 | |
| 316 | 0.030 | 2 | 10/14 | 1 | 16/18 | 0.08 | 2/3 | 0.045 |
| 316L | 0.030 | 2 | 10/14 | 1 | 16/18 | 0.03 | 2/3 | 0.045 |
| 317 | 0.030 | 2 | 11/15 | 1/1 | 18/20 | 0.08 | 3/4 | 0.045 |
| 317L | 0.030 | 2 | 11/15 | 0.75 | 18/20 | 0.03 | 3/4 | 0.045 |
| 321 | 0.030 | 2 | 9/12 | 1 | 17/19 | 0.08 | 0.75/0.75 | 0.040 |
| 347 | 0.030 | 2 | 9/12 | 0.5/1 | 17/19 | 0.08 | 0.5/0.75 | 0.040 |
SS Blind Flange Mechanical Properties
| SS Grades | Yield Properties (ksi) Minimum | Unified Numbering System | Hardness (Brinell) Maximum | Tensile Properties(ksi) Minimum | Hardness (Rockwell B) Maximum | Elongation Minimum |
|---|---|---|---|---|---|---|
| 302 | 30 | S30200 | 183 | 75 | 88 | 40% in 2″ |
| 304 | 30 | S30400 | 183 | 75 | 88 | 40% in 2″ |
| 304L | 30 | S30403 | 183 | 70 | 88 | 40% in 2″ |
| 309 | 30 | S30900 | 217 | 75 | 95 | 40% in 2″ |
| 309S | 30 | S30908 | 217 | 75 | 95 | 40% in 2″ |
| 310 | 30 | S31000 | 217 | 75 | 95 | 40% in 2″ |
| 310S | 30 | S31008 | 217 | 75 | 95 | 40% in 2″ |
| 316 | 30 | S31600 | 217 | 75 | 95 | 40% in 2″ |
| 316L | 25 | S31603 | 217 | 70 | 95 | 35% in 2″ |
| 317 | 30 | S31700 | 217 | 75 | 95 | 35% in 2″ |
| 317L | 30 | S31703 | 217 | 75 | 95 | 35% in 2″ |
| 321 | 30 | S32100 | 183 | 75 | 88 | 40% in 2″ |
| 347 | 30 | S34700 | 183 | 75 | 88 | 40% in 2″ |
Searching for ASME B1.20.1 Class 300 Metric Stainless Steel Flanges? FNPT Stainless Steel Flanges Dimensions & Welded Stainless Steel Pipe Flanges Price List, Buy Stainless Steel Forged Flanges manufacturers in Mumbai.
ASTM A182 Stainless Steel Forged Flanges Equivalent
| Standard | Jis | Unified Numbering System | European Standards | Werkstoff Nr. | Afnor | Bs | Gost |
|---|---|---|---|---|---|---|---|
| 304 | SUS 304 | S30400 | X5CrNi18-10 | 1.4301 | Z7CN18‐09 | 304S31 | 08Х18Н10 |
| 304L | SUS 304L | S30403 | X2CrNi18-9 / X2CrNi19-11 | 1.4306 / 1.4307 | Z3CN18‐10 | 3304S11 | 03Х18Н11 |
| 304H | – | S30409 | – | 1.4301 | – | – | – |
| 310 | SUS 310 | S31000 | X15CrNi25-20 | 1.4841 | – | 310S24 | 20Ch25N20S2 |
| 310S | SUS 310S | S31008 | X8CrNi25-21 | 1.4845 | – | 310S16 | 20Ch23N18 |
| 316 | SUS 316 | S31600 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | 1.4401 / 1.4436 | Z7CND17‐11‐02 | 316S31 / 316S33 | – |
| 316L | SUS 316L | S31603 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 1.4404 / 1.4435 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 |
| 316Ti | SUS 316Ti | S31635 | X6CrNiMoTi17-12-2 | 1.4571 | Z6CNDT17‐123 | 320S31 | 08Ch17N13M2T |
| 317 | SUS 317 | S31700 | – | 1.4449 | – | – | – |
| 317L | SUS 317L | S31703 | X2CrNiMo18-15-4 | 1.4438 | – | – | – |
| 321 | SUS 321 | S32100 | X6CrNiTi18-10 | 1.4541 | – | – | – |
| 321H | SUS 321H | S32109 | X12CrNiTi18-9 | 1.4878 | – | – | – |
| 347 | SUS 347 | S34700 | X6CrNiNb18-10 | 1.4550 | – | – | 08Ch18N12B |
| 410 | SUS 410 | S41000 | X12Cr13 | 1.4006 | – | 410S21 | – |
| 446 | – | S44600 | – | 1.4762 | – | – | – |
| 904L | SUS 904L | N08904 | X1NiCrMoCu25-20-5 | 1.4539 | Z2 NCDU 25-20 | 904S13 | STS 317J5 |
EN 1092-1 #900 SS Slip on Flange Dimensions
| Nominal Pipe Sizes in Inch | Diameter of Bolts in inch | Number of Bolt Used | Bolt Circle in inch | Diameter of Flange in inch | Diameter of Bolt Holes in inch |
|---|---|---|---|---|---|
| 3/4 | 3/4 | 4 | 3-1/2 | 5-1/8 | 0.88 |
| 1-1/4 | 7/8 | 4 | 4-3/8 | 6-1/4 | 1 |
| 10 | 1-3/8 | 16 | 18-1/2 | 21-1/2 | 1.5 |
| 1-1/2 | 1 | 4 | 4-7/8 | 7 | 1.12 |
| 20 | 2 | 20 | 29-1/2 | 33-3/4 | 2.12 |
| 2 | 7/8 | 8 | 6-1/2 | 8-1/2 | 1 |
| 2-1/2 | 1 | 8 | 7-1/2 | 9-5/8 | 1.12 |
| 3 | 7/8 | 8 | 7-1/2 | 9-1/2 | 1 |
| 16 | 1-5/8 | 20 | 24-1/2 | 27-3/4 | 1.75 |
| 4 | 1-1/8 | 8 | 9-1/4 | 11-1/2 | 1.25 |
| 18 | 1-7/8 | 20 | 27 | 31 | 2 |
| 5 | 1-1/4 | 8 | 11 | 13-3/4 | 1.38 |
| 1/2 | 3/4 | 4 | 3-1/4 | 4-3/4 | 0.88 |
| 6 | 1-1/8 | 12 | 12-1/2 | 15 | 1.25 |
| 1 | 7/8 | 4 | 4 | 5-7/8 | 1 |
| 8 | 1-3/8 | 12 | 15-1/2 | 18-1/2 | 1.5 |
| 12 | 1-3/8 | 20 | 21 | 24 | 1.5 |
| 14 | 1-1/2 | 20 | 22 | 25-1/4 | 1.62 |
| 24 | 2-1/2 | 20 | 35-1/2 | 41 | 2.62 |
Stainless Steel Weld Neck Flange Manufacturing Methods Comparision
| Methods | Plate/Cut | Cast | Forged |
|---|---|---|---|
| Cost | Best | Better | Good |
| Strength | Good | Better | Best |
| Tolerances | Better | Best | Good |
| Limiting Material Waste | Good | Better | Best |
| Variety of Material & Sizes | Good | Best | Better |
SS Pipe Flange International Standards
ASTM Standard For Stainless Steel Flanges
- Austenitic stainless steels: ASTM A182/ A182M (American Society for Testing and Materials)
ASME Standard For Stainless Steel Flanges
- American Society Of Mechanical Engineers: ASME/ANSI B16.5 and ASME/ ASNI SA182
Stainless Steel Flanges Standards
| Australian Flanges | EN 1092-1 Flange |
| Korean FLANGE | GOST 12820 80 Flanges |
| ISO Flanges | BS 4504 Flanges |
| JIS B2220 Flange | SABS / SANS 1123 Flanges |
| API Flanges | BS 10 Flanges |
| MSS SP-44 Flange | AWWA C207 Flanges |
Get Stainless Steel Blind Flanges, SS Reducing Flanges and AWWA Stainless Steel Flanges Wholesaler, we are stocking distributor of Stainless Steel Split Flanges, SS Flange material in Plate as per ANSI/ ASME B16.5 standards
ASTM A182 Flanges Hsn Code
| Description | HSN Code |
|---|---|
| Stainless Steel Flanges | 73072100 |
PN16 Stainless Steel Flanges Melting Point
| Melting Point |
|---|
| 1402 °C (2555 °F) |
ASTM SA182 Flange Inventory
| Stainless Steel Flanges | PN16 Stainless Steel Flanges |
| Ss Flanges | SS Flange manufacturer |
| Stainless Flange | ASTM SA182 Flange |
| ASME B16.5 Stainless Steel Pipe Flange | Stainless Steel Puddle Flange |
| Stainless Pipe Flanges | Steel Tube Flange |
| EN 1092-1 Stainless Steel Floor Flange | Austenitic Stainless Steel Socket Weld Flange |
| Stainless Steel Blind Flange | EN 1092-2 Stainless Steel Lap Joint Flanges |
| Austenitic Stainless Steel Flanged Fittings | Stainless Steel Orifice Flange |
| EN 1092-2 Stainless Steel Threaded Flange | RTJ Flange |
| Stainless Steel Slip On Flange | spectacle blind flanges |
| Ss Blind Flange | Stainless Steel Pipe Flanges |
| Ferritic Stainless Steel Forged Flanges | Ferritic Stainless Steel Exhaust Flanges |
| Stainless Steel Weld Neck Flange | Martensitic Stainless Steel Header Flanges |
| Martensitic Stainless Steel Wall Flange | Stainless Steel Screwed Flanges |
| EN 1092-1 Stainless Steel Plate Flange | EN 1092-1 Stainless Steel Split Flanges |
| Stainless Steel Threaded Pipe Flange | Stainless Steel Square Flanges |
| Stainless Steel Lap Joint Flange | ANSI 150 Stainless Steel Flanges |
| ASME B16.5 Stainless Floor Flange | AWWA Stainless Steel Flanges |
| Stainless Steel Reducing Flange | High Pressure Stainless Steel Flanges |
| EN 1092-1 Stainless Steel Closet Flange | Large Diameter Stainless Steel Flanges |
| 4 Inch Stainless Steel Flange | Metric Stainless Steel Flanges |
| 2 Inch Stainless Steel Flange | Stainless Steel Class 150 Flanges |
| Stainless Steel Duct Flange | ASTM A182 Stainless Steel Reducing Flanges |
| Ss Pipe Flange | Stainless Steel Raised Face Flanges |
| Stainless Steel Companion Flange | ASME SA182 Stainless Steel Blind Flanges |
| Forged Stainless Steel Flanges | Stainless Steel Slip On Flanges |
| SS Flange | SS Weld Neck Flange |
| ASTM A182 Flanges | Stainless Steel Socket Weld Flanges |
Stainless Steel Flanges Application
- Mechanical engineering
- Pipeline engineering
- Waste water management
- Oil & gas industry
- Petrochemical industry
- Plant engineering
- Aerospace
- Marine industry
- Food processing industry
- Chemical industry
- Power industry
Searching for
Stainless Steel Flanges Supplier in your country? Checklist of material we export in the following areas.
Stainless Flange
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
Stainless Steel Blind Flange
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
Stainless Steel Slip On Flange
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
Ss Blind Flange
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
Stainless Steel Duct Flange
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
ASTM A182 Flanges
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
