IBR Pipe vs Tube
Pipes and tubes are common components of the IBR grade. These versatile components can be distinguished based on certain key features.
- IBR pipes are components that are designed with a circular cross-section. Tubes of the IBR can be shaped in circular, rectangular, and square cross-sections.
- The pipes in this grade can be used to accommodate large diameter applications. IBR tubes are preferred in low diameter sized applications.
- IBR grade tubes can be processed in hot and cold rolling processes. Pipes can be only processed by the hot rolling procedure.
- Tubes are stronger and more robust than pipes.
What is IBR Seamless Pipe?
Indian Boiler Regulations seamless pipes are derived from solid steel components that are in the form of a sheets or bar. After being produced by hot steel billets the pipes have a uniform cross-section and can transport high-pressure fluids and gases.
What is IBR and non IBR Pipe?
- IBR boiler pipes are covered under Indian Boiler Regulation. Non IBR pipes are not covered under the Indian Boiler Regulation.
- IBR pipes are used in high and low-pressure steam applications. Non IBR pipes are seen in low-pressure steam.
- The boilers of IBR grade have a capacity of 25 liters. Boilers in the Non IBR grade have a capacity of less than 25 liters.
- The risk of explosion in IBR pipes is very low as compared to that of non-ibr material.
Which pipes comes under IBR Pipe Material
IBR pipe material is regulated by the Indian Boiler Regulation. These pipes are components that help in regulating the flow of steam from the boiler to the prime mover. Here the pipe can withstand pressures of above 3.5 kg/cm2 above atmospheric pressure. The pipes require to exceed 254mm in internal diameter to be classified under this grade.
What is the material composition in IBR Tubes?
IBR tubes are designed with a standard composition of carbon, silicon, manganese, and sulfur. The carbon content within these modules is less than 0.35%.
Table of Content
Buy Large Or Small Quantity Of IBR Seamless Pipe as per Indian Boiler Regulation (IBR) Inspections, Get Free Quote of IBR Boiler Tubes in various grades and standards.
IBR Pipe
Smoke cum Water Tube Boilers
IBR Pipe Material

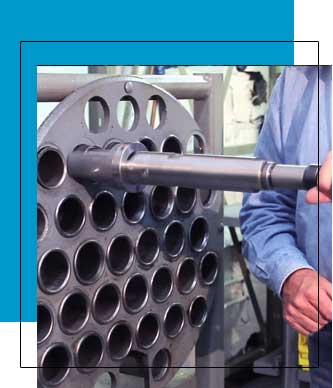

IBR Boiler Tubes

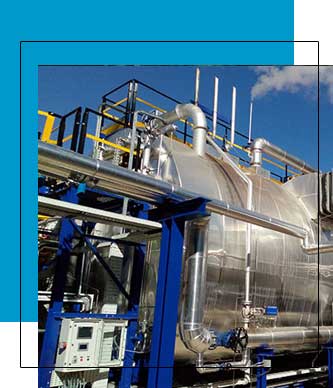

Water Tube Boilers

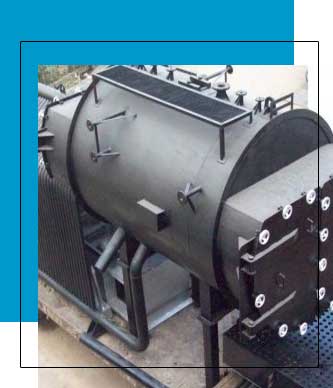

Smoke Tube Boilers
IBR Pipe Full Form
Indian Boiler Regulations Pipe
Material Of IBR Tubes
| LTCS | ASTM A333 Gr 6 |
| Carbon Steel | SA 106 Gr. B, ASTM A53, API 5L GR.B |
| Alloy Steel | ASTM A335 P5, P9, P11, P22, P91 |
| Carbon Steel Tube | ASTM / ASME SA 179 / SA 210 Gr. A / BS 3059 Gr. 360 and 440. |
| Alloy Steel Tube | ASME SA 213 T1, T5, T9, T11, T12, T22, T91 |
| Stainless Steel | ASTM A312 / A213 TP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 321H/ 310 / 310S / 347 |
IBR Pipe Standards
EN Deutsche industrie normen |
EN 10216-2 |
|---|---|
GB Chinese National standards |
|
JIS Japanese industrial standards |
|
ASME American society of mechanical engineers |
|
DIN Deutsche industrie normen |
DIN 17175 |
ASTM Chinese National standards |
|
PED Certified IBR Pipe material Manufacturers in Mumbai, India, Get various types of IBR Pipe material such as Alloy, Stainless, Carbon, and Mild Steel as per ANSI/ ASME B36.10M IBR Tubes.
IBR Boiler Tube Specification
| Standard Length | Custom Length, SRL, 6000mm, 12000mm, 40FT, Double Random Length (DRL), Single Random Length (SRL), 20FT, 2000mm, 3000mm, DRL |
|---|---|
| IBR Material Specification / IBR Pipe Specification | ASTM A335 / A369/ SA369 |
| Schedules | Schedule-5, Schedule-40, Schedule-XS, Schedule-5S, Schedule-80, Schedule-80S, Schedule-XXS, Schedule160, Schedule-STD, Schedule-40S, Schedule-10S, Schedule-10 |
| Approved Seamless Pipe (OD) | 21.3 - 660mm ( Inch 1/2” – 26”) |
| Surface Treatment |
|
| SAW | 16" - 100" NB |
| Different methods used by IBR Pipe manufacturers' | Extrusion, Seamless, Electro Fusion Seam Welded (EFSW), Longitudinally Submerged Arc Welded (LSAW), Horizontal Submerged Arc Welded (HSAW), Cold Drawn Seamless (CDS), 100% X Ray/ Gamma Ray Welded, Electric Resistance Welded (ERW), Fabricated, Submerged Arc Welded (SAW), CDW, Welded, Hot Finish Seamless (HFS) |
| ERW and HFW | 1/2” NB – 24” NB |
| Approvals | HAF 604, Merkblatt W0, PED 97/23/EC, Saudi Aramco, NORSOK M 650, AD2000, BP, PED, Shell, EIL, ISO 17025 for Laboratories, KNPC, ONGC, L&T |
| LSAW / DSAW | 16’OD TO 54" OD (8 MM TO 50 MM THK) |
| Certificate | Sour-Service, SSC, EN-10204:3.1, EN-10204:3.2, NACE, HIC |
| Wall Thickness (WT) | 4.5mm to 60mm |
| End finish | BOE-Beveled One End, BSE -Bevel small end, BLE -Bevel large end, PBE -Plain Both Ends, BBE -Bevel both ends, POE -Plain One End, TBE -Treaded Both Ends, BE -Beveled end, TOE -Treaded One End |
| Coated IBR Pipe suppliers in India | Galvanizing, PE Coated, FBE Lining, Primer, Internal and External Expoxy Coated, Mild Steel Rubber lining (MSRL), Black Paint, Coal tar enamel (CTE), Dual Layer ARO Coating, Varnish, Anti Corrosion Paint, Black Japan, Temporary Corrosion Protection, LPE Coating And Lining, UV Dual Layer Coating, FBE Coated Pipes, 3LPP Coated (Three Layer Polyethylene Coating), Concrete weight coating (CWC), Clad Material, Dual Layer FEB, Fusion Bonded Epoxy Coating |
| Marking by IBR Pipe suppliers |
|
| Forms and shapes | Elliptical, Hollow, Triangle, Oval, Hollow, Square, Rectangle Round, Rhomboid, Semi-Rhomboid, Semi-oval, Semi-Round |
| Origin of material | Japanese, UK, Gulf, Asian, European, Ukraine, Korean, USA, Indian, American, Japan, Africa, Russian, Chinese, Latin-American |
| Leading IBR Pipe manufacturers/ make | TMK, United Seamless Tubular Pvt. Ltd (USTPL), TATA Steel, Maharshtra Seamless Limited (MSL), Indian Seamless Metal (ISMT), Arcelormittal, Interpipe, Benteler, Jindal Saw Limited (JSL), JFE, Sumitomo Corporation, Boly Pipe |
| Equivalent Standards | KS, JIS, UNI, IS, ANSI, CSA, SAE, SS, ASTM, DIN, GOST, AWWA, GB, AISI, NFA, BS, EN, ISO, API |
| Material Test Certificate (MTC) provided by IBR Pipe suppliers | Ultrasonic Testing (UT), ISO 14001:2015, EIL, PED, EN 10204 3.1, Radiographic Testing (RT), ISO 9001:2005, NDE |
| Additional Services and Facility | Beveling, Threading, Cutting, Sawing, Tapping, Laser/ Water Jet Cutting, Polishing |
| Test | Micro, Charpy V Impact Test, Mechanical, Tensile, Hydro test, Hardness, IGC- Intergranular Corrosion Test, Eddy current, Salt Spray Test to test Phosphating, Ferrite, Hardness Test, Ultrasonic, Flux Leakage examination or Magnetic Flaw detection, Stress, Radiography, Metallurgical & Stereo Microscopy, Chemical, Non Destructive Testing, Positive Material Identification (PMI), Ultrasonic Test, NACE MR0175, Bend TestBend test / Guided Bend, Charpy V Notch Test, H2 SERVICE, Straightness, Impact, HIC- Hydrogen induced Cracking, TM0177, TM0284, Creep, Burst Test, Surface Roughness Test, Fine Grain, Macro, SSC- Sulfide Stress Corrosion Cracking |
| Cutting Techniques | Tapping, Burrless Cuts, Sawing, Water-Jet, Laser |
How To Identify IBR Pipes?
- All condensate and line greater than or equal to 10 Inch NB for which the design pressure exceeds 1 kg/cm2.
- All condensate and line for which the design pressure exceeds 3.5 kg/cm2.
- All condensate and line interconnecting material are classified under IBR purview.
For Sale IBR 1950
| Thick Wall Boiler Pipes | Boiler Pipes 10" Sch 160 |
| Water Tube Boilers | Schedule 40 Seamless Pipes |
| Smoke cum Water Tube Boilers | Cold Drawn Pipes |
| Smoke Tube Boilers | 1IN NB Pipes SCH 80 |
| 12" Sch 140 Seamless Alloy Steel Pipes | Boiler Welded Pipes |
| 8" 29mm Steel Material | Steam Pipe Line |
IBR Pipe Pressure Rating
- Steam Pipe: 3.5 kg/cm2
Looking IBR Tubes suppliers in Mumbai for boilers above 100 TPH capacity? View Stainless Steel IBR Steam Pipe in Grade 304/ 304L/ 316/ 316L lengths and sizes in mm
Seamless IBR Pipe Size Chart
| OD mm | in. | Pipe WT mm | Kg/m | Sch |
|---|---|---|---|---|
| 13.72 | 1/4 | 1.65 | 0.50 | 10S |
| 13.72 | 1/4 | 2.24 | 0.64 | 40S |
| 13.72 | 1/4 | 3.02 | 0.81 | 80S |
| 17.15 | 3/8 | 1.65 | 0.64 | 10S |
| 17.15 | 3/8 | 2.31 | 0.86 | 40S |
| 17.15 | 3/8 | 3.20 | 1.12 | 80S |
| 21.34 | 1/2 | 2.11 | 1.02 | 10S |
| 21.34 | 1/2 | 2.77 | 1.29 | 40S |
| 21.34 | 1/2 | 3.73 | 1.65 | 80S |
| 26.67 | 3/4 | 2.11 | 1.30 | 10S |
| 26.67 | 3/4 | 2.87 | 1.71 | 40S |
| 26.67 | 3/4 | 3.91 | 2.23 | 80S |
| 33.40 | 1 | 2.77 | 2.13 | 10S |
| 33.40 | 1 | 3.38 | 2.54 | 40S |
| 33.40 | 1 | 4.55 | 3.29 | 80S |
| 33.40 | 1 | 6.352) | 4.30 | 160 |
| 42.16 | 1¼ | 2.77 | 2.73 | 10S |
| 42.16 | 1¼ | 3.56 | 3.44 | 40S |
| 42.16 | 1¼ | 4.85 | 4.53 | 80S |
| 42.16 | 1¼ | 6.352) | 5.69 | 160 |
| 48.26 | 1½ | 2.77 | 3.16 | 10S |
| 48.26 | 1½ | 3.68 | 4.11 | 40S |
| 48.26 | 1½ | 5.08 | 5.49 | 80S |
| 60.33 | 2 | 2.77 | 3.99 | 10S |
| 60.33 | 2 | 3.91 | 5.52 | 40S |
| 60.33 | 2 | 5.54 | 7.60 | 80S |
| 60.33 | 2 | 8.742) | 11.29 | 160 |
| 73.03 | 2½ | 3.05 | 5.35 | 10S |
| 73.03 | 2½ | 5.16 | 8.77 | 40S |
| 73.03 | 2½ | 7.01 | 11.59 | 80S |
| 88.90 | 3 | 3.05 | 6.56 | 10S |
| 88.90 | 3 | 5.49 | 11.47 | 40S |
| 88.90 | 3 | 7.62 | 15.51 | 80S |
| 88.90 | 3 | 11.132) | 21.67 | 160 |
| 101.60 | 3½ | 3.05 | 7.53 | 10S |
| 101.60 | 3½ | 5.74 | 13.78 | 40S |
| 101.60 | 3½ | 8.08 | 18.92 | 80S |
| 114.30 | 4 | 3.05 | 8.50 | 10S |
| 114.30 | 4 | 6.02 | 16.32 | 40S |
| 114.30 | 4 | 8.56 | 22.67 | 80S |
| 114.30 | 4 | 13.492) | 34.05 | 160 |
| 141.30 | 5 | 6.55 | 22.10 | 40S |
| 141.30 | 5 | 9.53 | 31.44 | 80S |
| 141.30 | 5 | 15.882) | 49.87 | 160 |
| 168.28 | 6 | 3.4 | 14.04 | 10S |
| 168.28 | 6 | 7.11 | 28.69 | 40S |
| 168.28 | 6 | 10.97 | 43.21 | 80S |
| 168.28 | 6 | 14.27 | 54.75 | 120 |
| 168.28 | 6 | 18.262) | 68.59 | 160 |
| 219.08 | 8 | 8.18 | 43.20 | 40S |
| 219.08 | 8 | 12.7 | 65.63 | 80S |
| 219.08 | 8 | 18.23 | 91.30 | 120 |
| 219.08 | 8 | 23.012) | 112.97 | 160 |
IBR Pipe Testing
- Chemical analysis
- Mechanical test
- Flattening test
- Flaring testing
- Hardness test
Ms IBR Pipe Hsn Code
| IBR Pipe Code | DESCRIPTION | NO OF SHIPMENTS |
|---|---|---|
| 7304 | Tubes, Pipes And Hollow Profiles, Seamless, Of Iron (Other Than Cast Iron) Or Steel | |
| 7307 | Tube Or Pipe Fittings (For Example, Couplings, Elbows, Sleeves), Of Iron Or Steel | |
| 73041910 | Tubes and pipes | 25 |
| 73072900 | Other | 58 |
| 73049000 | Other | 19 |
| 73079990 | Other | 39 |
| 73079390 | Other | 19 |
Different IBR Piping Material Types
IBR Tubes
Seamless IBR Pipe
IBR Steam Pipe
MS IBR Pipe
IBR Grade Pipe
Stainless Steel IBR Pipes
IBR Alloy Steel Pipe
IBR Feed Pipe
IBR Approved Pipe
IBR Feed Pipe Application
| Material | IBR Boiler Steel Pipe Standards | Uses & Application | ||
|---|---|---|---|---|
| ASME （USA） | GB (China) | EN / DIN (Europe) | ||
| Cr-Mo-W steel | SA-213 T23 SA-213 T92 SA-214 T911 A335 P23 SA-213 T122 A335 P92 A335 P911 A335 P122 |
12Cr2MoWVTiB | - | Reheater tube Superheater tube |
| Carbon steel | SA-106B SA-210A1 SA-210C SA-192 SA106C |
10 20G 20 25MnG 20MnG |
PH265GH St45.8 P195GH P235GH St35.8 |
Water wall tube Economizer tube |
| Austentic Stainless steel | AP304/ 304H TP321/ 321H TP347/ 347H TP316/ 316H S30432 TP310HCbN |
- | - | Reheater tube Superheater tube |
| Mo steel | SA-209 T1 SA-209 T1b SA-209 T1a |
15MoG 20MoG |
16Mo3 15Mo3 |
Water wall tube Reheater tube Superheater tube |
| Cr-Mo Steel | SA-213 T11 |
12CrMoG 12Cr2MoG 15CrMoG 12Cr1MoVG 10Cr9MoVNb |
12Cr1MoV 14MoV63 10CrMo910 13CrMo4-5 X10CrMoVNb91 10CrMo5-5 |
Reheater tube Superheater tube |
IBR Boiler Tubes Alloy Steel
| Boiler Steel Pipe standard | Grades |
|---|---|
| ASME SA 335/ 335M | P1, P2, P5, P9, P11, P12, P22, P91 |
| ASME SA 213/ 213M | T2, T5, T5B, T9, T11, T12, T22, T23, T91 |
| DIN 17175 | ST35.8, ST45.8 |
| ASME SA 213/ 213M | TP304H, TP347H, TP309H |
| DIN 1629 | ST44.0, ST37.0, ST50.0 |
Stockist & supplier of ASTM A53/ A106 Grade B IBR Pipe Line for boilers and steam power plants in India, view detail Alloy Steel IBR Feed Pipe thickness, schedule and weight chart.
Difference Between IBR And Non IBR Pipe
Carbon Steel IBR Piping
| Boiler Steel Pipe standard | Steel grade |
|---|---|
| ASME SA-210/ 210M | A1, C |
| ASME SA-179/ 179M | SA179 |
| EN 10216-2 | P235TR1/TR2, P195TR1/TR2, P266TR1/TR2 |
| ASME SA-106/ ASTM A106 | A, B, C |
| JIS G3461 | STB410, STB340, STB440 |
| ASTM A178/ SA 178 | A, C, D |
| EN 10216-1 | P235TR1/TR2, P195TR1/TR2, P266TR1/TR2 |
| ASME SA-192/ 192M | SA192 |
| JIS G3454 | STPG410, STPG370 |
| GB5310 | 20G, 12Cr2MoG, 12CrMoG, 15MoG |
IBR Pipe Thickness Chart
SS IBR Pipe Welding Procedure
IBR Pipe Dimensions
| NB | OD (inches) | DN | Pipe Schedule | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Schedule 5 | Schedule 10 | Schedule 20 | Schedule 30 | Schedule 40 | Schedule 60 | Schedule 80 | Schedule 100 | Schedule 120 | Schedule 160 | ||||
| 3" | 3.5 | 80 | 0.083 | 0.12 | x | x | 0.216 | x | x | 0.35 | x | 0.438 | |
| 3/4" | 1.05 | 20 | 0.065 | 0.11 | x | 0.095 | 0.113 | x | x | 0.17 | x | 0.219 | |
| 4" | 4.5 | 100 | 0.083 | 0.12 | x | x | 0.237 | x | x | 0.437 | x | 0.531 | |
| 1" | 1.315 | 25 | 0.065 | 0.11 | x | 0.114 | 0.133 | x | x | 0.2 | x | 0.25 | |
| 5" | 5.563 | 125 | 0.109 | 0.12 | x | x | 0.258 | x | x | 0.5 | x | 0.625 | |
| 1.1/2" | 1.9 | 40 | 0.065 | 0.11 | x | 0.125 | 0.145 | x | x | 0.225 | x | 0.281 | |
| 6" | 6.625 | 150 | 0.109 | 0.13 | x | x | 0.28 | x | x | 0.562 | x | 0.719 | |
| 2" | 2.375 | 50 | 0.065 | 0.12 | x | x | 0.154 | x | x | 0.25 | x | 0.344 | |
| 10" | 10.75 | 250 | 0.134 | 0.17 | 0.25 | 0.307 | 0.365 | 0.5 | 0.718 | 0.843 | 1.0 | 1.125 | |
| 2.1/2" | 2.875 | 65 | 0.083 | 0.12 | x | x | 0.203 | x | x | 0.3 | x | 0.375 | |
| 8" | 8.625 | 200 | 0.109 | 0.15 | 0.25 | 0.277 | 0.322 | 0.406 | 0.593 | 0.718 | 0.812 | 0.906 | |
| 12" | 12.75 | 300 | 0.165 | 0.18 | 0.25 | 0.33 | 0.406 | 0.5 | 0.843 | 1.0 | 1.125 | 1.312 | |
Seamless IBR Pipe Schedule Chart Mm
| NB | OD (mm) | DN | Pipe Schedule | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Schedule 60 | Schedule 5 | Schedule 100 | Schedule 10 | Schedule 120 | Schedule 20 | Schedule 160 | Schedule 30 | Schedule 80 | Schedule 40 | |||
| 3/4" | 26.67 | 20 | x | 1.65 | x | 2.11 | 4.32 | x | 5.56 | 2.41 | 3.91 | 2.87 |
| 1" | 33.40 | 25 | x | 1.65 | x | 2.77 | 5.08 | x | 6.35 | 2.90 | 4.55 | 3.38 |
| 1.1/2" | 48.26 | 40 | x | 1.65 | x | 2.77 | 5.72 | x | 7.14 | 3.18 | 5.08 | 3.68 |
| 2" | 60.32 | 50 | x | 1.65 | x | 2.77 | 6.35 | x | 8.74 | x | 5.54 | 3.91 |
| 2.1/2" | 73.02 | 65 | x | 2.11 | x | 3.05 | 7.62 | x | 9.53 | x | 7.01 | 5.16 |
| 3" | 88.9 | 80 | x | 2.11 | x | 3.05 | 8.89 | x | 11.13 | x | 7.62 | 5.49 |
| 4" | 114.3 | 100 | x | 2.11 | x | 3.05 | 11.10 | x | 13.49 | x | 8.56 | 6.02 |
| 5" | 141.3 | 125 | x | 5.77 | x | 3.4 | 12.70 | x | 15.88 | x | 9.53 | 6.55 |
| 6" | 168.27 | 150 | x | 2.77 | x | 3.4 | 14.27 | x | 18.26 | x | 10.97 | 7.11 |
| 8" | 219.07 | 200 | 12.7 | 2.77 | 15.06 | 3.76 | 18.24 | 6.35 | 23.01 | 7.04 | 12.70 | 8.18 |
| 10" | 273.05 | 250 | 12.7 | 3.4 | 18.24 | 4.19 | 21.41 | 6.35 | 28.58 | 7.8 | 15.06 | 9.27 |
| 12" | 323.85 | 300 | 12.7 | 4.19 | 21.41 | 4.57 | 25.40 | 6.35 | 33.32 | 8.38 | 17.45 | 10.31 |
Alloy Steel IBR Pipe Manufacturing Types
Alloy Steel IBR ERW Pipe
IBR Approved Seamless Pipe

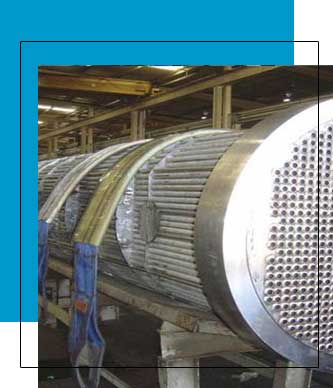

Carbon Steel IBR Boiler Pipe
IBR Certified Welded Pipe

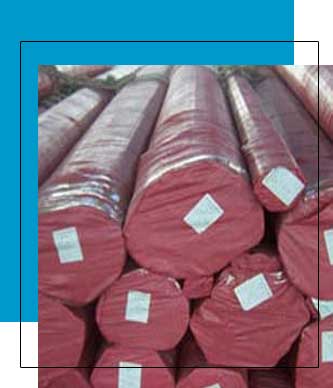

Stainless Steel IBR EFW Pipe
IBR Steel SAW Pipe
MS IBR Pipe Weight Chart
| NPS | Outside Diameter | Wall Thickness | Schedule | IBR Pipe Weight Calculator | Weight | ||
|---|---|---|---|---|---|---|---|
| mm | in | in | mm | Lb/ft | kg/Mtr | ||
| 1/2″ | 21 | 0.840 | 0.109 | 2.769 | 40 STD | 0.851 | 1.268 |
| 0.147 | 3.734 | 80 STD | 1.088 | 1.621 | |||
| 3/4″ | 27 | 1.050 | 0.113 | 2.870 | 40 STD | 1.131 | 1.684 |
| 0.154 | 3.912 | 80 STD | 1.474 | 2.195 | |||
| 1″ | 33 | 1.315 | 0.133 | 3.378 | 40 STD | 1.679 | 2.501 |
| 0.179 | 4.547 | 80 STD | 2.172 | 3.325 | |||
| 1 1/4″ | 42 | 1.660 | 0.140 | 3.556 | 40 STD | 2.273 | 3.385 |
| 0.191 | 4.851 | 80 STD | 2.997 | 4.464 | |||
| 1 1/2″ | 48 | 1.900 | 0.145 | 3.683 | 40 STD | 2.718 | 4.048 |
| 0.200 | 5.080 | 80 STD | 3.361 | 5.409 | |||
| 2″ | 60 | 2.375 | 0.154 | 3.912 | 40 STD | 3.653 | 5.441 |
| 0.218 | 5.537 | 80 STD | 5.022 | 7.480 | |||
| 2 1/2″ | 73 | 2.875 | 0.203 | 5.516 | 40 STD | 5.793 | 8.629 |
| 0.276 | 7.010 | 80 STD | 7.661 | 11.411 | |||
| 3″ | 89 | 3.500 | 0.216 | 5.486 | 40 STD | 7.576 | 11.284 |
| 0.300 | 7.620 | 80 STD | 10.253 | 15.272 | |||
| 4″ | 114 | 4.500 | 0.237 | 6.020 | 10.790 | 16.073 | |
| 0.337 | 8.560 | 14.983 | 22.318 | ||||
| 6″ | 168 | 6.625 | 0.188 | 4.775 | 12.924 | 19.252 | |
| 0.203 | 5.516 | 13.923 | 20.739 | ||||
| 0.219 | 5.563 | 14.983 | 22.318 | ||||
| 0.250 | 6.350 | 17.021 | 25.354 | ||||
| 0.280 | 7.112 | 40 STD | 18.974 | 58.263 | |||
| 0.312 | 7.925 | 21.036 | 31.334 | ||||
| 0.375 | 9.525 | 25.031 | 37.285 | ||||
| 0.432 | 10.973 | 80 XHY | 28.573 | 42.561 | |||
| 0.500 | 12.700 | 32.708 | 48.719 | ||||
| 8″ | 219 | 8.625 | 0.188 | 4.775 | 16.940 | 25.233 | |
| 0.203 | 5.156 | 18.259 | 27.198 | ||||
| 0.219 | 5.563 | 19.661 | 29.286 | ||||
| 0.250 | 6.350 | 20 | 22.361 | 33.308 | |||
| 0.277 | 7.036 | 30 | 24.696 | 36.786 | |||
| 0.322 | 8.179 | 40 | 28.554 | 42.352 | |||
| 0.375 | 9.525 | 33.041 | 49.216 | ||||
| 0.406 | 10.312 | 60 | 35.638 | 53.085 | |||
| 0.500 | 12.700 | 80 XHY | 43.388 | 64.627 | |||
| 10″ | 273 | 10.750 | 0.188 | 4.775 | 21.207 | 31.588 | |
| 0.219 | 5.563 | 24.631 | 36.689 | ||||
| 0.250 | 6.350 | 20 | 28.035 | 41.759 | |||
| 0.307 | 7.798 | 30 | 34.240 | 51.002 | |||
| 0.344 | 8.738 | 38.231 | 56.946 | ||||
| 0.365 | 9.271 | 40 STD | 40.483 | 63.301 | |||
| 0.438 | 11.125 | 48.238 | 71.852 | ||||
| 0.500 | 12.700 | 60 XHY | 54.735 | 81.530 | |||
| 0.594 | 15.088 | 80 | 64.429 | 95.969 | |||
| 12″ | 324 | 12.750 | 0.188 | 4.775 | 25.222 | 37.570 | |
| 0.219 | 5.563 | 29.309 | 43.657 | ||||
| 0.250 | 6.350 | 33.375 | 49.713 | ||||
| 0.281 | 7.137 | 37.420 | 55.739 | ||||
| 0.312 | 7.925 | 41.445 | 61.735 | ||||
| 0.375 | 9.525 | 49.562 | 73.824 | ||||
| 0.406 | 10.312 | 53.525 | 79.727 | ||||
| 0.500 | 12.700 | 65.415 | 97.438 | ||||
| 0.562 | 14.275 | 73.154 | 108.966 | ||||
| 14″ | 356 | 14.000 | 0.188 | 4.775 | 27.732 | 41.308 | |
| 0.219 | 5.563 | 32.233 | 48.012 | ||||
| 0.250 | 6.350 | 20 | 36.713 | 54.685 | |||
| 0.281 | 7.137 | 41.172 | 61.327 | ||||
| 0.312 | 7.925 | 45.611 | 67.939 | ||||
| 0.375 | 9.525 | STD | 54.568 | 81.281 | |||
| 0.438 | 11.125 | 40 | 63.441 | 94.498 | |||
| 0.500 | 12.700 | XHY | 72.090 | 107.381 | |||
| 0.625 | 15.875 | 89.278 | 132.983 | ||||
| 16” | 406 | 16.000 | 0.188 | 4.775 | 21.748 | 47.290 | |
| 0.219 | 5.563 | 36.910 | 54.980 | ||||
| 0.250 | 6.350 | 10 | 42.053 | 62.639 | |||
| 0.281 | 7.137 | 47.174 | 70.268 | ||||
| 0.312 | 7.925 | 20 | 52.275 | 77.866 | |||
| 0.344 | 8.738 | 57.519 | 85.677 | ||||
| 0.375 | 9.525 | 30 STD | 62.578 | 93.213 | |||
| 0.438 | 11.125 | 72.797 | 108.433 | ||||
| 0.500 | 12.700 | 40 XHY | 82.770 | 123.289 | |||
| 18″ | 457 | 18.000 | 0.219 | 5.563 | 41.588 | 61.948 | |
| 0.250 | 6.350 | 47.393 | 70.593 | ||||
| 0.281 | 7.137 | 53.176 | 79.208 | ||||
| 0.312 | 7.925 | 20 | 58.939 | 87.792 | |||
| 0.375 | 9.525 | STD | 70.588 | 105.144 | |||
| 0.438 | 11.125 | 30 | 82.152 | 122.369 | |||
| 0.500 | 12.700 | XHY | 93.450 | 139.198 | |||
| 0.562 | 14.275 | 40 | 104.666 | 155.904 | |||
| 0.625 | 15.875 | 115.978 | 172.754 | ||||
| 20″ | 508 | 20.000 | 0.250 | 6.350 | 52.733 | 78.547 | |
| 0.282 | 7.163 | 59.386 | 88.458 | ||||
| 0.312 | 7.925 | 65.604 | 97.719 | ||||
| 0.375 | 9.525 | 20 STD | 78.598 | 117.075 | |||
| 0.438 | 11.125 | 91.508 | 136.305 | ||||
| 0.500 | 12.700 | 30 XHY | 104.130 | 155.106 | |||
| 0.594 | 15.088 | 40 | 123.110 | 183.378 | |||
| 0.625 | 15.875 | 129.328 | 192.640 | ||||
| 0.688 | 17.475 | 141.901 | 211.368 | ||||
| 24″ | 610 | 24.000 | 0.250 | 6.350 | 63.413 | 94.456 | |
| 0.281 | 7.137 | 71.183 | 106.029 | ||||
| 0.312 | 7.925 | 18.932 | 117.573 | ||||
| 0.375 | 9.525 | 20 STD | 64.618 | 140.938 | |||
| 0.438 | 11.125 | 110.219 | 164.176 | ||||
| 0.500 | 12.700 | XHY | 125.490 | 186.923 | |||
| 0.625 | 15.875 | 156.028 | 232.410 | ||||
| 0.688 | 17.475 | 40 | 171.293 | 255.148 | |||
| 0.750 | 19.050 | 186.233 | 277.401 | ||||
| 30″ | 762 | 30.000 | 0.250 | 6.350 | 79.433 | 118.318 | |
| 0.281 | 7.137 | 89.189 | 132.851 | ||||
| 0.312 | 7.925 | 10 | 98.925 | 147.353 | |||
| 0.375 | 9.525 | STD | 118.648 | 176.731 | |||
| 0.438 | 11.125 | 138.286 | 205.983 | ||||
| 0.500 | 12.700 | 20 XHY | 157.530 | 234.647 | |||
| 0.625 | 15.875 | 30 | 196.078 | 292.066 | |||
| 0.688 | 17.475 | 215.380 | 320.817 | ||||
| 0.750 | 19.050 | 234.293 | 348.988 | ||||
| 36″ | 914 | 36.000 | 0.250 | 6.350 | 95.453 | 142.180 | |
| 0.281 | 7.137 | 107.196 | 159.672 | ||||
| 0.312 | 7.925 | 10 | 118.918 | 177.133 | |||
| 0.375 | 9.525 | STD | 142.678 | 215.525 | |||
| 0.438 | 11.125 | 166.353 | 247.790 | ||||
| 0.500 | 12.700 | 20 XHY | 198.570 | 282.372 | |||
| 0.625 | 15.875 | 236.128 | 351.723 | ||||
| 0.688 | 17.475 | 259.467 | 386.487 | ||||
| 0.750 | 19.050 | 282.353 | 420.576 | ||||
| 42″ | 1067 | 42.000 | 0.312 | 7.925 | 138.911 | 206.914 | |
| 0.375 | 9.525 | STD | 166.708 | 248.319 | |||
| 0.500 | 12.700 | XHY | 221.610 | 33.097 | |||
| 0.750 | 19.050 | 330.413 | 492.163 | ||||
| 48″ | 1219 | 48.000 | 0.375 | 9.525 | STD | 190.738 | 284.112 |
| 0.438 | 11.125 | 222.487 | 331.404 | ||||
| 0.500 | 12.700 | XHY | 253.650 | 377.822 | |||
| 0.750 | 19.050 | 378.473 | 563.750 | ||||
| 0.875 | 22.225 | 440.383 | 655.969 | ||||
What Qualifies IBR Pipe ?
- In which water is steam / heated below 100°C
- Pressure vessel with capacity less than 25 liters
- With less than one Kg per cm square design gauge pressure and working gauge pressure; or
Searching Alloy Steel IBR Feed Pipe suppliers in India? Don't forget to compare our Stainless Steel IBR Pipe Price in Grade 304/ 304L and 316/ 316L with other suppliers in India.
IBR Pipe Thickness Calculation Formula
You will find the details of all IBR Pipe Wall Thickness Calculation and IBR Tube Thickness Formula many others.
