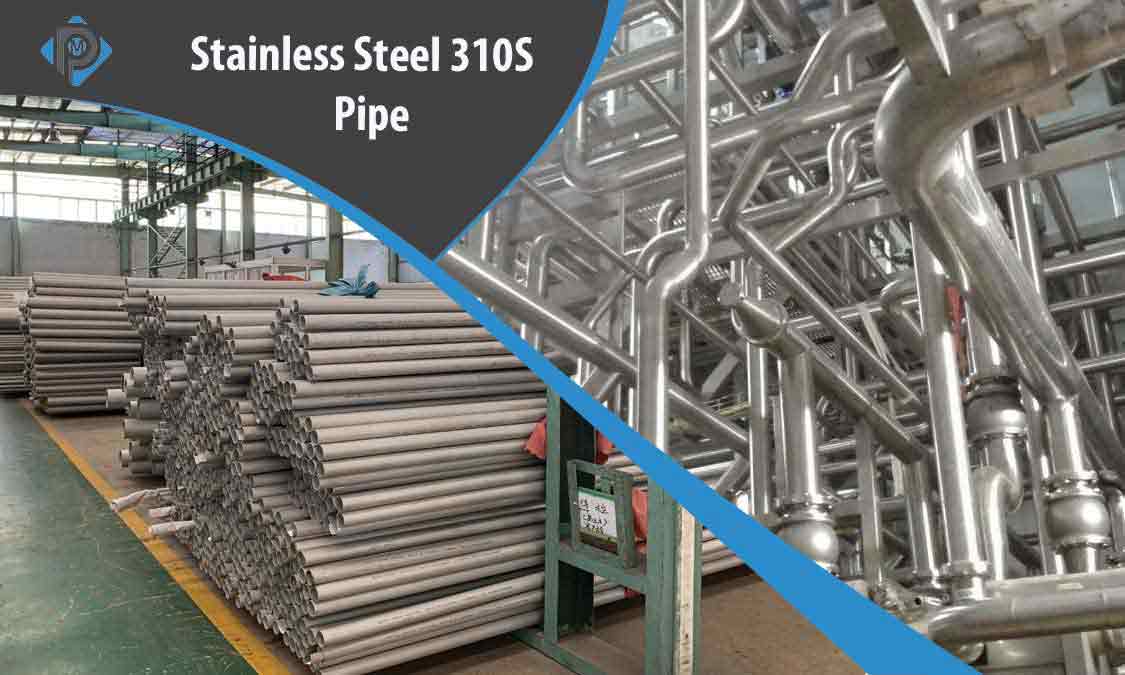

Stainless Steel 310S Pipe

What Is Difference Between Stainless Steel 310s Pipe And Tube?
Pipes and tubes are the most common piping modules in the 310s stainless steel grade. These components can be distinguished from each other based on certain features.

  • A stainless steel 310s pipe is always round in shape. Tubes in this grade can be shaped in a circle, square and rectangular cross-section.
  • A Stainless steel 310s tube is produced by cold and hot rolling procedure, while a tube is generally processed by hot rolling process.
  • Pipe components are designed to accommodate larger applications, while the latter can be used alongside small diameter items.
  • A tube possesses more strength and is more durable than a standard pipe module.

What Is S In Stainless Steel 310s Pipe?
The S in stainless steel 310s pipe represents the presence of lower carbon content in the austenitic grade pipe.

Different between ASTM A312 Gr TP 310 and ASME SA 312 Grade 310
ASTM and ASME are two of the most important standards that are crucial in manufacturing the items in this grade. Both these manufacturing grades can be distinguished by certain factors.

  • The ASTM A312 Gr TP 310 grade publishes standards for different services and material types. ASME SA 312 Grade 310 covers specifications for different technologies and systems.
  • An ASTM grade covers approximately 12,000 or more standards, while ASME covers nearly 600 technical standards.

Different Between Stainless Steel 310s Seamless Pipe And Welded Pipe?

  • Seamless pipes of the 310s grade are designed by passing large steel billets through metal components and shaping the items precisely. A welded pipe of this grade is manufactured by welding sheets or strips to shape the piping item.
  • SS 310s seamless pipes possess enhanced strength and load-bearing capacity than the SS 310s welded pipe grade that has seams or welds present on its surface.
  • A stainless steel 310s welded pipe is cheaper than a grade of seamless pipe in the SS 310s range.

What Is Stainless Steel 310s Round Pipe?
A stainless steel 310s round pipe is a fixture designed with a circular cross-section area. The pipes are very rigid and require special material to be shaped precisely to function efficiently in the system.

Exporter of Jindal, Dmv, Sanyo Special Steel Japan, Sumitomo make SS 310S Seamless Pipe and 310S Welded Tube. Have difficulty to find 310 Stainless Steel Tubing in tough sizes ? Call P.M Metal now.

We are a specialist stockist & distributor of SS 310S Seamless Pipe in India, ASME SA 312 Grade 310S Welded Pipe at low price according to ASME SA312 Standard.

SA 312 TP 310S Schedule 40 Pipe Standard Size And Specification

Grades Stainless Steel 310S Pipes/ Tubes
Thickness Schedule 5, Schedule 10, Schedule 40, Schedule 80, Schedule 80S, Schedule 160, Schedule XXS, Schedule XS
Specifications ASTM A312 / ASME SA312
Outer Diameter Sizes up to 24” NB and 6.00 mm OD up to 914.4 mm OD
Size 1/8″NB to 30″NB IN
Type “U” Shape, Round Pipes, Hollow Pipes, Pan Cake Coils
ERW Pipes Size 1/2" NB to 24" NB
Length Required Length, Single Random, and Double Random
EFW Pipes Size 6" NB to 100" NB
End Beveled End, Plain End, Treaded

ASTM A312 Gr TP 310S Hollow Pipe Chemical Compatibility

Grade S C Cr Mn Fe Si Ni P Mo
SS 310S 0.030 max 0.08 max 24.00 - 26.00 2.0 max 53.095 min 1.00 max 19.00 - 21.00 0.045 max 0.75 max

AISI 310S Schedule 40 Tube Mechanical Behaviour

Tensile Strength Density Yield Strength (0.2%Offset) Melting Point Elongation
Psi – 75000 , MPa – 515 7.9 g/cm3 Psi – 30000 , MPa – 205 1402 °C (2555 °F) 40 %

Equivalent Material Of SS grade 1.4845 Pipes

STANDARD BS WERKSTOFF NR. AFNOR UNS EN JIS GOST
SS 310S - 1.4841/1.4845 Z3CN18‐10 S31008 X2CrNi18-9 / X2CrNi19-11 SUS 310S 03Х18Н11

Marking On ASTM A312 TP 310S Seamless Pipe

  • Material grade
  • Heat Number
  • Size
  • Manufacturer’s name
Check Attractive Price Offer On UNS S31008 ERW Pipe In India, WNR. 1.4845 Round Tube Sizes chart, View details of SA 312 TP 310S Schedule 40 Pipe as per EN/ DIN/ ASME/ ASTM standards.

Physical Properties of 1.4845 SS 310S Polished Pipes

Grade Specific Heat 0-1000C (J/kg.K) Density (kg/m3) Thermal Conductivity (W/m.K) Mean Coefficient of Thermal Expansion (m/m/0C) Elastic Modulus (GPa) Electrical Resistivity (n.m)
at 100°C at 500°C 0-315°C 0-100°C 0-538°C
310S 500 7750 14.2 18.7 16.2 15.9 17.0 200 720

Heat Treatment of Alloy 310S Pipes & Tubes

Heat Treatment of Alloy 310S Pipes & Tubes

Creep Properties of 310S SS Pipes

1% Elongation1) for Rupture2) for
Temperature °C 1,000 h N/mm2 10,000 h N/mm2 10,000 h N/mm2 100,000 h N/mm2 1,000 h N/mm2
800 18 18 10 7 35
600 100 130 90 80 170
900 10 8.5 4 3 15
700 45 40 30 18 80

ASTM A312 TP 310S Pipes Applications

304L Stainless Steel Pipe Applications
  • Retorts, muffles, annealing covers
  • Kilns
  • Radiant Tubes
  • Saggers
  • Heat Exchangers
  • Food processing equipment
  • Coal gasifier internal component
  • Conveyor belts, oven linings, furnace parts, rollers, fans

List Of Stainless Steel 310S Seamless Pipe Types

Accept all small/ Large Orders ASTM A312 Gr TP 310S Hollow Tube, View AISI 310S Schedule 40 Pipe Inventory. also offer desired Surface finish condition of ASTM A312 TP 310S Pipes
Stainless Steel 310S Pipe
Stainless Steel 310S Pipe
Stainless Steel 310S Pipe
Stainless Steel 310S Tube
Stainless Steel 310S Tube
Stainless Steel 310S Tube
Grade 310S Stainless Steel Pipe
Grade 310S Stainless Steel Pipe
Grade 310S Stainless Steel Pipe
ASME SA 312 Grade 310S Welded Pipe
ASME SA 312 Grade 310S Welded Pipe
ASME SA 312 Grade 310S Welded Pipe
1.4845 SS 310S Polished Pipes
1.4845 SS 310S Polished Pipes
1.4845 SS 310S Polished Pipes
AISI 310S Schedule 40 Pipe
AISI 310S Schedule 40 Pipe
AISI 310S Schedule 40 Pipe
WNR. 1.4845 Round Pipe
WNR. 1.4845 Round Pipe
WNR. 1.4845 Round Pipe
UNS S31008 ERW Pipe
UNS S31008 ERW Pipe
UNS S31008 ERW Pipe
SS 310S Seamless Pipe
SS 310S Seamless Pipe
SS 310S Seamless Pipe
Accept all small/ Large Orders ASTM A312 Gr TP 310S Hollow Tube, View AISI 310S Schedule 40 Pipe Inventory. also offer desired Surface finish condition of ASTM A312 TP 310S Pipes

Grade Stainless Steel 310S Pipe Pressure Rating Chart

Pipe Size
(inches)
Pipe Schedule Temperature (°F)
100 200 300 400 500 600 650 700 750
4" 80 2213 1909 1715 1577 1466 1397 1355 1328 1314
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
5" 40 1342 1158 1040 956 889 847 822 805 797
1" 80 4213 3634 3265 3002 2791 2659 2580 2528 2501
8" 40 1073 926 832 765 711 678 657 644 637
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
4" 40 1531 1321 1187 1091 1014 967 938 919 909
1.5" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
5" 80 1981 1709 1535 1411 1312 1250 1213 1189 1176
1.5" 80 3182 2744 2466 2267 2108 2009 1949 1909 1889
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
1.5" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
6" 80 1913 1650 1483 1363 1267 1208 1172 1148 1136
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
2" 80 2747 2369 2129 1957 1820 1734 1682 1648 1631
8" 80 1692 1459 1311 1205 1121 1068 1036 1015 1005
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
10" 40 974 840 755 694 945 615 596 584 578
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
10" 80 1609 1388 1247 1147 1066 1016 986 966 956
3" 80 2553 2202 1979 1819 1691 1612 1564 1532 1516
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
6" 40 1219 1052 945 869 808 770 747 732 724
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868

Grade 310S Stainless Steel Pipe Melting Point

Stainless Steel 310S seamless Pipes

Melting Point (Deg F): 2650

SS 310S Welded Pipe Weight Chart

Nominal size [inches] Wall thickness [inches] Wall thickness [mm] Outside diameter [inches] Outside diameter [mm] Weight [lb/ft] Weight [kg/m]
1/8 0.095 2.41 0.405 10.3 0.31 0.47
1/4 0.119 3.02 0.54 13.7 0.54 0.8
1/2 0.147 3.73 0.84 21.3 1.09 1.62
3/4 0.154 3.91 1.05 26.7 1.47 2.2
1 0.179 4.55 1.315 33.4 2.17 3.24
1 1/4 0.191 4.85 1.66 42.2 3 4.47
1 1/2 0.2 5.08 1.9 48.3 3.63 5.41
2 0.218 5.54 2.375 60.3 5.02 7.48
2 1/2 0.276 7.01 2.875 73 7.66 11.41
3 0.3 7.62 3.5 88.9 10.25 15.27
3 1/2 0.318 8.08 4 101.6 12.5 18.63
4 0.337 8.56 4.5 114.3 14.98 22.32
5 0.375 9.53 5.563 141.3 20.78 30.97
6 0.432 10.97 6.625 168.3 28.57 42.56
8 0.5 12.7 8.625 219.1 43.39 64.64
10 0.594 15.09 10.75 273 64.43 96.01
12 0.688 17.48 12.75 323.8 88.63 132.08
14 0.75 19.05 14 355.6 106.13 158.1
16 0.844 21.44 16 406.4 136.61 203.53
18 0.938 23.83 18 457 170.92 254.55
20 1.031 26.19 20 508 208.87 311.17
24 1.125 30.96 24 610 296.58 442.08

SS 310S Round Pipe Sizes

SS 310S Pipes Size In Inch

OD
mm
Sch WT
mm
Kg/m in.
13.72 10S 1.65 0.50 1/4
13.72 40S 2.24 0.64 1/4
13.72 80S 3.02 0.81 1/4
17.15 10S 1.65 0.64 3/8
17.15 40S 2.31 0.86 3/8
17.15 80S 3.20 1.12 3/8
21.34 10S 2.11 1.02 1/2
21.34 40S 2.77 1.29 1/2
21.34 80S 3.73 1.65 1/2
26.67 10S 2.11 1.30 3/4
26.67 40S 2.87 1.71 3/4
26.67 80S 3.91 2.23 3/4
33.40 10S 2.77 2.13 1
33.40 40S 3.38 2.54 1
33.40 80S 4.55 3.29 1
33.40 160 6.352) 4.30 1
42.16 10S 2.77 2.73
42.16 40S 3.56 3.44
42.16 80S 4.85 4.53
42.16 160 6.352) 5.69
48.26 10S 2.77 3.16
48.26 40S 3.68 4.11
48.26 80S 5.08 5.49
60.33 10S 2.77 3.99 2
60.33 40S 3.91 5.52 2
60.33 80S 5.54 7.60 2
60.33 160 8.742) 11.29 2
73.03 10S 3.05 5.35
73.03 40S 5.16 8.77
73.03 80S 7.01 11.59
88.90 10S 3.05 6.56 3
88.90 40S 5.49 11.47 3
88.90 80S 7.62 15.51 3
88.90 160 11.132) 21.67 3
101.60 10S 3.05 7.53
101.60 40S 5.74 13.78
101.60 80S 8.08 18.92
114.30 10S 3.05 8.50 4
114.30 40S 6.02 16.32 4
114.30 80S 8.56 22.67 4
114.30 160 13.492) 34.05 4
141.30 40S 6.55 22.10 5
141.30 80S 9.53 31.44 5
141.30 160 15.882) 49.87 5
168.28 10S 3.4 14.04 6
168.28 40S 7.11 28.69 6
168.28 80S 10.97 43.21 6
168.28 120 14.27 54.75 6
168.28 160 18.262) 68.59 6
219.08 40S 8.18 43.20 8
219.08 80S 12.7 65.63 8
219.08 120 18.23 91.30 8
219.08 160 23.012) 112.97 8

SS 310S Tubes Sizes In Mm

Wall Thickness Stainless Steel 310 Tube Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"
Looking for genuine Stainless Steel 310S Pipe Supplier in India? Wide stock of SS 310S Seamless Tube, ASTM A312 TP 310S Welded Pipe in many sizes.

Stainless Steel AISI 310S ERW Pipes Processing / Welding

Stainless Steel AISI 310S ERW Pipes Processing / Welding

Coefficient of linear thermal expansion 10-6 K-1 between 20°C and 100°C

200°C 15.5
400°C 17.0
600°C 17.5
800°C 18.5
1000°C 19.0

ASTM A312 Gr TP 310S Welded Pipe Schedule Chart

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
Schedule 40, 80 Schedule 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
Schedule 10, 40, 80 Schedule 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
Schedule 10, 40, 80 Schedule 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
Schedule 5, 10, 40, 80, 160, XXH Schedule 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
Schedule 10, 40, 80, 160, XXH Schedule 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
Schedule 5, 10, 40, 80, 160, XXH Schedule 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
Schedule 10, 40, 80, 160, XXH Schedule 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
Schedule 10, 40, 80, 160, XXH Schedule 10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
Schedule 10, 40, 80, 160, XXH Schedule 0(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
Schedule 10, 40, 80, 160, XXH Schedule -40 (.375)
3" IPS( 3.500"O. D.)
Schedule 5, 10, 40, 80, 160, XXH

SA 312 TP 310S ERW Tube Pressure Gauge

Pipe O.D.
(in.)
Wall Thickness of Pipe/Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
3/8 3100 4400 6100
1/8 7900 10100
3/4 2200 3000 4000 4600
1/4 3700 4800 7000 9500
1 2200 2900 3400 3900 4300
5/16 3700 5400 7300
1/2 2300 3200 4400

Fractional Sizes of Maximum Allowable Working Pressure (Psi)

Pipe OD Wall Thickness (Inches)
.010 .012 .016 .020 .028 .035 .049 .065 .083 .095 .109 .120
3/8 3,530 5,107 7,029
1/16 6,422 7,872 10,768 13,484
1/2 2,595 3,721 5,078 6,699
1/8 6,422 9,325 11,823
5/8 2,051 2,927 3,970 5,200 6,056
3/16 4,081 5,935 7,630 11,005
7/8 1,446 2,051 2,764 3,592 4,161 4,842 5,391
1/4 4,305 5,518 8,053 10,946
1 5,040 7,140 9,595 12,445 14,390 16,715 18,585
3/4 1,696 2,412 3,259 4,249 4,933 5,755 6,422

Metric Sizes of Maximum Allowable Working Pressure (Bar)

Pipe OD Wall Thickness (Inches)
0.5 0.6 0.7 0.8 1.0 1.2 1.5 1.6 1.8 2.0 2.2 2.5 3.0
12 169 215 262 335 360 411 464
3 464 567 672 775 965
14 182 222 282 303 345 389 433 500 612
4 335 411 491 567 723 873
16 158 192 244 262 298 335 372 430 528
6 310 360 464 567 723 775
18 140 169 215 230 262 294 326 377 464
8 227 262 335 411 528 567
22 113 137 173 186 211 236 262 301 369
10 206 262 320 411 442
25 99 120 152 162 184 206 228 262 320

Characteristics of Stainless Steel 310S Seamless Pipes

  • Strength and toughness at cryogenic temperatures
  • Moderate strength at high temperature
  • Resistance to hot corrosion
  • Oxidation resistance to 2000°F

A312 TP 310S Round Pipes Price list

Price of Grade 310S Stainless Steel Pipe Available Sizes in Stock Price Stainless Steel 310S Pipe Suppliers in India (INR) ASTM A312 TP 310S Pipe Price in USD UNS S31008 SS Pipe Price in UAE Dirham
STAINLESS STEEL SEAMLESS PIPES ASTM A312 TP310 4.00 X 1500M X C INR: 240 US $: 3.20 UAE Dirham : 11.76
SEAMLESS STAINLESS STEEL PIPE (HOT FINISHED) GRADE TP310 3MM X 230MM/245MM INR: 223 US $: 2.98 UAE Dirham : 10.93
STAINLESS STEEL SEAMLESS DEFECTIVE PIPE GRADE 310 101.60 X 4.00, LENGTH (M) 5.8-6.2 INR: 329 US $: 4.39 UAE Dirham : 16.13
STAINLESS STEEL SEAMLESS PIPES (HOT FINISHED) AS PER ASTM A312 GRADE TP310 33.7MM OD X 3.1MM WT X 6M LENGTH INR: 328 US $: 4.38 UAE Dirham : 16.08

Stainless Steel 310S Pipe Stock list

Stainless Steel 310S Round Pipe Grade Stainless Steel 310S Pipes
SS 310S Seamless Pipes SS 310S Welded Pipes
Stainless Steel 310S Tube SS 310S Round Pipes
Grade 310S Stainless Steel Pipes Stainless Steel AISI 310S ERW Pipes
310S Stainless Steel Pipes ASTM A312 Gr TP 310S Welded Pipes
310S SS Tubing SA 312 TP 310S ERW Pipes
ASTM A312 TP 310S Seamless Pipes A312 TP 310S Round Pipes
ASME SA 312 Grade 310S Welded Pipes 310S Stainless Steel CDW Pipes
UNS S31008 ERW Pipes GOST 03Х18Н11 SS Hollow Pipes
WNR. 1.4845 Round Pipes Capillary 310S Stainless Steel Thin Pipes
SA 312 TP 310S Schedule 40 Pipes SS 310S Pipes
ASTM A312 Gr TP 310S Hollow Pipes Stainless Steel 310S Seamless Pipes
AISI 310S Schedule 40 Pipes Stainless Steel UNS S31008 Square Pipes
SS grade 1.4845 Pipes SS UNS S31008 Bush Hex Pipes
1.4845 SS 310S Polished Pipes ASTM A249 TP 310S Stainless Steel Hexagonal Pipes
ASTM A312 TP 310S Pipes Stainless Steel 310S Welded Pipes
Stainless Steel 310S Seamless Pipes TP310S Stainless Steel Hollow Pipes
Stainless Steel 310S Tube Stainless Steel 310S EFW Pipes

Searching for

Stainless Steel Welded Pipe supplier in your country? Checklist of material we export in the following areas.

Stainless Steel 310S Seamless Pipe
P.M. Metal Logo

Stainless Steel 310S Seamless Pipe

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

ASTM A312 TP 310S Pipe
P.M. Metal Logo

ASTM A312 TP 310S Pipe

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Uns S31008 Schedule 40 Pipe
P.M. Metal Logo

Uns S31008 Schedule 40 Pipe

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

AISI 310S Welded Pipe
P.M. Metal Logo

AISI 310S Welded Pipe

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

ASME SA312 Tp 310S Erw Pipe
P.M. Metal Logo

ASME SA312 Tp 310S Erw Pipe

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

TP310S Stainless Steel Pipe
P.M. Metal Logo

TP310S Stainless Steel Pipe

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
