Manufacturer of ASME B16.11 Carbon Steel socket weld fittings as per MSS SP 83, MSS SP 75, MSS SP 95 specifications

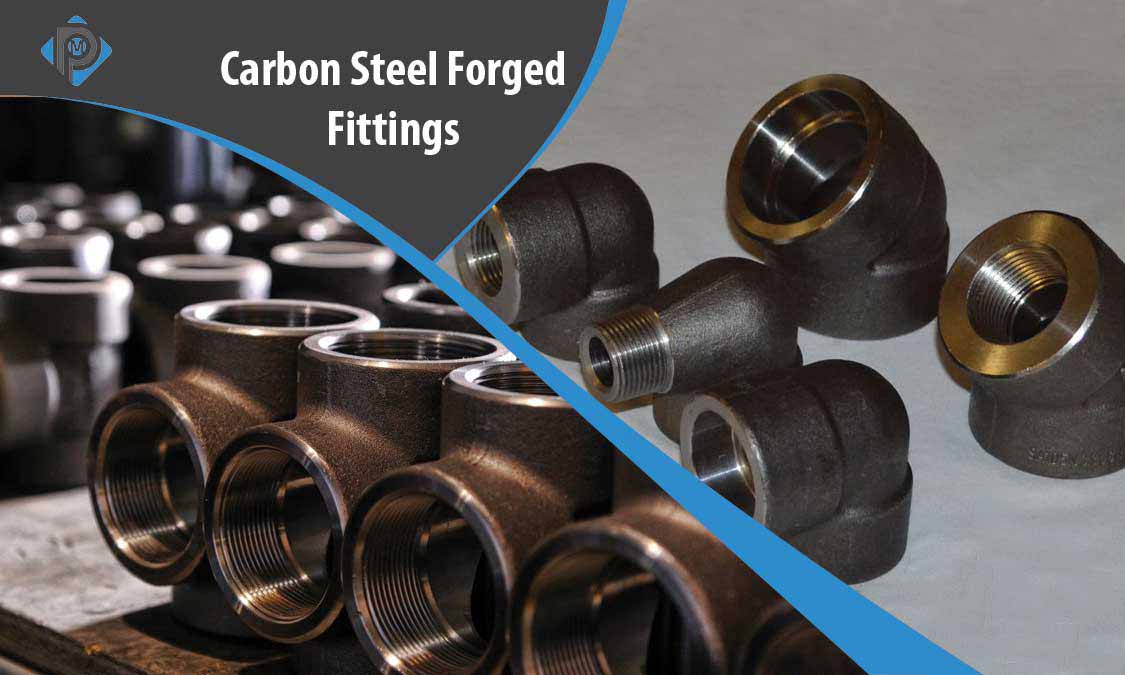

Carbon Steel Forged Fittings

What is Carbon Steel Forged Fittings?
Carbon steel forged fittings are versatile components designed with a superior content of carbon and other alloys. The robust fittings are manufactured as they are forged at high temperatures in mills. The fittings possess superior strength and play a pivotal role in influencing the characteristics of the flow. Embedded with a superior chemical content these fittings showcase moderate levels of corrosion resistance properties. The difficulty of welding the grade depends on the carbon content present within the forged fitting.

Carbon Steel Socket Weld Fittings vs Threaded Fittings
Carbon steel fittings are designed in specifications of threaded or socket weld types. Both these types of fitting can be distinguished on key features.

  • Carbon steel socket weld fittings are pipe attachment detail that has a recessed area where the fitting is connected. Carbon steel threaded pipe fitting is made with threads that correspond to subsequent pipe modules.
  • A threaded pipe fitting is preferred in low-pressure systems where the load on the system is less. Carbon steel socket weld fittings are used in high pressure applications.
  • Socket weld fittings are used in applications where there is a need for a permanent long-lasting fit. Threaded pipe fittings can be easily dismantled and removed as they are not permanent.
  • A socket weld fitting is fitting welded to a subsequent module with a single fillet weld. A threaded fitting has threads and doesn’t require welds.

ASTM A105 vs ASTM A350 LF2 Carbon Steel Forged Fittings
ASTM A105 Carbon Steel Forged and ASTM A350 LF2 Carbon Steel forged fittings are standard carbon grade forged components. The major difference between these fittings is that an A105 carbon steel fitting is used in ambient and high-temperature service. A350 LF2 carbon steel forged fitting is employed in low-temperature service.

Difference between ASME B16.11 Carbon Steel Threaded Bushing vs BS3799 CS Socket Weld Cap

  • ASME B16.11 Carbon threaded bushing is a cylindrical lining fitted to the opening of a pipe fixture.
  • BS3799 CS Socket weld cap is welded to the piping module to close the flow and in protecting the item from environmental damage.

Saudi Aramco approved Carbon steel threaded pipe fittings manufacturers in India, we offers Low CS Forged Elbow and ANSI B16.11 Carbon Steel Forged Threaded Fittings in various shapes like tee, reducers, union, and couplings as per the customer choice.

Carbon Steel Forged Fittings Specification

Specification Carbon Steel Forged Fittings
Method Types BSP, Threaded, BSPT, Socket Weld
Manufacturer Types Threaded Pipe Cap Plug (Hex Head/ Square Head/ Round Head/ Bull)
Union (Male/Female), Outlet (Lateral/Branch)
Tee (Equal/ Reducing)
Elbow (45 Deg/ 90 Deg)
Coupling (Full/ Half)
Cross (Equal/ Reducing)
Application Petroleum, Metallurgy, Chemical, Power, Shipbuilding, Gas
Production Technique Heat treated, Forged, and machined
Type Of Standards JIS B2302, Bs3799, MSS SP 83, MSS SP 95, MSS SP 79, ASME B16.11
Our service Hydro Test
Sour Service
Macro Structure Analysis
Hydrogen Induce Cracking Test
Ultrasonic Test
Post Weld Heat Treatment
Magnetic Partius Test
Dye Peniterant Test
Cryogenic Services
hydrogen Services
Impact Test As Per Ug 84
Helieum Leak Test
Sulphide Stress Cracking Test
Nace Mr 01 75
Pressure Class Socket Weld = Class 6000, 3000, 9000
Threaded = Class 3000, 2000, 6000
Manufacturer Size Socket Weld = ½ - 8 Inch
Threaded = ½ - 8 Inch
Test Certificates 100% Radiography Test Report
Raw Materials Certificate
EN 10204/3.1B
Third Party Inspection Report

Carbon Steel Fittings Price List

Products Types Forged Fitting Size Price
CARBON STEEL FORGED FITTINGS SEMIFINISHED(PIPE FITTINGS OF IRON &STEEL)SIZE:24-900-WN-RF-1.125 WT-SC-B16.5-DRILLED-F65 45° Elbow 1/4 in x 1/4 in $6.65
3/8 in x 3/8 in $8.00
1/2 in x 1/2 in $16.13
3/4 in x 3/4 in $18.97
CARBON STEEL FORGED FITTINGS 1.5 150# WNRF SOLID, A105 (PIPE FITTINGS) 90° Elbow 1/2 in x 1/2 in $12.52
3/4 in x 3/4 in $22.59
1 in x 1 in $23.07
1 1/4 in x 1 1/4 in $59.67
CARBON STEEL FITTINGS 1/2 PLUG HEX HEADB16.11-A105 GALV MTE - FORGED Cap 1/4 in $5.54
3/8 in $6.46
1/2 in $6.75
3/4 in $8.55
CARBON STEEL FITTINGS 1CAP B16.11 3000# A 105 FT - FORGED Cross 1/2 in x 1/2 in x 1/2 in x 1/2 in $30.13
3/4 in x 3/4 in x 3/4 in x 3/4 in $43.80
1 in x 1 in x 1 in x 1 in $73.47
1 1/4 in x 1 1/4 in x 1 1/4 in x 1 1/4 in $46.22
CARBON STEEL PIPE FITTING - FORGED FLANGES MATERIAL Q235B (FLANGES CL150 SORF WITH HUB SIZE 18 TOTAL PCS 50) Tee 3/8 in x 3/8 in x 3/8 in $13.87
1/2 in x 1/2 in x 1/2 in $18.47
3/4 in x 3/4 in x 3/4 in $30.30
1 in x 1 in x 1 in $30.39
PIPE FITTING CARBON STEEL GR SA350 LF2 WELDOLET CS CL1 FORGED 2X16SCH 80/XS MSS SP-97/ASME B31.1/B31.3(4PCS) Coupling 1/8 in x 1/8 in $5.43
1/4 in x 1/4 in $6.44
3/8 in x 3/8 in $8.39
1/2 in x 1/2 in $12.77
3/4 in x 3/4 in $17.67
CARBON STEEL GR SA350 LF2 CONCENTRIC SWAGE NIPPLE CS CL1 FORGED 2X/12SCH160XSCH160 BLE(1PCS) Half Coupling 1/8 in x 1/8 in $3.66
1/4 in x 1/4 in $4.25
3/8 in x 3/8 in $4.24
1/2 in x 1/2 in $6.14
3/4 in x 3/4 in $8.86
LF2 ELBOW CS CL1 FORGED 1/2CLS 6000 90 DEG SW ASME B16.11(6PCS) Union 1/8 in x 1/8 in $12.60
1/4 in x 1/4 in $14.96
3/8 in x 3/8 in $18.60
1/2 in x 1/2 in $20.14
CARBON STEEL GR SA350 LF2 ELBOW CS CL1 FORGED 1/2CLS 3000 90 DEG SW ASME B16.11(6PCS) Hex Bushing 1/4 in x 1/8 in $8.99
3/8 in x 1/8 in $10.81
3/8 in x 1/4 in $11.78

Types of Carbon Steel Forged Fittings

Get ASTM A105 Carbon Steel Threaded Tee manufacturers for specific design, We offer custom size ASTM A350 LF2 Low Temperature Carbon Steel Forged Fittings in India, Manufacturer of Carbon Forged Union for leak-free connections

Carbon Steel 90° Elbow
Carbon Steel 90° Elbow
Carbon Steel 90° Elbow
Schedule 10 Carbon Steel 45° Elbow
Schedule 10 Carbon Steel 45° Elbow
Schedule 10 Carbon Steel 45° Elbow
ASME SA105 Carbon Steel 3000 Lbs Forged Fittings
ASME SA105 Carbon Steel 3000 Lbs Forged Fittings
ASME SA105 Carbon Steel 3000 Lbs Forged Fittings
SCH 10 Tee
SCH 10 Tee
SCH 10 Tee
ASTM A105 Carbon Steel Cross
ASTM A105 Carbon Steel Cross
ASTM A105 Carbon Steel Cross
Carbon Full Coupling
Carbon Full Coupling
Carbon Full Coupling
ASTM A105 Half Coupling
ASTM A105 Half Coupling
ASTM A105 Half Coupling
CS Reducing Coupling
CS Reducing Coupling
CS Reducing Coupling
ASTM A350 Carbon Steel Pipe Cap
ASTM A350 Carbon Steel Pipe Cap
ASTM A350 Carbon Steel Pipe Cap
Carbon Steel Hex Head Bushing
Carbon Steel Hex Head Bushing
Carbon Steel Hex Head Bushing
Low CS Hex Head Plug
Low CS Hex Head Plug
Low CS Hex Head Plug
Steel Square Head Plug
Steel Square Head Plug
Steel Square Head Plug
ASME B16.11 Carbon Steel Round Head Plug
ASME B16.11 Carbon Steel Round Head Plug
ASME B16.11 Carbon Steel Round Head Plug
ASTM A350 Union
ASTM A350 Union
ASTM A350 Union
ANSI B16.11 Hex Nipple
ANSI B16.11 Hex Nipple
ANSI B16.11 Hex Nipple
CS Street Elbow
CS Street Elbow
CS Street Elbow
ASTM A350 Bull Plug
ASTM A350 Bull Plug
ASTM A350 Bull Plug
ASTM A105 Boss
ASTM A105 Boss
ASTM A105 Boss
ANSI B16.11 Carbon Steel Swage Nipple
ANSI B16.11 Carbon Steel Swage Nipple
ANSI B16.11 Carbon Steel Swage Nipple
Steel Pipe Nipple
Steel Pipe Nipple
Steel Pipe Nipple
CS Adapter
CS Adapter
CS Adapter
ASTM A105 Branch Outlet
ASTM A105 Branch Outlet
ASTM A105 Branch Outlet
ASME SA105 Carbon Steel 90° Elbow Outlet
ASME SA105 Carbon Steel 90° Elbow Outlet
ASME SA105 Carbon Steel 90° Elbow Outlet
ASME SA105 Lateral Outlet
ASME SA105 Lateral Outlet
ASME SA105 Lateral Outlet
Carbon Steel Nipple Branch Outlet
Carbon Steel Nipple Branch Outlet
Carbon Steel Nipple Branch Outlet
Schedule 10 Carbon Steel Outlets
Schedule 10 Carbon Steel Outlets
Schedule 10 Carbon Steel Outlets
ASME B16.11 Carbon Steel Flexolet Butt Weld
ASME B16.11 Carbon Steel Flexolet Butt Weld
ASME B16.11 Carbon Steel Flexolet Butt Weld
ASTM A350 LF2 Weldolet
ASTM A350 LF2 Weldolet
ASTM A350 LF2 Weldolet
SCH 10 Sockolet
SCH 10 Sockolet
SCH 10 Sockolet
ASTM A105 Carbon Steel Threadolet
ASTM A105 Carbon Steel Threadolet
ASTM A105 Carbon Steel Threadolet
Carbon Nipolet
Carbon Nipolet
Carbon Nipolet
ASTM A105 Latrolet
ASTM A105 Latrolet
ASTM A105 Latrolet
CS Elbolet
CS Elbolet
CS Elbolet
ASTM A350 Carbon Steel Sweepolet
ASTM A350 Carbon Steel Sweepolet
ASTM A350 Carbon Steel Sweepolet
Carbon Steel Insert Weldolet
Carbon Steel Insert Weldolet
Carbon Steel Insert Weldolet
Low CS Brazolet
Low CS Brazolet
Low CS Brazolet
Steel Coupolet
Steel Coupolet
Steel Coupolet
ASTM A105 Socket Weld Reducers
ASTM A105 Socket Weld Reducers
ASTM A105 Socket Weld Reducers
ASME SA105 Socket Weld Equal Tee
ASME SA105 Socket Weld Equal Tee
ASME SA105 Socket Weld Equal Tee
SCH 10 Socket Weld Elbolet
SCH 10 Socket Weld Elbolet
SCH 10 Socket Weld Elbolet
ASTM A105 Threaded Elbolet
ASTM A105 Threaded Elbolet
ASTM A105 Threaded Elbolet
Carbon Steel Threaded Full Couling
Carbon Steel Threaded Full Couling
Carbon Steel Threaded Full Couling
ASME SA105 Carbon Steel Socket Weld Unequal Tee
ASME SA105 Carbon Steel Socket Weld Unequal Tee
ASME SA105 Carbon Steel Socket Weld Unequal Tee
Carbon Steel Socket Weld Pipe Nipples
Carbon Steel Socket Weld Pipe Nipples
Carbon Steel Socket Weld Pipe Nipples
ASME SA105 Flexolet Socket Weld
ASME SA105 Flexolet Socket Weld
ASME SA105 Flexolet Socket Weld
Carbon Steel Socket Weld Fittings
Carbon Steel Socket Weld Fittings
Carbon Steel Socket Weld Fittings
Schedule 10 Carbon Steel Flexolet Threaded
Schedule 10 Carbon Steel Flexolet Threaded
Schedule 10 Carbon Steel Flexolet Threaded
ASTM A350 LF2 Threaded Fittings
ASTM A350 LF2 Threaded Fittings
ASTM A350 LF2 Threaded Fittings
SCH 10 Threaded Half Coupling
SCH 10 Threaded Half Coupling
SCH 10 Threaded Half Coupling
ASTM A350 Carbon Steel Fittings
ASTM A350 Carbon Steel Fittings
ASTM A350 Carbon Steel Fittings
Low CS Screwed Fittings
Low CS Screwed Fittings
Low CS Screwed Fittings
ASME B16.11 Carbon Steel Forged Elbow
ASME B16.11 Carbon Steel Forged Elbow
ASME B16.11 Carbon Steel Forged Elbow
ASTM A350 Cap
ASTM A350 Cap
ASTM A350 Cap
ANSI B16.11 Coupling
ANSI B16.11 Coupling
ANSI B16.11 Coupling
CS Tee
CS Tee
CS Tee
ASTM A350 Cross
ASTM A350 Cross
ASTM A350 Cross
ASTM A105 Inserts
ASTM A105 Inserts
ASTM A105 Inserts
ANSI B16.11 Carbon Steel Plug
ANSI B16.11 Carbon Steel Plug
ANSI B16.11 Carbon Steel Plug
Steel Bushing
Steel Bushing
Steel Bushing
CS 2000 Lbs Forged Fittings
CS 2000 Lbs Forged Fittings
CS 2000 Lbs Forged Fittings
ASME SA105 6000 Lbs Forged Fittings
ASME SA105 6000 Lbs Forged Fittings
ASME SA105 6000 Lbs Forged Fittings
Carbon Steel 9000 Lbs Forged Fittings
Carbon Steel 9000 Lbs Forged Fittings
Carbon Steel 9000 Lbs Forged Fittings
Steel Elbow
Steel Elbow
Steel Elbow

ASTM A105 Carbon Steel Threaded Fittings Density

Physical Properties Imperial Metric
Density 0.284 lb/in3 7.87 g/cc

Carbon Steel Elbow weight chart

Normal Pipe Sizes Weight In LBS Weight In Kilogram (KG)
1/2 0.09 0.04
3/4 0.09 0.04
1 0.25 0.11
1.1/4 0.38 0.17
1.1/2 0.4 0.18
2 0.81 0.37
2.1/2 1.75 0.79
3 2.63 1.19
3.1/2 3.5 1.59
4 4.5 2.04
5 7.5 3.4
6 12 5.44
8 23 10.43
10 43 19.5
12 62 28.12
14 80 36.29
16 100 45.36
18 126 57.15
20 160 72.57
22 197 89.36
24 238 107.95
26 275 124.74
30 367 166.47
36 531 240.86

Carbon Forged Fittings Application

Carbon Forged Fittings Application
  • Chemical Equipment
  • Pharmaceutical Equipment
  • Sea Water Equipment
  • Pulp & Paper Industry
  • Petrochemicals
  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Gas Processing

Schedule 10 Carbon Steel Forged Dimensions

Normal Pipe Size Wall Thickness Outer Diameter Inner Diameter
3/4 0.083 1.050 0.884
1 0.109 1.315 1.097
1-1/4 0.109 1.660 1.442
1-1/2 0.109 1.900 1.682
2 0.109 2.375 2.157
2-1/2 0.120 2.875 2.635
3 0.120 3.500 3.260
3-1/2 0.120 4.000 3.760
4 0.120 4.500 4.260
6 0.134 6.625 6.357
8 0.148 8.625 8.329

Get ASTM A105 Carbon Steel Threaded Fittings manufacturers for specific design, We offer custom size ASTM A350 LF2 Low Temperature Carbon Steel Forged Fittings in India, Manufacturer of Carbon Forged Fittings for leak-free connections

ASME B16.9 Elbow Dimensions

Size In Inch ND Size In MM Center-center Radius Types Back-face Center-end
D O A K B
1/2 15 21,34 76,20 38,10 47,62 15,87
3/4 20 26,67 57,15 28,57 42,86 11,11
1 25 33,40 76,20 38,10 55,56 22,22
1 1/4 32 42,16 95,25 47,60 69,85 25,40
1 1/2 40 48,26 114,30 57,15 82,55 28,57
2 50 60,32 152,40 76,20 106,40 34,92
2 1/2 65 73,02 190,50 95,25 131,80 44,45
3 80 88,90 228,60 114,30 158,75 50,80
3 1/2 90 101,60 266,70 133,35 184,15 57,15
4 100 114,30 304,80 152,40 209,55 63,50
5 125 141,30 381,00 190,50 261,90 79,38
6 150 168,27 457,20 228,60 312,70 95,25
8 200 219,07 609,60 304,80 414,30 127,00
10 250 273,05 762,00 381,00 517,50 158,75
12 300 323,85 914,40 457,20 619,10 190,50
14 350 355,60 1066,80 533,40 711,20 222,25
16 400 406,40 1219,20 609,60 812,80 254,00
18 450 457,20 1371,60 685,80 914,40 285,74
20 500 508,00 1524,00 762,00 1016,00 317,50
22 550 558,80 1676,40 838,20 1117,60 342,90
24 600 609,60 1828,80 914,40 1219,20 381,00
28 700 711,20 2133,60 1066,80 1422,40 441,90

SCH 10 Carbon Steel Socket Weld Dimensinos

Nominal Pipe Size Outer Daimeter Center-End
Outlet Run
1/2 21.3 25 25
10 273.0 216 216
22 559.0 419 419
14 355.6 279 279
3/4 26.7 29 29
1 33.4 38 38
1 1/2 48.3 57 57
2 60.3 64 64
20 508.0 381 381
2 1/2 73.0 76 76
3 88.9 86 86
16 406.4 305 305
1 1/4 42.2 48 48
3 1/2 101.6 95 95
4 114.3 105 105
5 141.3 124 124
6 168.3 143 143
8 219.1 178 178
12 323.8 254 254
18 457.0 343 343
24 610.0 432 432

ASTM A105 Carbon Steel High Pressure Forged Pipe Fittings Forging Machines

  • Radial Driling Machine
  • Elbow Cold Forming Machines
  • Hydraulic Press 300 Tons Capacity
  • Conventional Machine
  • Heat Treatment For Forged Fitting
  • Elbow Beveling Machine
  • Oil Fired Heat Treatment Furnace
  • CNC Lath
  • Tee Beveling Machine
  • Hydraulic Press 150 Tons Capacity
  • Tee Cold Forming Machines
  • Portable Temperature Indicator

CS Threaded Weight Chart

Nominal Pipe Size Weight In LBS Weight In Kilogram
3/4-1/2 0.17 0.08
1-3/4 0.4 0.18
1-1/2 0.4 0.18
1.1/4-1 0.5 0.23
3/4-3/8 0.15 0.07
2.1/2-2 1.5 0.68
1.1/4-3/4 0.4 0.18
1.1/4-1/2 0.4 0.18
1.1/2-1 0.62 0.28
1.1/2-3/4 0.54 0.24
1.1/2-1/2 0.5 0.23
1.1/2-1.1/4 0.7 0.32
2-1.1/2 0.9 0.41
2-1.1/4 0.84 0.38
2-1 0.76 0.34
2-3/4 0.7 0.32
2.1/2-1.1/2 1.38 0.63
2.1/2-1.1/4 1.25 0.57
2.1/2-1 1.25 0.57
3-2.1/2 2 0.91
3-2 1.8 0.82
3-1.1/2 1.7 0.77
3-1.1/4 1.6 0.73
3.1/2-3 3.15 1.43
3.1/2-2.1/2 2.88 1.31
3.1/2-2 2.75 1.25
3.1/2-1.1/2 2.5 1.13
3.1/2-1.1/4 2.4 1.09
4-3.1/2 3.5 1.59
4-3 3.38 1.53
4-2.1/2 3.25 1.47
4-2 3 1.36
4-1.1/2 2.88 1.31
5-4 6 2.72
5-3.1/2 5.75 2.61
5-3 5.5 2.49
5-2.1/2 5.25 2.38
5-2 5 2.27
6-5 8.5 3.86
6-4 8.25 3.74
6-3.1/2 8.25 3.74
6-3 8 3.63
6-2.1/2 7.25 3.29
8-6 13.2 5.99
8-5 12 5.44
8-4 11 4.99
8-3.1/2 11 4.99
10-8 22 9.98
10-6 21.5 9.75
10-5 21 9.53
10-4 20 9.07
12-10 34 15.42
12-8 32 14.51
12-6 31 14.06
12-5 30 13.61
14-12 60 27.22
14-10 59.2 26.85
14-8 58.5 26.54
14-6 58 26.31
16-14 71 32.21
16-12 70 31.75
16-10 69.5 31.52
16-8 68.5 31.07
16-6 - -
18-16 85 38.56
18-14 84 38.1
18-12 83 37.65
18-10 82 37.19
18-8 - -
20-18 125 56.7
20-16 124 56.25
20-14 122 55.34
20-12 120 54.43
20-10 - -
20-8 - -
22-20 142 64.41
22-18 138 62.6
22-16 131 59.42
22-14 123 55.79
22-12 - -
22-10 - -
24-22 - -
24-20 150 68.04
24-18 148 67.13
24-16 145 65.77
24-14 - -
24-12 - -
24-10 - -
26-24 207 93.89
26-22 200 90.72
26-20 190 86.18
26-18 182 82.55
26-16 - -
26-14 - -
26-12 - -
28-26 224 101.6
28-24 216 97.98
28-22 210 95.25
28-20 199 90.26
30-28 241 109.32
30-26 232 105.23
30-24 224 101.6
30-22 220 99.79
30-20 220 99.79
Searching for Carbon Steel Screwed Elbow as per ASME B16.11 standards, Know more about Carbon Steel Socket Weld Coupling, CS Forged Tee chemical, mechanical and physical properties

Carbon Steel Forged Fittings Pressure Rating

Temperature Ratings Types Of Pressure Ratings Class
Class 150# Class 300#
1 1/4 - 2 (Inch) 1/4 - 1 (Inch) 2 1/2 - 3 (Inch)
(oC) (oF)
93 200 265 1350 1785 910
-29 to 66 -20 to 150 300 1500 2000 1000
121 250 225 1200 1575 825
149 300 185 1050 1360 735
177 350 150 900 1150 650
204 400 - 750 935 560
232 450 - 600 725 475
260 500 - 450 510 385
288 550 - 300 300 300

ASTM A105 Carbon Steel Socket Weld Weight Chart

Normal Pipe Size Weight In Kilogram Weight In LBS
1/2 0.04 0.09
1 0.11 0.25
1.1/4 0.17 0.38
16 45.36 100
1.1/2 0.18 0.4
3/4 0.04 0.09
2 0.37 0.81
2.1/2 0.79 1.75
3 1.19 2.63
14 36.29 80
20 72.57 160
4 2.04 4.5
5 3.4 7.5
6 5.44 12
8 10.43 23
10 19.5 43
3.1/2 1.59 3.5
12 28.12 62
18 57.15 126
22 89.36 197
24 107.95 238
26 124.74 275
30 166.47 367
36 240.86 531

Carbon Steel Plug Chemical Composition

Material Grade Nickel Carbon Chromium Silicon Molybdenum Manganese Vandilium Sulfur Cb/Nb Phosphorous Copper
ASTM A105 0.3 0.10-0.35 0.12 0.60-1.05 0.08 0.04 0.035 0.4 0.4
ASTM A181 0.35 0.10-0.35 1.1 0.05 0.05
70 0.10-0.35 1.1 0.05 0.05
ASTM A266 0.3 0.15-0.35 0.40-1.05 0.025 0.025
2 0.15-0.35 0.40-1.05 0.025 0.025
3 0.15-0.35 0.80-1.35 0.025 0.025
4 0.15-0.35 0.80-1.35 0.025 0.025
ASTM A350 0.4 0.3 0.3 0.15-0.30 0.12 0.60-1.35 0.08 0.04 0.02 0.035 0.4
LF2-1 0.3 0.15-0.30 0.12 0.60-1.35 0.08 0.04 0.02 0.035 0.4 0.4
LF2-2 0.3 0.15-0.30 0.12 0.60-1.35 0.08 0.04 0.02 0.035 0.4 0.4
LF3-1 0.3 0.20-0.35 0.12 0.9 0.03 0.04 0.02 0.035 0.4 3.30-3.70
LF3-2 0.3 0.20-0.35 0.12 0.9 0.03 0.04 0.02 0.035 0.4 3.30-3.70
LF5-1 0.3 0.20-0.35 0.12 0.60-1.35 0.03 0.04 0.02 0.035 0.4 1.00-2.00
LF5-2 0.3 0.20-0.35 0.12 0.60-1.35 0.03 0.04 0.02 0.035 0.4 1.00-2.00
LF6-1 0.3 0.15-0.30 0.12 1.15-1.50 0.04-0.11 0.025 0.02 0.025 0.4 0.4
LF6-2 0.3 0.15-0.30 0.12 1.15-1.50 0.04-0.11 0.025 0.02 0.025 0.4 0.4
LF6-3 0.3 0.15-0.30 0.12 1.15-1.50 0.04-0.11 0.025 0.02 0.025 0.4 0.4
LF9 0.12 0.40-1.06 0.03 0.04 0.02 0.035 0.75-1.25 1.60-2.24 0.3
LF787-2 0.60-0.90 0.4 0.15-0.25 0.40-0.70 0.03 0.025 0.02 min 0.025 1.00-1.30 0.70-1.00
LF787-3 0.60-0.90 0.4 0.15-0.25 0.40-0.70 0.03 0.025 0.02 min 0.025 1.00-1.30 0.70-1.00

Carbon Forged Pipe Fittings Mechanical Properties

Grade Tensile Strength min, Ksi Grade or Class Elongation Yield Strength
Ksi
ASTM A105 36 70 22
ASTM A181 60 60 22 30
70 36 70 18
ASTM A266 60-85 1 23 30
2 36 70-95 20
3 36 70-95 20
4 37.5 75-100 19
ASTM A350 60-85 LF1 25 30
LF2-1 36 70-95 22
LF2-2 36 70-95 22
LF3-1 37.5 70-95 22
LF3-2 37.5 70-95 22
LF5-1 30 60-85 25
LF5-2 37.5 70-95 22
LF6-1 52 66-91 22
LF6-2 60 75-100 20
LF6-3 60 75-100 20
LF9 46 63-88 25
LF787-2 55 65-85 20
LF787-3 65 75-95 20

ASME B16.11 Threaded Dimensions

Outside Diameter Nominal Pipe Size 180° Returns 90° Elbow 45° Elbow
  (inch) Long Radius Long Radius Short Radius Long Radius
(MM) (inch)   Center to Center
(inch)
Back to face
(inch)
Center to Face
(inch)
Center to Face
(inch)
Center to Face
(inch)
Radius
(inch)
101.6 4.000 3 1/2 10 1/2 7 1/4 5 1/4 3 1/2 2 1/4 7
88.9 3.500 3 9 6 1/4 4 1/2 3 2 6
114.3 4.500 4 12 8 1/4 6 4 2 1/2 8
141.3 5.563 5 15 10 5/16 7 1/2 5 3 1/8 10
21.3 0.840 1/2 2 1 7/8 1 1/2 5/8
26.7 1.050 3/4 2 1/4 1 11/16 1 1/8 7/16
33.4 1.315 1 3 2 3/16 1 1/2 1 7/8
42.2 1.660 1 1/4 3 3/4 2 3/4 1 7/8 1 1/4 1
48.3 1.900 1 1/2 4 1/2 3 1/4 2 1/4 1 1/2 1 1/8 3
60.3 2.375 2 6 4 3/16 3 2 1 3/8 4
73.0 2.875 2 1/2 7 1/2 5 3/16 3 3/4 2 1/2 1 3/4 5
168.3 6.625 6 18 12 5/16 9 6 3 3/4 12
219.1 8.625 8 24 16 5/16 12 8 5 12
273.1 10.750 10 30 20 3/8 15 10 6 1/4 15
323.9 12.750 12 36 24 3/8 18 12 7 1/2 18

ASME B16.11 Carbon Steel socket weld fittings Testing Requirments

Class Ultrasonic Examination Product Analysis Liquid Penetrant
Examination
Class-2 Not required On one sample from each heat treatment batch size 100% on all external and internal surfaces that can be accessed.
Class-1 100% on the finished product over the full volume (including 100% on the pipe/fogings used to make fittings) * On one sample from each heat treatment batch size Externally, 100 percent, and inside, all accessible surfaces
Class-3 Not required On one sample from each heat treatment batch size Not required

Carbon Steel IBR Forged Fittings Hs Code

Description HSN Code
Carbon Steel Threaded Fittings 73079390

3LPE Coating for Carbon Steel Buttweld Pipe Fittings

  • Anti-corrosion Coating
  • Epoxy primer coating
  • Copolymer adhesive
Supplier of ASTM A350 Carbon Steel Forged Fittings in Schedule 10/ SCH40 in Mumbai, Buy Fully Killed CS Forged Fitting such as socket weld elbow, tee, coupling, union at best price

CS Forged Elbow Inventory

Carbon Steel Pipe Fittings Carbon Steel Forged Pipe Fittings
Schedule 10 Carbon Steel Pipe Fittings Carbon Steel Elbow
SCH 10 Carbon Steel Weld Fittings Carbon Steel Threaded Elbow
CS Pipe Fittings Carbon Steel Threaded Bush
Carbon Steel Buttweld Pipe Fittings Carbon Steel Tee
Carbon Steel Reducer Carbon Steel Forged Threaded Plug
Carbon Steel Cross Carbon Steel Split Tee
Carbon Steel Flanged Tee Carbon Steel Forged Threaded Swage Nipple
ASTM A105 Carbon Steel Forged Fittings Low Temperature Carbon Steel Forged Fittings
ASTM A105 Carbon Steel Threaded Fittings Carbon Steel Socket Weld Reducer Insert
Carbon Forged Fittings Carbon Steel Socket weld 90 deg Elbow
Carbon Steel Forged Threaded 90 deg Elbow Carbon Steel Socket Weld Tees
ASTM A105 Carbon Steel Socket Weld Fittings ASTM A350 Carbon Steel Forged Socket weld Fittings
Carbon Steel Socket Weld Equal Tee Carbon Steel 3000 LB Forged Screwed Fittings
ASTM A350 LF2 Low Temperature Carbon Steel Forged Fittings Carbon Steel Socket weld Union
Carbon Steel Fittings ASTM A350 LF2 Carbon Steel Forged Fittings
ASTM A350 Carbon Steel Low Temp. LF2 Forged Tee Carbon Steel Forged Threaded Tee
Carbon Socket Weld 90 deg Elbow ASTM A105 Threaded Fittings
Carbon Steel Concentric Reducer Carbon Steel Threaded Pipe Fitting
Carbon Steel Hex Bushing Carbon Steel Threaded Tee
Carbon Socket Weld Union ANSI B16.11 Carbon Steel Socket Weld Union
ASTM A105 Carbon Steel High Pressure Forged Pipe Fittings Carbon Steel Socket weld Pipe Elbow
Carbon Steel Buttweld Fittings ASME B16.11 Carbon Steel Threaded Bushing
Carbon Steel Weld Fittings BS3799 CS Socket Weld Cap
Carbon Steel 90 Degree Elbow Carbon Steel Socketweld Coupling
Carbon Steel Threaded Pipe Fittings Carbon Steel Threaded Coupling
Carbon Steel Plug Carbon Steel Class 6000 Threaded Plug
Carbon Forged Pipe Fittings Carbon Steel ANSI B16.11 Forged Fittings
ASME SA350 Carbon Steel Forged Fittings ASTM A105 Forged Elbow
Carbon Steel Forged Fittings Carbon Forged Tee
Low CS Forged Elbow Steel Low CS Forged Elbow
Black Forged Carbon Steel Pipe Fittings Carbon Steel Threaded Boss
Carbon Steel Stub End CS Forged Elbow
Steel High Carbon Steel Threaded Coupling ASTM A105 Carbon Steel Socketweld Elbow
Carbon Steel Buttweld Caps Carbon Steel Socket weld Pipe Cap
Carbon Steel 45 deg Elbow Carbon Steel IBR Forged Fittings
Carbon Steel Pipe Cap ASME SA105 Carbon Steel Socket weld Tee
ASME B16.11 Carbon Steel socket weld fittings Carbon Steel Socketweld Cap
Carbon Steel Socket weld Forged Coupling Carbon Steel Socket weld Cross
Carbon Steel Pipe Bend Carbon Steel Forged Socket weld 90deg. Elbow
ASTM A350 Carbon Steel Forged Fittings ASME SA105  Carbon Steel Socket Weld Fittings
ANSI B16.11 Carbon Steel Forged Threaded Fittings Carbon Steel Forged Elbow

ASME SA105 Carbon Steel Socket weld Tee Documentations

  • Quality Assurance Plan
  • Guarantee Letter
  • Raw Material Test Reports
  • Fumigation Certificates
  • NABL approved Laboratory Test Reports
  • Commercial Invoice which includes HS Code
  • Fumigation Certificates
  • Heat Treatment Charts

Searching for

Carbon Steel Forged Fittings supplier in your country? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

ASTM A105 Carbon Steel Socket Weld Fittings

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

Carbon Socket Weld Union

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

Carbon Steel Buttweld Fittings

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

Carbon Steel Weld Fittings

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

Low CS Forged Elbow

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

ASME B16.11 Carbon Steel Threaded Bushing

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
