ASTM A312 TP304L Seamless Pipe and 304L Stainless Steel Tube Supplier in India
What is Stainless Steel 304l Pipe?
Stainless steel 304l grade is an austenitic low carbon grade of the 304 alloys. The Tp 304l Stainless Steel Pipe is designed possessing a superior nickel and chromium concentration. The superior chemical content embedded in the Sa 213 Tp 304l Seamless Stainless Steel Pipe gives them enhanced resistance to corrosive and oxidative media in stress-induced environments. The Sa 312 304l Welded Pipe can be readily welded in place following standard welding procedures. The versatile pipes perform well in high as well as in cryogenic conditions.
ASTM A312 TP304l pipe vs ASME SA 312 TP 304l Pipe
ASTM and ASME are two grades that are used to manufacture pipes of the 304l grade. Both the pipe types are nearly identical but have some major differences.
- ASTM A312 TP304l is a grade that publishes different material types and services. ASME SA 312 TP 304l grade is an organization that creates standards for a range of technologies.
- The ASME grade covers close to 600 technical standards. ASTM grades cover 12,000 or more standards of products and services.
What Is The Hardness Of 304l Stainless Steel Pipe
A 304l stainless steel pipe is a high-strength module designed with a hardness of 215 max HB.
Can Stainless Steel 304l Tube Be Rusted?
All grades of pipes and any steel components are prone to rust when exposed to different media for long periods. The tubes of the stainless steel 304l grade are designed with an excellent chemical composition. The chemical content embedded within these tubes gives the modules added tolerance in dealing with different stress-induced conditions when compared to regular grade steel.
How Long Does 304l Seamless Stainless Steel Pipe Last?
A seamless stainless steel pipe of the 304l grade is designed without any seams or welds. This gives the pipes good strength to deal with high pressures and temperatures. The seamless outlay gives the pipe a higher life expectancy rate than a welded or an erw pipe within the 304l stainless steel range.
Table of Content
Stainless Steel 304L Pipe Schedule Standard And Specification
| Standards | ASTM/ ASME A 312 / SA 312 |
| Available Pipes Form | Round and Hydraulic Form Etc |
| Stock Length | Double, Cut Length, and Single Random |
| Dimensions Standard | API, ASTM, ASME |
| End Finishing | Plain End, Theaded, Beveled End |
| Size Range | Nominal Bore between 1/2to 16 |
| Frequently Used Type | Welded / ERW / LSAW/ Seamless /Fabricated Pipes |
| Outer Diameter Sizes | 1/8" upto 30″ Nominal Bore in Inch |
| Thickness Range | Schedule 20 - 120 |
| Outer Diameter | 6″upto 100″Nominal Bore |
| Size | 1/2″ upto 24″ Nominal Bore |
We provide SS 304L ERW Pipe and Austenitic DIN 1.4306 Railing Pipe with instant delivery, 304L SS Schedule 40 Pipe Weight Chart.
ASME SA 312 Grade 304L Stainless Steel Tube Chemical Analysis
| S | C | Cr | Mn | Ni | Si | N | P | Mo | |
|---|---|---|---|---|---|---|---|---|---|
| min. | – | – | 18.0 | – | 8.0 | – | – | – | – |
| max. | 0.03 | 0.03 | 20.0 | 2.0 | 12.0 | 1.00 | – | 0.045 |
304L Stainless Steel Seamless Pipe Mechanical Analysis
| Tensile Properties (MPa) min | Elongation (% in 50mm) min | Yield Properties 0.2% Proof (MPa) min | Hardness | |
|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | |||
| 485 | 40 | 170 | 92 | |
Equivalent Material Of ASTM A312 TP 304L Round Pipe
Super Ferritic Stainless Steel 304L Capillary Tubing and ASTM A312 TP 304L Round Pipe stockist in Mumbai, call us now for SS Grade 1.4306 Polished Pipes a free sample.
| Grade | Swedish SS | UNS No | Old British | Euronorm | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| En | BS | No | Name | ||||
| 304L | 2332 | S30403 | 58E | 304S11 | 1.4307 | X5CrNi18-10 | SUS 304L |
SS 304L Seamless Pipe Pressure Rating
| Schedule of Pipe | Size of Stainless Steel 304 Seamless Pipe (inches) |
(°F) Temperature | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 200 | 400 | 100 | 700 | 300 | 650 | 750 | 600 | ||
| 80 | 1" | 2791 | 3634 | 3002 | 4213 | 2528 | 3265 | 2580 | 2501 | 2659 |
| 40 | 1" | 2019 | 2629 | 2171 | 3048 | 1824 | 2362 | 1867 | 1810 | 1924 |
| 40 | 1.5" | 1496 | 1947 | 1608 | 2257 | 1354 | 1750 | 1383 | 1340 | 1425 |
| 160 | 1" | 4068 | 5296 | 4375 | 6140 | 3684 | 4759 | 3761 | 3646 | 3876 |
| 160 | 1.5" | 3060 | 3984 | 3291 | 4619 | 2772 | 3580 | 2829 | 2743 | 2916 |
| 80 | 1.5" | 2108 | 2744 | 2267 | 3182 | 1909 | 2466 | 1949 | 1889 | 2009 |
| 80 | 2" | 1820 | 2369 | 1957 | 2747 | 1648 | 2129 | 1682 | 1631 | 1734 |
| 40 | 2" | 1260 | 1640 | 1355 | 1902 | 1141 | 1474 | 1165 | 1129 | 1201 |
| 40 | 3" | 1196 | 1558 | 1287 | 1806 | 1084 | 1400 | 1106 | 1072 | 1140 |
| 160 | 2" | 2980 | 3880 | 3205 | 4499 | 2699 | 3486 | 2755 | 2671 | 2840 |
| 160 | 3" | 2544 | 3312 | 2736 | 3840 | 2304 | 2976 | 2352 | 2280 | 2424 |
| 80 | 3" | 1691 | 2202 | 1819 | 2553 | 1532 | 1979 | 1564 | 1516 | 1612 |
| 80 | 4" | 1466 | 1909 | 1577 | 2213 | 1328 | 1715 | 1355 | 1314 | 1397 |
| 40 | 4" | 1014 | 1321 | 1091 | 1531 | 919 | 1187 | 938 | 909 | 967 |
| 40 | 5" | 889 | 1158 | 956 | 1342 | 805 | 1040 | 822 | 797 | 847 |
| 160 | 4" | 2386 | 3106 | 2566 | 3601 | 2161 | 2791 | 2206 | 2138 | 2273 |
| 80 | 5" | 1312 | 1709 | 1411 | 1981 | 1189 | 1535 | 1213 | 1176 | 1250 |
| 160 | 5" | 2262 | 2945 | 2433 | 3414 | 2049 | 2646 | 2091 | 2027 | 2155 |
| 80 | 6" | 1267 | 1650 | 1363 | 1913 | 1148 | 1483 | 1172 | 1136 | 1208 |
| 40 | 6" | 808 | 1052 | 869 | 1219 | 732 | 945 | 747 | 724 | 770 |
| 40 | 8" | 711 | 926 | 765 | 1073 | 644 | 832 | 657 | 637 | 678 |
| 160 | 6" | 2179 | 2836 | 2343 | 3289 | 1973 | 2549 | 2014 | 1953 | 2076 |
| 160 | 8" | 2103 | 2738 | 2262 | 3175 | 1905 | 2460 | 1944 | 1885 | 2004 |
| 80 | 8" | 1121 | 1459 | 1205 | 1692 | 1015 | 1311 | 1036 | 1005 | 1068 |
| 80 | 10" | 1066 | 1388 | 1147 | 1609 | 966 | 1247 | 986 | 956 | 1016 |
| 40 | 10" | 945 | 840 | 694 | 974 | 584 | 755 | 596 | 578 | 615 |
| 160 | 10" | 2085 | 2714 | 2242 | 3147 | 1880 | 2439 | 1927 | 1868 | 1986 |
Weight Of 304L Stainless Steel Pipe
| 28 | .028" Thickness |
| 035 | .035" Thickness |
| 039 | .039" Thickness |
| 049 | .049" Thickness |
| 065 | .065" Thickness |
| 083 | .083" Thickness |
| 109 | .109" Thickness |
ASTM A312 Gr TP 304L SS Schedule 40 Pipe Stocks
| Details | Method of Manufacture | Seamless/ Welded Size | DFARS | Schedule |
|---|---|---|---|---|
| W 304 A-312 SS 1/4 Schedule 80 | DRAWN & WELDED | 0.25 | Yes | 80 |
| W 304 A-312 SS 1/8 Schedule 40 | 0.125 | 40 | ||
| SMLS 304 A-312 3/8 Schedule 40 | DRAWN & SEAMLESS | 0.375 | 40 | |
| W 304 A-312 SS 1/4 Schedule 40 | DRAWN & WELDED | 0.25 | 40 | |
| SMLS 304 A-312 1/4 Schedule 80 | DRAWN & SEAMLESS | 0.25 | 80 | |
| W 304 A-312 SS 1/4 Schedule 10 | DRAWN & WELDED | 0.25 | 10 | |
| SMLS 304 A-312 1/4 Schedule 40 | DRAWN & SEAMLESS | 0.25 | 40 | |
| SMLS 304 A-312 3/8 Schedule 80 | 0.375 | 80 | ||
| W 304 A-312 SS 3/8 Schedule 80 | DRAWN & WELDED | 0.375 | 80 | |
| W 304 A-312 SS 3/8 Schedule 40 | 0.375 | 40 |
304L Stainless Steel Pipe Dimensions
| Nominal size in Inches | Wall thickness in MM | Outside diameter in Inches | Weight in lb/ft | Outside diameter in MM | Weight in kg/m | Wall thickness in Inches |
|---|---|---|---|---|---|---|
| 1/2 | 2.11 | 0.840 | 0.68 | 21.3 | 1.00 | 0.083 |
| 3/4 | 2.11 | 1.050 | 0.87 | 26.7 | 1.29 | 0.083 |
| 1 | 2.77 | 1.315 | 1.41 | 33.4 | 2.11 | 0.109 |
| 1 1/4 | 2.77 | 1.660 | 1.82 | 42.2 | 2.71 | 0.109 |
| 1 1/2 | 2.77 | 1.900 | 2.1 | 48.3 | 3.13 | 0.109 |
| 2 | 2.77 | 2.375 | 2.66 | 60.3 | 3.96 | 0.109 |
| 2 1/2 | 3.05 | 2.875 | 3.56 | 73.0 | 5.29 | 0.120 |
| 3 | 3.05 | 3.500 | 4.37 | 88.9 | 6.50 | 0.120 |
| 3 1/2 | 3.05 | 4.000 | 5.01 | 101.6 | 7.46 | 0.120 |
| 4 | 3.05 | 4.500 | 5.66 | 114.3 | 8.42 | 0.120 |
| 5 | 3.40 | 5.563 | 7.82 | 141.3 | 11.64 | 0.134 |
| 6 | 3.40 | 6.625 | 9.35 | 168.3 | 13.91 | 0.134 |
| 8 | 3.76 | 8.625 | 13.50 | 219.1 | 20.10 | 0.148 |
| 10 | 4.19 | 10.750 | 18.79 | 273.1 | 27.96 | 0.165 |
| 12 | 4.57 | 12.750 | 24.34 | 323.9 | 36.22 | 0.180 |
| 14 | 4.78 | 14.000 | 27.97 | 355.6 | 41.62 | 0.188 |
| 16 | 4.78 | 16.000 | 32.02 | 406.4 | 47.65 | 0.188 |
| 18 | 4.78 | 18.000 | 36.05 | 457.0 | 53.65 | 0.188 |
| 20 | 5.54 | 20.000 | 46.42 | 508.0 | 69.09 | 0.218 |
| 22 | 5.54 | 22.000 | 51.14 | 559.0 | 76.10 | 0.218 |
| 24 | 6.35 | 24.000 | 63.93 | 610.0 | 95.13 | 0.250 |
| 30 | 7.92 | 30.000 | 99.60 | 762.0 | 148.22 | 0.312 |
SS 304L Schedule 40 Pipe Thickness
| Size | Wall Thickness | OD | Weight |
|---|---|---|---|
| 1/8 inches | 0.068 inches 1.7272 mm |
0.405 inches 10.287 mm |
0.245 lbs/ft 0.36460018 kg/m |
| 1/4 inches | 0.088 inches 2.2352 mm |
0.54 inches 13.716 mm |
0.425 lbs/ft 0.6324697 kg/m |
| 3/8 inches | 0.091 inches 2.3114 mm |
0.675 inches 17.145 mm |
0.568 lbs/ft 0.845277152 kg/m |
| 1/2 inches | 0.109 inches 2.7686 mm |
0.84 inches 21.336 mm |
0.851 lbs/ft 1.266427564 kg/m |
| 3/4 inches | 0.113 inches 2.8702 mm |
1.05 inches 26.67 mm |
1.131 lbs/ft 1.683113484 kg/m |
| 1 inches | 0.133 inches 3.3782 mm |
1.315 inches 33.401 mm |
1.68 lbs/ft 2.50011552 kg/m |
| 1 1/4 inches | 0.140 inches 3.556 mm |
1.66 inches 42.164 mm |
2.274 lbs/ft 3.384084936 kg/m |
| 1 1/2 inches | 0.145 inches 3.683 mm |
1.9 inches 48.26 mm |
2.719 lbs/ft 4.046317916 kg/m |
| 2 inches | 0.154 inches 3.9116 mm |
2.375 inches 60.325 mm |
3.654 lbs/ft 5.437751256 kg/m |
| 2 1/2 inches | 0.203 inches 5.1562 mm |
2.875 inches 73.025 mm |
5.795 lbs/ft 8.62391038 kg/m |
| 3 inches | 0.216 inches 5.4864 mm |
3 1/2 inches 88.90 mm |
7.579 lbs/ft 11.278794956 kg/m |
| 3 1/2 inches | 0.226 inches 5.7404 mm |
4 inches 101.6 mm |
9.113 lbs/ft 13.561638532 kg/m |
| 4 inches | 0.237 inches 6.0198 mm |
4.500 inches 114.3 mm |
10.794 lbs/ft 16.063242216 kg/m |
| 5 inches | 0.258 inches 6.5532 mm |
5.563 inches 141.3002 mm |
14.623 lbs/ft 21.761422172 kg/m |
| 6 inches | 0.280 inches 7.112 mm |
6.625 inches 168.275 mm |
18.981 lbs/ft 28.246840884 kg/m |
| 8 inches | 0.322 inches 8.1788 mm |
8.625 inches 219.075 mm |
28.564 lbs/ft 42.507916496 kg/m |
| 10 inches | 0.365 inches 9.271 mm |
10.75 inches 273.05 mm |
40.498 lbs/ft 60.267665672 kg/m |
| 12 inches | 0.375 inches 9.5250 mm |
12.75 inches 323.85 mm |
49.580 lbs/ft 73.78317112 kg/m |
Different SS UNS S30403 Welded Pipe Types
ASTM A312 304L SS Pipe
SS Grade 1.4306 Polished Pipe
Stainless Steel 304L Welded Pipe
SA 312 TP 304L ERW Pipe
Stainless Steel 304L Tube
SS 304 Schedule 10 Pipe
Stainless Steel 304L Seamless Pipe
SS 304L Tube
ASME SA 312 Grade 304L Stainless Steel Tube
View SS UNS S30403 Welded Pipe and ASME SA 312 Tp 304L Condenser Tubes sizes chart in mm and schedule 40 to XXS. Check Our Global Sales Network For DIN 1.4306 Tubing.
SA 312 TP 304L ERW Pipe Size Chart
| Outer diameter mm |
Wall Thickness mm |
Sch | in. | Kg/m |
|---|---|---|---|---|
| 33.40 | 6.352) | 160 | 1 | 4.30 |
| 13.72 | 1.65 | 10S | 1/4 | 0.50 |
| 13.72 | 2.24 | 40S | 1/4 | 0.64 |
| 13.72 | 3.02 | 80S | 1/4 | 0.81 |
| 48.26 | 3.68 | 40S | 1½ | 4.11 |
| 17.15 | 1.65 | 10S | 3/8 | 0.64 |
| 73.03 | 3.05 | 10S | 2½ | 5.35 |
| 17.15 | 2.31 | 40S | 3/8 | 0.86 |
| 60.33 | 8.742) | 160 | 2 | 11.29 |
| 17.15 | 3.20 | 80S | 3/8 | 1.12 |
| 60.33 | 2.77 | 10S | 2 | 3.99 |
| 21.34 | 2.11 | 10S | 1/2 | 1.02 |
| 48.26 | 2.77 | 10S | 1½ | 3.16 |
| 21.34 | 2.77 | 40S | 1/2 | 1.29 |
| 73.03 | 7.01 | 80S | 2½ | 11.59 |
| 21.34 | 3.73 | 80S | 1/2 | 1.65 |
| 60.33 | 5.54 | 80S | 2 | 7.60 |
| 26.67 | 2.11 | 10S | 3/4 | 1.30 |
| 42.16 | 6.352) | 160 | 1¼ | 5.69 |
| 26.67 | 2.87 | 40S | 3/4 | 1.71 |
| 60.33 | 3.91 | 40S | 2 | 5.52 |
| 26.67 | 3.91 | 80S | 3/4 | 2.23 |
| 88.90 | 5.49 | 40S | 3 | 11.47 |
| 33.40 | 2.77 | 10S | 1 | 2.13 |
| 114.30 | 3.05 | 10S | 4 | 8.50 |
| 33.40 | 3.38 | 40S | 1 | 2.54 |
| 73.03 | 5.16 | 40S | 2½ | 8.77 |
| 33.40 | 4.55 | 80S | 1 | 3.29 |
| 42.16 | 3.56 | 40S | 1¼ | 3.44 |
| 48.26 | 5.08 | 80S | 1½ | 5.49 |
| 88.90 | 3.05 | 10S | 3 | 6.56 |
| 88.90 | 7.62 | 80S | 3 | 15.51 |
| 141.30 | 9.53 | 80S | 5 | 31.44 |
| 88.90 | 11.132) | 160 | 3 | 21.67 |
| 141.30 | 15.882) | 160 | 5 | 49.87 |
| 101.60 | 3.05 | 10S | 3½ | 7.53 |
| 168.28 | 7.11 | 40S | 6 | 28.69 |
| 101.60 | 5.74 | 40S | 3½ | 13.78 |
| 168.28 | 10.97 | 80S | 6 | 43.21 |
| 101.60 | 8.08 | 80S | 3½ | 18.92 |
| 168.28 | 14.27 | 120 | 6 | 54.75 |
| 114.30 | 6.02 | 40S | 4 | 16.32 |
| 168.28 | 18.262) | 160 | 6 | 68.59 |
| 114.30 | 8.56 | 80S | 4 | 22.67 |
| 219.08 | 8.18 | 40S | 8 | 43.20 |
| 114.30 | 13.492) | 160 | 4 | 34.05 |
| 219.08 | 12.7 | 80S | 8 | 65.63 |
| 141.30 | 6.55 | 40S | 5 | 22.10 |
| 219.08 | 18.23 | 120 | 8 | 91.30 |
| 168.28 | 3.4 | 10S | 6 | 14.04 |
| 219.08 | 23.012) | 160 | 8 | 112.97 |
HSN Code For SS 304L Pipe
| HS CODE | Description of Stainless Steel 304 Pipe Manufacturers in India |
|---|---|
| 7304 | Tubes, Pipes And Hollow Profiles, Seamless, Of Iron Or Steel |
| 73044100 | Cold-drawn or cold-rolled |
| 73044900 | Other |
| 7306 | Tubes, Pipes And Hollow |
| 73064000 | welded, of circular cross-section |
| 7218 | Ingots Or Other Primary Forms; Semifinished |
| 72189990 | Other |
| 7307 | Tube Or Pipe |
| 73072900 | Other |
Stainless Steel 304L Pipe Processing
304L Schedule 10 Stainless Steel Pipe Schedule Chart
| O.D. | Designation of Diameter | Nominal Wall Thickness | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Diameter Milimeter |
Schedule 5S | Schedule 5 | Schedule 10S | Schedule 10 | Schedule 40S | Schedule 40 | |||||||||||
| (A) | (B) | Wall Thk |
Weight Kg/Mtr | Wall Thk |
Weight Kg/Mtr | Weight Kg/Mtr | Wall Thk |
Wall Thk |
Weight Kg/Mtr | Weight Kg/Mtr | Wall Thk |
Wall Thk |
Weight Kg/Mtr | ||||
| 10.3 | 6 | 1/8 | 1 | 0.23 | - | - | 0.27 | 1.2 | - | - | 0.37 | 1.73 | - | - | |||
| 13.7 | 8 | 1/4 | 1.2 | 0.37 | - | - | 0.49 | 1.65 | - | - | 0.64 | 2.24 | - | - | |||
| 17.2 | 10 | 3/8 | 1.2 | 0.47 | - | - | 0.63 | 1.65 | - | - | 0.87 | 2.31 | - | - | |||
| 21.3 | 15 | 1/2 | 1.65 | 0.01 | 1.65 | 0.81 | 1.02 | 2.11 | 2.11 | 1.02 | 1.29 | 2.77 | - | - | |||
| 26.7 | 20 | 3/4 | 1.65 | 1.03 | 1.65 | 1.03 | 1.3 | 2.11 | 2.11 | 1.3 | 1.71 | 2.87 | - | - | |||
| 33.4 | 25 | 1 | 1.65 | 1.31 | 1.65 | 1.31 | 2.13 | 2.77 | 2.77 | 2.13 | 2.54 | 3.38 | - | - | |||
| 24.2 | 32 | 11/4 | 1.65 | 1.67 | 1.65 | 1.67 | 2.73 | 2.77 | 2.77 | 2.73 | 3.44 | 3.56 | - | - | |||
| 48.3 | 40 | 11/2 | 1.65 | 1.93 | 1.65 | 1.93 | 3.16 | 2.77 | 2.77 | 3.16 | 4.11 | 3.68 | - | - | |||
| 60.3 | 50 | 2 | 1.65 | 1.93 | 1.65 | 2.42 | 3.99 | 2.77 | 2.77 | 3.99 | 5.52 | 3.91 | - | - | |||
| 73 | 65 | 21/2 | 2.11 | 3.75 | 2.11 | 3.75 | 5.34 | 3.05 | 3.05 | 5.34 | 8.77 | 5.16 | - | - | |||
| 88.9 | 80 | 3 | 2.11 | 4.59 | 2.11 | 4.59 | 6.56 | 3.05 | 3.05 | 6.56 | 11.47 | 5.49 | - | - | |||
| 101.6 | 90 | 31/2 | 2.11 | 5.25 | 2.11 | 5.25 | 7.53 | 3.05 | 3.05 | 7.53 | 13.78 | 5.74 | - | - | |||
| 114.3 | 100 | 4 | 2.11 | 5.93 | 2.11 | 5.93 | 8.5 | 3.05 | 3.05 | 8.5 | 6.32 | 6.02 | - | - | |||
| 141.3 | 125 | 5 | 2.77 | 9.61 | 2.77 | 9.61 | 11.74 | 3.4 | 3.43 | 11.74 | 2210 | 6.55 | - | - | |||
| 168.3 | 150 | 6 | 2.77 | 11.47 | 2.77 | 11.47 | 14.04 | 3.4 | 3.43 | 14.04 | 28.69 | 7.11 | - | - | |||
| 219.1 | 200 | 8 | 2.77 | 15 | 2.77 | 15 | 20.77 | 3.76 | 3.76 | 20.27 | 43.2 | 8.18 | - | - | |||
| 273.1 | 250 | 10 | 3.4 | 22.95 | 3.4 | 22.95 | 28.2 | 4.19 | 4.19 | 28.2 | 61.22 | 9.27 | - | - | |||
| 323.9 | 300 | 12 | 3.96 | 31.72 | 4.19 | 33.6 | 36.54 | 4.57 | 4.57 | 36.54 | 75.01 | 9.53 | 10.31 | 80.94 | |||
| 355.6 | 350 | 14 | 3.96 | 34.86 | - | - | 41.99 | 4.78 | 6.35 | 55.53 | 82.58 | 9.53 | 11.13 | 96 | |||
| 406.4 | 400 | 16 | 4.19 | 42.2 | - | - | 48.07 | 4.78 | 6.35 | 63.61 | 94.7 | 9.53 | 12.7 | 125.2 | |||
| 457.2 | 450 | 18 | 4.19 | 47.46 | - | - | 54.15 | 4.78 | 6.35 | 71.69 | 106.83 | 9.53 | 14.27 | 158.27 | |||
| 508 | 500 | 2C | 4.78 | 60.23 | - | - | 69.7 | 5.54 | 6.35 | 79.76 | 118.9 | 9.53 | 15.06 | 185.89 | |||
| 558.8 | 550 | 22 | 4.78 | 65.95 | - | - | 76.75 | 5.54 | 6.35 | 87.84 | 131.07 | 9.53 | 15.88 | 216.04 | |||
| 609.6 | 600 | 24 | 5.54 | 83.8 | - | - | 95.92 | 6.35 | 6.35 | 95.92 | 143.2 | 9.53 | 17.45 | 258.74 | |||
| 660.4 | 650 | 26 | - | - | - | - | - | - | 7.92 | 129.4 | 155.32 | 9.53 | - | - | |||
| 711.2 | 700 | 28 | - | - | - | - | - | - | 7.92 | 139.47 | 167.44 | 9.53 | - | - | |||
| 762 | 750 | 3C | 6.35 | 120.15 | - | - | 149.55 | 7.92 | 7.92 | 149.55 | 179.56 | 9.53 | - | - | |||
| 812.8 | 800 | 32 | - | - | - | - | - | - | 7.92 | 159.62 | 191.69 | 9.53 | 17.48 | 348.11 | |||
| 863.6 | 850 | 34 | - | - | - | - | - | - | 7.92 | 169.64 | 203.74 | 9.53 | 17.48 | 370.22 | |||
| 914.4 | 900 | 36 | - | - | - | - | - | - | 7.92 | 179.77 | 215.93 | 9.53 | 19.05 | 427.09 | |||
Supply Range of SS 304L Seamless Pipe
| Sr. No. | Description | Wall Thickness | Outside Diamter |
|---|---|---|---|
| 1 | ASTM A312 Gr TP304 Handrail Tube | 0.5mm-3.0mm | 16mm to 85mm |
| 2 | 304 Stainless Steel Round Pipe | 0.5mm-30mm | 6mm – 630mm |
| 3 | SA312 TP304 Thin-Wall Stainless Steel Tube | 0.5mm-2.0mm | – |
| 4 | SS 304 Colour Coated Tube | 0.5mm-30mm | 12.7mm* 12.7mm to 300mm* 300mm |
| 5 | Stainless Steel 304 Capillary Tube | 0.5mm-2.0mm | 22mm*0.7mm to 108mm*2.0mm |
| 6 | ASTM A312 TP304 Ornamental Tubes | 0.5mm-30mm | 10*20mm to 100*200mm |
| 7 | 304 Stainless Steel Seamless Tube | 1.0mm – 5mm | 12.5mm to 203.2mm |
| 8 | Stainless Steel 304 Pipe | 0.08mm – 1.2mm | 0.28mm to 10mm |
| 9 | UNS S30403 Slot Round Pipe | 0.5mm-2.0mm | 12.7mm to 76.2mm |
| 10 | SS 304 Inner/Outside Polished Stainless Steel Tube | 0.5mm-2.0mm | 20mm to 200mm |
| 11 | DIN 1.4307 Triangle Tube | 0.5mm-30mm | 12.7mm to 250mm |
| 12 | SS 304 Seamless Pipe | 0.8mm – 30mm | 6mm to 430mm |
| 13 | SA 312 TP304 Hexagonal Tube | 0.5mm-2.0mm | 12.7mm to 76.2mm |
| 14 | AISI 304 U Shaped Tube | 0.5mm-2.0mm | 13mm to 85mm |
ASME SA 312 Grade 304L Pipe Roughness
| Surface Finish | Internal Surface(ID) | Exterbal Surface(OD) | |||
|---|---|---|---|---|---|
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μm | μ inch | μ inch | μm | ||
| AP | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined | |
| BA | 1.0,0.8,0.6,0.5 | 40,32,25,20 | 32 | 0.8 | |
| MP | 1.0,0.8,0.6,0.5 | 40,32,25,20 | 32 | 0.8 | |
| EP | 0.38,0.25,0.20;0.13 | 15,10,7,5 | 32 | 0.8 | |
Stainless Steel 304L Pipe Tolerance
| SS 304 Pipe OD | AISI 304 Seamless Pipe Tolerance |
|---|---|
| 4 to 35mm | +/- 0.08mm |
| 35 to 38mm | +/- 0.15mm |
| 38 to 60mm | +/- 0.20mm |
| 60 and above | +/- 0.25mm |
304L Stainless Steel Seamless Pipe Inventory
| Schedule 80 Seamless Stainless Steel 304L Pipes | 304L Schedule 10 Stainless Steel Pipe |
| ASTM A312 grade tp304L Exhaust Pipes | ASTM A312 grade tp304l Threaded Pipes |
| SS 304L Welded Pipes | Stainless Steel 304L Seamless Tubes |
| 1.4307 Stainless Steel 304L Oval Pipes | 304L Stainless Steel Hydraulic Pipes |
| SS TP 304L Cold Drawn Tubes | Stainless Steel 304L Cold Drawn Tubes |
| 304L grade Stainless Steel Grooved Pipes | 1.4307 Stainless Steel 304LTubing |
| Stainless Steel 304L Erw Pipes | ASTM A 213 304L Stainless Steel Seamless Tubes |
| SUS 304L Stainless Steel Polished Pipes | Stainless Steel 304L Tubes |
| Stainless Steel 304L Pipes | Stainless Steel 304L Welded Pipes |
| Stainless Steel 304L Seamless Tubing | SUS 304L Stainless Steel Pipes |
| SS 304L Tubes | DIN 1.4306 Stainless Steel 304L Seamless Tubes |
| ASME B36.19 SS 1.4307 Pipes | AISI SS TP 304L Hollow Pipes |
| SS 304L Pipes | Large Diameter Seamless 304L grade Stainless Steel Pipes |
| ASTM A312 grade tp304l Pipes | 304L grade Stainless Steel Schedule 40 Pipes |
| ASTM A312 grade tp304l Pipes | 1.4307 Stainless Steel 304L Efw Pipes |
| 304L Stainless Steel Boiler Tube | Stainless Steel 304L Tubing |
| Thin Wall SS 304L Schedule 10 Pipes | 304L Stainless Steel Seamless Pipes |
| SUS 304L Stainless Steel Round Pipes | ASTM A312 grade tp304L High Pressure Pipes |
| Schedule 40 Seamless SS 304L Pipes | SS UNS S30400 Seamless Tubing |
| SS 304L Corrugated Pipes | SS TP 304L Seamless Tubes |
DIN 1.4306 Tubing Physical Properties
| Density (kilogram/m3) | Electrical Resistivity (n.m) | Specific Heat 0-1000C (J/kg.K) | Thermal Conductivity (W/m.K) | Mean Coefficient of Thermal Expansion (m/m/0C) | |||
|---|---|---|---|---|---|---|---|
| 1000C | 5000C | 0-3150C | 0-1000C | 0-5380C | |||
| 8000 | 720 | 500 | 16.2 | 21.5 | 17.8 | 17.2 | 18.4 |

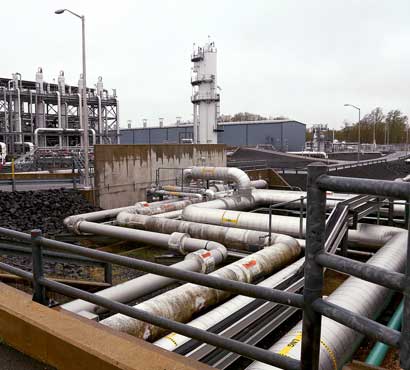

304L Stainless Steel Pipe Applications
- Oil & Gas Industries
- Food Processing Industries
- Fertilizers Industries
- Chemical Industries
- Gas Processing Industries
- Sugar Industries
- Power Generation Industries
- Petrochemical Industries
SS Grade 1.4306 Polished Pipe Guage
| GAUGE | THICKNESS RANGE (INCHES) | TYPICAL VALUE (INCHES) |
|---|---|---|
| 22 | 0.0025 upto 0.0029 | 0.0028 |
| 20 | 0.0031 upto 0.0035 | 0.0035 |
| 19 | 0.0038 upto 0.0042 | 0.0042 |
| 18 | 0.0044 upto 0.0049 | 0.0049 |
| 17 | 0.0053 upto 0.0058 | 0.0058 |
| 16 | 0.0060 upto 0.0065 | 0.0065 |
| 15 | 0.0066 upto 0.0074 | 0.0072 |
| 14 | 0.0075 upto 0.0085 | 0.0083 |
| 13 | 0.0087 upto 0.0097 | 0.0095 |
| 12 | 0.0101 upto 0.0111 | 0.0109 |
| 11 | 0.0112 upto 0.0122 | 0.012 |
| 10 | 0.0126 upto 0.0136 | 0.0134 |
| 9 | 0.0140 upto 0.0150 | 0.0148 |
| 8 | 0.0157 upto 0.0167 | 0.0165 |
| 7 | 0.0175 upto 0.0185 | 0.018 |
ASTM A312 304L Pipe Melting Point
| Element | Stainless Steel 304L Pipe Manufacturers in Mumbai |
| Melting Point | 1400 ℃ |
Supplier of ASME SA 312 AISI 304L Stainless Steel Pipe and Tubes in Mumbai, check our SA 312 TP 304L ERW Pipe online inventory, Exporter of Sanyo Special Steel Japan, Sumitomo, Dmv, and Jindal Stainless Steel 304L Pipe at dealer price in India.
SS 304L Pipe Price
ASME SA 312 Grade 304L Welded Pipe Price List
| Designation of Diameter | Outside Diameter | |||||
|---|---|---|---|---|---|---|
| Diameter | SCH 10S | |||||
| (B) | (A) | Meter | Weight Kg/Mtr | Wall | Price in | Price in |
| MM | Thk | INR/MTR | INR/KG | |||
| 1/8 | 6 | 10.03 | 0.027 | 1.2 | 94.5 | 350 |
| 1/4 | 8 | 13.7 | 0.049 | 1.65 | 147 | 300 |
| 3/8 | 10 | 17.2 | 0.063 | 1.65 | 189 | 300 |
| 1/2 | 15 | 21.3 | 1.02 | 2.11 | 244.8 | 240 |
| 3/4 | 20 | 26.7 | 1.3 | 2.11 | 312 | 240 |
| 1 | 25 | 33.4 | 2.13 | 2.77 | 489.9 | 230 |
| 11/4 | 32 | 24.2 | 2.73 | 2.77 | 627.9 | 230 |
| 11/2 | 40 | 48.3 | 3.16 | 2.77 | 711 | 225 |
| 2 | 50 | 60.03 | 3.99 | 2.77 | 897.75 | 225 |
| 21/2 | 65 | 73 | 5.34 | 3.05 | 1201.5 | 225 |
| 3 | 80 | 88.9 | 6.56 | 3.05 | 1476 | 225 |
| 31/2 | 90 | 101.6 | 7.53 | 3.05 | 1807.2 | 240 |
| 4 | 100 | 114.3 | 8.5 | 3.05 | 1955 | 230 |
| 5 | 125 | 141.3 | 11.74 | 3.4 | 2993.7 | 255 |
| 6 | 150 | 168.3 | 14.04 | 3.4 | 3510 | 250 |
| 8 | 200 | 219.1 | 20.077 | 3.76 | 5400.02 | 260 |
| 10 | 250 | 273.1 | 28.2 | 4.19 | 8460 | 300 |
| 12 | 300 | 323.9 | 36.54 | 4.57 | 11692.8 | 320 |
| 14 | 350 | 355.6 | 41.99 | 4.78 | 14696.5 | 350 |
| 16 | 400 | 406.4 | 48.07 | 4.78 | 18026.25 | 375 |
SA 312 TP304L Pipe Price
| 304L Stainless Steel Pipe Price Price List | Price Stainless Steel 304L Pipe Manufacturers in India(INR) | SS 304L Seamless Pipe Price in USD | ASTM 304L Stainless Steel Pipe Price in UAE Dirham |
|---|---|---|---|
| STAINLESS STEEL HOT FINISHED SEAMLESS PIPES GRADE 304L OD NOT LESS THAN 42 MM | INR 163 | $ 1.46 | 5.35 UAE Dirham |
| STAINLESS STEEL HOT FINISHED SEAMLESS PIPES GRADE 304L | INR 139 | $ 1.54 | 5.65 UAE Dirham |
| STAINLESS STEEL SEAMILESS PIPE GRADE TP304 SIZE : 219.0 MM OD X 5.7MM THK X 6000MM LENGTH | INR 158 | $ 1.48 | 5.45 UAE Dirham |
| ASTM A 312 GRADE TP304L SIZE(323.82MM OD X 8.95MM THK X 6000M LENGTH | INR 168 | $ 2.25 | 8.25 UAE Dirham |
| STAINLESS STEEL HOT FINISHED SEAMLESS PIPES GRADE 304L | INR 170 | $ 2.11 | 7.76 UAE Dirham |
AISI 304L Schedule 40 Pipe Value Added Services
- 100% X-Ray Welding
- Pipe Polishing
- Beveling
- Special Testing Requirements – Destructive Testing, Non Destructive Testing etc.
- Ultrasonic Testing
- Heat Treatment, Annealing, Pickling
- Cold Drawing Services
ASTM A312 TP304L Seamless Pipe Surface Finish
| Surface Finish | Internal Surface(ID) | External Surface(OD) | |||
|---|---|---|---|---|---|
| Roughness Average(RA) | Roughness Average(RA) | ||||
| μm | μ inch | μ inch | μm | ||
| MP | Mechanical Polish | 1.0,0.8,0.6,0.5 | 40,32,25,20 | 32 | 0.8 |
| AP | Annealed & Pickled | Not defined | Not defined | 40 or Not defined | 1.0 or Not defined |
| EP | Electro Polish | 0.38,0.25,0.20;0.13 | 15,10,7,5 | 32 | 0.8 |
| BA | Beight Annealed | 1.0,0.8,0.6,0.5 | 40,32,25,20 | 32 | 0.8 |
Don't Forget
to check ASTM A312 TP304L ERW Pipe supplied to following locations
304l schedule 10 stainless steel pipe
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
304l stainless steel seamless pipe
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
ASME SA 312 SS 304L Schedule 40 Pipe
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
ASTM A312 304L Pipe
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
ASTM A312 TP 304L Round Pipe
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
SS 304L Tube
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
