What is Stainless Steel 410 Pipe and Tube
Stainless steel 410 pipes and tubes are low alloy grades. These tubes possess superior corrosion and oxidation resistance properties. The versatile pipes of this grade can withstand temperatures up to 1292 degrees F. The high-strength modules have excellent tensile and yield strengths and can be welded following standard welding procedures.
How Good Is 410 Stainless Steel Pipe
Stainless steel 410 pipe is a martensitic grade designed with superior mechanical properties. The pipes showcase enhanced corrosion resistance while having good strength and hardness.
Difference between ASTM A312 TP410 and ASME SA 312 TP410 pipe
ASTM and ASME are two important standards of the A312 TP410 grade. Both these grades are nearly identical and can be distinguished based on certain key features.
What is ASTM A312 TP410 ERW Pipe and Welded Pipe
ASTM A312 TP410 ERW and welded pipe are two common manufacturing grades that show the presence of seams or welds on the surface of the piping module. Both these modules can be differentiated in certain aspects.
What is ASME SA 312 SUS 410 Round Pipe
ASME SA 312 SUS 410 grade covers round pipes of seamless or welded configurations. The pipes possess a circular cross-sectional area and require special equipment to precisely shape the pipes for use in different environments.
What is 410 Stainless Steel Seamless Pipe
Stainless steel 410 seamless pipe is high-strength piping module that is formed by passing hot steel billets through an extruded metal. A seamless pipe of this grade can process and transport fluids and gases at high pressures and temperatures.
Table of Content
| SS 410 Pipe Specification | ASTM/ASME A 312/ SA 312 |
|---|---|
| Size | 1/8″NB to 30″NB IN |
| Dimensions | ASME, ASTM and API |
| Schedule | Schedule20, Schedule30, Schedule40, STD, Schedule80, XS, Schedule60, Schedule80, Schedule120, Schedule140, Schedule160, XXS 410 Pipe Manufacturer |
| SS 410 Pipes | 1/2 NB to 16 NB |
| Type of 410 SS Pipe Suppliers | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| ERW 410 Pipes | 1/2 NB to 24 NB |
| Form | “U” Shape, Custom Pipes, Round Pipes, Hydraulic Pipes |
| EFW 410 Pipes | 6 NB to 100 NB |
| End | Beveled End, Plain End, Treaded |
| Length | Double Random, Single Random, & Cut Length. |
| Grade | P | C | S | Mn | Cr | Si | Ni | Mo | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 410 | min. max. |
– 0.040 |
– 0.15 |
– 0.030 |
– 1.00 |
11.5 13.5 |
– 1.00 |
0.75 | – | – |
| Tempering Temperature (0C) | Elongation (% in 50mm) | Tensile Strength (MPa) | Hardness Brinell (HB) | Yield Strength 0.2% Proof (MPa) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 16 min | 480 min | – | 275 min | – |
| 427 | 16 | 1405 | 401 | 950 | # |
| 204 | 16 | 1310 | 388 | 1000 | 30 |
| 593 | 20 | 870 | 255 | 675 | 39 |
| 316 | 14 | 1240 | 325 | 960 | 36 |
| 650 | 23 | 755 | 225 | 575 | 80 |
| 538 | 16 | 985 | 321 | 730 | # |
| * Annealed properties are specified for Condition A of ASTM A276, for cold finished bar. # Due to associated low impact resistance this steel should not be tempered in the range 425-6000C |
|||||
| Grade | Elastic Modulus (GPa) | Specific Heat 0-1000C (J/kg.K) |
Density (kg/m3) | Mean Coefficient of Thermal Expansion (m/m/0C) |
Electrical Resistivity (n.m) | Thermal Conductivity (W/m.K) |
|||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-5380C | 0-3150C | at 1000C | at 5000C | |||||
| 410 | 200 | 460 | 7750 | 9.9 | 11.6 | 11.4 | 570 | 24.9 | 28.7 |
| NB Sizes | Schedule 5 | Schedule 10 | Schedule 40 | Schedule 80 | Schedule 160 |
|---|---|---|---|---|---|
| 1 1/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1/8″ | ✓ | ✓ | ✓ | ✓ | |
| 2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1/4″ | ✓ | ✓ | ✓ | ✓ | |
| 2 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3/8″ | ✓ | ✓ | ✓ | ✓ | |
| 3″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3/4″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6″ | ✓ | ✓ | ✓ | ✓ | |
| 1″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 8″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 1 1/2″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5″ | ✓ | ✓ | ✓ | ✓ | |
| 14″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 10″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 16″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 12″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Wall | Sizes ( O.D.) |
|---|---|
| .095 | 1/2 , 5/8 , 1 , 1 1/4 , 1 1/2 , 2″ |
| .010 | 1/16 , 1/8 , 3/16″ |
| .083 | 1/4 , 3/8 , 1/2 , 5/8 , 3/4 , 7/8 , 1 , 1 1/4 , 1 1/2 , 1 5/8 , 1 7/8 , 2 , 2 1/2 ,3″ |
| .020 | 1/16 , 1/8 , 3/16 , 1/4 , 5/16 , 3/8″ |
| .109 | 1/2 , 3/4 , 1 , 1 1/4 , 1 1/2 , 2″ |
| .012 | 1/8″ |
| .120 | 1/2 , 5/8 , 3/4 , 7/8 , 1 , 1 1/4 , 1 1/2 , 2 , 2 1/4 , 2 1/2 , 3″ |
| .016 | 1/8 , 3/16″ |
| .028 | 1/8 , 3/16 , 1/4 , 5/16 , 3/8 , 1/2 , 3/4 , 1 , 1 1/2 , 2″ |
| .125 | 3/4 , 1 , 1 1/4 , 1 1/2 , 2 , 3 , 3 1/4″ |
| .035 | 1/8 , 3/16 , 1/4 , 5/16 , 3/8 , 7/16 , 1/2 , 16 , 5/8 , 3/4 , 7/8 , 1 , 1 1/4 , 1 1/2 , 1 5/8 , 2 , 2 1/4″ |
| .134 | 1″ |
| .049 | 3/16 , 1/4 , 5/16 , 3/8 , 1/2 , 16 , 5/8 , 3/4 , 7/8 , 1 , 1 1/8 , 1 1/4 , 1 1/2 , 1 5/8 , 2 , 2 1/4″ |
| .375 | 3 1/2″ |
| .065 | 1/4 , 5/16 , 3/8 , 1/2 , 16 , 5/8 , 3/4 , 7/8 , 1 , 1 1/4 , 1 1/2 , 1 5/8 , 1 3/4 , 2 , 2 1/2 , 3″ |
| .250 | 3″ |
| Grade | Swedish SS | UNS No | Old British | Euronorm | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| En | BS | No | Name | ||||
| 410 | 2302 | S41000 | 56A | 410S21 | 1.4006 | X12Cr13 | SUS 410 |
| Nominal size [inches] | Outside diameter [inches] | Outside diameter [mm] | Weight [lb/ft] | Weight [kg/m] | Wall thickness [inches] | Wall thickness [mm] |
|---|---|---|---|---|---|---|
| 16 | 16,000 | 406,4 | 192,43 | 286,64 | 1,219 | 30,96 |
| 4 | 4,500 | 114,3 | 19,00 | 28,32 | 0,438 | 11,13 |
| 14 | 14,000 | 355,6 | 150,79 | 224,65 | 1,094 | 27,79 |
| 5 | 5,563 | 141,3 | 27,04 | 40,28 | 0,500 | 12,7 |
| 20 | 20,000 | 508,0 | 296,37 | 441,49 | 1,500 | 38,10 |
| 6 | 6,625 | 168,3 | 36,39 | 54,20 | 0,562 | 14,27 |
| 22 | 22,000 | 559,0 | 353,61 | 527,02 | 1,625 | 41,28 |
| 8 | 8,625 | 219,1 | 60,71 | 90,44 | 0,719 | 18,26 |
| 24 | 24,000 | 610,0 | 429,39 | 640,03 | 1,812 | 46,02 |
| 10 | 10,750 | 273,0 | 89,29 | 133,06 | 0,844 | 21,44 |
| 18 | 18,000 | 457,0 | 244,14 | 363,56 | 1,375 | 34,93 |
| 12 | 12,750 | 323,8 | 125,49 | 186,97 | 1,000 | 25,4 |
| Pipe Size (in) |
Nominal Thickness (in) mm |
Diameter (in) mm |
Volume (ft3/ft) |
Transverse Areas (in2) mm2 |
Length of Pipe (ft per sq. foot of surface) |
Number of Threads per inch of Screw | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | Internal | External | Steel | Internal | External Surface (ft) |
Internal Surface (ft) |
(lb/ft) | (kg/m) | ||||
| 5 | 0.26 | 5.563 | 5.05 | 0.1389 | 24.30 | 4.30 | 20.00 | 0.69 | 0.76 | 8 | 14.61 | 21.74 |
| 1/8 | 0.07 | 0.405 | 0.27 | 0.0004 | 0.13 | 0.07 | 0.06 | 9.43 | 14.20 | 27 | 0.24 | 0.36 |
| 4 | 0.24 | 4.500 | 4.03 | 0.0884 | 15.90 | 3.17 | 12.73 | 0.85 | 0.95 | 8 | 10.79 | 16.06 |
| ¼ | 0.09 | 0.540 | 0.36 | 0.0007 | 0.23 | 0.13 | 0.10 | 7.07 | 10.49 | 18 | 0.42 | 0.63 |
| 8 | 0.32 | 8.625 | 7.98 | 0.3552 | 58.42 | 8.40 | 50.02 | 0.44 | 0.48 | 8 | 28.55 | 42.49 |
| 3/8 | 0.09 | 0.675 | 0.49 | 0.0013 | 0.36 | 0.17 | 0.19 | 5.66 | 7.75 | 18 | 0.57 | 0.84 |
| 10 | 0.37 | 10.750 | 10.02 | 0.5476 | 90.76 | 11.90 | 78.85 | 0.36 | 0.38 | 8 | 40.48 | 60.24 |
| ½ | 0.11 | 0.840 | 0.62 | 0.0021 | 0.55 | 0.25 | 0.30 | 4.55 | 6.14 | 14 | 0.85 | 1.26 |
| 12 | 0.41 | 12.750 | 11.94 | 0.7763 | 127.64 | 15.74 | 111.90 | 0.30 | 0.32 | 8 | 53.60 | 79.77 |
| ¾ | 0.11 | 1.050 | 0.82 | 0.0037 | 0.87 | 0.33 | 0.53 | 3.64 | 4.64 | 14 | 1.13 | 1.68 |
| 6 | 0.28 | 6.625 | 6.07 | 0.2006 | 34.47 | 5.58 | 28.89 | 0.58 | 0.63 | 8 | 18.97 | 28.23 |
| 1 | 0.13 | 1.315 | 1.05 | 0.0060 | 1.36 | 0.49 | 0.86 | 2.90 | 3.64 | 11 ½ | 1.68 | 2.50 |
| 16 | 0.50 | 16.000 | 15.00 | 1.2230 | 201.05 | 24.35 | 176.70 | 0.24 | 0.25 | 8 | 78.00 | 116.08 |
| 1 ¼ | 0.14 | 1.660 | 1.38 | 0.0104 | 2.16 | 0.67 | 1.50 | 2.30 | 2.77 | 11 ½ | 2.27 | 3.38 |
| 14 | 0.44 | 14.000 | 13.13 | 0.9354 | 153.94 | 18.64 | 135.30 | 0.27 | 0.28 | 8 | 63.00 | 93.75 |
| 1 ½ | 0.15 | 1.900 | 1.61 | 0.0141 | 2.84 | 0.80 | 2.04 | 2.01 | 2.37 | 11 ½ | 2.72 | 4.04 |
| 18 | 0.56 | 18.000 | 16.88 | 1.5550 | 254.85 | 30.85 | 224.00 | 0.21 | 0.23 | 8 | 105.00 | 156.26 |
| 2 | 0.15 | 2.375 | 2.07 | 0.0233 | 4.43 | 1.08 | 3.36 | 1.61 | 1.85 | 11 ½ | 3.65 | 5.43 |
| 20 | 0.59 | 20.000 | 18.81 | 1.9260 | 314.15 | 36.15 | 278.00 | 0.19 | 0.20 | 8 | 123.00 | 183.05 |
| 2 ½ | 0.20 | 2.875 | 2.47 | 0.0333 | 6.49 | 1.70 | 4.79 | 1.33 | 1.55 | 8 | 5.79 | 8.62 |
| 24 | 0.69 | 24.000 | 22.63 | 2.7930 | 452.40 | 50.30 | 402.10 | 0.16 | 0.17 | 8 | 171.00 | 254.48 |
| 3 | 0.22 | 3.500 | 3.07 | 0.0513 | 9.62 | 2.23 | 7.39 | 1.09 | 1.25 | 8 | 7.58 | 11.27 |
| 3 ½ | 0.23 | 4.000 | 3.55 | 0.0687 | 12.56 | 2.68 | 9.89 | 0.95 | 1.08 | 8 | 9.11 | 13.56 |
| Size in inche | Schedule | Temperature(F) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 100 | 600 | 200 | 650 | 300 | 700 | 400 | 750 | ||
| 1 1/2″ | 40 | 1496 | 2257 | 1425 | 1947 | 1383 | 1750 | 1354 | 1608 | 1340 |
| 80 | 2108 | 3182 | 2009 | 2744 | 1949 | 2466 | 1909 | 2267 | 1889 | |
| 160 | 3060 | 4619 | 2916 | 3984 | 2829 | 3580 | 2772 | 3291 | 2743 | |
| 1″ | 40 | 2019 | 3048 | 1924 | 2629 | 1867 | 2362 | 1824 | 2171 | 1810 |
| 80 | 2791 | 4213 | 2659 | 3634 | 2580 | 3265 | 2528 | 3002 | 2501 | |
| 160 | 4068 | 6140 | 3876 | 5296 | 3761 | 4759 | 3684 | 4375 | 3646 | |
| 2″ | 160 | 2980 | 4499 | 2840 | 3880 | 2755 | 3486 | 2699 | 3205 | 2671 |
| 40 | 1260 | 1902 | 1201 | 1640 | 1165 | 1474 | 1141 | 1355 | 1129 | |
| 80 | 1820 | 2747 | 1734 | 2369 | 1682 | 2129 | 1648 | 1957 | 1631 | |
| 4″ | 40 | 1014 | 1531 | 967 | 1321 | 938 | 1187 | 919 | 1091 | 909 |
| 80 | 1466 | 2213 | 1397 | 1909 | 1355 | 1715 | 1328 | 1577 | 1314 | |
| 160 | 2386 | 3601 | 2273 | 3106 | 2206 | 2791 | 2161 | 2566 | 2138 | |
| 3″ | 40 | 1196 | 1806 | 1140 | 1558 | 1106 | 1400 | 1084 | 1287 | 1072 |
| 80 | 1691 | 2553 | 1612 | 2202 | 1564 | 1979 | 1532 | 1819 | 1516 | |
| 160 | 2544 | 3840 | 2424 | 3312 | 2352 | 2976 | 2304 | 2736 | 2280 | |
| 6 | 40 | 808 | 1219 | 770 | 1052 | 747 | 945 | 732 | 869 | 724 |
| 80 | 1267 | 1913 | 1208 | 1650 | 1172 | 1483 | 1148 | 1363 | 1136 | |
| 160 | 2179 | 3289 | 2076 | 2836 | 2014 | 2549 | 1973 | 2343 | 1953 | |
| 10″ | 160 | 2085 | 3147 | 1986 | 2714 | 1927 | 2439 | 1880 | 2242 | 1868 |
| 40 | 645 | 974 | 615 | 840 | 596 | 755 | 584 | 694 | 578 | |
| 80 | 1066 | 1609 | 1016 | 1388 | 986 | 1247 | 966 | 1147 | 56 | |
| 5″ | 40 | 889 | 1342 | 847 | 1158 | 822 | 1040 | 805 | 956 | 797 |
| 80 | 1312 | 1981 | 1250 | 1709 | 1213 | 1535 | 1189 | 1411 | 1176 | |
| 160 | 2262 | 3414 | 2155 | 2945 | 2091 | 2646 | 2049 | 2433 | 2027 | |
| 8″ | 40 | 711 | 1073 | 678 | 926 | 657 | 832 | 644 | 765 | 637 |
| 80 | 1121 | 1692 | 1068 | 1459 | 1036 | 1311 | 1015 | 1205 | 1005 | |
| 160 | 2103 | 3175 | 2004 | 2738 | 1944 | 2460 | 1905 | 2262 | 1885 | |
| SS 410 Pipe OD | AISI 410 Seamless Pipe Tolerance |
|---|---|
| 4 to 35mm | +/- 0.08mm |
| 35 to 38mm | +/- 0.15mm |
| 38 to 60mm | +/- 0.20mm |
| 60 and above | +/- 0.25mm |

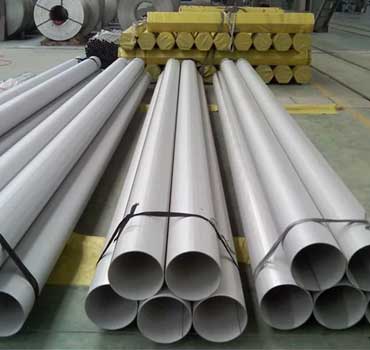

AISI ASTM 410 cold rolled 8k mirror polished hairline satin

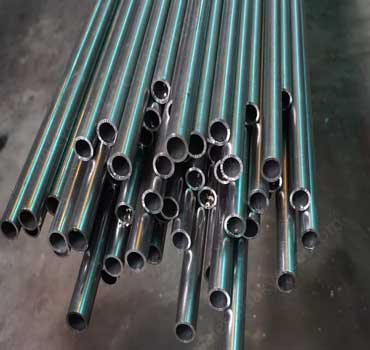

ASTM 312 SUS 410 25.4mm 48mm 50.8mm Stainless Steel Welded

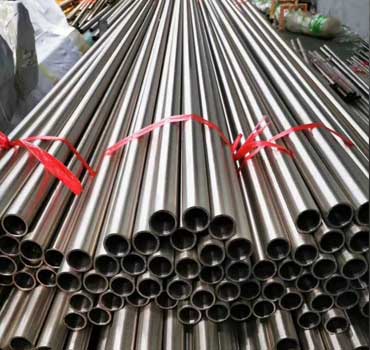

410 Seamless Industrial Pipes 73mm Schedule 10 Cold Drawn No.1 Finished Annealing

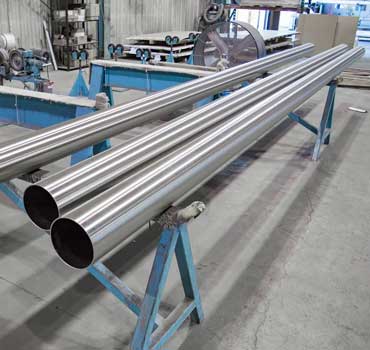

High Pressure Sch40 Stainless Steel Pipe Price Bright Annealed Ss 410 Heavy Pipe

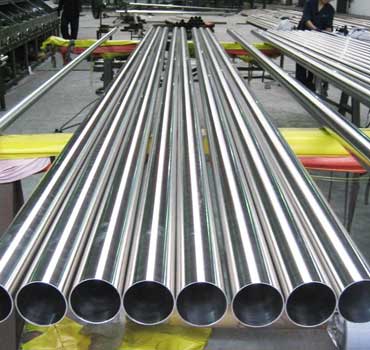

1 1/2 2 Inch SUS 410 Welded Pipe 410

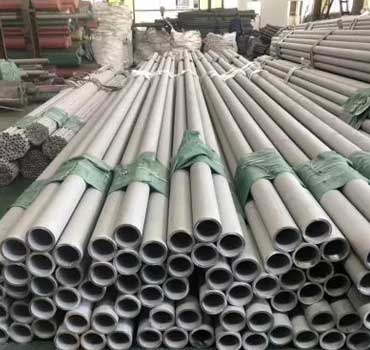

410 60mm Stainless Steel Welded Seamless Tube and Pipe
