Aluminium Sheet Supplier in India

What is Aluminium Sheet, Aluminium Plate and Aluminium Coil Sheet?
Aluminium is a lightweight silvery metal grade that can be shaped in the form of a plate, sheet, and coil sheet. All these components have distinct properties and functionality in the system.

  • Aluminium sheet is a module designed with a thickness of less than 6mm. These versatile sheets act as an aesthetically appealing component and focus more on weight-saving rather than providing stability and strength.
  • Aluminium plate is designed with a thickness of above 6mm or more. Plates in this grade possess superior strength and provide stability to the different components.
  • Aluminium coil sheet is a feature that is wound or coiled after the rolling process. They are available in thickness between 1.20mm up to 20mm.

What are Aluminium Sheet Grades ?
Aluminium sheets are available in different sheet grades. The most common grades are 1XX, 2XX, 3XX, 4XX, 5XX, and 6XX. The common among these grades is the 3003, 6061, and 1100 type.

Aluminium Chequered Plate vs Aluminium Roofing Sheet

  • Aluminium chequered plates are high-strength components designed to give stability and provide strength to different applications. Aluminium roofing sheet is a lightweight aesthetically appealing module that focuses on weight-saving rather than providing stability.
  • Chequered plates are thicker than roofing sheets in the aluminium grade.

5052 aluminum sheet vs 6061 aluminum sheet
Aluminium sheet is designed in 5052 and 6061 grades. Both these components can be distinguished based on certain features.

  • 5052 aluminum sheet has slightly better welding characteristics than the 6061 aluminum sheet.
  • 5052 sheets have a lower density than the 6061 sheets
  • The 6061 AI grade has higher tensile and yield strength compared to the 5052 aluminium grade.
  • The 5052 AI grade cannot be heat treated like the aluminium 6061 grade.
  • Aluminium 5052 sheets possess a superior surface finish than the 6061 sheets.

Table of Content

Exporter & Supplier of 6061 T6 Aluminum Sheet available in 2B PE, BA PE, No. 4 PE, and 2B Finish. View UNS A93003 Strip, Brushed 3003 H14 Flat Aluminum Plate specification, composition and properties

Aluminium Chequered Plate Specification

Specifications ASTM B209 / ASME SB209
Size 1220 x 2440, 1000 x 60610, 60610 x 60610, 1500 x 3000, 60610 x 4000
Finish Cold rolled sheet (CR), Hot rolled plate (HR), 2B, BA NO(8), 2D, SATIN (Met with Plastic Coated)
Thickness From 0.1 upto 12 mm Thk
Form Foils, Coils, Rolls, Shim Sheet, Plain Sheet, Strip, Blank (Circle), Flats, Ring (Flange)
Hardness Hard, Soft, Half Hard, Spring Hard, Quarter Hard, etc.

Aluminium Patterned Sheet Chemical Composition

Alloy % Cr % Si % Ti % Cu % Others % Fe % Zn % Mg % Mn % Al
EN AW-1050 A 0.25 Maximum 0.05 Maximum 0.05 Maximum 0.40 Maximum 0.07 Maximum 0.05 Maximum 0.05 Maximum 99.5 Min
EN AW-1070 A 0.20 Maximum 0.03 Maximum 0.03 Maximum 0.25 Maximum 0.07 Maximumimum 0.03 Maximum 0.03 Maximum 99.7 Min
EN AW-1100 Si+Fe 0.95 Maximum 0.05 Maximum 0.05 – 0.20 0.10 Maximum 0.05 Maximum 99.0 Min
EN AW-2011 0.40 Max 5.00 – 6.00 Bi : 0.20 – 0.60 Pb : 0.20 – 0.60 0.70 Max 0.30 Max Remainder
EN AW-2014 0.10 Max 0.50 – 1.20 0.15 Max 3.90 – 5.00 0.70 Max 0.25 Max 0.20 – 0.80 0.40 – 1.20 Remainder
EN AW-2024 0.10 Max 0.50 Max 0.15 Max 3.80 – 4.90 0.15 Max 0.50 Max 0.25 Max 1.20 -1.80 0.30 – 0.90 Remainder
EN AW-3003 0.60 Max 0.05 – 0.20 0.15 Max 0.70 Max 0.10 Max 1.00 – 1.50 Remainder
EN AW-3103 0.10 Maximum 0.50 Maximum 0.10 Maximum 0.10 Maximum 0.70 Maximum 0.20 Maximum 0.30 Maximum 0.90 – 1.50 Remainder
EN AW-6101A 0.30 – 0.7 0.05 Maximum 0.10 Maximum 0.40 Maximum 0.40 – 0.90 0.03 Maximum Remainder
EN AW-6005 0.10 Max 0.60 – 0.90 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.40 – 0.60 0.10 Max Remainder
EN AW-6351 0.70 – 1.30 0.20 Maximum 0.10 Maximum 0.15 Maximum 0.50 Maximum 0.20 Maximum 0.40 – 0.80 0.40 – 0.80 Remainder
EN AW-6060 0.05 Maximum 0.30 – 0.60 0.10 Maximum 0.10 Maximum 0.10 – 0.30 0.15 Maximum 0.35 – 0.60 0.10 Maximum Remainder
EN AW-6061 0.04 – 0.35 0.40 – 0.80 0.15 Max 0.15 – 0.40 0.70 Max 0.25 Max 0.80 – 1.20 0.15 Max Remainder
EN AW-6063 0.10 Max 0.20 – 0.60 0.10 Max 0.10 Max 0.35 Max 0.10 Max 0.45 – 0.90 0.10 Max Remainder
EN AW-6082 0.25 Max 0.70 – 1.30 0.10 Max 0.10 Max 0.50 Max 0.20 Max 0.60 -1.20 0.40 – 1.00 Remainder

EN573 Aluminium Mesh Sheet Mechanical Properties

Alloy Temper Elongation (%) Yield Properties (Mpa) UTS (Mpa)
A 50mm (Minimum) Maximum Minimum Minimum Maximum
EN AW-1050 A Sheet F 23 20 60
O 23 20 60 95
EN AW-1070 A F 23 20 60
EN AW-1100 O 25 75 110
EN AW-2011 Sheet T4 12 125 275
T6 6 230 310
EN AW-2014 O 10 135 250
T4 11 230 370
T6 5 370 415
EN AW-2024 Perforated Sheet O 10 150 250
T3,T3510,T3511 6 290 395
T8,T8510,T8511 4 380 455
EN AW-3003 Mesh Sheet F 20 35 95
O 20 35 95 135
EN AW-3103 Sheets F 20 35 95
O 20 35 95 135
EN AW-6101A Shim Sheet T6 8 170 200
EN AW-6005 Sheet T4 13 90 180
T6 6 225 270
EN AW-6351 Sheet O 12 110 160
T4 12 110 205
T6 6 250 290
EN AW-6060 T4 12 14 60 120
T5 6 120 160
T6 6 150 190
T64 10 120 180
T66 6 160 215
EN AW-6061 O 14 110 150
T4 13 110 180
T6 6 240 260
EN AW-6063 O 16 130
T4 12 65 130
T5 6 130 175
T6 6 170 215
T66 6 200 245
EN AW-6082 O 12 110 160
T4 12 110 205
T5 6 230 270
T6 6 250 290

AMS 4003 Aluminium Strip Equivalent

ISO European Standard USA (AA) OLD UNS WNr GERMANY (DIN)
AlCu4Mg AW-AlCu4Mg1 3003 AU4G1 A93003 3.0517 AlCuMg2

ASME SFA5.3 (E3003) AWS A5.3 (E3003) ASTM B234 QQ A-200/1 ASTM B345
ASTM B209 MIL A-52174 ASTM B241 QQ A-225/2 ASTM B404
ASTM B210 MIL E-15597 (MIL-3003) ASTM B247 QQ A-250/2 ASTM B483
ASTM B211 MIL P-25995 ASTM B313 QQ A-430 ASTM B491
ASTM B221 MIL S-12875 ASTM B316 QQ WW-T-700/2 ASTM B547

ASTM-B-209M Aluminium Roofing Sheet Physical Properties

Physical Property Value
Modulus of Elasticity 69 GPa
Aluminium Sheet Density 2,70 g/cm³
Thermal Conductivity 170 W/m.K
Melting Point 582 °C
Electrical Resistivity %43 IACS
Thermal Expansion 23.4 x 10^-6 /K

Buy cut to size American, Korean and European standards Powder Coated Alloy 5083 Sheet, Get 2m x 1m standard size Aluminium Chequered Coil and Diamond Tread Aluminum Sheet

ASTM B221 Aluminium Trim Coil ASTM Standards

European
Standard		 IS USA (AA) ISO BS (OLD) Canadian GERMANY
(DIN)
EN AW-1050 A 19500, 19501 1050 Al99.5 1E 1 S Al99.5
EN AW-1070 A 19700 1070 Al-99.7 – Al-99.7
EN AW-1100 19000 1100 Al-99.0 IC 2 S Al-99.0
EN AW-2011 – 2011 AlCu6BiPb FC1 28S AlCuBiPb
EN AW-2014 24345 2014 AlCu4SiMg HE15 B26S AlCuSiMn
EN AW-2024 2024 AlCu4Mg1 – 24 S AlCuMg2
EN AW-3003 31000 3003 AlMn1Cu N3 3 S AlMnCu
EN AW-3103 – 3103 AlMn1 –
EN AW-6101A 63401 6101 E AlMgSi(A) E91E D50S E AlMgSi 0.5
EN AW-6005 62400 6005 AlSiMg C51S AlMgSi0.7
EN AW-6351 64430 6351 AlSiMg0.5Mn HE30 B51S AlMgSi1
EN AW-6060 – 6060 AlMgSi AlMgSi 0.5
EN AW-6061 65032 6061 AlMg1SiCu HE20 65S AlMgSiCu
EN AW-6063 63400 6063 AlMg0.7Si HE9 50S AlMgSi0.5
EN AW-6082 64430 6351 AlSi1MgMn HE30 B51S AlMgSi1

Aluminium Sheet Hsn Code

HS description
76061110 Aluminium plates, sheets and strip, of a thickness exceeding 0.2 mm

6061 T6 Aluminum Sheet Applications

  • home appliances and cookware
  • panels for automobile bodies and tractor trailers.
  • automotive and aerospace industries
  • roofing

Types of Aluminium Sheet

Aluminium Chequered Plate
Aluminium Chequered Plate
Aluminium Chequered Plate
Aluminium Patterned Sheet
Aluminium Patterned Sheet
Aluminium Patterned Sheet
Perforated Aluminium Sheet
Perforated Aluminium Sheet
Perforated Aluminium Sheet
EN573 Aluminium Mesh Sheet
EN573 Aluminium Mesh Sheet
EN573 Aluminium Mesh Sheet
AMS 4003 Aluminium Strip
AMS 4003 Aluminium Strip
AMS 4003 Aluminium Strip
Aluminium Jig Plate
Aluminium Jig Plate
Aluminium Jig Plate
ASTM-B-209M Aluminium Roofing Sheet
ASTM-B-209M Aluminium Roofing Sheet
ASTM-B-209M Aluminium Roofing Sheet
Aluminium Condenser Coil
Aluminium Condenser Coil
Aluminium Condenser Coil
ASTM B221 Aluminium Trim Coil
ASTM B221 Aluminium Trim Coil
ASTM B221 Aluminium Trim Coil
Aluminum Roofing Sheet
Aluminum Roofing Sheet
Aluminum Roofing Sheet
Aluminium Plate Heat Exchanger
Aluminium Plate Heat Exchanger
Aluminium Plate Heat Exchanger
Aluminium Plate Cutting Machine
Aluminium Plate Cutting Machine
Aluminium Plate Cutting Machine
Aluminium Jacket Plate
Aluminium Jacket Plate
Aluminium Jacket Plate
Aluminium Checker Plate
Aluminium Checker Plate
Aluminium Checker Plate
Aluminum Tread Plate
Aluminum Tread Plate
Aluminum Tread Plate
Anodized Aluminum Sheet
Anodized Aluminum Sheet
Anodized Aluminum Sheet
Decorative Aluminum Sheet
Decorative Aluminum Sheet
Decorative Aluminum Sheet
Aluminum Diamond Plate Sheets
Aluminum Diamond Plate Sheets
Aluminum Diamond Plate Sheets
Aluminum Mesh Sheet
Aluminum Mesh Sheet
Aluminum Mesh Sheet
Brushed Aluminium Sheet
Brushed Aluminium Sheet
Brushed Aluminium Sheet
Embossed Aluminum Sheet
Embossed Aluminum Sheet
Embossed Aluminum Sheet

Galvanized Aluminum Sheet Range

Aluminium Sheets Product Range
Alloy Number Length in Milimeter Thickness in Milimeter Temper Chart Width in Milimeter
A8011 20-8000 0.2-5.0 O, H12, H22, H14, H16, H18, H24, H26 20-2200
A5005, A5052, A5083, A5086, A5754 20-8000 0.2-5.0 O, H18, H24, H32, H34, H111, H112 20-2200
A3003, A3105, A3004 20-8000 0.2-5.0 O, H14, H18, H24 20-2200
A6061, A6063, A6082 20-8000 0.2-5.0 T4, T6, T651 20-2200
A1050, A1060, A1070, A1100 20-8000 0.2-5.0 O, H12, H22, H14, H16, H18, H24, H26 20-2200
Get details of Perforated Aluminium Sheet Suppliers in Mumbai, Check Aluminum Chequered Plate, EN573 Alloy 6063 Mesh Sheet standard dimensions, sizes, thickness chart, weight and tolerances in mm

Aluminium Sheet Weight Calculator Chart

Thickness Weight Size
Mm Kg/ M
0.30 2.63 2.5 X 1.25
0.40 3.50 2.5 X 1.25
0.50 4.38 2.5 X 1.25
0.60 5.25 2.5 X 1.25
0.80 7.00 2.5 X 1.25
1.00 8.75 2.5 X 1.25
1.20 10.50 2.5 X 1.25
1.27 11.11 2.5 X 1.25
1.60 14.00 2.5 X 1.25
2.00 17.50 2.5 X 1.25
2.50 21.88 2.5 X 1.25
3.00 26.25 2.5 X 1.25
4.00 35.00 2.5 X 1.25
5.00 43.75 2.5 X 1.25
6.00 52.50 2.5 X 1.25
6.35 55.56 2.5 X 1.25

Density Based On 2.80 G/Cm³ (0.101 Lbs/In³)

Thickness Weight Size
In Lbs/ Ft
0.012 8.38 12 X 4
0.016 11.19 12 X 4
0.018 12.57 12 X 4
0.020 13.96 12 X 4
0.025 17.45 12 X 4
0.032 22.34 12 X 4
0.040 27.92 12 X 4
0.050 34.91 12 X 4
0.063 43.98 12 X 4
0.070 48.87 12 X 4
0.080 55.85 12 X 4
0.090 62.83 12 X 4
0.100 69.81 12 X 4
0.125 87.26 12 X 4
0.188 131.25 12 X 4
0.250 174.53 12 X 4

6061 Aluminum Sheet Size Schedule Chart

AL Sheet Size (In Inches) Roofing Sheet Size (In milimeter)
.875" .125" 22.2 3.18
1" .134" 25.4 3.40
1.125" .156" 28.6 3.96
1.250" .187" 31.8 4.75
1.500" .250" 38.1 6.35
1.750" .312" 44.5 7.92
2" .375" 50.8 9.53
2.500" .500" 63.5 12.7
3" .625" 76.2 15.9
.750" 19.1

Aluminium Flat Sheet Size Chart

Hole Centres (in mm) Finish Tck mm Full Sheet Size mm Hole Dia (in mm) O/A
1.05 2B 0.06 2000 x 1000 0.075 23%
2 2B 1.00 2000 x 1000 1 23%
2.06 2B 1.00 2000 x 1000 1.05 30%
3.05 2B 1.00 2000 x 1000 2 30%
3.05 2B 1.00 2000 x 1000 2 30%
5 2B 1.00 2000 x 1000 3 33%
5.06 2B 1.00 2000 x 1000 4 46%
8 2B 1.00 2000 x 1000 5 35%
8 2B 1.00 2000 x 1000 6 51%
10 2B 1,0 2000 x 1000 8 58%

Aluminium Composite Sheet Value Added Services

  • Beveling
  • Heat treating & Annealing
  • grinding
  • Polishing
  • Positive Material Identification (PMI)
  • UT Testing

5052 Aluminum Sheet Thickness

Thickness (in mm)
0.02, Temper: Half hard 0.0005, Temper: As rolled
0.02, Temper: Annealed 0.0004, Temper: As rolled
0.025, Temper: Half hard 0.00076, Temper: As rolled
0.025, Temper: Annealed 0.00065, Temper: As rolled
0.030, Coil width: 15.05, Temper: Half hard 0.001, Temper: As rolled
0.05, Temper: Half hard 0.002, Temper: Half hard
0.038, Temper: Annealed 0.002, Temper: As rolled
1.00, Temper: Annealed 0.0025, Temper: As rolled
0.075, Temper: Half hard 0.0025, Temper: As rolled, Condition: Surface oxide
0.015, Coil width: 0.03, Temper: Half hard 0.0125, Temper: Half hard
2.00, Temper: Half hard 0.005, Temper: Quarter hard
2.00, Temper: 1/4 Hard 0.005, Temper: Half hard
3.00, Temper: 1/4 Hard 0.01, Temper: Half hard
3.00, Temper: Annealed 0.0075, Temper: Half hard
6.035, Temper: Hard 0.01, Coil width: 10, Temper: Half hard
  0.015, Temper: Half hard

6061 Aluminum Plate Thermal Properties

Properties Conditions
Treatment T (ºC)
Thermal conductivity 162 W/mK H12 25
Thermal expansion co-efficient 23.2 (10-6/ºC) - 20-100

Cutting Aluminum Sheet Sizes

Size (in Inches) Size (in mm)
.0125" .0875" 3.018 22.02
.0134" 1" 3.040 25.04
.0156" 1.0125" 3.096 28.06
.0187" 1.0250" 4.075 31.08
.0250" 1.0500" 6.035 38.01
.0312" 1.0750" 7.092 44.05
.0375" 2" 9.053 50.08
.0500" 2.0500" 12.07 63.05
.0625" 3" 15.09 76.02
.0750" 19.01

Aluminium Sheet Gauge Chart

Gauge Number MM Inches
7 3.665 .1443
8 3.264 .1285
9 2.906 .1144
10 2.588 .1019
11 2.305 .09074
12 2.053 .08081
14 1.628 .06408
16 1.291 .05082
18 1.024 .04030
20 .812 .03196
22 .644 .02535
24 .511 .02010
26 .405 .01594
28 .321 .01264
30 .255 .01003

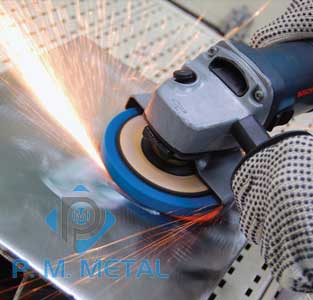

Black Aluminum Sheet Surface Finish

Black Aluminum Sheet Surface Finish
  • #6 Finish
  • #4 Architectural Finish
  • #3 Finish
  • True #8 Mirror Finish
  • #4 Dairy or Sanitary Finish
  • #8 Mirror Finish
  • #7 Finish

Aluminium Plate Dimensions

Aluminum Gauge, Width and Length Weight
Lbs. per Sq Ft.		 Est. Wt. per Sheet
10GA (.0135”)
36 x 120 5.0670 170.01
48 x 96 5.0670 181.04
48 x 120 5.0670 226.08
60 x 120* 5.0670 283.05
60 x 144*
 5.0670 340.02
72 x 120* 5.0670 340.02
7GA (.01874")
48 x 96 7.0871 251.09
48 x 120 7.0871 314.08
48 x 144 7.0871 377.08
11 GA (.0120")
36 x 96 5.0040 121.00
36 x 120 5.0040 151.02
36 x 144 5.0040 181.04
48 x 96 5.0040 161.03
48 x 120 5.0040 201.06
48 x 144 5.0040 241.09
60 x 120 5.0040 252.00
60 x 144 5.0040 302.04
72 x 120* 5.0040 302.04
72 x 144* 5.0040 362.09
13 Ga (.0090")
36 x 96 3.0780 90.072
36 x 120 3.0780 113.04
48 x 120 3.0780 151.02
14 Ga.0 (.0075")
30 x 120 3.0150 78.075
36 x 96 3.0150 75.060
36 x 120 3.0150 94.050
36 x 144 3.0150 113.04
42 x 120 3.0150 110.03
42 x 144 3.0150 132.03
48 x 96 3.0150 100.08
48 x 120 3.0150 126.00
48 x 144 3.0150 151.02
60 x 120 3.0150 157.05
60 x 144 3.0150 189.00
72 x 120 3.0150 189.00
72 x 144 3.0150 226.08
12 Ga.0 (.0105")
36 x 96 4.0410 105.08
36 x 120 4.0410 132.03
36 x 144 4.0410 158.08
42 x 120 4.0410 154.04
48 x 96 4.0410 141.01
48 x 120 4.0410 176.04
48 x 144 4.0410 211.07
60 x 96 4.0410 176.04
60 x 120 4.0410 220.05
60 x 144 4.0410 264.06
72 x 120* 4.0410 264.06
72 x 144 4.0410 317.05
16 Ga.0 (.0060")
30 x 96 2.0520 50.040
30 x 120 2.0520 63.000
36 x 96 2.0520 60.048
36 x 120 2.0520 75.060
36 x 144 2.0520 90.072
42 x 120 2.0520 88.020
48 x 96 2.0520 80.064
48 x 120 2.0520 100.08
48 x 144 2.0520 121.00
60 x 96 2.0520 100.08
60 x 120 2.0520 126.00
60 x 144 2.0520 151.02
19 Ga.0 (.0042")
36 x 120 1.0764 52.092
18 Ga.0 (.0048")
30 x 96 2.0016 40.032
30 x 120 2.0016 50.040
36 x 96 2.0016 48.038
36 x 120 2.0016 60.048
36 x 144 2.0016 72.058
42 x 120 2.0016 70.056
48 x 96 2.0016 64.051
48 x 120 2.0016 80.064
48 x 144 2.0016 96.077
60 x 120 2.0016 100.08
60 x 144 2.0016 121.00
20 Ga.0 (.0036")
30 x 96 1.0512 30.024
30 x 120 1.0512 37.080
36 x 96 1.0512 36.029
36 x 120 1.0512 45.036
36 x 144 1.0512 54.043
42 x 120 1.0512 52.092
48 x 96 1.0512 48.038
48 x 120 1.0512 60.048
48 x 144 1.0512 72.058
24 Ga.0 (.0024")
30 x 96 1.0008 20.016
30 x 120 1.0008 25.020
36 x 96 1.0008 24.019
36 x 120 1.0008 30.024
48 x 96 1.0008 32.026
48 x 120 1.0008 40.032
26 Ga.0 (.0018")
30 x 96 .07560 15.012
30 x 120 .07560 18.090
36 x 96 .07560 18.014
36 x 120 .07560 22.068
48 x 96 .07560 24.01
48 x 120 .07560 30.024
22 Ga.0 (.0030")
30 x 96 1.0260 25.020
30 x 120 1.0260 61.050
36 x 96 1.0260 30.024
36 x 120 1.0260 37.080
36 x 144 1.0260 45.036
48 x 96 1.0260 40.032
48 x 120 1.0260 50.040
28 Ga.0 (.0015")
36 x 96 .0630 15.012
36 x 120 .0630 18.090

Brazed Aluminium Plate Tolerances

Gauge LB/Sq In. LB/Sq. Ft. Gauge Tolerance
72″ Wide 96″ Wide
4 4.00000 1.016850 168.0264 +.0200″ -.0010
3/16 0.01875 0.005958 8.0579 +.0045″ -.0010″ +.0050″ -.0010″
7/32 0.02187 0.006854 9.0870
1/4 0.02500 0.007750 11.0162
5/16 0.03125 0.009546 13.0746
3/8 0.03750 0.011456 16.0496 +.0055″ -.0010″ +.0060″ -.0010″
7/16 0.04375 0.013250 19.0080
1/2 0.05000 0.015044 21.0633
9/16 0.05625 0.016838 24.0247
5/8 0.06250 0.018633 26.0831
11/16 0.06875 0.020427 29.0415
1 1.00000 0.029628 42.0665 +.0070″ -.0010″ +.0075 -.0010″
1-1/8 1.01250 0.033217 47.0833
1-1/4 1.02500 0.036806 53.0001
1-3/8 1.03750 0.040395 58.0169
1-1/2 1.05000 0.043984 63.0337
1-3/4 1.07500 0.051161 73.0672
3 3.00000 0.087709 126.0301   +.0160″ -.0010″
3-1/2 3.05000 1.002064 146.0972
3/4 0.07500 0.022308 32.0123 +.0060″ -.0010″ +.0065″ -.0010″
13/16 0.08125 0.024102 34.0707
7/8 0.08750 0.025897 37.0291
15/16 0.09375 0.027691 39.0875
2 2.00000 0.058339 84.0008 +.0125″ -.0010″ +.0150″ -.0010″
2-1/8 2.01250 0.062229 89.0610
2-1/4 2.02500 0.065817 94.0777
2-1/2 2.05000 0.072995 105.0113
2-3/4 2.07500 0.080173 115.0449

Flatness Tolerances

Specified Thickness (t), in. (mm) Flatness Tolerance for Thicknesses Given, in. (mm)
3/8 (9.052) <= t < 1/2 (12.070) 5/16 (7.09)
1/4 <= t < 3/8 (9.052) 3/8 (9.05)
1 (25.040) <= t < 1-1/2 (38.010) 1/4 (6.04)
t < 1/4 (6.035) 7/16 (11)
3/4 (19.005) <= t < 1 (25.040) 5/16 (7.09)
t >=4 (101.060) 1/4 (6.04)
1 1/2 (38.010) < = t < 4 (101.060) 1/4 (6.04)
1/2 (12.070) <= t < 3/4 (19.005) 5/16 (7.09)

Specified Thickness in. Permitted Variations, in. Over and Under, Except as Indicated Otherwise for Specified Width (w) in.
Width <=60 Width >60
>0.01875 to 0.0250 -0.0010; +0.0020 -0.0010; +0.0020
>0.0250 to 0.03125 -0.0010; +0.0022 -0.0010; +0.0022
>0.03125 -0.0010; +0.0030 -0.0010; +0.0030
Looking for Aluminum Diamond Plate suppliers? Hot rolled/ Cold rolled Aluminium Shim distributor in India, Get Price of Aluminum Sheet Metal per kg in India

Aluminium Sheet Price Per Kg

Products Width and Length Alloy Type - Aluminum Temper Finish Price
0.063 in Thickness (Decimal)
ALUMINIUM ZINC ALLOY STEEL SHEET - [ 0.35 X 805 X 1510] [5097 SHEET] 12 in x 12 in 3003 H14 (1/2 Hard) Mill $12.74/ each
TLC ALUMINIUM OXIDE 60 F254, NEUTRAL 25 ALUMINIUM SHEETS 2X25 UNITS 12 in x 48 in 3003 H14 (1/2 Hard) Mill $33.88/ each
ALUMINIUM ZINC ALLOY STEEL SHEET (B-P LOWER TL) (RAA30879415) (0.60X440.0XCOIL)
 24 in x 48 in 6061 T6 Mill $95.15/ each
0.125 in Thickness (Decimal)
ALUMINIUM SHEET SIZE: 0.25MM X 1250MM X 1235MM 12 in x 12 in 3003 H14 (1/2 Hard) Mill $21.55/ each
TLC CELLULOSE 25 ALUMINIUM SHEETS 3X25 UNITS 12 in x 24 in 3003 H14 (1/2 Hard) Mill $35.05/ each
HPTLC SILICA GEL 60 25 ALUMINIUM SHEETS 5X25 UNITS 24 in x 48 in 3003 H14 (1/2 Hard) Mill $126.52/ each
0.375 in Thickness (Decimal)
FABRICATED ALUMINIUM SHEETS (QTY. 116 NOS) 1 1/2 in x 48 in 5083 Not Rated Mill $46.77/ each
OLD COLOURED ALUMINIUM FOIL SHEET 0.012MM THICKNESS, 320MMX 320MM 100PCS/PLASTIC BAG, 4000PCS/CARTON 6 in x 6 in 5052 H32 Unpolished $19.25/ each
ALUMINIUM FOIL / SHEET /REEL/ COIL 0.037*410 MM ( CONTRACT NO. WZ0716002-30B) 6 in x 24 in 7075 T651 Unpolished $126.10/ each

Aluminium Plate Inventory

Aluminium Chequered Plate Aluminium Flat Sheet
Aluminium Patterned Sheet Aluminium Coil Sheet
Perforated Aluminium Sheet Aluminum Sheet Metal
EN573 Aluminium Mesh Sheet Aluminum Diamond Plate
AMS 4003 Aluminium Strip 4x8 Aluminum Sheet
Aluminium Jig Plate 3mm Aluminium Sheet
ASTM-B-209M Aluminium Roofing Sheet 3003 Aluminum Foil
Aluminium Condenser Coil Aluminium Composite Sheet
ASTM B221 Aluminium Trim Coil 5052 Aluminum Sheet
Aluminum Roofing Sheet Diamond Tread Aluminum Sheet
6061 T6 Aluminum Sheet Aluminum Expanded Metal
Aluminium Plate Heat Exchanger 1mm Aluminium Sheet
Aluminium Plate Cutting Machine Aluminum Sheet Metal 4x8
16 Gauge Aluminum Sheet Aluminum Coil
Galvanized Aluminum Sheet 10mm Aluminium Plate
Aluminium Jacket Plate 5x10 Aluminum Sheet
Aluminium Checker Plate 5mm Aluminium Plate
Perforated Aluminum Sheet 4x8 Aluminum Diamond Plate
Aluminum Tread Plate Aluminum Panel Sheet
Anodized Aluminum Sheet 6mm Aluminium Plate
Decorative Aluminum Sheet Aluminium Panel Sheet
Aluminum Diamond Plate Sheets Brushed Aluminium Sheet
Thin Aluminum Sheet Aluminum Sheet 4x8
Aluminum Mesh Sheet Aluminium Tooling Plate
Aluminium Checker Plate Sheet 3003 Aluminum Sheet
White Aluminum Sheet Aluminum Composite Sheet
6061 Aluminum Sheet 6061 Aluminum Plate
Aluminium Corrugated Sheet Black Aluminum Sheet
Aluminium Mesh Sheet Embossed Aluminum Sheet
Anodised Aluminium Sheet 0.5 Mm Aluminium Sheet
Expanded Aluminium Mesh Brushed Aluminum Sheets
Aluminium Roofing Sheet Brazed Aluminium Plate
Aluminium Sheet Roll Aluminium Angle Plate
Black Aluminum Diamond Plate B&q Aluminium Plate
Products
Other
Industry
  • PM Metal Industry
  • PM Metal Industry
  • PM Metal Industry
  • PM Metal Industry

Before

Choosing Aluminium Sheet suppliers in India first see the Repeat orders from Below Countries.

Application Projects
P.M. Metal Logo

Aluminium Chequered Plate

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

6061 T6 Aluminum Sheet

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

3003 Aluminum Foil

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

Aluminium Composite Sheet

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

6061 Aluminum Plate

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

B&q Aluminium Plate

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.

© 2022 All Rights Reserved by P.M. Metal.
