ASTM A312 TP316 Tube and SS 316 Seamless Pipe Supplier in India

Stainless Steel 316 Pipe

What Is 316 Stainless Steel Pipe
Stainless steel 316 is an austenitic marine grade pipe. These pipes are designed with a superior chemical composition consisting of chromium, nickel, and molybdenum. The outstanding composition gives these items enhanced corrosion and oxidation resistances across stress-induced environments. The versatile SS 316 pipes are tolerant to crevice corrosion and pitting by acids in marine setups. The modules perform well in cryogenic and elevated temperatures and pressures. The components within this grade possess high-stress rupture properties over other austenitic grades. They can be readily welded in place using standard procedures.

What Is The Difference Between 308 And 316 Welding Rod?

  • SS 308 welding rod is designed with a chemical composition of 20% chromium with 11% nickel. A 316 welding rod is produced consisitng 16% chromium, 12% nickel, and 2% molybdenum.
  • The 308 grade has a lower carbon content than the 316 SS grade, thereby preventing intergranular corrosion in the system.

ASTM A312 Tp316 Vs ASTM A213 Tp316

  • ASTM A312 Tp316 is available only in seamless types. ASTM A213 Tp316 is available in a seamless and welded configuration.
  • The A312 has higher tensile and yield strength than the A213 grade.
  • ASTM A312 grade is a feature in high temperature and general corrosive environments. The components of the ASTM A213 grade are seen in heat exchangers and superheaters to maintain correct transmission temperatures.

What Is 316 Stainless Steel Seamless, Welded And Erw Pipe
Stainless steel 316 pipes are widely manufactured in seamless, welded, and erw modules. The configurations can be distinguished based on key features.

  • A seamless pipe is manufactured by passing hot steel billets through an extruding metal and shaping them precisely. A seamless pipe is the strongest grade type in the SS 316 grade.
  • A welded pipe is manufactured by welding pieces of sheet or strips either longitudinally or horizontally.
  • Erw pipes are produced by cold rolling flat strips and then passing them through a series of dies to form a longitudinal seam.

What Is 316 Stainless Steel Round Tube And Polished 316 Stainless Steel Tube
A stainless steel round tube is designed in a circular or cylindrical cross-section. These tubes are used in different structural and architectural applications. A polished tube in the 316 stainless steel grade is polished to give an aesthetical appeal to different piping modules.

Check ASME B36.10M SS 316 ERW Pipe and Marine grade 316 Stainless Steel Tubing id o.d. chart in inches, We provide the best quality range of SS 316 Pipe

Stainless Steel 316 Pipe Specification And Grade

Specification and Grade ASTM/ ASME A 312/ SA 312
Pipes Sch. Schedule120, Schedule80, Schedule40, Schedule30, Schedule20, XS, STD, Schedule160, Schedule60, XXS, Schedule80, Schedule140
Outside Diameter (OD) 1/8" To 30″NB Inch
Different Types LSAW/ ERW / Welded /Seamless / Fabricated Pipes
Aisi 316 Pipe Dimensions ASTM, ASME and API
most popular for Stainless Steel 316 Large Diameter Pipe
Available Sizes 1/2″ NB to 16″ NB
common Pipes length Single Random & Double Random, Cut Length

erw pipes Sizes Metric

1/2″ NB to 24″ NB
Pipes End Types Plain End, Beveled End, Theaded
Sizes Available of efw pipes 6″ NB to 100″ NB
basic Form of pipes Hydraulic, Round Form Etc

SS 316 Pipe Chemical Composition

ASTM A312 S C Cr Mn Mo Si Ni P N
316 min. - - 16.0 - 2.0 - 10.0 - -
max. 0.03 0.08 18.0 2.0 3.0 0.75 14.0 0.045 0.10

316 Stainless Steel Pipe Mechanical Properties

SUS Elongation minimum (% in 50mm) Tensile Strength minimum (MPa) Yield Strength 0.2% Proof minimum (MPa) Hardness
Brinell (HB) maximum Rockwell B (HR B) maximum
316 40 515 205 217 95

Grade 316 Stainless Steel Tubing Supplier in mumbai, Check UNS S31600 Sch 40/20/10 pipe Schedule Chart, We are Renowned exporter of UNS S31609 Material and Stainless Steel 316 Tube in ndia

316 Stainless Steel Seamless Tubing Equivalent Grades

GRADE BS UNS   WERKSTOFF NR. GOST JIS EN AFNOR SS
  BRITISH USA   GERMAN RUSSIAN JAPAN EUROPE RUSSIAN SWEDISH
ASTM A312 316 316S31 / 316S33 S31600   1.4401 / 1.4436 - SUS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 Z7CND17‐11‐02 2347

Marking On 316 SS Welded Pipe

  • Material grade
  • Heat Number
  • Size
  • Manufacturer’s name

SS 316 Pipe Hsn Code

PRODUCT COUNTRY NAME ASTM A312 TP 316 ERW Pipe Hsn Code
ASTM A312 / SA 312 TP 316 United Kingdom (UK) 73044100
Switzerland 73079990
Italy 73044100
China 73041190
Belgium 73044100
Japan 73041190
United Arab Emirates (UAE) 73044100
South Korea 73049000
Germany 73044100
Malaysia 73044900
Custom cut and polished 316 Stainless Steel Seamless Tubing and 316 heat exchanger tube exporter & stockist in India, View Stainless Steel 316 Pipe pressure rating and roughness.

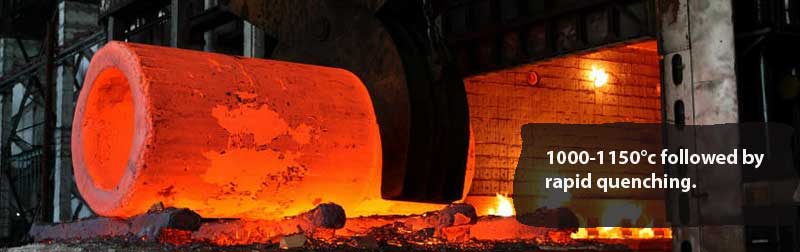

Heat Treatment of ASME SA 312 Grade 316 Round Pipes

Heat Treatment of ASME SA 312 Grade 316 Round Pipes

Creep Properties of UNS S31600 Pips

1% Elongation1) for Rupture2) for
Temperature °C 1,000 h N/mm2 10,000 h N/mm2 10,000 h N/mm2 100,000 h N/mm2 1,000 h N/mm2
800 18 18 10 7 35
600 100 130 90 80 170
900 10 8.5 4 3 15
700 45 40 30 18 80

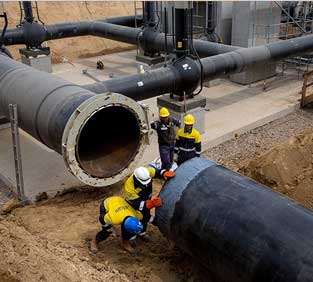

WNR. 1.4401 Tube Applications

WNR. 1.4401 Tube Applications
  • Retorts, muffles, annealing cover
  • Kilns
  • Radiant Tubes
  • Saggers
  • Heat Exchangers
  • Food processing equipment
  • Coal gasifier internal component
  • Conveyor belts, oven linings, furnace parts, rollers, fans

Types of SA 312 TP 316 Schedule 40 Pipe

Check WNR. 1.4401 Rectangular Pipe Dimensions & wall thickness according to ASME B36.19, find your size in our online inventory of SS 316 Boiler and Heat Exchanger Tube in Mumbai at competitive pricing
Stainless Steel 316 Pipes
Stainless Steel 316 Pipes
Stainless Steel 316 Pipes
SS 316 Seamless Pipes
SS 316 Seamless Pipes
SS 316 Seamless Pipes
Stainless Steel 316 Tube
Stainless Steel 316 Tube
Stainless Steel 316 Tube
316 SS Welded Pipes
316 SS Welded Pipes
316 SS Welded Pipes
A312 Gr 316 Round Pipes
A312 Gr 316 Round Pipes
A312 Gr 316 Round Pipes
UNS S31600 Pipes
UNS S31600 Pipes
UNS S31600 Pipes
WNR. 1.4401 Tube
WNR. 1.4401 Tube
WNR. 1.4401 Tube
ASTM A312 TP 316 ERW Pipes
ASTM A312 TP 316 ERW Pipes
ASTM A312 TP 316 ERW Pipes
SA 312 TP 316 Schedule 40 Pipes
SA 312 TP 316 Schedule 40 Pipes
SA 312 TP 316 Schedule 40 Pipes

ASTM A312 Gr TP 316 Polished Pipe Pressure Rating Chart

Pipes Size
(inches)
Pipes Schedule Temperature (°F)
100 200 300 400 500 600 650 700 750
4" 80 2213 1909 1715 1577 1466 1397 1355 1328 1314
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
5" 40 1342 1158 1040 956 889 847 822 805 797
1" 80 4213 3634 3265 3002 2791 2659 2580 2528 2501
8" 40 1073 926 832 765 711 678 657 644 637
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
4" 40 1531 1321 1187 1091 1014 967 938 919 909
1.5" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
5" 80 1981 1709 1535 1411 1312 1250 1213 1189 1176
1.5" 80 3182 2744 2466 2267 2108 2009 1949 1909 1889
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
1.5" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
6" 80 1913 1650 1483 1363 1267 1208 1172 1148 1136
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
2" 80 2747 2369 2129 1957 1820 1734 1682 1648 1631
8" 80 1692 1459 1311 1205 1121 1068 1036 1015 1005
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
10" 40 974 840 755 694 945 615 596 584 578
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
10" 80 1609 1388 1247 1147 1066 1016 986 966 956
3" 80 2553 2202 1979 1819 1691 1612 1564 1532 1516
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
6" 40 1219 1052 945 869 808 770 747 732 724
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868

AISI 316 Tube Melting Point

Stainless Steel 316 seamless tube

Melting Point (Deg F): 2650

SS316 Pipe Weight Chart

Nominal size [inches] Wall thickness [inches] Wall thickness [mm] Outside diameter [inches] Outside diameter [mm] Weight [lb/ft] Weight [kg/m]
1/8 0.095 2.41 0.405 10.3 0.31 0.47
1/4 0.119 3.02 0.54 13.7 0.54 0.8
1/2 0.147 3.73 0.84 21.3 1.09 1.62
3/4 0.154 3.91 1.05 26.7 1.47 2.2
1 0.179 4.55 1.315 33.4 2.17 3.24
1 1/4 0.191 4.85 1.66 42.2 3 4.47
1 1/2 0.2 5.08 1.9 48.3 3.63 5.41
2 0.218 5.54 2.375 60.3 5.02 7.48
2 1/2 0.276 7.01 2.875 73 7.66 11.41
3 0.3 7.62 3.5 88.9 10.25 15.27
3 1/2 0.318 8.08 4 101.6 12.5 18.63
4 0.337 8.56 4.5 114.3 14.98 22.32
5 0.375 9.53 5.563 141.3 20.78 30.97
6 0.432 10.97 6.625 168.3 28.57 42.56
8 0.5 12.7 8.625 219.1 43.39 64.64
10 0.594 15.09 10.75 273 64.43 96.01
12 0.688 17.48 12.75 323.8 88.63 132.08
14 0.75 19.05 14 355.6 106.13 158.1
16 0.844 21.44 16 406.4 136.61 203.53
18 0.938 23.83 18 457 170.92 254.55
20 1.031 26.19 20 508 208.87 311.17
24 1.125 30.96 24 610 296.58 442.08

SS grade 1.4401 Pipe Material Sizes

1.4401 SS 316 SCH 10 Pipe Size In Inch

OD
mm
Sch WT
mm
Kg/m in.
13.72 10S 1.65 0.50 1/4
13.72 40S 2.24 0.64 1/4
13.72 80S 3.02 0.81 1/4
17.15 10S 1.65 0.64 3/8
17.15 40S 2.31 0.86 3/8
17.15 80S 3.20 1.12 3/8
21.34 10S 2.11 1.02 1/2
21.34 40S 2.77 1.29 1/2
21.34 80S 3.73 1.65 1/2
26.67 10S 2.11 1.30 3/4
26.67 40S 2.87 1.71 3/4
26.67 80S 3.91 2.23 3/4
33.40 10S 2.77 2.13 1
33.40 40S 3.38 2.54 1
33.40 80S 4.55 3.29 1
33.40 160 6.352) 4.30 1
42.16 10S 2.77 2.73
42.16 40S 3.56 3.44
42.16 80S 4.85 4.53
42.16 160 6.352) 5.69
48.26 10S 2.77 3.16
48.26 40S 3.68 4.11
48.26 80S 5.08 5.49
60.33 10S 2.77 3.99 2
60.33 40S 3.91 5.52 2
60.33 80S 5.54 7.60 2
60.33 160 8.742) 11.29 2
73.03 10S 3.05 5.35
73.03 40S 5.16 8.77
73.03 80S 7.01 11.59
88.90 10S 3.05 6.56 3
88.90 40S 5.49 11.47 3
88.90 80S 7.62 15.51 3
88.90 160 11.132) 21.67 3
101.60 10S 3.05 7.53
101.60 40S 5.74 13.78
101.60 80S 8.08 18.92
114.30 10S 3.05 8.50 4
114.30 40S 6.02 16.32 4
114.30 80S 8.56 22.67 4
114.30 160 13.492) 34.05 4
141.30 40S 6.55 22.10 5
141.30 80S 9.53 31.44 5
141.30 160 15.882) 49.87 5
168.28 10S 3.4 14.04 6
168.28 40S 7.11 28.69 6
168.28 80S 10.97 43.21 6
168.28 120 14.27 54.75 6
168.28 160 18.262) 68.59 6
219.08 40S 8.18 43.20 8
219.08 80S 12.7 65.63 8
219.08 120 18.23 91.30 8
219.08 160 23.012) 112.97 8

Marine grade 316 Stainless Steel Tube Sizes In Mm

316 SS Tubing Wall Thickness Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"

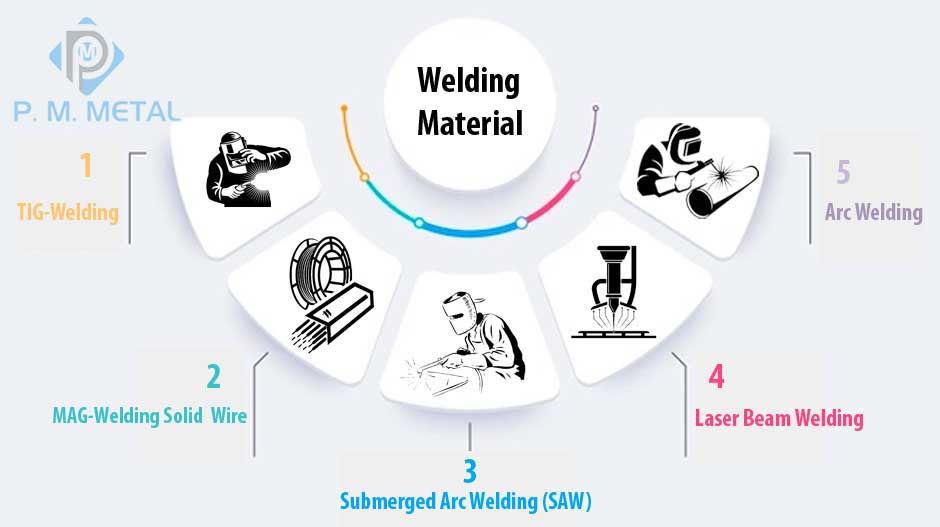

316 Tube Heat Exchanger Processing / Welding

316 Tube Heat Exchanger Processing / Welding

Coefficient of linear thermal expansion 10-6 K-1 between 20°C and 100°C

200°C 15.5
400°C 17.0
600°C 17.5
800°C 18.5
1000°C 19.0

ASTM A312 TP316 Material Schedule Chart

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

ASTM A312 Grade TP316 Tubing Pressure Gauge

Pipes O.D.
(in.)
Wall Thickness of Pipes/Tubes (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
3/8 3100 4400 6100
1/8 7900 10100
3/4 2200 3000 4000 4600
1/4 3700 4800 7000 9500
1 2200 2900 3400 3900 4300
5/16 3700 5400 7300
1/2 2300 3200 4400

Fractional Sizes of Maximum Allowable Working Pressure (Psi)

Pipes OD Wall Thickness (Inches)
.010 .012 .016 .020 .028 .035 .049 .065 .083 .095 .109 .120
3/8 3,530 5,107 7,029
1/16 6,422 7,872 10,768 13,484
1/2 2,595 3,721 5,078 6,699
1/8 6,422 9,325 11,823
5/8 2,051 2,927 3,970 5,200 6,056
3/16 4,081 5,935 7,630 11,005
7/8 1,446 2,051 2,764 3,592 4,161 4,842 5,391
1/4 4,305 5,518 8,053 10,946
1 5,040 7,140 9,595 12,445 14,390 16,715 18,585
3/4 1,696 2,412 3,259 4,249 4,933 5,755 6,422

Metric Sizes of Maximum Allowable Working Pressure (Bar)

Pipes OD Wall Thickness (Inches)
0.5 0.6 0.7 0.8 1.0 1.2 1.5 1.6 1.8 2.0 2.2 2.5 3.0
12 169 215 262 335 360 411 464
3 464 567 672 775 965
14 182 222 282 303 345 389 433 500 612
4 335 411 491 567 723 873
16 158 192 244 262 298 335 372 430 528
6 310 360 464 567 723 775
18 140 169 215 230 262 294 326 377 464
8 227 262 335 411 528 567
22 113 137 173 186 211 236 262 301 369
10 206 262 320 411 442
25 99 120 152 162 184 206 228 262 320

Characteristics of ASTM A312 Gr TP316 Seamless Pipes

  • Strength and toughness at cryogenic temperatures
  • Moderate strength at high temperature
  • Resistance to hot corrosion
  • Oxidation resistance to 2000°F
Get exact sizing of SA 312 TP 316 Schedule 40 Pipe according to ISO/ EN, Also check ready stock of ASTM A312 Gr TP 316 Polished Pipe in sizes below 13.5 mm

316 Stainless Steel Pipe Cost Per Foot

Price of ASTM A312 TP316 Stainless Steel Pipe Manufacturer Nominal Pipes Size for SS 316 Pipe Price Per Kg Overall Length Price Stainless Steel 316 Pipe Manufacturer in India (INR) Grade 316 Stainless Steel Pipes / Tubes Price in USD ASTM A312 TP316 ERW Pipes Price in UAE Dirham
316 Stainless Steel Seamless Pipes 1/8 in 10 ft INR 7416.34 $99.00 363.62 UAE Dirham
Stainless Steel 316 Schedule 40 Pipes 1/4 in 10 ft INR 7940.73 $106.00 1767.22 UAE Dirham
Stainless Steel DIN 1.4401 Welded Pipes 3/8 in 10 ft INR 9813.54 $131.00 481.15 UAE Dirham
AISI 316 Stainless Steel Pipes 1/2 in 10 ft INR 10637.58 $142.00 521.55 UAE Dirham
SS 316 Pipes 1 1/4 in 10 ft INR 13034.78 $174.00 639.09 UAE Dirham

Inventory of Stainless Steel 316 Tube

Stainless Steel 316 Pipes A312 TP316 Pipes
SS 316 Seamless Pipes Stainless Steel 316 Tube
Stainless Steel 316 Tube A312 TP316 Smls
316 Stainless Steel Seamless Tubing A312 TP 316 Material
316 SS Welded Pipes 2 inch 316 Stainless Steel Pipes
ASTM A312 TP 316 ERW Pipes A312 Gr TP 316 Welded Pipes
ASME SA 312 Grade 316 Round Pipes A312 Type 316 ERW Pipes
UNS S31600 Pipes A312 Gr 316 Round Pipes
WNR. 1.4401 Tube A312 316 Pipes
SA 312 TP 316 Schedule 40 Pipes Sa-312-316 Hollow Pipes
ASTM A312 Gr TP 316 Polished Pipes SA 312 TP 316 Schedule 40 Pipes
AISI 316 Pipes SA 312 Gr 316 Polished Pipes
316 Stainless Steel Exhaust Pipes SA312 Type 316 Stainless Steel Pipes
SS grade 1.4401 Pipes Material 316 Stainless Steel Pipes
1.4401 SS 316 SCH 10 Pipes Stainless Steel 316 Schedule 40 Pipes
Marine grade 316 Stainless Steel Tubing Stainless Steel 316 Seamless Pipes
316 Tube Heat Exchanger 316 Exhaust Pipes
ASTM A312 TP316 Material SS 316 ERW Pipes
ASTM A312 Grade TP316 Tubing Sch 40 316 Stainless Steel Pipe
ASTM A312 Gr TP316 Seamless Pipes 316 Welded Pipes
316 Steel Pipe 316 Steel Tube

Below

countries prefer P.M. Metal to buy 316 Stainless Steel Tube Suppliers in India.

Application Projects
P.M. Metal Logo

Stainless Steel 316 Pipe

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

SS 316 Seamless Pipe

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

Stainless Steel 316 Tube

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

A312 Type 316 ERW Pipe

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

A312 316 Pipe

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

SA 312 TP 316 Schedule 40 Pipe

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
