What is Aluminium Wire?
Aluminium wire is a type of wire designed possessing a superior content of aluminium with other alloys. The versatile wires have good electrical and mechanical properties. The excellent thermal properties of these wires allow them to showcase excellent resistance properties across different systems. The wires of the aluminium grade have good tolerance to corrosive media due to tightly adhering inhibitors or antioxidants. Apart from this, the wires in this grade show outstanding electrical and heating resistance.

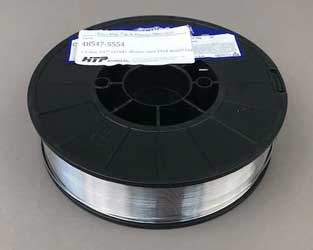

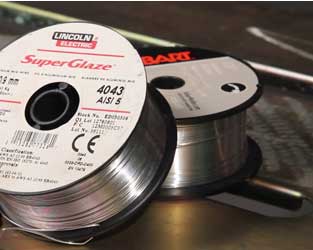

Where do you use Aluminum Welding Wire?
Aluminium welding wire is a type of soft metal that is lightweight and can be welded in place following conventional methods. Aluminium grade has a good affinity to oxygen, and it melts at temperatures of 1200 degrees F. The oxide layer protects the metal at temperatures of 3700 degrees F. As aluminium has a higher thermal conductivity, it showcases a small working window if it exceeds that then it and can be easily burnt out.
Why is Aluminium Alloy Wire used instead of copper for overhead cables?
Copper and aluminium alloys have been used as electrical conductors in electrical cables due to their excellent conductivity and low resistance. Copper is a better conductor and conducts electricity better than aluminium. But aluminium is still used in some applications as

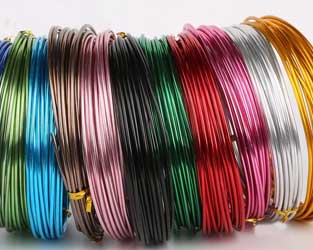

Aluminum Mig Wire vs Anodized Aluminum Wire
Conductor Material | Aluminium |
---|---|
Usage/Application | Motors |
Material | Aluminium |
Insulation Material | Enameled |
Surface Treatment | Powder Coated |
Type | Insulated |
Wire Gauge | 10 SWG, 32 SWG, 30 SWG, 20 SWG, 8 SWG |
Purity | Min 98.5% to 99.5% |
Products | Wire Diameter | Tensile Strength (As Welded) | Yield Strength (Minimum Required) | Yield Strength (As Welded) | 1 lb | 16 lb | 20 lb |
---|---|---|---|---|---|---|---|
ENAMELLED ALUMINIUM WIRE (0.12-0.15) | 0.03 in | 38 ksi | Not Rated | Not Specified | $27.83 | ———— | ———— |

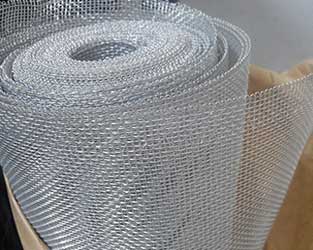

ALUMINIUM WIRE MESH | 0.035 in | 38 ksi | Not Rated | Not Specified | $17.12 | ———— | ———— |
ALUMINIUM WIRE ROD EC NOMINAL DIAMETER 9.5MM IN COIL | 0.035 in | 46 ksi | 19 ksi | 30 ksi | $15.57 | ———— | ———— |
BLADE FOR ALUMINIUM WIRE (PARTS FOR CUTTING AND CRIMPING MACHINE) (FOR CAPTIVE CONSUMPTION) | 0.035 in | ———— | ———— | ———— | $14.90 | $178.60 | ———— |
ALUMINIUM WIRE 9.9% MIN WITH DIAMETER 9.5 MM +/ 0.5MM | 3/64 in | 38 ksi | Not Rated | Not Specified | $11.34 | $210.01 | ———— |
ALUMINIUM WIRE ROD (EC GRADE) 9.5 SQ MMDIAMETER (L/C NO.001LCIFS16-0490 DT:14/08/2016) | 3/64 in | 46 ksi | 19 ksi | 30 ksi | $14.62 | ———— | $252.28 |
METAL PLATE (MADE OF METAL STRIP,ZINC ALLOY INGOT & ALUMINIUM WIRE) | 3/64 in | ———— | ———— | ———— | $11.30 | ———— | $203.40 |
Electronegativity | 1.5 Paulings |
---|---|
Molecular Weight | 26.98 |
Heat of Fusion | 2.55 Cal/gm mole |
Appearance | Silvery |
Heat of Vaporization | 67.9 K-Cal/gm at om at 765 °C |
Melting Point | 660.37 °C |
Poisson's Ratio | 0.35 |
Boiling Point | 2467 °C |
Specific Heat | 0.215 Cal/g/ K @ 25 °C |
Density | 2700 kg/m3 |
Tensile Strength | 6800 psi Coldroled 16,000 psi. |
Solubility in H2O | N/A |
Thermal Conductivity | 2.37 W/cm/ K @ 298.2 K |
Electrical Resistivity | 2.6548 microhm-cm @ 0 °C |
Vickers Hardness | 167 MPa |
Thermal Expansion | (25 °C) 23.1 µm·m-1·K-1 |
Young's Modulus | 70 GPa |
AlMg5 | AlMgSi1 | 99.7% Pure | |
---|---|---|---|
Chemical Composition | 5019 / 5356 | 6061 | 1050A |
Mg | 4,5-5,6 | 0,8-1,2 | 0.07 |
Si | 0,40 | 0,40-0,8 | 0.25 |
Cr | 0,20 | 0,04-0,35 | |
Fe | 0,50 | 0,70 | 0.40 |
Zn | 0,20 | 0,25 | 0.07 |
Cu | 0,10 | 0,15-0,40 | 0.05 |
Ti | 0,20 | 0,15 | 0.05 |
Mn | 0,20-0,6 | 0,15 | 0.05 |
Remarks | 0,10-0,6 (Mn+Cr) | ||
Al | Balance | Balance | Balance |
Avg. thermal expansion coefficient | 23.5 x 10-6/K |
---|---|
Al material | EN AW-Al 1050, EN AW-Al 1070 or EN AW-Al 1090 |
Breakdown voltage (5 μm) | 5 μm (weitere Stärken auf Anfrage) |
Al melting point | 658°C |
Oxide layer thickness | ≥ 150 V AC (DIN EN ISO 2376) |
Density | 2.7 kg/dm3 |
Chem. composition | Al2O3 |
Avg. spec. heat capacity (1 – 100°C) | 0.92 J/g x K |
Thermal conductivity | 2.3 W/cm x K |
High strength aluminum wire | Item | |
---|---|---|
Structure | 0.35 mm2 Size | Cross section |
Al-Mg-Si | Conductor material | |
0.155 mm | Element wire diameter | |
19 | Number of strands | |
PVC | Insulation material | |
0.25 mm | Insuration thickness | |
1.3 mm | Outer diameter | |
Characteristic | 87 N | Tensile strength |
11% | Elongation | |
100 mΩ/m | Conductor resistance |
Heat resistance grade | conductor construction | Insulation | Outer diameter (mm) | Weight (g/m) | ||||
---|---|---|---|---|---|---|---|---|
type | Aluminium Wire Sizes | construction | diameter (mm) | material | thickness (mm) | |||
80°C | Compressed | 0.35 | 7/SB | 0.70 | PVC | 0.20 | 1.10 | 1.8 |
0.50 | 7/SB | 0.85 | 0.20 | 1.25 | 2.3 | |||
100°C | Standard | 0.35 | 7/0.250 | 0.75 | PVC | 0.25 | 1.25 | 2.1 |
0.50 | 7/0.300 | 0.90 | 0.28 | 1.46 | 2.9 | |||
100°C | Flexible | 0.35f | 19/0.155 | 0.80 | PVC | 0.25 | 1.30 | 2.2 |
0.5f | 19/0.185 | 0.95 | 0.28 | 1.51 | 3.0 | |||
0.75f | 19/0.225 | 1.15 | 0.30 | 1.75 | 4.2 | |||
1.25f | 37/0.210 | 1.50 | 0.30 | 2.10 | 6.2 | |||
2.0f | 37/0.260 | 1.85 | 0.35 | 2.55 | 9.3 | |||
2.5f | 37/0.285 | 2.05 | 0.375 | 2.80 | 11.1 |
