Inconel 718 forging Material Equivalent
| Alloy | Common Name | ASTM | European | UNS |
|---|---|---|---|---|
| Alloy 718 | Inconel 718 ® | B637 | 2.4668 | N07718 |
ASTM B637 UNS N07718 Hex Nuts Chemical Composition Chart
| Ni | Cr | Fe | Mo | Ti | Al | Si | Cu | Mn | Cb+Ta | C | B | |
| MIN | 52.0 | 18.0 | 19.0 | 3.0 | 0.9 | 0.5 | - | - | - | 5.0 | 0.05 | 0.009 |
| MAX | Balance | - | - | - | - | - | 0.35 | 0.1 | 0.35 | - | - | - |
Mechanical Strength Table of Inconel 718 stud bolts
| Temperature, °F | 70 |
| Ultimate Tensile Strength, ksi | 202 |
| 0.2 % Yield Strength, ksi | 170 |

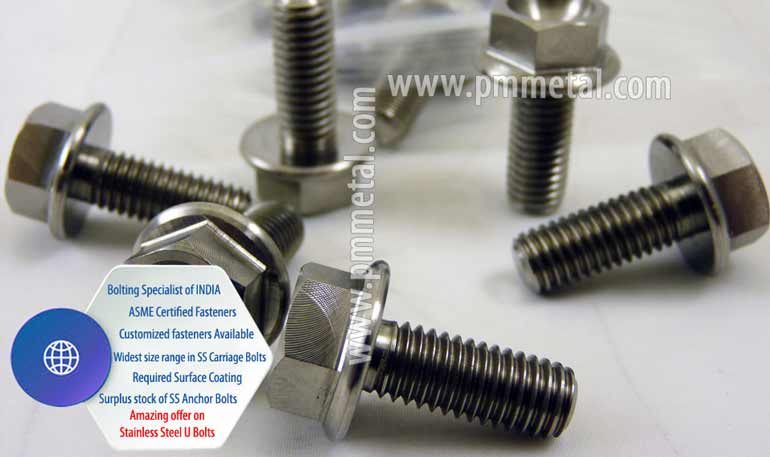

Specifications of Inconel 718 Fasteners
| Specification | ASTM B637/ ASME SB637 |
| In Form of: |
|
|---|---|
| Available Lengths | From 3 - 200 mm |
| Threads of Inconel 718 threaded rod | BSF, BSW, METRIC, UNC, UNF or as required |
| Sizes Range | M02 – M160 | 3/6" upto 2" |
Alloy 718 Bolts Applications
- Power Generation
- Off-Shore Oil Drilling Companies
- Gas Processing
- Petrochemicals
- Pharmaceuticals
- Specialty Chemicals
- Chemical Equipment
- Pharmaceutical Equipment
- Heat Exchangers
- Sea Water Equipment
- Pulp and Paper Industry
- Condensers
