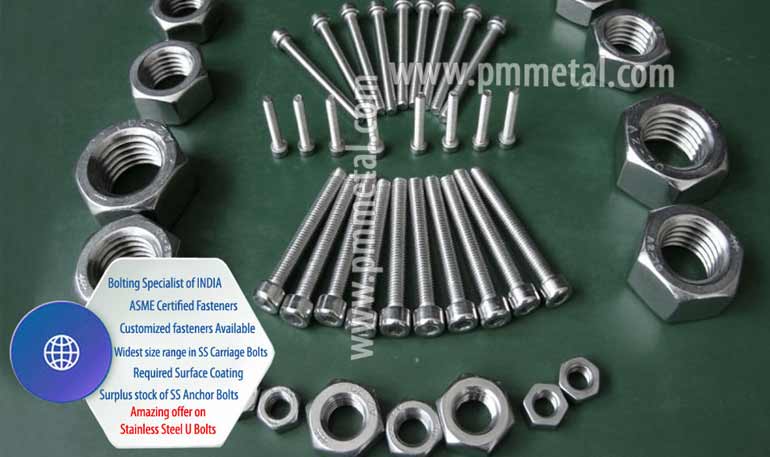

A182 F53 Bolts, F53 S32750 2507 Stud/ Nut/ Hex Bolt/ Threaded rod

Table of Content

Specification	ASTM A182/ ASME SA182
Size Ranges	M02 – M30 \| 3/6" upto 2"
Available Length	From 3 mm - 200 mm
In Form of:	Square Hex Threading as per Gauge Etc. Round
Threads of ASME SA 182 F53 Threaded Rod	BSW, METRIC, UNC, UNF, BSF or as needs

Nominal Sizes (D)	FLAT		THICKNESS OF HEAD		DIAMETER OF BODY		CORNERS
	F (MAX)	F (MIN)	H (MAX)	H (MIN)	D (MAX)	D (MIN)	C (MAX)	C (MIN)
m16	24.00	23.67	10.32	9.68	16.00	15.73	27.71	26.75
m10	17.00	15.73	6.63	6.17	10.00	9.78	18.48	17.77
m48	75.00	72.60	31.07	28.93	48.00	47.38	86.60	82.76
m100	145.00	140.00	63.9	60.10	90.00	99.13	167.43	159.60
m12	19.00	17.73	7.76	4.24	12.00	11.73	20.78	20.03
m14	22.00	20.67	9.09	8.51	14.00	13.73	24.25	23.35
m90	130.00	125.50	57.74	54.26	90.00	89.13	150.11	143.07
m24	36.00	35.00	15.44	14.56	24.00	23.67	41.57	39.55
m30	46.00	45.00	19.48	17.92	30.00	29.67	53.12	50.85
m20	30.00	29.16	12.88	12.12	20.00	19.67	34.64	32.95
m80	115.00	111.00	51.58	48.42	80.00	79.26	132.72	126.54
m36	55.00	53.80	23.38	21.63	36.00	35.61	63.51	60.79
m42	65.00	62.90	26.97	25.03	42.00	41.38	75.06	71.71
m64	95.00	91.80	41.32	38.68	64.00	63.26	109.70	104.65
m72	105.00	101.40	46.45	43.55	72.00	71.26	121.24	115.60
m56	85.00	82.20	36.2	33.80	56.00	55.26	98.15	93.71

Yield Strength 0.2% Proof (MPa) min	Tensile Strength (MPa) min	Hardness Rockwell C (HR C)	Elongation (% in 50mm)
43	105	255	35
