ASTM A240 Type 316L Plate and SS 316L Coil Supplier in Mumbai
What is Stainless Steel 316l Sheet and Plate?
Stainless steel 316l plates and sheets can be classified based on their thickness.
- Stainless steel 316l sheet is a metal grade designed in thickness less than 6mm but higher than 0.5mm. These sheets are used to provide an aesthetical appeal to the component. They are not a material of choice in applications that require durability and strength.
- Stainless steel 316l plate is a module designed in thickness above 6mm extending up to 150mm or more. The plates in this grade are used in applications that require enhanced strength and stability to function optimally.
What is 316l Ss Hot Rolled Plate and Cold Rolled Plate used for?
The 316l SS plate is designed in a hot and cold rolling process. The plates in this grade are used in exhaust manifolds, furnace parts, heat exchangers, pharmaceutical, jet engine parts, chemical processing equipment, tanks, etc.
316l Stainless Steel Strip vs Foil
Foils and strips are amongst the thinnest metal components in the 316l stainless steel range. They can be distinguished from certain key aspects.
- 316L stainless steel strips are designed in thickness between 0.2mm up to 0.5mm. The versatile modules are used in welding different items in the piping system.
- 316l stainless steel foil is designed in a thickness range of less than 0.2mm. The foils can be hammered or coiled to different elements to provide protection during heat treatment or against corrosive media.
What is ASTM A240 Tp316l Sheet vs ASME SA240 Tp316l Sheet
ASTM and ASME are two important standards that are employed in manufacturing sheets in the A240 TP 316l grade. Both these standards are nearly identical but can be distinguished based on key features.
- ASTM A240 Tp316l Sheet covers a standard where the shapes, sizes, and structural qualities of different piping items are accessed. ASME SA240 Tp316l Sheet comes under a standard that specifies design codes and standards for different pressure-rated applications.
- ASME grade covers nearly 600 technical standards, while ASTM grade covers approximately 12,000 or more standards.
Table of Content
Distributor of 316L Stainless Steel Strip and A240 Tp 316L Hot rolled Plate, specific polish like 2B, No. 4 PE Sus 316L Foil, SS 316L Plate Suppliers in India.
ASTM A240 316L Stainless Steel Plate Specification
| Specifications | ASTM / ASME A240/ SA240 |
|---|---|
| Standard | EN, GB, JIS, AISI, ASTM, DIN, etc |
| Stainless Steel 316L Hairline Finish Thickness | From 4mm to 100mm |
| Width | 1000mm, 1500mm, 1219mm, 3500mm, 2000mm, 1800mm, 2500mm, 3000mm, etc |
| Surface | 2D, 2B,BA, NO.4, NO.1, NO.8, mirror, 8K, checkered, hair line, embossed, sand blast, etching, brush, etc |
| Length | 6000mm, 2440mm, 5800mm, 3000mm, 2000mm, etc |
| Finish | Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Hot rolled plate (HR) |
| SS 316L 2b Finish Package | Export standard package |
| Manufacturer: | Acerinox, Baosteel, Aperam, Thyssenkrup, TISCO, POSCO, Jindal Stainless, Nippon Metal, DKC Korea, Arcelor Mittal, Nas, Sail, Outokumpu |
| Form | Foils, Coils, Rolls, Shim Sheet, Plain Sheet, Perforated Sheet, Strip, Blank (Circle), Chequered Plate Suppliers and Manufacturer |
316L Stainless Steel Foil Chemical Compostion
| ASME SA 240 | Mn | C | S | Si | Mo | P | Cr | N | Ni |
|---|---|---|---|---|---|---|---|---|---|
| SA 240 316L | 2 max | 0.035 max | 0.030 max | 1.00 max | 2.00 – 3.00 | 0.045 max | 16.00 – 18.00 | 68.89 min | 10.00 – 14.00 |
Stainless Steel 316L Properties
| ASTM A240 | Psi / Mpa - Yield Strength (0.2%Offset) | Melting Range | Density | Psi / Mpa - Tensile Strength | % Elongation |
|---|---|---|---|---|---|
| ASTM A240 Gr 316L | MPa – 205 Psi – 30000 |
1399 °C (2550 °F) | 8.0 g/cm3 | MPa – 515 Psi – 75000 |
35 % |
SS316L Plate Equivalent Grades
| Grade | JIS | WERKSTOFF | GOST | UNS | EN | BS | AFNOR |
|---|---|---|---|---|---|---|---|
| SS 316L | SUS 316L | 1.4404 / 1.4435 | 03Ch17N14M3 / 03Ch17N14M2 | S31603 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
16 Gauge 316L Stainless Steel Sheet Physical Properties
| Elastic Modulus) | Density | Thermal Conductivity | Specific Heat 0 To 100°C | Thermal Expansion | Elec Resistivity | |||
|---|---|---|---|---|---|---|---|---|
| At 100°C | At 500°C | 0 To 100°C | 0 To 315°C | 0 To 538°C | ||||
| 193 | 8000 | 16.3 | 21.5 | 500 | 15.9 | 16.2 | 17.5 | 740 |
ASME SA240 Type 316L Stainless Steel Strip HS Code
| Hs Code | Description |
|---|---|
| 72199090 | Stainless Steel 316L Plate |
316L SS Hot Rolled Plate Tolerances
| Sheet/Plate | ||||
|---|---|---|---|---|
| Stainless Steel Sheet / Plate | Cold Rolled | Spec. Thickness, in. | Thickness Tol. | |
| Widths over 40" & ≤ 50" | Widths ≤ 40" | |||
| 0.012 | +/- 0.0015" | +/- 0.001" | ||
| 0.016 | +/- 0.0015" | +/- 0.0015" | ||
| 0.020 | +/- 0.002" | +/- 0.0015" | ||
| 0.024 | +/- 0.002" | +/- 0.002" | ||
| 0.032 | +/- 0.0025" | +/- 0.002" | ||
| 0.040 | +/- 0.003" | +/- 0.0025" | ||
| 0.047 | +/- 0.003" | +/- 0.003" | ||
| 0.059 | +/- 0.004" | +/- 0.003" | ||
| 0.079 | +/- 0.004" | +/- 0.004" | ||
| 0.098 | +/- 0.005" | +/- 0.004" | ||
| 0.118 | +/- 0.007" | +/- 0.005" | ||
| 0.157 | +/- 0.007" | +/- 0.007" | ||
| 0.197 | +/- 0.008" | +/- 0.007" | ||
| 0.236 | +/- 0.009" | +/- 0.007" | ||
| 0.3125 | +/- 0.007" | |||
Get details of ASTM A240 316L Stainless Steel Plate and 316L Stainless Steel Foil, Hot rolled, annealed and pickled SS316L Plate, Stainless Steel 316L Plate and ASTM A240 Grade 316L Slit Coil Stockist in Mumbai.
ASTM A240 Grade 316L Plate Gauge
| Gauge Number | Inches | MM |
|---|---|---|
| 8 | .17187 | 4.365 |
| 10 | .14062 | 3.571 |
| 9 | .15625 | 3.968 |
| 11 | .125 | 3.175 |
| 14 | .07812 | 1.984 |
| 12 | .10937 | 2.778 |
| 16 | .0625 | 1.587 |
| 20 | .0375 | .9525 |
| 18 | .050 | 1.270 |
| 22 | .03125 | .7937 |
| 30 | .0125 | .3175 |
| 26 | .01875 | .476 |
| 24 | .025 | .635 |
| 28 | .01562 | .396 |

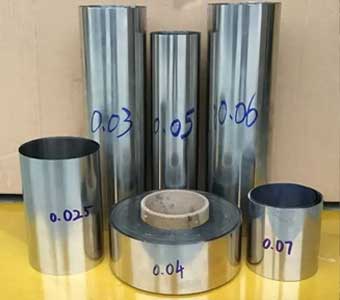

Stainless Steel 316L Applications
- Marine
- Food processing
- Marine
- Chemical process vessels
- Pharmaceutical equipment
Types of 316L 2b Stainless Steel Sheet
316L Stainless Steel Foil
Perforated 316L Stainless Steel Sheet
316L Stainless Steel Strip
Stainless Steel 316l Cold Rolled Plate
Sus 316L Foil
ASME SA240 Type 316L Stainless Steel Coil
316L 2b Stainless Steel Flat Sheet
A240 Tp316L Slit Coil
316L Stainless Steel Polished Plate
A240 Tp 316L Hot rolled Plate
SA240 316L Clad Plate
A240 GR 316L Rolling Plate
SUS 316L Polished and Plain Sheet Size
| Product | Thickness MM | Finish | Max Sheet Size MM |
|---|---|---|---|
| Grade 304 | 0.9 | Plain 2B | 2000 x 1000 |
| Bright | 2000 x 1000 | 0.9 | |
| Brushed Finish | 2000 x 1000, 2500 x 1250 | 0.9, 1.2 | |
| Rimex Super Mirror | 2400 x 1200, 2500 x 1250 | 0.8, 1.2 | |
| Embossed | 2500 x 1250 | 0.8, 1.0 |
Perforated Stainless Steel Sheet 316L
| Hole Centres mm | Hole Dia mm | Tck mm | O/A | Full Sheet Size mm | Finish |
|---|---|---|---|---|---|
| 1.5 | 0.75 | 0.6 | 23% | 2000 x 1000 | 2B |
| 2 | 1 | 1.0 | 23% | 2000 x 1000 | 2B |
| 2.6 | 1.5 | 1.0 | 30% | 2000 x 1000 | 2B |
| 3.5 | 2 | 1.0 | 30% | 2000 x 1000 | 2B |
| 3.5 | 2 | 1.0 | 30% | 2000 x 1000 | 2B |
| 5 | 3 | 1.0 | 33% | 2000 x 1000 | 2B |
| 5.6 | 4 | 1.0 | 46% | 2000 x 1000 | 2B |
| 8 | 5 | 1.0 | 35% | 2000 x 1000 | 2B |
| 8 | 6 | 1.0 | 51% | 2000 x 1000 | 2B |
| 10 | 8 | 1,0 | 58% | 2000 x 1000 | 2B |
316L Stainless Steel Sheet Thickness
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| mm | inches | kg/m² | lbs/ft² | kg | lbs | |
| 0.381 | 0.015 | 36 x 96 | 3.07566 | 0.630 | 6.84936 | 15.12 |
| 0.381 | 0.015 | 36 x 120 | 3.07566 | 0.630 | 8.5617 | 18.90 |
| 0.45212 | 0.0178 | 36 x 96 | 3.690792 | 0.756 | 8.22195 | 18.15 |
| 0.45212 | 0.0178 | 36 x 120 | 3.690792 | 0.756 | 10.27404 | 22.68 |
| 0.45212 | 0.0178 | 48 x 96 | 3.690792 | 0.756 | 10.95807 | 24.19 |
| 0.45212 | 0.0178 | 48 x 120 | 3.690792 | 0.756 | 13.69872 | 30.24 |
| 0.5969 | 0.0235 | 30 x 96 | 4.921056 | 1.008 | 9.13248 | 20.16 |
| 0.5969 | 0.0235 | 30 x 120 | 4.921056 | 1.008 | 11.4156 | 25.20 |
| 0.5969 | 0.0235 | 36 x 96 | 4.921056 | 1.008 | 10.95807 | 24.19 |
| 0.5969 | 0.0235 | 36 x 120 | 4.921056 | 1.008 | 13.69872 | 30.24 |
| 0.5969 | 0.0235 | 36 x 144 | 4.921056 | 1.008 | 16.43937 | 36.29 |
| 0.5969 | 0.0235 | 48 x 96 | 4.921056 | 1.008 | 14.61378 | 32.26 |
| 0.5969 | 0.0235 | 48 x 120 | 4.921056 | 1.008 | 18.26496 | 40.32 |
| 0.5969 | 0.0235 | 48 x 144 | 4.921056 | 1.008 | 21.92067 | 48.39 |
| 0.73914 | 0.0291 | 30 x 96 | 6.15132 | 1.260 | 11.4156 | 25.20 |
| 0.73914 | 0.0291 | 30 x 120 | 6.15132 | 1.260 | 14.2695 | 31.50 |
| 0.73914 | 0.0291 | 36 x 96 | 6.15132 | 1.260 | 13.69872 | 30.24 |
| 0.73914 | 0.0291 | 36 x 120 | 6.15132 | 1.260 | 17.1234 | 37.80 |
| 0.73914 | 0.0291 | 36 x 144 | 6.15132 | 1.260 | 20.55261 | 45.37 |
| 0.73914 | 0.0291 | 48 x 96 | 6.15132 | 1.260 | 18.26496 | 40.32 |
| 0.73914 | 0.0291 | 48 x 120 | 6.15132 | 1.260 | 22.83573 | 50.41 |
| 0.73914 | 0.0291 | 48 x 144 | 6.15132 | 1.260 | 27.40197 | 60.49 |
| 0.9017 | 0.0355 | 30 x 96 | 7.381584 | 1.512 | 13.69872 | 30.24 |
| 0.9017 | 0.0355 | 30 x 120 | 7.381584 | 1.512 | 17.1234 | 37.80 |
| 0.9017 | 0.0355 | 36 x 96 | 7.381584 | 1.512 | 16.43937 | 36.29 |
UNS S31603 Plate Density
| Thickness in Inches | Density in g/cm³ | Plate Weight per Unit Area ( kg/m²) |
|---|---|---|
| 7/8 | 0.315 lbs/in³8.72 | 0.274 lbs/in²192.6410704 |
| 3/16 | 0.315 lbs/in³8.72 | 0.06000 lbs/in²42.184176 |
| 1 | 0.315 lbs/in³8.72 | 0.313 lbs/in²220.0607848 |
| 1/4 | 0.315 lbs/in³8.72 | 0.08 lbs/in²56.245568 |
| 1 1/4 | 0.315 lbs/in³8.72 | 0.391 lbs/in²274.9002136 |
| 3/8 | 0.315 lbs/in³8.72 | 0.121 lbs/in²85.0714216 |
| 1 1/2 | 0.315 lbs/in³8.72 | 0.47 lbs/in²330.442712 |
| 1/2 | 0.315 lbs/in³8.72 | 0.161 lbs/in²113.1942056 |
| 2 | 0.315 lbs/in³8.72 | 0.627 lbs/in²440.8246392 |
| 5/8 | 0.315 lbs/in³8.72 | 0.196 lbs/in²137.8016416 |
| 2 1/2 | 0.315 lbs/in³8.72 | 0.784 lbs/in²551.2065664 |
| 3/4 | 0.315 lbs/in³8.72 | 0.235 lbs/in²165.221356 |
| 1 3/4 | 0.315 lbs/in³8.72 | 0.549 lbs/in²385.9852104 |
| 2 1/4 | 0.315 lbs/in³8.72 | 0.705 lbs/in²495.664068 |
| 2 3/4 | 0.315 lbs/in³8.72 | 0.862 lbs/in²606.0459952 |
| 3 | 0.315 lbs/in³8.72 | 0.941 lbs/in²661.5884936 |
316L Stainless Steel Coil Weight
| Size (mm) | Weight per sheet (Kg) |
Size (mm) | Weight per sheet (Kg) |
|---|---|---|---|
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
AISI 316L EN 1.4404 Rolling Sheet Melting Point
| Grade | Melting point |
|---|---|
| 316L | 2540-2630° F (1390-1440° C) |
Supplier of 316L 2b Stainless Steel Sheet and AISI 316L EN 1.4404 Rolling Sheet, Check SA240 316L Clad Plate/ Perforated Sheet standard dimensions, weight chart, sizes, thickness, and tolerances in mm.
ASTM A240 Type 316L Plate Certificate
- NABL approved Lab Test Report
- Manufacturer Test Certificate as per EN 10204-3.1
- EN 10204-3.2, Raw Materials Certificate
- 100% Radiography Test Report
- Third Party Inspection Report
316L Grade Stainless Steel Sheet Certificate
- Hardness Test
- Micro and MacroTest
- Positive Material Identification – PMI Testing
- Flaring Test
- Chemical Analysis – Spectro Analysis
- Flattening Test
- Pitting Resistance Test
- Mechanical Testing Such as Tensile of Area
- Intergranular Corrosion (IGC) Test
316L Stainless Steel Sheet Price Per Kg List
| Products | Thickness | Width | Length | Temper | 316L Stainless Steel Sheet Price List |
|---|---|---|---|---|---|
| Stainless steel cr coils/ sheets prime quality spec. 1.500mm x 1000mm x coil- 316L/2b/ trim edge | 0.002 | 6 | 50 | Soft (Annealed) | $22.10/ each |
| Decorated 316L sheets 0.5mm 0.6mm 0.7mm 1mm NO.3 8K HL price per kg sheet | 0.002 | 6 | 50 | $45.99/ each | |
| Hot Sale 2mm Cold Rolled SS Plate Aisi 316l Stainless Steel Sheet | 0.002 | 6 | 100 | $31.58/ each | |
| Cold rolled stainless steel wide sheets(having ni>8%) 3.429mmx1524mmx3048 -316L-ams/2b/trim edgesswidtof600mm | 0.002 | 6 | 100 | $82.96/ each | |
| 316L 2B BA no.4 hl 8k surface finish 4x8 size cold rolled | 0.002 | 12 | 50 | $39.27/ each | |
| Hot rolled stainless steel wide sheets(having ni>8%) 6.350mmx1219.200mmx2438.400-316L-ams/no1/trim 600mm | 0.002 | 12 | 50 | $71.47/ each | |
| SS sus 2mm thick cold rolled stainless steel 316l sheet price | 0.003 | 6 | 50 | $25.78/ each | |
| 0.5mm 0.7mm stainless steel sheet 316l astm a312 tp316l stainless steel plate | 0.003 | 6 | 50 | $47.74/ each | |
| Cold rolled stainless steel 316l sheet cold rolled with high corrosion resistance | 0.003 | 6 | 100 | $39.27/ each | |
| Hot/cold Rolled astm a312 316l stainless steel plate sheet in stock | 0.003 | 12 | 50 | $41.61/ each | |
| 10mm Thick AISI 316L Length 2M Width 1M Stainless Steel Sheet and Plate | 0.003 | 12 | 50 | $78.14/ each | |
| Cold rolled stainless steel coil Sheet 316L 430 1.0mm thick half hard | 0.004 | 6 | 50 | $31.20/ each | |
| 2mm 4mm 6mm 8mm 10mm thick 4x8 stainless steel 316L sheet price | 0.004 | 6 | 50 | $49.92/ each | |
| 2B BA 2D NO.1 HL Mirror Finish cold roll corrugated stainless steel 316L sheet price | 0.004 | 6 | 100 | $46.45/ each |
ASTM A240 Type 316L Shim Stock
| ASTM A240 316L Stainless Steel Plate | Stainless 316L Plate |
| 316L Stainless Steel Foil | SS 316L Sheet |
| 316L Stainless Plate | Sus 316L Foil |
| 316L Stainless Sheet | SS 316L Perforated Sheet |
| SS316L Plate | ASTM A240 Type 316L Sheet |
| 316L Grade Stainless Steel Plate | ASTM A240 Grade 316L Plate |
| Perforated 316L Stainless Steel Sheet | 316L 2b Stainless Steel Sheet |
| 316L Stainless Steel Sheet | 316L Stainless Steel Coil |
| Stainless Steel 316L Plate | 316L 2b Stainless Steel Flat Sheet |
| 16 Gauge 316L Stainless Steel Sheet | A240 Tp316L Slit Coil |
| Stainless Steel 316L Sheet | 316L Stainless Steel Polished Plate |
| 316L Stainless Steel Strip | A240 Tp 316L Hot rolled Plate |
| 316L SS Hot Rolled Plate | UNS S31603 Plate |
| Stainless Steel 316l Cold Rolled Plate | AISI 316L EN 1.4404 Rolling Sheet |
| ASTM A240 Tp316L Sheet | ASTM A240 316L Perforated Plate |
| ASME SA240 Tp316L Sheet | SA240 316L Clad Plate |
| SS 316L Plate | A240 Gr 316L Rolling Plate |
| SS 316L 2b Finish Plate | 316L 2b Finish Plate |
| Stainless Hairline 316L Plate | Stainless Steel 316L Hairline Finish Plate |
| SS 316L Hairline Finish Plate | Brushed 316L Stainless Steel Plate |
Searching for
Stainless Steel 316L Sheet Suppliers in your country? Checklist of material we export in the following areas.
ASTM A240 316L Stainless Steel Plate
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
316L Stainless Steel Foil
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
316L Stainless Steel Sheet
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
ASTM A240 Tp316L Sheet
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
ASME SA240 Tp316L Sheet
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
AISI 316L EN 1.4404 Rolling Sheet
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
