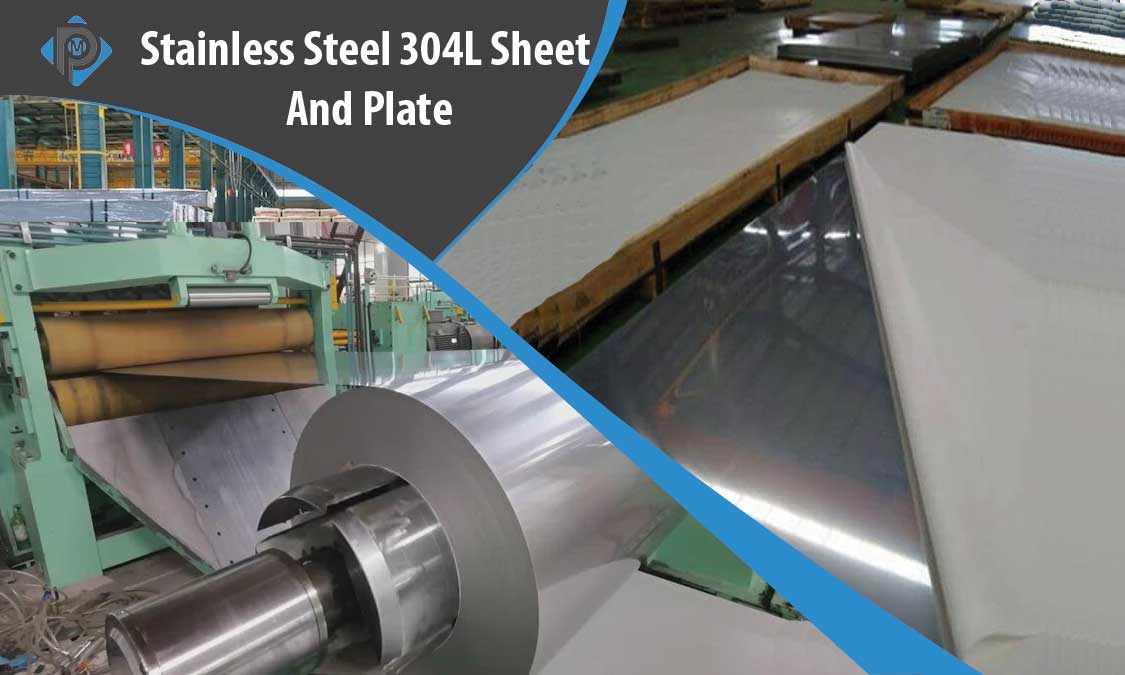

ASTM A240 304L Plate and SS 304L Coil Supplier in India
Stainless Steel 304l Sheet
Stainless steel 304l sheet is a grade designed with a thickness of less than 6mm but higher than 0.5mm. The low carbon sheets possess superior corrosion and oxidation resistance properties due to their outstanding chemical composition. The sheets are commonly used in applications where there is a need for an aesthetical appeal rather than providing stability and strength to the module. To provide extra strength to these components they can be corrugated or diamonded without adding any additional weight to the items.
304l Stainless Steel Plate
Stainless steel 304l plate is a component designed in thickness above 6mm going up to 150mm or more. The plates within this grade possess excellent strength and can provide support and rigidity to a range of structures. The plates in the 304l grade have excellent forming and welding capacity, allowing them to be effectively used in industrial, architectural, and transportation sectors.
What Is AISI 304l Shim Sheet?
AISI 304l shim sheet is a tapered or wedged material piece. A shim sheet is employed to fill space between different objects in industrial and domestic applications. The robust high-strength components provide support or adjust to better fit the item in place. In certain cases, they can also be used to provide a level surface in the system.
304l Stainless Steel Strip Vs Sus 304l Foil
304l Stainless Steel Strip and foil are the thinnest metal components in the industry. Both these modules can be distinguished based on certain characteristics.
- 304L stainless steel strip is designed in thickness between 0.2mm to 0.5mm. Strips of this grade are used in welding a range of piping modules.
- Sus 304l foil is designed with a thickness of less than 0.2mm. The foils are wrapped or coiled around the material to protect it from corrosive media or during a heat treatment procedure.
Table of Content
Stainless Steel 304L Plate Specification
| Specifications | ASTM / ASME A240/ SA240 |
|---|---|
| Standard | EN, GB, JIS, AISI, ASTM, DIN, etc |
| Thickness | From 4mm to 100mm |
| Width | 1000mm, 1500mm, 1219mm, 3500mm, 2000mm, 1800mm, 2500mm, 3000mm, etc |
| Surface | 2D, 2B,BA, NO.4, NO.1, NO.8, mirror, 8K, checkered, hair line, embossed, sand blast, etching, brush, etc |
| Length | 6000mm, 2440mm, 5800mm, 3000mm, 2000mm, etc |
| Finish | Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Hot rolled plate (HR) |
| Package | Export standard package |
| Manufacturer: | Acerinox, Baosteel, Aperam, Thyssenkrup, TISCO, POSCO, Jindal Stainless, Nippon Metal, DKC Korea, Arcelor Mittal, Nas, Sail, Outokumpu |
| Form | Foils, Coils, Rolls, Shim Sheet, Plain Sheet, Perforated Sheet, Strip, Blank (Circle), Chequered Plate Suppliers and Manufacturer |
Manufacturer and Distributor of ASME SA 240 Grade 304L Stainless Steel Sheet, AISI 304L Strips and SS 304L Shim in Mumbai, Get TP 304L Sheets and SUS 304L Foil in sizes and Surface Finish Coating 2B, BA, 8K, Mirror and No.4
304L Stainless Steel Strip Chemical Composition
| Grade | Phosphorus | Carbon | Chromium | Manganese | Nickel | Silicon | Sulfur | Molybdenum | Nitrogen |
|---|---|---|---|---|---|---|---|---|---|
| 304L | 0.045 max | 0.035 max | 18 – 20 | 2 max | 8 – 13 | 1.0 max | 0.030 max | – | – |
ASME SA 240 Grade 304L Stainless Steel Sheet Mechanical Properties
| Density | Tensile Strength | Melting Point | Elongation | Yield Strength (0.2%Offset) |
|---|---|---|---|---|
| 8.0 g/cm3 | Psi – 75000 , MPa – 515 | 1400 °C (2550 °F) | 35 % | Psi – 30000 , MPa – 205 |
UNS S30403 2d Stainless Steel Cold Rolled Coil Equivalent Grade
| STANDARD | BS | WERKSTOFF NR. | GOST | UNS | AFNOR | JIS | EN |
|---|---|---|---|---|---|---|---|
| SS 304L | 3304S11 | 1.4306 / 1.4307 | 03Х18Н11 | S30403 | Z3CN18‐10 | SUS 304L | X2CrNi18-9 / X2CrNi19-11 |
AISI 304L Strips Physical Properties
| Grade | Elastic Modulus (GPa) | Density (kg/m3) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Specific Heat 0-100°C (J/kg.K) | Thermal Conductivity (W/m.K) | Electrical Resistivity (nΩ.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304L | 193 | 8000 | 17.2 | 17.8 | 18.4 | 500 | 16.2 | 21.5 | 720 |
Call for Stainless Steel 304L Plate Supplier? View ASTM A240 Tp304L Flat Sheet, 304l stainless steel strip and 304L Stainless Steel Coil with value added services like Hairline, Etching, Embossed and PVD coating
SA-240 304l Material Tolerances
| Sheet/Plate | ||||
|---|---|---|---|---|
| Stainless Steel Sheet / Plate | Cold Rolled | Spec. Thickness, in. | Thickness Tol. | |
| Widths over 40" & ≤ 50" | Widths ≤ 40" | |||
| 0.012 | +/- 0.0015" | +/- 0.001" | ||
| 0.016 | +/- 0.0015" | +/- 0.0015" | ||
| 0.020 | +/- 0.002" | +/- 0.0015" | ||
| 0.024 | +/- 0.002" | +/- 0.002" | ||
| 0.032 | +/- 0.0025" | +/- 0.002" | ||
| 0.040 | +/- 0.003" | +/- 0.0025" | ||
| 0.047 | +/- 0.003" | +/- 0.003" | ||
| 0.059 | +/- 0.004" | +/- 0.003" | ||
| 0.079 | +/- 0.004" | +/- 0.004" | ||
| 0.098 | +/- 0.005" | +/- 0.004" | ||
| 0.118 | +/- 0.007" | +/- 0.005" | ||
| 0.157 | +/- 0.007" | +/- 0.007" | ||
| 0.197 | +/- 0.008" | +/- 0.007" | ||
| 0.236 | +/- 0.009" | +/- 0.007" | ||
| 0.3125 | +/- 0.007" | |||
SS 304L Shims Melting Point
| Grade | Melting point |
|---|---|
| 304L | 2550 – 2640 °F (1400 – 1450 °C) |
304L Stainless Steel Sheet Gauge Chart
| Gauge Number | Inches | MM |
|---|---|---|
| 8 | .17187 | 4.365 |
| 10 | .14062 | 3.571 |
| 9 | .15625 | 3.968 |
| 11 | .125 | 3.175 |
| 14 | .07812 | 1.984 |
| 12 | .10937 | 2.778 |
| 16 | .0625 | 1.587 |
| 20 | .0375 | .9525 |
| 18 | .050 | 1.270 |
| 22 | .03125 | .7937 |
| 30 | .0125 | .3175 |
| 26 | .01875 | .476 |
| 24 | .025 | .635 |
| 28 | .01562 | .396 |

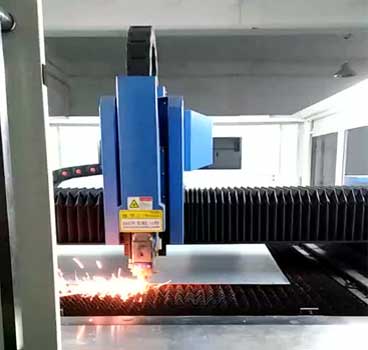

ASTM A240 Gr 304L Coils Testing
- Hardness Test
- Intergranular Corrosion (IGC) Test
- Positive Material Identification – PMI Testing
- Flattening Test
- Pitting Resistance Test
- Mechanical Testing Such as Tensile of Area
- Flaring Test
- Micro and MacroTest
- Chemical Analysis – Spectro Analysis
Types of Stainless Steel 304L Sheet
ASTM A240 Type 304L Stainless Steel Sheet
304L Stainless Steel Strip
Stainless Steel Sheet 304L
AISI 304L Strips
SS 304L Shims
Stainless Steel 304L Plate
AISI 304L Foil
SA240 304L Stainless Circles
DIN 1.4306 SS Hot rolled Plate
ASTM A240 Gr 304L Cold Rolled Plate
CRES 304L SS Chequered Plate
Stainless Steel 304l Clad Plate
Customer-specific Surface Finishes of SA 240 Type 304L Material, 304L Stainless Steel Sheet supplier in India, Cut to Size SA 240 Gr 304L Polished Plate dimensions, thickness chart, and weight
SA 240 304L Stainless Steel Sheet Thickness
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Appro* Weight per Plate/ Sheet | ||
|---|---|---|---|---|---|---|
| mm | inches | kg/m² | lbs/ft² | kg | lbs | |
| 0.381 | 0.015 | 36 * 96 | 3.07566 | 0.630 | 6.84936 | 15.12 |
| 0.381 | 0.015 | 36 * 120 | 3.07566 | 0.630 | 8.5617 | 18.90 |
| 0.45212 | 0.0178 | 36 * 96 | 3.690792 | 0.756 | 8.22195 | 18.15 |
| 0.45212 | 0.0178 | 36 * 120 | 3.690792 | 0.756 | 10.27404 | 22.68 |
| 0.45212 | 0.0178 | 48 * 96 | 3.690792 | 0.756 | 10.95807 | 24.19 |
| 0.45212 | 0.0178 | 48 * 120 | 3.690792 | 0.756 | 13.69872 | 30.24 |
| 0.5969 | 0.0235 | 30 * 96 | 4.921056 | 1.008 | 9.13248 | 20.16 |
| 0.5969 | 0.0235 | 30 * 120 | 4.921056 | 1.008 | 11.4156 | 25.20 |
| 0.5969 | 0.0235 | 36 * 96 | 4.921056 | 1.008 | 10.95807 | 24.19 |
| 0.5969 | 0.0235 | 36 * 120 | 4.921056 | 1.008 | 13.69872 | 30.24 |
| 0.5969 | 0.0235 | 36 * 144 | 4.921056 | 1.008 | 16.43937 | 36.29 |
| 0.5969 | 0.0235 | 48 * 96 | 4.921056 | 1.008 | 14.61378 | 32.26 |
| 0.5969 | 0.0235 | 48 * 120 | 4.921056 | 1.008 | 18.26496 | 40.32 |
| 0.5969 | 0.0235 | 48 * 144 | 4.921056 | 1.008 | 21.92067 | 48.39 |
| 0.73914 | 0.0291 | 30 * 96 | 6.15132 | 1.260 | 11.4156 | 25.20 |
| 0.73914 | 0.0291 | 30 * 120 | 6.15132 | 1.260 | 14.2695 | 31.50 |
| 0.73914 | 0.0291 | 36 * 96 | 6.15132 | 1.260 | 13.69872 | 30.24 |
| 0.73914 | 0.0291 | 36 * 120 | 6.15132 | 1.260 | 17.1234 | 37.80 |
| 0.73914 | 0.0291 | 36 * 144 | 6.15132 | 1.260 | 20.55261 | 45.37 |
| 0.73914 | 0.0291 | 48 * 96 | 6.15132 | 1.260 | 18.26496 | 40.32 |
| 0.73914 | 0.0291 | 48 * 120 | 6.15132 | 1.260 | 22.83573 | 50.41 |
| 0.73914 | 0.0291 | 48 * 144 | 6.15132 | 1.260 | 27.40197 | 60.49 |
| 0.9017 | 0.0355 | 30 * 96 | 7.381584 | 1.512 | 13.69872 | 30.24 |
| 0.9017 | 0.0355 | 30 * 120 | 7.381584 | 1.512 | 17.1234 | 37.80 |
| 0.9017 | 0.0355 | 36 * 96 | 7.381584 | 1.512 | 16.43937 | 36.29 |
ASTM A240 Gr 304L Sheet Density
| Thickness in Inches | Density in g/cm³ | Plate Weight per Unit Area ( kg/m²) |
|---|---|---|
| 7/8 | 0.315 lbs/in³8.72 | 0.274 lbs/in²192.6410704 |
| 3/16 | 0.315 lbs/in³8.72 | 0.06000 lbs/in²42.184176 |
| 1 | 0.315 lbs/in³8.72 | 0.313 lbs/in²220.0607848 |
| 1/4 | 0.315 lbs/in³8.72 | 0.08 lbs/in²56.245568 |
| 1 1/4 | 0.315 lbs/in³8.72 | 0.391 lbs/in²274.9002136 |
| 3/8 | 0.315 lbs/in³8.72 | 0.121 lbs/in²85.0714216 |
| 1 1/2 | 0.315 lbs/in³8.72 | 0.47 lbs/in²330.442712 |
| 1/2 | 0.315 lbs/in³8.72 | 0.161 lbs/in²113.1942056 |
| 2 | 0.315 lbs/in³8.72 | 0.627 lbs/in²440.8246392 |
| 5/8 | 0.315 lbs/in³8.72 | 0.196 lbs/in²137.8016416 |
| 2 1/2 | 0.315 lbs/in³8.72 | 0.784 lbs/in²551.2065664 |
| 3/4 | 0.315 lbs/in³8.72 | 0.235 lbs/in²165.221356 |
| 1 3/4 | 0.315 lbs/in³8.72 | 0.549 lbs/in²385.9852104 |
| 2 1/4 | 0.315 lbs/in³8.72 | 0.705 lbs/in²495.664068 |
| 2 3/4 | 0.315 lbs/in³8.72 | 0.862 lbs/in²606.0459952 |
| 3 | 0.315 lbs/in³8.72 | 0.941 lbs/in²661.5884936 |
ASTM A240 Grade 304L Stainless Steel Sheet Weight Chart
| Size (mm) | Weight per sheet (Kg) |
Size (mm) | Weight per sheet (Kg) |
|---|---|---|---|
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
SA-240 304L Material Polished and Plain Sheet Size
| Product | Thickness MM | Finish | Max Sheet Size MM |
|---|---|---|---|
| Grade 304 | 0.9 | Plain 2B | 2000 x 1000 |
| Bright | 2000 x 1000 | 0.9 | |
| Brushed Finish | 2000 x 1000, 2500 x 1250 | 0.9, 1.2 | |
| Rimex Super Mirror | 2400 x 1200, 2500 x 1250 | 0.8, 1.2 | |
| Embossed | 2500 x 1250 | 0.8, 1.0 |
Perforated Stainless Steel Sheet 304L
| Hole Centres mm | Hole Dia mm | Tck mm | O/A | Full Sheet Size mm | Finish |
|---|---|---|---|---|---|
| 1.5 | 0.75 | 0.6 | 23% | 2000 x 1000 | 2B |
| 2 | 1 | 1.0 | 23% | 2000 x 1000 | 2B |
| 2.6 | 1.5 | 1.0 | 30% | 2000 x 1000 | 2B |
| 3.5 | 2 | 1.0 | 30% | 2000 x 1000 | 2B |
| 3.5 | 2 | 1.0 | 30% | 2000 x 1000 | 2B |
| 5 | 3 | 1.0 | 33% | 2000 x 1000 | 2B |
| 5.6 | 4 | 1.0 | 46% | 2000 x 1000 | 2B |
| 8 | 5 | 1.0 | 35% | 2000 x 1000 | 2B |
| 8 | 6 | 1.0 | 51% | 2000 x 1000 | 2B |
| 10 | 8 | 1,0 | 58% | 2000 x 1000 | 2B |
SS 304L Plate Dimensions
Imperial Dimensions Standards
| Plate Surface finish | Width (max in) | Gauge (in) |
|---|---|---|
| BA Mexinox only | 48 | 18–28 |
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 72* | 10–24 |
| Polished plate (not brushed) | 60 | 11–24 |
| 2D – Cold rolled, heat treated, pickled plate | 60 | 12–24 |
| Temper rolled plate Mexinox only | 48 | 13–29 |
Metric Dimensions
| Plate Surface finish | Width (max mm) | Thickness (mm) |
|---|---|---|
| 2R – Cold rolled, bright annealed plate | 1524 | 0.25–3.5 |
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 2032 | 0.25–8.0 |
| 2H – Work hardened plate | 1524 | 0.4–6.35 |
| 2D – Cold rolled, heat treated, pickled plate | 1524 | 0.4–6.35 |
| Polished, brushed plate | 1524 | 0.5–4.0 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 2032 | 0.4–8.0 |
UNS S30403 Stainless Steel Coil Certificate
- Third Party Inspection Report
- Manufacturer Test Certificate as per EN 10204-3.1
- 100% Radiography Test Report
- NABL approved Lab Test Report
- EN 10204-3.2, Raw Materials Certificate
Price List from India's 2nd Largest Stockist of Jindal 304L Stainless Steel Plate, 1.4307 Stainless Steel Shim Stock and ASTM A240 304L Slitting Coil, Have difficulty to find CRES 304L Rolling Plate in tough sizes? Call us now
SA240 Tp304L Stainless Steel Sheet Price
| Products | Thickness | Width | Length | Price in USD |
|---|---|---|---|---|
| HOT ROLLED STAINLESS STEEL WIDE SHEETS(HAVING NI>8%) 6.350MMX1219.200MMX2438.400-304L-AMS/NO1/TRIM EDGE.FPSWIDT600MM | 0.002 in | 12 in | 10 ft | $31.31/ each |
| COLD ROLLED STAINLESS STEEL WIDE SHEETS(HAVING NI>8%) 3.429MMX1524MMX3048 -304L-AMS/2B/TRIM EDGE.FR.PR.SSWIDTOF600MM | 0.002 in | 12 in | 25 ft | $58.76/ each |
| STAINLESS STEEL CR COILS/ SHEETS PRIME QUALITY SPEC. 1.500MM X 1000MM X COIL- 304L/2B/ TRIM EDGE | 0.002 in | 12 in | 50 ft | $93.13/ each |
| HOT ROLLED STAINLESS STEEL WIDE PLATES (HAVING NI>8%) 12.700MMX1219.200MMX3048 -304L-AMS/NO1/TRIM EDGE.FPSWIDT600MM | 0.002 in | 12 in | 100 ft | $173.57/ each |
| STAINLESS STEEL PLATE TO ASTM A 240 GR.TP 304L, COLD ROLLED, 2B FINISH SIZE: 500 MM x 500 MM x 9 MM THK | 0.002 in | 24 in | 10 ft | $48.24/ each |
| S.S. 304L PLATE SIZE:16 MM THK X 2 MTRSX 6 MTRS | 0.002 in | 24 in | 25 ft | $97.55/ each |
| SS 304L SHEET CR 3 MM | 0.002 in | 24 in | 50 ft | $184.03/ each |
| SS 304L SHEET JINDAL | 0.002 in | 24 in | 100 ft | $345.05/ each |
ASTM A312 F304L Stainless Steel Plate Stocks
| Stainless Steel 304L Sheet | SS UNS S30403 Plates |
| Stainless Steel 304L Plate | ASTM A240 Gr 304L Coils |
| 304L Stainless Steel Sheet | ASTM A240 Gr 304l Plate |
| 304L 2B Stainless Steel Strip | ASTM A240 Grade 304L Stainless Steel Sheet |
| SA240 304L Stainless Steel Plate | ASTM A240 Gr 304L Sheet |
| Stainless Steel Sheet 304L | 304L Stainless Steel Strip |
| ASME SA 240 Grade 304L Stainless Steel Sheet | DIN 1.4306 SS Hot rolled Plate |
| Jindal 304L Stainless Steel Sheet | Stainless Steel 304L Coils |
| UNS S30403 2d Stainless Steel Cold Rolled Coil | SS 304L Plate |
| AISI 304L Strips | Stainless Steel 304L Plate |
| SA-240 304l Material | ASTM A240 Gr 304L Cold Rolled Plate |
| AISI 304L Sheets | UNS S30403 Stainless Steel Coil |
| SS 304L Shims | SA240 304L Stainless Steel Plate |
| AISI 304L Foil | 304L SS Chequered Plate |
| 304L Stainless Circles | Stainless Steel 304l Clad Plate |
| SA 240 304L Stainless Steel Sheet | ASTM A312 F304L Stainless Steel Plate |
| 1.4307 Stainless Steel Sheet | SA 240 GR 304L DIN 1.4307 Plate |
Refer
List of Stainless Steel 304L Sheet supplied to Asian countries and other continents of World.
AISI 304L Strips
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
SA-240 304l Material
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
304L Stainless Steel Sheet
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
ASTM A240 Gr 304l Plate
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
DIN 1.4306 SS Hot rolled Plate
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
UNS S30403 Stainless Steel Coil
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
