ASTM B127 UNS N04400 Strip and Alloy 400 Sheet Supplier in India
Monel 400 plate heat treatment
A Monel 400 plate is generally annealed; or stress relieved to give the plate desired strength and ductility. This ensures that there is minimum distortion during machining of the item. The plates are annealed in temperatures between 1300 degrees F up to 1800 degrees F. The components can be stress relieved without causing recrystallization to occur in the grain structure. Heating the items in temperatures of 1000 to 1050 degrees F will help relieve any stress within these products.
Monel 400 sheet
Monel 400 sheets are single-phase nickel copper alloys. These sheets are designed with a thickness of less than 6mm but higher than 0.5mm. Monel sheets add an aesthetical appeal to the module and are used as means to lower the weight on the components. The versatile grades are not preferred in applications where the requirement for stability and strength are necessary. The robust Monel 400 sheets can be readily welded in place, following standard welding procedures.
Advantages of Monel Plate
- Excellent weldability and machinability.
- Superior corrosion and oxidation resistance properties.
- Highly malleable and ductile.
- Superior resistance to brackish and seawater.
- Efficient in a range of aggressive environments.
- Showcases enhanced resistance to pitting by acids, crevice corrosion and cracking due to stress corrosion.
- Outstanding strength and are highly durable.
- Particularly resistance to hydrochloric and hydrofluoric acids.
- Enhanced flexibility with good forming features.
- Good performance in higher pressure and temperatures.
- Superb mechanical properties.
- High resistance against alkalis.
Table of Content
Searching Monel Plate Suppliers in India? Stockist and distributor of Alloy 400 Polished Plate, we supply Alloy 400 Slit Coil, Clad Plate, Shim and Trim Strips in Custom Sizes, Chemical, Mechanical Properties.
Monel 400 Plate Specification
| Specifications | ASTM / ASME SB 127 |
|---|---|
| Form | Foils, Coils, Rolls, Shim Sheet, Plain Sheet, Strip, Blank (Circle), Flats, Ring (Flange) and Monel Sheet Suppliers & Manufacturers |
| Size | From 1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm |
| Finish | Cold rolled sheet (CR), SATIN (Met with Plastic Coated), Hot rolled plate (HR), 2D, 2B, BA NO(8) |
| Thickness | From 0.1 to 12 mm Thk |
| Hardness | Hard, Soft, Half Hard, Spring Hard, Quarter Hard, etc. |
Alloy 400 Sheet Chemical Composition
| Grade | S | C | Cu | Mn | Fe | Si | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.024 max | 0.30 max | 28.00 – 34.00 | 2.00 max | 2.50 max | 0.50 max | 63.00 min |
Sb 127 Alloy 400 Mechanical Properties
| Element | Tensile Properties | Density | Elongation | Melting Point | Yield Properties (0.2%Offset) |
|---|---|---|---|---|---|
| Monel 400 | Psi – 80,000 , MPa – 550 | 8.8 g/cm3 | 40 % | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 |
Monel Alloy 400 Plate Equivalent
| STANDARD | WERKSTOFF NR. | BS | UNS | GOST | JIS | EN | AFNOR |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | NA 13 | N04400 | МНЖМц 28-2,5-1,5 | NW 4400 | NiCu30Fe | NU-30M |
Stocking Distributors of Monel 400 Sheet, also check UNS N04400 Strip Coil and Hot Rolled/ Cold Rolled Monel Alloy 400 Shim Sheet Chart, Tolerances, Pressure Rating.
Monel 400 Steel Plate Density
- g/cm3 :8.80
- lb/in.3 : 0.318

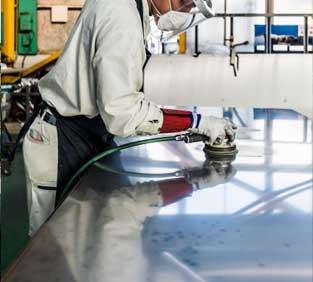

Alloy 400 Sheet Finishes
- #4 Architectural Finish
- #6 Finish
- True #8 Mirror Finish
- #3 Finish
- #8 Mirror Finish
- #4 Dairy or Sanitary Finish
- #7 Finish
Nickel Alloy 400 Sheet Physical Properties
| Density | Melting Range | Curie Temperature | Electrisity Resistivity | ||
|---|---|---|---|---|---|
| 8.80 | 0.318 | 1300-1350 | 21-49 | 70-120 | 547 |
| g/cm3 | lb/in3 | °C | °C | °F | µΩ·m |
Monel 400 Plate Astm
| UNS | N04400 |
|---|---|
| Specifications | AMS 4544, ASTM B127 |
| International Specifications | QQ-N-281, BS 3073NA13, BS 3072NA1, DIN 17750 |
Monel Sheet Tolerances
| Gauge | LB/Sq In. | LB/Sq. Ft. | Gauge Tolerance | ||
|---|---|---|---|---|---|
| 72″ Wide | 96″ Wide | ||||
| 3/16 | 0.01875 | 0.005958 | 8.0579 | +.0045″ -.0010″ | +.0050″ -.0010″ |
| 7/32 | 0.02187 | 0.006854 | 9.0870 | ||
| 1/4 | 0.02500 | 0.007750 | 11.0162 | ||
| 5/16 | 0.03125 | 0.009546 | 13.0746 | ||
| 3/8 | 0.03750 | 0.011456 | 16.0496 | +.0055″ -.0010″ | +.0060″ -.0010″ |
| 7/16 | 0.04375 | 0.013250 | 19.0080 | ||
| 1/2 | 0.05000 | 0.015044 | 21.0633 | ||
| 9/16 | 0.05625 | 0.016838 | 24.0247 | ||
| 5/8 | 0.06250 | 0.018633 | 26.0831 | ||
| 11/16 | 0.06875 | 0.020427 | 29.0415 | ||
| 3/4 | 0.07500 | 0.022308 | 32.0123 | +.0060″ -.0010″ | +.0065″ -.0010″ |
| 13/16 | 0.08125 | 0.024102 | 34.0707 | ||
| 7/8 | 0.08750 | 0.025897 | 37.0291 | ||
| 15/16 | 0.09375 | 0.027691 | 39.0875 | ||
| 1 | 1.00000 | 0.029628 | 42.0665 | +.0070″ -.0010″ | +.0075 -.0010″ |
| 1-1/8 | 1.01250 | 0.033217 | 47.0833 | ||
| 1-1/4 | 1.02500 | 0.036806 | 53.0001 | ||
| 1-3/8 | 1.03750 | 0.040395 | 58.0169 | ||
| 1-1/2 | 1.05000 | 0.043984 | 63.0337 | ||
| 1-3/4 | 1.07500 | 0.051161 | 73.0672 | ||
| 2 | 2.00000 | 0.058339 | 84.0008 | +.0125″ -.0010″ | +.0150″ -.0010″ |
| 2-1/8 | 2.01250 | 0.062229 | 89.0610 | ||
| 2-1/4 | 2.02500 | 0.065817 | 94.0777 | ||
| 2-1/2 | 2.05000 | 0.072995 | 105.0113 | ||
| 2-3/4 | 2.07500 | 0.080173 | 115.0449 | ||
| 3 | 3.00000 | 0.087709 | 126.0301 | +.0160″ -.0010″ | |
| 3-1/2 | 3.05000 | 1.002064 | 146.0972 | ||
| 4 | 4.00000 | 1.016850 | 168.0264 | +.0200″ -.0010 | |
UNS N04400 Coil Flatness Tolerances
| Specified Thickness (t), in. (mm) | Flatness Tolerance for Thicknesses Given, in. (mm) |
|---|---|
| 3/8 (9.052) <= t < 1/2 (12.070) | 5/16 (7.09) |
| 1/4 <= t < 3/8 (9.052) | 3/8 (9.05) |
| 1 (25.040) <= t < 1-1/2 (38.010) | 1/4 (6.04) |
| t < 1/4 (6.035) | 7/16 (11) |
| 3/4 (19.005) <= t < 1 (25.040) | 5/16 (7.09) |
| t >=4 (101.060) | 1/4 (6.04) |
| 1 1/2 (38.010) < = t < 4 (101.060) | 1/4 (6.04) |
| 1/2 (12.070) <= t < 3/4 (19.005) | 5/16 (7.09) |
Din 2.4360 Strip Uses
- Aerospace equipment
- Nuclear waste reprocessing equipment
- Motor racing exhaust systems
- Jet Engine exhaust systems
- Chemical Processing
- Chimney Linings
- Sour gas production tubes
Types of Monel 400 Plate
Monel 400 Steel Plate
Nickel Alloy 400 Sheet
UNS N04400 Coil
Din 2.4360 Strip
Monel Alloy 400 Foil
ASTM B 127 400 Monel Polished Cold Drawn Plate
400 Alloy Slatting Coil
DIN 2.4360 Monel 400 Cold Rolled Plates
ASTM B127 Monel 400 Sheet
Grade Monel 400 Clad Plate
Monel 400 ASTM B127 Hot Rolled Plate
Monel 400 Alloy Polished Plate
Looking for Monel 400 Plate Supplier in India? We stock and supply Sb 127 Alloy 400 Sheet, ASTM B127 UNS N04400 Hot Rolled and Cold Rolled Plates in all thickness and sizes, Ask for a free quote now!
Monel 400 Plate Weight Chart
| Thickness | Density | Plate Weight per Unit Area |
|---|---|---|
| 3/16 inches | 0.315 lbs/in³8.72 g/cm³ | 0.06000 lbs/in²42.184176 kg/m² |
| 1/4 inches | 0.315 lbs/in³8.72 g/cm³ | 0.08 lbs/in²56.245568 kg/m² |
| 3/8 inches | 0.315 lbs/in³8.72 g/cm³ | 0.121 lbs/in²85.0714216 kg/m² |
| 1/2 inches | 0.315 lbs/in³8.72 g/cm³ | 0.161 lbs/in²113.1942056 kg/m² |
| 5/8 inches | 0.315 lbs/in³8.72 g/cm³ | 0.196 lbs/in²137.8016416 kg/m² |
| 3/4 inches | 0.315 lbs/in³8.72 g/cm³ | 0.235 lbs/in²165.221356 kg/m² |
| 7/8 inches | 0.315 lbs/in³8.72 g/cm³ | 0.274 lbs/in²192.6410704 kg/m² |
| 1 inches | 0.315 lbs/in³8.72 g/cm³ | 0.313 lbs/in²220.0607848 kg/m² |
| 1 1/4 inches | 0.315 lbs/in³8.72 g/cm³ | 0.391 lbs/in²274.9002136 kg/m² |
| 1 1/2 inches | 0.315 lbs/in³8.72 g/cm³ | 0.47 lbs/in²330.442712 kg/m² |
| 1 3/4 inches | 0.315 lbs/in³8.72 g/cm³ | 0.549 lbs/in²385.9852104 kg/m² |
| 2 inches | 0.315 lbs/in³8.72 g/cm³ | 0.627 lbs/in²440.8246392 kg/m² |
| 2 1/4 inches | 0.315 lbs/in³8.72 g/cm³ | 0.705 lbs/in²495.664068 kg/m² |
| 2 1/2 inches | 0.315 lbs/in³8.72 g/cm³ | 0.784 lbs/in²551.2065664 kg/m² |
| 2 3/4 inches | 0.315 lbs/in³8.72 g/cm³ | 0.862 lbs/in²606.0459952 kg/m² |
| 3 inches | 0.315 lbs/in³8.72 g/cm³ | 0.941 lbs/in²661.5884936 kg/m² |
Monel 400 Coil Processing
- Testing
- Forming Drilling/ Machining
- Cutting
- Grinding
400 Monel Cold Rolled Sheets Dimensions
Monel Plate Imperial Dimensions
| Plate Surface finish | Width (max in) | Gauge (in) |
|---|---|---|
| Temper rolled plate Mexinox only | 48 | 13–29 |
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 72* | 10–24 |
| Polished plate (not brushed) | 60 | 11–24 |
| 2D – Cold rolled, heat treated, pickled plate | 60 | 12–24 |
| BA Mexinox only | 48 | 18–28 |
ASME SB 127 Monel Sheet Metric Dimensions
| Plate Surface finish | Width (max mm) | Thickness (mm) |
|---|---|---|
| 2R – Cold rolled, bright annealed plate | 1524 | 0.25–3.5 |
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 2032 | 0.25–8.0 |
| 2H – Work hardened plate | 1524 | 0.4–6.35 |
| 2D – Cold rolled, heat treated, pickled plate | 1524 | 0.4–6.35 |
| Polished, brushed plate | 1524 | 0.5–4.0 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 2032 | 0.4–8.0 |
400 Monel Alloy Hot Rolled Plate Gauge Chart
| Gauge Number | Inches | MM |
|---|---|---|
| 8 | .017187 | 4.0365 |
| 9 | .015625 | 3.0968 |
| 10 | .014062 | 3.0571 |
| 11 | .0125 | 3.0175 |
| 12 | .010937 | 2.0778 |
| 14 | .007812 | 1.0984 |
| 16 | .00625 | 1.0587 |
| 18 | .0050 | 1.0270 |
| 20 | .00375 | .09525 |
| 22 | .003125 | .07937 |
| 24 | .0025 | .0635 |
| 26 | .001875 | .0476 |
| 28 | .001562 | .0396 |
| 30 | .00125 | .03175 |
Monel 400 Plate Value Added Services
- Heat treating & Annealing
- Beveling
- Polishing
- grinding
- UT Testing
- Positive Material Identification (PMI)
ASTM B127 UNS N04400 Plates Sizes
| Stocked Sizes | |
|---|---|
| Size (in mm) | Size (in inches) |
| 3.18mm | .125" |
| 3.40mm | .134" |
| 3.96mm | .156" |
| 4.75mm | .187" |
| 6.35mm | .250" |
| 7.92mm | .312" |
| 9.53mm | .375" |
| 12.7mm | .500" |
| 15.9mm | .600" |
| 19.1mm | .750" |
| 22.2mm | .875" |
| 25.4mm | 1" |
| 28.6mm | 1.125" |
| 31.8mm | 1.250" |
| 38.1mm | 1.500" |
| 44.5mm | 1.750" |
| 50.8mm | 2" |
| 63.5mm | 2.500" |
| 76.2mm | 3" |
ASME SB 127 UNS N04400 Sheet Sizes
| Hole Centres (in mm) | Finish | Tck mm | O/A | Hole Dia (in mm) | Full Sheet Size mm |
|---|---|---|---|---|---|
| 1.05 | 2B | 0.06 | 23% | 0.075 | 2000 x 1000 |
| 2 | 2B | 1.00 | 23% | 1 | 2000 x 1000 |
| 2.06 | 2B | 1.00 | 30% | 1.05 | 2000 x 1000 |
| 3.05 | 2B | 1.00 | 30% | 2 | 2000 x 1000 |
| 3.05 | 2B | 1.00 | 30% | 2 | 2000 x 1000 |
| 5 | 2B | 1.00 | 33% | 3 | 2000 x 1000 |
| 5.06 | 2B | 1.00 | 46% | 4 | 2000 x 1000 |
| 8 | 2B | 1.00 | 35% | 5 | 2000 x 1000 |
| 8 | 2B | 1.00 | 51% | 6 | 2000 x 1000 |
| 10 | 2B | 1,0 | 58% | 8 | 2000 x 1000 |
ASTM B127 Monel 400 Sheet Thickness
| Thickness (in mm) | |
|---|---|
| 0.02, Temper: Half hard | 0.0005, Temper: As rolled |
| 0.02, Temper: Annealed | 0.0004, Temper: As rolled |
| 0.025, Temper: Half hard | 0.00076, Temper: As rolled |
| 0.025, Temper: Annealed | 0.00065, Temper: As rolled |
| 0.030, Coil width: 15.05, Temper: Half hard | 0.001, Temper: As rolled |
| 0.05, Temper: Half hard | 0.002, Temper: Half hard |
| 0.038, Temper: Annealed | 0.002, Temper: As rolled |
| 1.00, Temper: Annealed | 0.0025, Temper: As rolled |
| 0.075, Temper: Half hard | 0.0025, Temper: As rolled, Condition: Surface oxide |
| 0.015, Coil width: 0.03, Temper: Half hard | 0.0125, Temper: Half hard |
| 2.00, Temper: Half hard | 0.005, Temper: Quarter hard |
| 2.00, Temper: 1/4 Hard | 0.005, Temper: Half hard |
| 3.00, Temper: 1/4 Hard | 0.01, Temper: Half hard |
| 3.00, Temper: Annealed | 0.0075, Temper: Half hard |
| 6.035, Temper: Hard | 0.01, Coil width: 10, Temper: Half hard |
| 0.015, Temper: Half hard | |
Alloy 400 2D Plate Melting Point
- °F : 2370-2460
- °C : 1300-1350
Get Monel 400 Material in specific gauge, View Monel Alloy 400 Plate in our online inventory at competitive pricing, Stockist of ASME SB 127 UNS N04400 Monel Sheet and 2.4360 Alloy 400 Sheet in American specifications
Monel N04400 Plate Features
- High strength and good weldability under a wide range of temperatures
- Excellent mechanical properties
- Resistant to a wide range of corrosive media.
- Non-magnetic
- Virtually immune to chlorine ion stress corrosion cracking
Monel 400 Plate Price
| Price of Monel 400 Plate | Sb 127 Alloy 400 Plate Price in India (INR) | Monel 400 Steel Plate Price in USD | Nickel Alloy 400 Sheet Price in UAE Dirham |
|---|---|---|---|
| MONEL 400 PLATE 3MM DIA X 512MM X 360MM | INR 18,829 | $252.89 | 252.89 UAE Dirham |
| MONEL-400 PLATE SIZE 15MMX600MM X 600 MM | INR 139,020 | $1867.18 | 1867.18 UAE Dirham |
| NICKEL ALLOY PLATE MONEL 400 PERFORATATED 5MM THICK X 2000 MM X 1700 MM (22 MM SQ OPEING WITH 27 MM PITCH) | INR 392,700 | $5274.36 | 5274.36 UAE Dirham |
| NICKEL ALLOY (MONEL 400)PLATE/SIZE: 2500MMx1250MMx5MM) | INR 352,964 | $4740.67 | 4740.67 UAE Dirham |
| MONEL 400 PLATE TO ASTM B 127 GR UNS NO4400 ,NACE MR-0175 -AVAILABLE THICKNESS.SIZE: 6 MM THK X 90 MM X 90 MM | INR 17,230 | $231.42 | 231.42 UAE Dirham |
Are you looking for
urgent deliveries of Monel 400 Sheet Suppliers in the Middle East, Europe, Africa, and Far East Asia? Check our list of products we supplied in last 2 years
Alloy 400 Plate
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
Nickel Alloy 400 Sheet
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
Alloy 400 Shim Sheet
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
ASTM B127 Monel 400 Sheet
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
Monel N04400 Plate
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
2.4360 Alloy 400 Sheet
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
