ASTM B564 Monel 400 High Pressure Threaded Fittings and Alloy K500 Socket Weld Fittings manufacturer in India

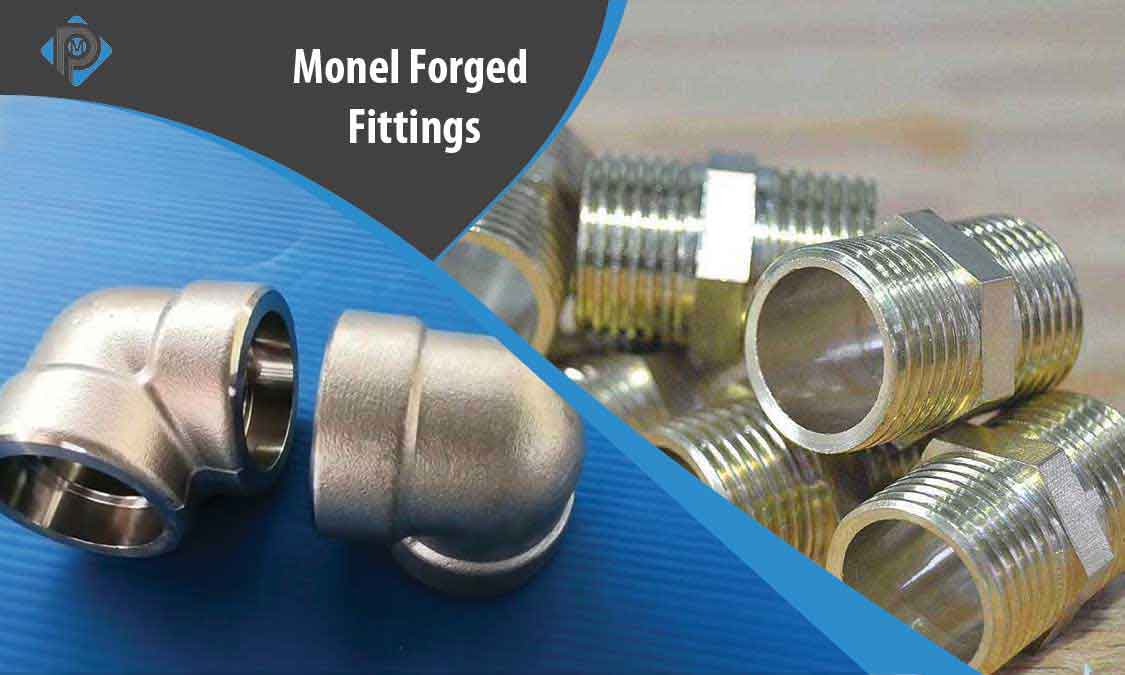

Monel Forged Fittings

What is Monel Forged Fittings?
Monel forged fittings is a superalloy designed possessing a superior content of nickel and copper embedded in their chemical composition. The high-strength forged fittings are produced by forging the grade at high temperatures followed by shaping it in desired dimensions. The forged Monel fittings showcase excellent corrosion resistance and can work well in high-temperature systems. These robust fittings also show enhanced tolerance against hydrochloric and hydrofluoric acids. The Monel fittings influence the flow of fluids and gases across different piping systems and can be easily welded in place following standard welding procedures.

Difference between Monel Threaded vs Socket Weld Fittings
Monel grade fittings can be designed in threaded and socket weld configurations. Both these types have their said characteristics and can be distinguished from the other in certain aspects.

  • Monel threaded fitting is made with threads that correspond to subsequent pipe modules. Monel socket weld fittings are pipe attachment detail that has a recessed area where the fitting is connected.
  • A socket weld fitting is welded with a single fillet weld. A threaded fitting has threads and doesn’t require welds to fix it in place.
  • Socket weld fittings ensure a permanent, long lasting fitting. Threaded pipe fittings can be easily dismantled and removed when the time comes.
  • A threaded pipe fitting is preferred in low-pressure systems where the load on the system is less. Monel socket weld fittings are used in high pressure applications.

What is Monel 400 Forged Fittings used for?
Monel 400 forged fittings are high-strength components that are common features in different plumbing applications. They are seen in heat exchangers, seawater applications, valves, pumps, and shafts. These fittings are also a feature in chemical industries, hydrocarbon processing equipment, oil and gas exploration systems, boiler vessels, and so on.

Is ASTM B564 Monel Alloy Forged Fittings ferrous or nonferrous?
ASTM B564 Monel forged alloy fitting is non-ferrous in nature and produced with the help of copper.

Looking for Monel Forged manufacturer? Supplier of Alloy 400 Elbow, Coupling, Tee, and Union, Check Monel K500 Threaded Fittings weight, dimension and schedule chart

Monel Threaded Pipe Fittings Specification

Specifications ASTM / ASME B564 SB564
Type SCREWED (SCRD) – BSP, NPT, BSPT, Socket Weld (S/W)
Standards MSS SP-97, 83, 79, 95, ASME 16.11, BS 3799
Grade Monel 500 (UNS No. N05500) and Monel 400 (UNS No. N04400)
Size Between 1/8" to 4″
Class 3000 LBS, 9000 LBS, 2000 LBS, 6000 LBS
Forged Fittings Types 90 Deg Elbow, 45 Deg Elbow, Forged Tee, Full Coupling, Union, Half Coupling, Cap, Cross, Swage Nipple, Hexagonal Nipple, Bush, Plug, Welding Boss, etc.

Monel Socket Weld Fittings Price List

Products Types Forged Fitting Size Price
SOCKET WELDING REDUCER INSERT, CLASS 3000, TYPE 1, FORGED, ASTM B 366 GR CRNC, MONEL-FIT-10 10 EA $63.48 $634.80 MONEL 45° Elbow 1/4 in x 1/4 in $6.65
3/8 in x 3/8 in $8.00
1/2 in x 1/2 in $16.13
3/4 in x 3/4 in $18.97
ALLOY FITTINGS - ELBOW,SIZE : 3/4 SCH.45 DEG.CLASS 3000,THREADED NPT MONEL ASTMB564 UNS NO4400,FORGED ANNEALED 90° Elbow 1/2 in x 1/2 in $12.52
3/4 in x 3/4 in $22.59
1 in x 1 in $23.07
1 1/4 in x 1 1/4 in $59.67
ALLOY FITTINGS - TEE,SIZE : 3/4 ,CLASS3000,THREADED NPT MONEL ASTM B564 UNS NO4400,FORGED ANNEALED , STANDARD B16.11 Cap 1/4 in $5.54
3/8 in $6.46
1/2 in $6.75
3/4 in $8.55
MONEL FITTINGS - ALLOY ELBOW,SIZE : 3/4 SCH.90 DEG.CLASS 3000, THREADED NPT MONEL ASTM B564 UNS NO4400,FORGED ANNEALED Cross 1/2 in x 1/2 in x 1/2 in x 1/2 in $30.13
3/4 in x 3/4 in x 3/4 in x 3/4 in $43.80
1 in x 1 in x 1 in x 1 in $73.47
1 1/4 in x 1 1/4 in x 1 1/4 in x 1 1/4 in $46.22
MONEL 400 BLIND FLANGE WITH CENTREOPERATION (FORGED) 3.1 MTC + NACEAS PER Tee 3/8 in x 3/8 in x 3/8 in $13.87
1/2 in x 1/2 in x 1/2 in $18.47
3/4 in x 3/4 in x 3/4 in $30.30
1 in x 1 in x 1 in $30.39
WL22381660 MEGALET DN 400X950 SCH 60/THK 35MM SA182 F22 C1.1(2PCS) (FORGED FITTINGS OF ALLOY STEEL) Coupling 1/8 in x 1/8 in $5.43
1/4 in x 1/4 in $6.44
3/8 in x 3/8 in $8.39
1/2 in x 1/2 in $12.77
3/4 in x 3/4 in $17.67
Monel Alloy Monel 400 Steel Pipe Fittings ANSI B 16.9 Thread Coupling 1" 3000PSI Half Coupling 1/8 in x 1/8 in $3.66
1/4 in x 1/4 in $4.25
3/8 in x 3/8 in $4.24
1/2 in x 1/2 in $6.14
3/4 in x 3/4 in $8.86
ASTM A182 F316L 3 " Sch80 ASME B16.9 Thread Full Coupling Forged Pipe Fittings Union 1/8 in x 1/8 in $12.60
1/4 in x 1/4 in $14.96
3/8 in x 3/8 in $18.60
1/2 in x 1/2 in $20.14
Stainless Steel Socket Weld Fittings 2000LB 3000LB 6000LB 9000LB B16.11 Forged Socket Weld Elbow Fittings Hex Bushing 1/4 in x 1/8 in $8.99
3/8 in x 1/8 in $10.81
3/8 in x 1/4 in $11.78

Types of Monel Forged Fittings

Monel 90° Elbow
Monel 90° Elbow
Monel 90° Elbow
Alloy 45° Elbow
Alloy 45° Elbow
Alloy 45° Elbow
Alloy K500 Threaded Half Coupling
Alloy K500 Threaded Half Coupling
Alloy K500 Threaded Half Coupling
Monel 400 Tee
Monel 400 Tee
Monel 400 Tee
ASTM B564 400 Monel Cross
ASTM B564 400 Monel Cross
ASTM B564 400 Monel Cross
ANSI B16.11 Full Coupling
ANSI B16.11 Full Coupling
ANSI B16.11 Full Coupling
Nickel UNS N04400 Half Coupling
Nickel UNS N04400 Half Coupling
Nickel UNS N04400 Half Coupling
DIN 2.4360 Monel Reducing Coupling
DIN 2.4360 Monel Reducing Coupling
DIN 2.4360 Monel Reducing Coupling
ASME SB564M Monel Pipe Cap
ASME SB564M Monel Pipe Cap
ASME SB564M Monel Pipe Cap
Monel UNS N05500 Hex Head Bushing
Monel UNS N05500 Hex Head Bushing
Monel UNS N05500 Hex Head Bushing
ASTM B564 K500 Hex Head Plug
ASTM B564 K500 Hex Head Plug
ASTM B564 K500 Hex Head Plug
400 Monel Square Head Plug
400 Monel Square Head Plug
400 Monel Square Head Plug
Alloy K500 Round Head Plug
Alloy K500 Round Head Plug
Alloy K500 Round Head Plug
Monel Union
Monel Union
Monel Union
ASTM B564 Monel Hex Nipple
ASTM B564 Monel Hex Nipple
ASTM B564 Monel Hex Nipple
ASTM B564 Street Elbow
ASTM B564 Street Elbow
ASTM B564 Street Elbow
Monel Alloy Bull Plug
Monel Alloy Bull Plug
Monel Alloy Bull Plug
Alloy Boss
Alloy Boss
Alloy Boss
ASTM B564 Swage Nipple
ASTM B564 Swage Nipple
ASTM B564 Swage Nipple
Monel 400 Pipe Nipple
Monel 400 Pipe Nipple
Monel 400 Pipe Nipple
ASTM B564 400 Monel Adapter
ASTM B564 400 Monel Adapter
ASTM B564 400 Monel Adapter
ANSI B16.11 Branch Outlet
ANSI B16.11 Branch Outlet
ANSI B16.11 Branch Outlet
Nickel UNS N04400 90° Elbow Outlet
Nickel UNS N04400 90° Elbow Outlet
Nickel UNS N04400 90° Elbow Outlet
Monel 400 Coupolet
Monel 400 Coupolet
Monel 400 Coupolet
ASME SB564M Monel Lateral Outlet
ASME SB564M Monel Lateral Outlet
ASME SB564M Monel Lateral Outlet
Monel UNS N05500 Nipple Branch Outlet
Monel UNS N05500 Nipple Branch Outlet
Monel UNS N05500 Nipple Branch Outlet
ASTM B564 K500 Outlets
ASTM B564 K500 Outlets
ASTM B564 K500 Outlets
400 Monel Weldolet
400 Monel Weldolet
400 Monel Weldolet
Alloy K500 Sockolet
Alloy K500 Sockolet
Alloy K500 Sockolet
Monel Threadolet
Monel Threadolet
Monel Threadolet
ASTM B564 Monel Nipolet
ASTM B564 Monel Nipolet
ASTM B564 Monel Nipolet
ASTM B564 Latrolet
ASTM B564 Latrolet
ASTM B564 Latrolet
Monel Alloy Elbolet
Monel Alloy Elbolet
Monel Alloy Elbolet
Monel Sweepolet
Monel Sweepolet
Monel Sweepolet
Alloy Insert Weldolet
Alloy Insert Weldolet
Alloy Insert Weldolet
ASTM B564 Brazolet
ASTM B564 Brazolet
ASTM B564 Brazolet
ASTM B564 400 Monel Flexolet Butt Weld
ASTM B564 400 Monel Flexolet Butt Weld
ASTM B564 400 Monel Flexolet Butt Weld
Monel Socket Weld Reducers
Monel Socket Weld Reducers
Monel Socket Weld Reducers
Monel Alloy Socket Weld Equal Tee
Monel Alloy Socket Weld Equal Tee
Monel Alloy Socket Weld Equal Tee
ASTM B564 400 MonelSocket Weld Elbolet
ASTM B564 400 MonelSocket Weld Elbolet
ASTM B564 400 MonelSocket Weld Elbolet
DIN 2.4360 Monel Threaded Elbolet
DIN 2.4360 Monel Threaded Elbolet
DIN 2.4360 Monel Threaded Elbolet
ASTM B564 K500 Threaded Full Couling
ASTM B564 K500 Threaded Full Couling
ASTM B564 K500 Threaded Full Couling
Nickel UNS N04400 Socket Weld Unequal Tee
Nickel UNS N04400 Socket Weld Unequal Tee
Nickel UNS N04400 Socket Weld Unequal Tee
DIN 2.4360 Monel Socket Weld Pipe Nipples
DIN 2.4360 Monel Socket Weld Pipe Nipples
DIN 2.4360 Monel Socket Weld Pipe Nipples
ASME SB564M Monel Flexolet Socket Weld
ASME SB564M Monel Flexolet Socket Weld
ASME SB564M Monel Flexolet Socket Weld
Monel UNS N05500 Socket Weld Fittings
Monel UNS N05500 Socket Weld Fittings
Monel UNS N05500 Socket Weld Fittings
ASTM B564 K500 Flexolet Threaded
ASTM B564 K500 Flexolet Threaded
ASTM B564 K500 Flexolet Threaded
400 Monel Threaded Fittings
400 Monel Threaded Fittings
400 Monel Threaded Fittings
Alloy Fittings
Alloy Fittings
Alloy Fittings
Monel 400 Screwed Fittings
Monel 400 Screwed Fittings
Monel 400 Screwed Fittings
ASTM B564 400 MonelElbow
ASTM B564 400 MonelElbow
ASTM B564 400 MonelElbow
ANSI B16.11 Forged Elbow
ANSI B16.11 Forged Elbow
ANSI B16.11 Forged Elbow
Nickel UNS N04400 Cap
Nickel UNS N04400 Cap
Nickel UNS N04400 Cap
DIN 2.4360 Monel Coupling
DIN 2.4360 Monel Coupling
DIN 2.4360 Monel Coupling
ASME SB564M Monel Tee
ASME SB564M Monel Tee
ASME SB564M Monel Tee
Monel UNS N05500 Cross
Monel UNS N05500 Cross
Monel UNS N05500 Cross
ASTM B564 K500 Inserts
ASTM B564 K500 Inserts
ASTM B564 K500 Inserts
400 Monel Plug
400 Monel Plug
400 Monel Plug
Alloy K500 Bushing
Alloy K500 Bushing
Alloy K500 Bushing
Monel 2000 Lbs Forged Fittings
Monel 2000 Lbs Forged Fittings
Monel 2000 Lbs Forged Fittings
ASTM B564 3000 Lbs Forged Fittings
ASTM B564 3000 Lbs Forged Fittings
ASTM B564 3000 Lbs Forged Fittings
Monel 6000 Lbs Forged Fittings
Monel 6000 Lbs Forged Fittings
Monel 6000 Lbs Forged Fittings
ANSI B16.11 9000 Lbs Forged Fittings
ANSI B16.11 9000 Lbs Forged Fittings
ANSI B16.11 9000 Lbs Forged Fittings

Alloy 400 Forged Fittings Size Range

DN-NPT TAPPING /DRILL SIZE MM MAJOR DIAMETER MM PITCH MM TPI
1/16″ 6.00 7.895 0.941 27
1/8″ 8.25 10.242 0.941 27
1/4″ 10.70 13.616 1.411 18
3/8″ 14.10 17.055 1.411 18
1/2″ 17.40 21.223 1.814 14
3/4″ 22.60 26.568 1.814 14
1″ 28.50 33.228 2.209 11.5
1¼” 37.00 41.985 2.209 11.5
1½” 43.50 48.054 2.209 11.5
2″ 55.00 60.092 2.209 11.5
2½” 65.50 72.699 3.175 8
3″ 81.50 88.608 3.175 8
3½” 94.30 101.316 3.175 8
4″ 107.00 113.973 3.175 8
5″ 134.384 141.300 3.175 8
6″ 161.191 168.275 3.175 8
8″ 211.673 219.075 3.175 8
10″ 265.311 273.050 3.175 8
12″ 315.793 323.850 3.175 8

ASTM B564 UNS N04400 Fittings Class Standard

Description Class Designation
6000 3000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps
1/2 – 2 1/2 – 4 1/2 – 2
1/2 – 2 1/2 – 4 1/2 – 2
1/2 – 2 1/2 – 4 1/2 – 2
Pipe Size
by Wall Thickness
SCH 160 SCH 80 / XS XXS

Monel Forged Steel Threaded Fittings

Alloy SW 90 Degree Elbow

Forged SW 90 Degree Elbow


Class 3000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B 29/32 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 3/8 3/8 3/8 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E 7/16 7/16 17/32 5/8 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 5/8
Wt 0.125 0.183 0.270 0.460 0.698 0.987 1.480 2.088 3.125 6.340 10.867 25.000


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B - - - 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E - - - 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 1/2 2 3/4
Wt - - - 0.938 1.440 2.348 3.188 5.250 6.660 11.875 19.250 32.700

Class 9000 Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 1/2 1 3/4 2 2 3/8 2 1/2 3 - - -
B - - - 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 3 11/16 - - -
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 - - -
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 - - -
E - - - 1 1 1/8 1 1/4 1 3/8 1 1/2 2 1/8 - - -
Wt - - - 1.44 2.25 3.19 5.25 6.69 6.69 - - -

ASTM B564 SW Tee

Forged SW Tee


Class 3000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B 29/32 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 3/8 3/8 3/8 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E 7/16 7/16 17/32 5/8 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 5/8
Wt 0.250 0.250 0.345 0.540 0.925 1.307 2.000 2.640 4.070 8.750 12.500 27.800


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B - - - 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E - - - 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 1/2 2 3/4
Wt - - - 1.375 2.000 3.313 3.750 7.480 8.240 16.625 23.500 33.000


Class 9000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 1/2 1 3/4 2 2 3/8 2 1/2 3 - - -
B - - - 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 3 11/16 - - -
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 - - -
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 - - -
E - - - 1 1 1/8 1 1/4 1 3/8 1 1/2 2 1/8 - - -
Wt - - - 2.00 3.31 3.75 6.50 7.88 8.75 - - -

Monel 400 SW 45 Degree Elbow

Forged SW 45 Degree Elbow

Class 3000
Schedule 40 Bore
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 29/32 1 1/16 1 5/16 1 9/16 1 27/32 27/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 3/8 3/8 3/8 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
F 3/4 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 2 1/16 2 1/2 3 1/8
G 5/16 5/16 5/16 7/16 1/2 9/16 11/16 13/16 1 1 1/8 1 1/4 1 5/8
Wt 0.125 0.198 0.210 0.440 0.673 0.935 1.365 1.630 2.710 6.750 10.500 18.188


Class 6000
Schedule 160 Bore
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B - - - 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
F - - - 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8
G - - - 1/2 9/16 11/16 13/16 1 1 1/8 1 1/4 1 3/8 1 5/8
Wt - - - 0.875 1.313 1.913 2.270 4.313 4.813 9.625 14.250 27.250


Class 9000
XXS Bore
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B - - - 1 27/32 2 7/32 2 1/2 3 1/32 3 3/8 4 - - -
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 - - -
D - - - 5/8 9/16 9/16 13/16 3/4 15/16 - - -
F - - - 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 - - -
G - - - 5/8 3/4 13/16 7/8 1 1 1/8 - - -
Wt - - - 1.31 2.06 2.5 4.31 4.81 9.62 - - -

ASTM B564 400 Mone SW Lateral

Forged SW Lateral

Class 3000   1/2 3/4 1 1 1/4 1 1/2 2
B 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32
C 0.855 1.065 1.330 1.675 1.915 2.406
D 3/8 1/2 1/2 1/2 1/2 5/8
K 2 1/8 2 9/16 3 3 1/2 3 15/16 4 3/4
L 3 3 9/16 4 1/8 4 13/16 5 3/8 6 7/16
Wt 1.000 1.500 2.375 3.750 4.125 6.285


Class 6000
  1/2 3/4 1 1 1/4 1 1/2
B 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32
C 0.855 1.065 1.330 1.675 1.915
D 3/8 1/2 1/2 1/2 1/2
K 2 9/16 3 3 1/2 3 15/16 4 3/4
L 3 9/16 4 1/8 4 13/16 5 3/8 6 7/16
Wt 2.000 3.063 5.125 6.250 11.938



Class 9000
XXS
Bore
  1/2 3/4 1 1 1/4 1 1/2 2
B 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 -
C 0.855 1.065 1.330 1.675 1.915 -
D 9/16 5/8 11/16 7/8 7/8 -
K 3 3 1/2 3 15/16 4 3/4 5 -
L 4 1/8 4 13/16 5 3/8 6 7/16 6 5/8 -
Wt 1.75 2.38 3.75 6.88 6.88 -

ANSI B16.11 SW Cross

Forged SW Cross

Class 3000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B 29/32 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 3/8 3/8 3/8 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E 7/16 7/16 17/32 5/8 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 5/8
Wt 0.250 0.250 0.375 0.813 1.125 1.550 2.250 3.063 5.125 18.000 23.000 40.000


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
A - - - 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2
B - - - 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32
C - - - 0.855 1.065 1.330 1.675 1.915 2.406
D - - - 3/8 1/2 1/2 1/2 1/2 5/8
E - - - 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8
Wt - - - 1.500 2.500 3.460 5.250 8.750 9.438



Class 9000
XXS
Bore
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 - - -
B - - - 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 - - -
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 - - -
D - - - 1/2 5/8 3/4 1 1 1 1/8 - - -
E - - - 1 1 1/8 1 1/4 1 3/8 1 1/2 2 1/8 - - -
Wt - - - 2.50 4.12 4.12 5.12 9.44 22.19 - - -

Well Established manufacturer of MSS SP-79/ 83/ 95/ 97 UNS N05500 Socket Weld Cap, ASTM B564 K500 Threaded Full Coupling, 3000 LB Monel 400 Screwed Fittings, Check Class 6000 Monel Plug Price in India

Monel Forged Fittings Standard

American Steel Forged Fittings Standard
Standard Code Standard Name
MSS SP-79 Socket-welding reducing Inserts
ANSI ASME SB-564 Forged fittings
MSS SP-95 Swaged nipples and round plugs
ANSI ASME B16.11 Socket-welding and Threaded forged fittings
MSS SP-83 Class 3000 steel socket-welding and threaded unions
MSS SP-97 SW,TH and BW ends for integrally reinforced forged branch outlet

Nickel UNS N04400 Forged Steel Socket Weld Fittings

DIN 2.4360 Monel Threaded 90 Degree Elbow

Forged Threaded 90 Degree Elbow


Class 2000
Nominal
Pipe
Size
1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B - 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
Wt - 0.198 0.283 0.500 0.773 1.013 1.550 2.180 3.140 6.500 10.925 26.675


Class 3000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
Wt 0.236 0.350 0.592 0.973 1.355 2.265 2.407 3.500 5.920 11.900 14.438 31.975


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 3/16 4 1/2
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4 6
Wt 0.250 0.625 1.023 1.625 2.625 3.500 6.750 7.500 13.438 20.875 39.050 38.000

ASME SB564M Monel Threaded Tee

Forged Threaded Tee


Class 2000
Nominal
Pipe
Size
1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B - 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
Wt - 0.267 0.373 0.613 0.963 1.355 2.030 2.800 4.456 9.530 12.908 28.700


Class 3000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
Wt 0.325 0.460 0.753 1.270 1.830 3.025 3.620 7.040 7.550 13.125 23.100 40.000


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 3/16 4 1/2
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4 6
Wt 0.500 0.853 1 410 2.150 3.563 4.625 7.625 9.625 18.500 28.063 47.500 50.000

Monel UNS N05500 Threaded 45 Degree Elbow

Forged Threaded 45 Degree Elbow


Class 2000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B - 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
F - 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 2 1/16 2 1/2 3 1/8
Wt - 0.188 0.236 0.435 0.740 1.058 1.375 1.740 2.883 7.750 11.313 19.125


Class 3000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
F 3/4 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8
Wt 0.250 0.290 0.500 0.750 1.188 1.988 2.235 3.000 4.930 7.375 13.588 19.063


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4 -
F 3/4 1 1 1/8 1 1/4 1 5/16 1 3/8 1 11/16 1 3/4 2 1/16 2 1/2 3 1/8 -
Wt 0.250 0.640 0.500 1.438 2.188 2.785 4.688 5.750 9.500 15.000 30.563 -

ASTM B564 K500 Threaded Lateral

Forged Threaded Lateral


Class 3000
  1/2 3/4 1 1 1/4 1 1/2 2
B 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32
K 2 9/16 3 3 1/2 3 15/16 4 3/4 5
L 3 9/16 4 1/8 4 13/16 5 3/8 6 7/16 6 5/8
Wt 1.750 2.750 4.625 5.500 10.813 9.500


Class 6000
  1/2 3/4 1 1 1/4 1 1/2
B 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32
K 3 3 1/2 3 15/16 4 3/4 5
L 4 1/8 4 13/16 5 3/8 6 7/16 6 5/8
Wt 3.250 5.438 7.188 12.313

400 Monel Threaded Street Elbow

Forged Threaded Street Elbow

Class 3000   1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32
H 1 1/4 1 1/4 1 1/2 1 5/8 1 7/8 2 1/4 2 5/8 2 15/16 3 5/16
J 7/8 7/8 1 1 1/8 1 3/8 1 3/4 2 2 1/8 2 1/2
Wt 0.264 0.242 0.375 0.595 1.048 1.438 2.340 3.000 5.461


Class
6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32
H 1 1/4 1 1/2 1 5/8 1 7/8 2 1/4 2 5/8 2 15/16 3 5/16
J 7/8 1 1 1/8 1 3/8 1 3/4 2 2 1/8 2 1/2
Wt   0.375 0.438 1.000 1.625 3.030 3.688 7.120

Alloy K500 Threaded Cross

Forged Threaded Cross


Class 2000
Nominal
Pipe
Size
1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B - 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
Wt - 0.500 0.460 0.777 1.125 1.688 2.450 3.188 5.560 16.438 19.500 32.688


Class 3000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
Wt 0.438 0.567 0.970 1.500 2.500 3.620 4.125 6.500 8.125 16.750 25.675 32.000


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 3/16 4 1/2
B 1 1/6 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 5 3/4 6
Wt 0.563 1.188 1.500 2.750 4.313 6.625 10.750 11.500 22.188 27.500 54.000 43.500
Stockist and Distributor of Monel Pipe Nipple in India, Wide stock of Alloy 400 Forged Fittings accordance to ASME B16.11

DIN 2.4360 Monel Cross Material Specfication and Standards

Product Category Dimension Standards Material Specification as per ASME/ASTM
High Pressure Forged Fittings ASME B16.11, ANSI B16.11 ASME SB564/564M Monel 400, ASTM B564/564M Alloy 400
High Pressure Forged Fittings ASME B16.11, ANSI B16.11 ASME SB564/564M Monel k500, ASTM B564/564M Alloy K500

Monel UNS N05500 Socket Weld Cap Chemical Composition

Grade Si Ni Cu Fe Al C S Mn
Monel 400 0.5 max 63.0 min 28.0 - 34.0 1.0 - 2.5 0.50 max 0.3 max 0.02 max 2.0 max
Monel K500 0.5 max 63.0 min 27.0 - 33.0 05 - 2 2.3 - 3.15 0.25 max 0.010 max 1.5 max

Alloy K500 Class 6000 Threaded Plug Mechanical Properties

Grade Yield Properties (0.2%Offset) Density Elongation Melting Point Tensile Properties Psi, Mpa
Monel 400 240 Mpa 8.8 g/cm3 40 % 1350 °C (2460 °F) 80,000, 550
Monel K500 790 Mpa 8.44 g/cm3 20 % 1350 °C (2460 °F) 1,60,000, 1100

ASTM B564 Monel Forged Fittings Equivalent

STANDARD BS WERKSTOFF NR. GOST UNS AFNOR JIS EN
Monel 400 NA 13 2.4360 МНЖМц 28-2,5-1,5 N04400 NU-30M NW 4400 NiCu30Fe
Monel K500 - 2.4375 - N05500 - - -

Monel Forged Steel Couplings Reducers & Caps

ASTM B564 Monel SW Pipe Cap

Forged SW Pipe Cap


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
B 3/4 7/8 1 1/16 1 1/4 1 1/2 1 13/16 2 1/4 2 1/2 3 3 5/8 4 5/16 5 1/2
F 11/16 3/4 3/4 7/8 1 1 1/16 1 3/16 1 1/4 1 1/2 1 9/16 1 13/16 2 1/16
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
Wt 0.063 0.063 0.125 0.188 0.313 0.375 0.813 1.125 1.688 3.000 3.625 6.688


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
D - - - 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
B - - - 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
F - - - 1 1 1/16 1 1/4 1 5/16 1 3/8 1 5/8 1 11/16 1 15/16 2 5/16
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
Wt - - - 0.375 0.500 1.125 1.125 2.250 3.500 5.625 6.000 13.500

ASTM B564 Threaded Pipe Cap

Forged Threaded Pipe Cap


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
D 15/16 1 1 1 1/4 1 7/16 1 5/8 1 3/4 1 3/4 1 7/8 2 3/8 2 9/16 2 11/16
B 3/4 3/4 7/8 1 1/8 1 3/8 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 1/2
Wt 0.031 0.063 0.125 0.250 0.313 0.500 1.000 1.625 3.125 5.000 8.500 14.000


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
D 1 1 1/16 1 1 5/16 1 1/2 1 11/16 1 13/16 1 7/8 2 2 1/2 2 11/16 2 15/16
B 7/8 1 1 1/4 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
Wt 0.125 0.125 0.188 0.313 0.438 0.750 1.313 1.688 3.250 8.100 11.700 14.250

Monel Alloy SW Half Coupling

Forged SW Half Coupling


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
A 1 1/8 1 1/8 1 1/8 1 3/8 1 1/2 1 3/4 1 7/8 2 2 1/2 2 1/2 2 3/4 3
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
B 3/4 7/8 1 1/16 1 1/4 1 1/2 1 13/16 2 1/4 2 1/2 3 3 5/8 4 5/16 5 1/2
Wt 0.125 0.125 0.125 0.188 0.313 0.563 0.813 1.000 2.000 2.625 3.875 6.625


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
A - - - 1 3/8 1 1/2 1 3/4 1 7/8 2 2 1/2 2 1/2 2 3/4 3
D - - - 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
B - - - 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
Wt - - - 0.375 0.563 1.000 1.438 2.000 3.875 5.500 6.625 13.125


Class 9000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
C - - - 0.855 1.065 1.330 1.675 1.915 2.406
A - - - 1 3/8 1 1/2 1 3/4 1 7/8 2 2 1/2
D - - - 1/2 9/16 5/8 11/16 3/4 7/8
B - - - 1 13/16 2 2 3/8 2 3/4 3 1/16 3 5/8
Wt - - - 0.88 1.16 1.88 2.50 3.25 5.38

Alloy Threaded Half Coupling

Forged Threaded Half Coupling


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
C 5/8 11/16 3/4 15/16 1 1 3/16 1 5/16 1 9/16 1 11/16 1 13/16 2 1/8 2 3/8
B 3/4 3/4 7/8 1 1/8 1 3/8 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 1/2
Wt 0.063 0.063 0.188 0.188 0.250 0.313 0.750 1.125 1.563 2.000 3.375 8.375


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
C 5/8 11/16 3/4 15/16 1 1 3/16 1 5/16 1 9/16 1 11/16 1 13/16 2 1/8 2 3/8
B 7/8 1 1 1/4 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
Wt 0.094 0.094 0.125 0.250 0.500 1.063 1.188 2.188 3.875 5.375 6.750 12.250

ASTM B564 SW Coupling

Forged SW Coupling


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
A 1 1/32 1 1/32 1 1/32 1 3/16 1 13/32 1 33/64 1 33/64 1 33/64 2 1/64 2 1/64 2 1/64 2 17/64
E 1/4 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 3/4 3/4 3/4
B 3/4 7/8 1 1/16 1 1/4 1 1/2 1 13/16 2 1/4 2 1/2 23 3 5/8 4 5/16 5 1/2
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
Wt 0.125 0.125 0.125 0.188 0.313 0.563 0.813 1.000 2.000 2.625 3.875 6.625


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
A 1 1/16 1 1/8 1 1/8 1 5/32 1 13/32 1 33/64 1 33/64 1 33/64 2 1/64 2 1/64 2 1/64 2 17/64
E 1/4 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 3/4 3/4 3/4
B 7/8 1 1/16 1 5/16 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
Wt - - - 0.375 0.563 1.000 1.438 2.000 3.875 5.500 6.625 13.125


Class 9000
XXS Bore
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
D - - - 1/2 9/16 5/8 11/16 3/4 7/8
A - - - 1 3/8 1 1/2 1 3/4 1 7/8 2 2 1/2
E - - - 3/8 3/8 1/2 1/2 1/2 3/4
C - - - 0.855 1.065 1.330 1.675 1.915 2.406
B - - - 1 13/16 2 2 3/8 2 3/4 3 1/16 3 5/8
Wt - - - 0.75 1.06 1.69 2.22 2.81 4.66

Monel 400 Threaded Coupling

Forged Threaded Coupling


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 3/4 3/4 7/8 1 1/8 1 3/8 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 1/2
A 1 1/4 1 3/8 1 1/2 1 7/8 2 2 3/8 2 5/8 3 1/8 3 3/8 3 5/8 4 1/4 4 3/4
Wt 0.125 0.125 0.250 0.250 0.438 0.625 1.563 2.188 3.125 4.000 6.750 16.750


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 7/8 1 1 1/4 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
A 1 1/4 1 3/8 1 1/2 1 7/8 2 2 3/8 2 5/8 3 1/8 3 3/8 3 5/8 4 1/4 4 3/4
Wt 0.188 0.188 0.250 0.500 1.000 2.125 2.375 4.375 7.750 10.750 13.500 24.500

ASTM B564 400 Mone SW Reducer

Forged SW Reducer


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
A 1 1/32 1 1/32 1 1/32 1 3/16 1 13/32 1 33/64 1 33/64 1 33/64 2 1/64 2 1/64 2 1/64 2 17/64
Wt 0.125 0.125 0.125 0.188 0.313 0.563 0.813 1.000 2.000 2.625 3.875 6.625
B 3/4 7/8 1 1/16 1 1/4 1 1/2 1 13/16 2 1/4 2 1/2 3 3 5/8 4 5/16 5 1/2
E 1/4 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 3/4 3/4 3/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
D 7/16 7/16 7/16 1/2 9/16 5/8 11/16 3/4 7/8 7/8 1 1 1/8
A 1 1/16 1 1/8 1 1/8 1 5/32 1 13/32 1 33/64 1 33/64 1 33/64 2 1/64 2 1/64 2 1/64 2 17/64
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
E 1/4 1/4 1/4 3/8 3/8 1/2 1/2 1/2 3/4 3/4 3/4 3/4
B 7/8 1 1/16 1 5/16 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
Wt - - - 0.375 0.563 1.000 1.438 2.000 3.875 5.500 6.625 13.125


Class 9000
XXS Bore
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
C - - - 0.855 1.065 1.330 1.675 1.915 2.406
A - - - 1 3/8 1 1/2 1 3/4 1 7/8 2 2 1/2
D - - - 1/2 9/16 5/8 11/16 3/4 7/8
B - - - 1 13/16 2 2 3/8 2 3/4 3 1/16 3 5/8
E - - - 3/8 3/8 1/2 1/2 1/2 3/4
Wt - - - 0.75 1.06 1.69 2.22 2.81 4.66

ANSI B16.11 Threaded Reducer

Forged Threaded Reducer


Class 3000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B 3/4 3/4 7/8 1 1/8 1 3/8 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 1/2
A 1 1/4 1 3/8 1 1/2 1 7/8 2 2 3/8 2 5/8 3 1/8 3 3/8 3 5/8 4 1/4 4 3/4
Wt 0.125 0.125 0.250 0.250 0.438 0.625 1.563 2.188 3.125 4.000 6.750 16.750


Class 6000
Nominal Pipe Size 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
B - 1 1 1/4 1 1/2 1 3/4 2 1/4 2 1/2 3 3 5/8 4 1/4 5 6 1/4
A - 1 3/8 1 1/2 1 7/8 2 2 3/8 2 5/8 3 1/8 3 3/8 3 5/8 4 1/4 4 3/4
Wt - 0.188 0.250 0.500 1.000 2.125 2.375 4.375 7.750 10.750 13.500 24.500

Nickel UNS N04400 SW Reducer Inserts

Forged SW Reducer Inserts

      Class 6000 Class 3000 Class 9000
Nominal Pipe Size D C Fitting Type A B E Fitting Type A B E Fitting Type A B E
3/8 x 1/4 0.555 0.675 1 7/16 7/8 1 1 7/16 3/4 15/16
1/2 x 3/8 0.690 0.850 1 7/16 15/16 1 3/16 1 7/16 13/16 1 1/16
1/2 x 1/4 0.555 0.850 1 7/16 7/8 1 1 7/16 13/16 15/16
3/4 x 1/2 0.855 1.060 1 7/16 1 1/16 1 3/8 1 7/16 7/8 1 5/16 1 7/16 1 3/16 1 3/4
3/4 x 3/8 0.690 1.060 1 7/16 7/8 1 3/16 2 7/16 5/8 -
3/4 x 1/4 0.555 1.060 2 3/8 7/8 - 2 3/8 11/16 -
1 x 3/4 1.065 1.325 1 9/16 1 1/8 1 11/16 1 9/16 15/16 1 1/2 1 9/16 1 1/4 2
1 x 1/2 0.855 1.325 1 7/16 1 1/8 1 3/8 2 1/2 5/8 - 1 7/16 1 1/8 1 3/4
1 x 3/8 0.690 1.325 2 1/2 7/8 - 2 7/16 11/16 -
1 x 1/4 0.555 1.325 2 3/8 15/16 - 2 3/8 3/4 -
1 1/4 x 1 1.330 1.670 1 9/16 1 3/16 2 1 9/16 1 1 7/8 1 9/16 1 3/8 2 3/8
1 1/4 x 3/4 1.065 1.670 2 9/16 13/16 - 2 9/16 11/16 - 1 9/16 1 3/16 2
1 1/4 x 1/2 0.855 1.670 2 1/2 7/8 - 2 1/2 3/4 - 2 1/2 7/8 -
1 1/4 x 3/8 0.690 1.670 2 7/16 15/16 - 2 7/16 13/16 -
1 1/4 x 1/4 0.555 1.670 2 3/8 1 - 2 3/8 7/8 -
1 1/2 x 1 1/4 1.675 1.910 1 9/16 1 3/8 2 3/8 1 9/16 1 1/8 2 1/4 1 9/16 1 5/8 2 3/4
1 1/2 x 1 1.330 1.910 1 9/16 1 3/16 2 2 5/8 11/16 - 1 9/16 1 3/8 2 3/8
1 1/2 x 3/4 1.065 1.910 2 9/16 1 - 2 9/16 3/4 - 2 9/16 1 -
1 1/2 x 1/2 0.855 1.910 2 1/2 1 1/16 - 2 1/2 13/16 - 2 9/16 1 -
1 1/2 x 3/8 0.690 1.910 2 7/16 1 1/8 - 2 7/16 7/8 -
2 x 1 1/2 1.915 2.385 1 9/16 1 7/8 2 11/16 1 9/16 1 1/4 2 1/2 1 9/16 2 1/16 3
2 x 1 1/4 1.675 2.385 2 7/8 15/16 - 2 11/16 13/16 - 1 9/16 2 2 3/4
2 x 1 1.330 2.385 2 13/16 1 - 2 5/8 7/8 - 2 13/16 1 -
2 x 3/4 1.065 2.385 2 3/4 1 1/16 - 2 9/16 15/16 - 2 3/4 1 1/16 -
2 x 1/2 0.855 2.385 2 11/16 1 1/8 - 2 1/2 1 - 2 11/16 1 1/8 -
Manufacturer Of Monel socket weld fitting and alloy 400 Screwed Fittings in India, We also perform impact, tensile, bending test before each dispatch of Monel Coupling and union Fittings

Monel Forged Fittings Inventory

Monel Forged Fittings Monel UNS N05500 Socket Weld Cap
Alloy Monel Fittings ANSI B16.11 Monel union
Monel Threaded Fittings Monel Threaded Pipe Fittings
Monel Socket Weld Fittings Monel ASTM B564 K500 Threaded Full Coupling
Monel 400 Forged Fittings 400 Monel 3000 LB Forged Screwed Fittings
Alloy 400 Forged Fittings Monel Forged Threaded 90° Elbow
Monel Coupling Alloy K500 Class 6000 Threaded Plug
ASTM B564 UNS N04400 Fittings Monel 400 Threaded Fittings
Monel K500 Fittings Alloy Monel Threaded Fittings
ASTM B564 Monel Forged Fittings Monel reducing insert
Monel tee Monel Socket Weld Fittings
Monel 400 High Pressure Threaded Fitting ASTM B564 Monel Forged Fittings
Monel Alloy B564 K500 Socket weld Fittings Monel Alloy Forged Socket Weld Equal Tee
ASTM B564 400 Monel Forged Elbow ASTM B564 Monel Threaded Fitting
Monel cross ASTM B564 Monel Fittings
ANSI B16.11 Werkstoff No 2.4375 Nickel Threaded Union Monel elbow
BS3799 Nickel UNS N04400 Forged Tee Monel couplings
DIN 2.4360 Monel Cross ASTM B564 Monel cap/plug
ASME SB564M Monel Alloy K500 Bushing Monel Alloy ASTM B564 Forged Fittings
Monel Threaded Fittings Monel Alloy Socket Weld Fittings

DIN 2.4360 Monel Forged Steel Unions

ASME SB564M Monel MSS-SP-83 Unions

Forged MSS-SP-83 Unions


Class 3000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
E 7/16 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8 1
A 1 11/16 1 11/16 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/2 4 7/16
F 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535
B 1 31/64 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64 6 5/32
D 25/32 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8 2 7/16
C 53/64 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16 4 9/32
  0.430 0.565 0.700 0.865 1.075 1.340 1.685 1.925 2.416 2.921 3.550
Weight/Union
(lbs)
0.38 0.36 0.5 0.695 1.175 1.64 2.59 3.41 5.12 8.75 12.625


Class 6000
  1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
D 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8
A 1 11/15 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/8
E 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8
B 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64
F 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406
C 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16
  0.430 0.565 0.700 0.865 1.075 1.340 1.685 1.925 2.416
Weight/Union
(lbs)
0.5 0.56 0.75 1.25 1.75 3 3.75 6 10.5

Monel UNS N05500 Rockwood Unions

Forged Rockwood Unions

Types 601, 602, and 604
Pipe Size H A I B K C M D L E J F Style Nut G
1/8 18-NPT 19/32 1 3/4 21/64 1 1/4 1/8 3/4 1.035 51/64 7/8 0.264 29/32 3/4 Hex 1/2
1/4 18-NPT 19/32 1 3/4 3/8 1 1/4 1/8 3/4 1.035 51/64 7/8 0.402 29/32 3/4 Hex 1/2
3/8 18-NPT 3/4 2 1/2 1 7/16 1/8 7/8 1.164 15/16 15/16 0.408 1 1/16 13/16 Hex 9/16
1/2 14-NPT 25/32 2 1/4 5/8 1 21/32 3/16 1 3/32 1.437 1 11/64 1 1/8 0.534 1 5/16 1 Hex 11/16
3/4 14-NPT 29/32 2 7/16 27/32 2 7/32 1 25/64 1.693 1 7/16 1 3/16 0.548 1 37/64 1 1/16 Octagon 3/4
1 11 1/2-NPT 1 1/16 2 11/16 1 1/16 2 3/8 7/32 1 5/8 1.975 1 23/32 1 5/16 0.683 1 13/16 1 3/32 Octagon 27/32
1 1/4 11 1/2-NPT 1 5/32 2 21/32 1 13/32 2 3/4 9/32 2 2.416 2 3/32 1 7/16 0.707 2 1/4 1 19/64 Octagon 7/8
1 1/2 11 1/2-NPT 1 7/32 3 1/8 1 21/32 3 9/32 2 9/32 2.649 2 11/32 1 1/2 0.724 2 1/2 1 21/64 Octagon 1
2 11 1/2-NPT 1 7/16 3 11/16 2 1/16 3 23/32 19/64 2 51/64 3.221 2 7/8 1 25/32 0.757 3 1/16 1 15/32 Octagon 1 7/32

Type 602B
Pipe Size Socket Dia. Style Nut Weight Per Union (lbs) Depth Socket
1/8 18-NPT 0.420 Hex 0.32 7/16
1/4 18-NPT 0.555 Hex 0.30 7/16
3/8 18-NPT 0.690 Hex 0.40 7/16
1/2 14-NPT 0.855 Hex 0.72 1/2
3/4 14-NPT 1.065 Octagon 1.10 1/2
1 11 1/2-NPT 1.330 Octagon 1.50 9/16
1 1/4 11 1/2-NPT 1.675 Octagon 2.20 9/16
1 1/2 11 1/2-NPT 1.915 Octagon 2.60 9/16
2 11 1/2-NPT 2.406 Octagon 4.60 11/16

ASTM B564 K500 Lug Nut Unions

Forged Lug Nut Unions

Size (Inches) Class 6000-A Class 3000-A
3/8 2.065 1.950
1/2 2.375 2.065
3/4 2.580 2.375
1 2.950 2.580
1 1/4 3.115 2.950
1 1/2 3.575 3.115
2 4.200 3.575
2 1/2   4.200
3   4.475
4   8.500

Searching for

Monel Forged Fittings supplier in your country? Checklist of material we export in the following areas.

Application Projects
P.M. Metal Logo

Monel Threaded Fittings

Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).

Application Projects
P.M. Metal Logo

Monel Socket Weld Fittings

Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).

Application Projects
P.M. Metal Logo

Alloy 400 Forged Fittings

USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.

Application Projects
P.M. Metal Logo

ASTM B564 UNS N04400 Fittings

Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.

Application Projects
P.M. Metal Logo

Monel K500 Fittings

Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.

Application Projects
P.M. Metal Logo

ASTM B564 Monel Forged Fittings

France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
