Stainless Steel 316 Round Bar vs Rod
Stainless steel 316 is one of the most popular grade that can be shaped in the form of round bars and rods. These modules can be used interchangeably, but have few major differences that allow the items to be distinguished on key characteristics.
What is 316 Stainless Steel Threaded Rod and Welding Rod
Stainless steel 316 is a popular grade that has threaded and welding rods. Both types are efficient in their functioning but have some major differences.
Is AISI 316 Stainless Steel Bar austenitic or martensitic?
The AISI 316 stainless steel bar belongs to an austenitic grade. The bars in this grade are designed with an outstanding concentration of chromium, nickel, and molybdenum, giving it an austenitic outlook. The austenitic grade further allows the item to showcase excellent resistance and tolerance across different environments.
Can Polished 316 Stainless Steel Flat Bar be hardened?
Stainless steel 316 flat polished bar can be hardened by solution treatment or annealing process. Here the plates are heated at temperatures of 1010 up to 1120 degrees C, followed by rapid cooling. The plates can only be hardened through cold rolling procedures.
Specifications | ASTM A479/ASME SA479, ASTM A276 /ASME SA276 |
---|---|
ASTM/ ASME Dimensions | AISI, ASME, EN, JIS, DIN, BS, ASTM |
Dual certified Manufacturers | Dual certified SS 316 Round Bar Manufacturers in India, accordance to certify ASME SA276 and ASTM A276 American specifications |
Outside Diameter |
Outside Diameter range: 4mm upto 500mm |
Size of Flat Bars |
Thickness range: From 2mm to 150mm, Size: From 1/2” upto 10” |
Hex Bars size range | From 18mm to 57mm (11/16" to 2-3/4″) |
Bright Bars OD |
Outside Diameter : Between 4mm to 100mm |
Square Bars stocking sizes |
From 18mm to 47mm (11/16" to 1-3/4″) |
Marking |
|
manufacturing Length | 1 to 6 Meters Long or Above than it |
Round Bars Finishes | BA Finish, Rough, Polished, Black, Bright, NO.4 Finish, Matt Finish, Turned |
SS 316 Round bars Form | Billet, Rectangle, Ingot, Forging, Round |
316 Stainless Steel Round Bar Manufacturers in India |
Products | Threaded Rod Finish | Length | Price |
---|---|---|---|
1"-8 Thread Size | |||
STAINLESS STEEL ROUND BAR(B0123516-NC)1 / 2RD X 12FT R/L,ASTM A-276 T-316))(QTY:3.560 MTR) | Plain | 6 1/2 in | $474.71 / pkg. of 25 |
STAINLESS STEEL ROUND BAR MBR-SANMAC316-60 | Plain | 14 in | $466.75 / pkg. of 10 |
1-1/2"-8 Thread Size | |||
METAL STAINLESS STEEL ROUND BAR - - 0.250 DIA X 4 R/L - 316 - (10PCS) | Plain | 12 1/4 in | $291.88 / pkg. of 6 |
1-1/4"-8 Thread Size | |||
STAINLESS STEEL BRIGHT ROUND BAR GRADE:AISI 316,LENG:5.65-5.80,5.80-5.84,5.73-5.75MTRS SIZE:100 MM | Plain | 9 1/4 in | $467.01 / pkg. of 10 |
STAINLESS STEEL BRIGHT ROUND BARS AISI 316 | Plain | 18 in | $365.67 / pkg. of 6 |
1-1/8"-8 Thread Size | |||
BRIGHT BARS MADE OF STAINLESS STEEL : ST. STEEL BRIGHT BARS(ROUND BARS) GRADE AISI 316 (NCKL CHROMIUM AUSTENITIC TYPE) | Plain | 5 1/4 in | $544.15 / pkg. of 25 |
STAINLESS STEEL BRIGHT ROUND BARS GRADE: AISI 316 ( 60 MM ) | Plain | 13 1/4 in | $521.22 / pkg. of 10 |
1-5/8"-8 Thread Size | |||
STAINLESS STEEL BARS & RODS(ROUND BRIGHTBARS) OF ,GRADE: 316 , SIZE: 20 MM | Plain | 10 3/4 in | $304.39 / pkg. of 6 |
STAINLESS STEEL 316 WELDING ROD SIZE:2.4 MM DIA (5KG/PACK-6 PACKS) | Plain | 13 in | $243.93 / pkg. of 4 |
H&T | Hardened and tempered. |
---|---|
ANN | Annealed |
PH | Precipitation hardened. |
Shape / Section | Size, diameter or width across flats | Permitted variation |
---|---|---|
mm | mm | |
Square and hexagon |
≥ 6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 105 |
+ 0 to - 0.090 + 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.250 |
Flat (thickness) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.250 + 0 to - 0.350 |
Round | ≥6 ≦ 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 |
+ 0 to - 0.070 + 0 to - 0.085 + 0 to - 0.100 + 0 to - 0.120 + 0 to - 0.140 |
Flat (width) | < 18 > 18 ≦ 30 > 30 ≦ 50 > 50 ≦ 80 > 80 ≦ 100 > 100 ≦ 130 > 130 ≦ 160 > 160 ≦ 320 |
+ 0 to - 0.110 + 0 to - 0.130 + 0 to - 0.160 + 0 to - 0.190 + 0 to - 0.220 + 0 to - 0.350 + 0 to - 1.00 + 1.00 to - 1.00 |
Diameter or Width (milimeter) |
round bars Weight per meter | Sectional Area | Perimeter | |||
---|---|---|---|---|---|---|
Round (kilogram) |
Square (kilogram) |
Round (centimeter²) |
Square (centimeter²) |
Round (centimeter) |
Square (centimeter) |
|
5.0 | 0.15 | 0.20 | 0.20 | 0.25 | 1.57 | 2.0 |
5.5 | 0.19 | 0.24 | 0.24 | 0.30 | 1.78 | 2.2 |
6.0 | 0.22 | 0.28 | 0.28 | 0.36 | 1.88 | 2.4 |
7.0 | 0.30 | 0.38 | 0.38 | 0.49 | 2.20 | 2.8 |
8.0 | 0.39 | 0.50 | 0.50 | 0.64 | 2.51 | 3.2 |
9.0 | 0.50 | 0.64 | 0.64 | 0.81 | 2.83 | 3.6 |
10 | 0.63 | 0.73 | 0.79 | 1.00 | 3.14 | 4.0 |
11 | 0.75 | 0.95 | 0.95 | 1.21 | 3.46 | 4.4 |
12 | 0.89 | 1.13 | 1.13 | 1.44 | 3.77 | 4.8 |
14 | 1.21 | 1.54 | 1.54 | 1.96 | 4.40 | 5.6 |
16 | 1.58 | 2.01 | 2.01 | 2.56 | 5.03 | 6.4 |
18 | 2.00 | 2.54 | 2.54 | 3.24 | 5.65 | 7.2 |
20 | 2.47 | 3.14 | 3.14 | 4.00 | 6.28 | 8.0 |
22 | 2.98 | 3.80 | 3.80 | 4.84 | 6.91 | 8.8 |
25 | 3.85 | 4.91 | 4.91 | 6.25 | 7.85 | 10.0 |
28 | 4.83 | 6.15 | 6.16 | 7.84 | 8.80 | 11.2 |
32 | 6.31 | 8.04 | 8.04 | 10.24 | 10.05 | 12.8 |
36 | 7.99 | 10.17 | 10.18 | 12.96 | 11.31 | 14.4 |
40 | 9.86 | 12.56 | 12.57 | 16.00 | 12.57 | 16.0 |
45 | 12.49 | 15.90 | 15.90 | 20.25 | 14.14 | 18.0 |
50 | 15.41 | 19.62 | 19.64 | 25.00 | 15.71 | 20.0 |
56 | 19.34 | 24.62 | 24.63 | 31.36 | 17.59 | 22.4 |
63 | 24.47 | 31.16 | 31.17 | 36.69 | 19.79 | 25.2 |
71 | 31.08 | 39.57 | 39.59 | 50.41 | 22.31 | 28.4 |
80 | 39.46 | 50.24 | 50.27 | 64.00 | 25.13 | 32.0 |
Size | kilogram / Meter | kilogram / Foot | Round Bar bar Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
---|---|---|---|---|---|---|---|---|
22 millimeter | 2.979 | 0.908 | 1/8" | 0.062 | 0.019 | 3 to 1/4" | 41.996 | 12.800 |
20 millimeter | 2.470 | 0.753 | 3 millimeter | 0.055 | 0.017 | 3" | 35.762 | 10.900 |
24 millimeter | 3.543 | 1.080 | 4 millimeter | 0.098 | 0.030 | 3 to 3/4" | 55.780 | 17.001 |
7/8" | 3.038 | 0.926 | 5/32" | 0.095 | 0.029 | 3 to 1/2" | 48.772 | 14.850 |
1" | 3.970 | 1.210 | 5 millimeter | 0.154 | 0.047 | 4 to 1/4" | 72.249 | 21.908 |
25 millimeter | 3.871 | 1.180 | 3/16" | 0.141 | 0.043 | 4" | 63.340 | 19.306 |
27 millimeter | 4.490 | 1.368 | 6 millimeter | 0.223 | 0.068 | 4 to 3/4" | 90.249 | 27.366 |
26 millimeter | 4.170 | 1.271 | 7/32" | 0.190 | 0.058 | 4 to 1/2" | 80.340 | 24.4487 |
30 millimeter | 5.548 | 1.691 | 7 millimeter | 0.298 | 0.091 | 5 to 1/2" | 121.000 | 36.690 |
1 to 1/8" | 5.033 | 1.534 | 1/4" | 0.249 | 0.076 | 5" | 99.940 | 30.461 |
32 millimeter | 6.314 | 1.894 | 8 millimeter | 0.398 | 0.120 | 6 to 1/2" | 167.630 | 51.093 |
1 to 1/4" | 6.349 | 1.924 | 5/16" | 0.387 | 0.118 | 6" | 143.900 | 43.860 |
35 millimeter | 7.553 | 2.390 | 3/8" | 0.557 | 0.170 | 7 to 1/2" | 225.000 | 68.226 |
1 to 3/8" | 7.550 | 2.303 | 9 millimeter | 0.498 | 0.152 | 7" | 196.000 | 59.432 |
38 millimeter | 8.903 | 2.792 | 11 millimeter | 0.748 | 0.228 | 10" | 397.140 | 121.048 |
36 millimeter | 7.999 | 2.438 | 10 millimeter | 0.620 | 0.189 | 8" | 254.55 | 77.586 |
40 millimeter | 9.872 | 3.009 | 12 millimeter | 0.889 | 0.271 | |||
1 to 1/2" | 8.951 | 2.715 | 7/16" | 0.761 | 0.232 | |||
1 to 3/4" | 12.179 | 3.712 | 13 millimeter | 1.043 | 0.318 | |||
1 to 5/8" | 10.449 | 3.200 | 1/2" | 0.994 | 0.303 | |||
1 to 7/8" | 13.977 | 4.260 | 9/16" | 1.256 | 0.383 | |||
45 millimeter | 12.555 | 3.807 | 14 millimeter | 1.207 | 0.368 | |||
50 millimeter | 15.414 | 4.698 | 5/8" | 1.551 | 0.473 | |||
48 millimeter | 14.205 | 4.330 | 15 millimeter | 1.391 | 0.424 | |||
2 to 1/8" | 17.963 | 5.475 | 17 millimeter | 1.791 | 0.543 | |||
2" | 15.906 | 4.848 | 16 millimeter | 1.578 | 0.481 | |||
60 millimeter | 22.205 | 6.768 | 18 millimeter | 2.001 | 0.610 | |||
2 to 1/4" | 20.128 | 6.135 | 11/16" | 1.880 | 0.573 | |||
2 to 3/8" | 22.435 | 6.838 | 3/4" | 2.237 | 0.682 | |||
2 to 1/2" | 24.856 | 7.576 | ||||||
2 to 5/8" | 27.409 | 8.354 | ||||||
2 to 3/4" | 30.083 | 9.169 |

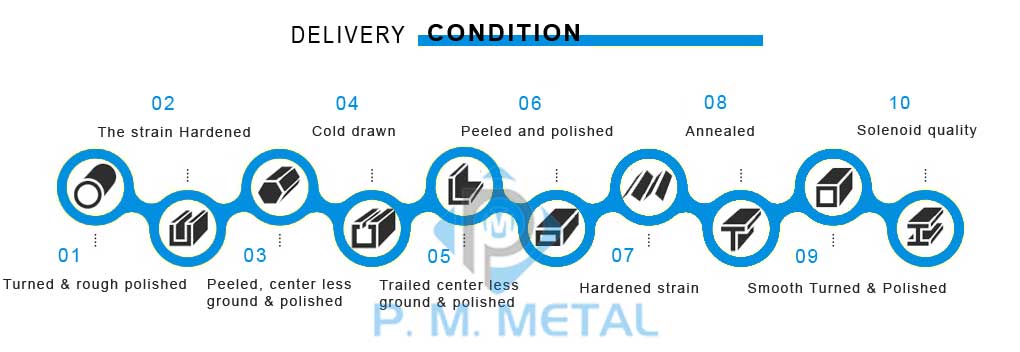

CD | Cold drawn | Polished | P |
---|---|---|---|
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | Hot finished | HF |
CF | Cold finished | Hot rolled annealed and pickled | HRAP |
P&T | Peeled and turned | Rough turned/peeled | RT |
ST | Smooth turned | Peeled and reeled | PR |
metric weights and sizes | |||
---|---|---|---|
Colour Code | Kilogram per Meter | bar Size | (meters) Length |
Blue | 0.031 | 13 x 3 | 6.0 |
Blue | 0.024 | 10 x 3 | |
Blue | 0.038 | 16 x 3 | |
Orange | 0.046 | 13 x 5 | |
Red | 1.03 | 16 x 8 | |
Orange | 0.064 | 16 x 5 | |
Orange | 0.081 | 20 x 5 | |
Blue | 0.048 | 20 x 3 | |
Yellow | 1.61 | 20 x 10 | |
White | 0.097 | 20 x 6 | |
Orange | 1.01 | 25 x 5 | |
Blue | 0.060 | 25 x 3 | |
Red | 1.61 | 25 x 8 | |
White | 1.21 | 25 x 6 | |
Pink | 2.41 | 25 x 12 | |
Yellow | 2.01 | 25 x 10 | |
Orange | 1.29 | 32 x 5 | |
Blue | 0.077 | 32 x 3 | |
Red | 2.06 | 32 x 8 | |
White | 1.55 | 32 x 6 | |
Pink | 3.09 | 32 x 12 | |
Yellow | 2.58 | 32 x 10 | |
Blue | 0.097 | 40 x 3 | |
White | 1.93 | 40 x 6 | |
Orange | 1.61 | 40 x 5 | |
Yellow | 3.22 | 40 x 10 | |
Red | 2.58 | 40 x 8 | |
Grey | 5.15 | 40 x 16 | |
Pink | 3.86 | 40 x 12 | |
Blue | 1.21 | 50 x 3 | |
Green | 6.14 | 40 x 20 | |
White | 2.41 | 50 x 6 | |
Orange | 2.01 | 50 x 5 | |
Yellow | 4.02 | 50 x 10 | |
Red | 3.22 | 50 x 8 | |
Grey | 6.44 | 50 x 16 | |
Pink | 4.83 | 50 x 12 | |
Purple | 10.01 | 50 x 25 | |
Green | 8.05 | 50 x 20 | |
Orange | 2.62 | 65 x 5 | |
Blue | 1.57 | 65 x 3 | |
Red | 4.18 | 65 x 8 | |
White | 3.14 | 65 x 6 | |
Pink | 6.28 | 65 x 12 | |
Yellow | 5.23 | 65 x 10 | |
Green | 10.05 | 65 x 20 | |
Grey | 8.37 | 65 x 16 | |
Orange | 3.02 | 75 x 5 | |
White | 3.62 | 75 x 6 | |
Purple | 13.1 | 65 x 25 | |
Yellow | 6.04 | 75 x 10 | |
Red | 4.83 | 75 x 8 | |
Grey | 9.66 | 75 x 16 | |
Pink | 7.24 | 75 x 12 | |
Purple | 15.1 | 75 x 25 | |
Green | 12.1 | 75 x 20 | |
Orange | 3.62 | 90 x 5 | |
Yellow | 24.1 | 75 x 40 | |
White | 4.35 | 90 x 6 | |
Red | 5.79 | 90 x 8 | |
Yellow | 7.24 | 90 x 10 | |
Pink | 8.69 | 90 x 12 | |
Orange | 4.02 | 100 x 5 | |
White | 4.83 | 100 x 6 | |
Red | 6.44 | 100 x 8 | |
Yellow | 8.05 | 100 x 10 | |
Pink | 9.66 | 100 x 12 | |
Grey | 12.9 | 100 x 16 | |
Green | 16.1 | 100 x 20 | |
Purple | 20.01 | 100 x 25 | |
Green | 40.02 | 100 x 50 | |
White | 5.31 | 110 x 6 | |
Red | 7.08 | 110 x 8 | |
Yellow | 8.85 | 110 x 10 | |
Pink | 10.06 | 110 x 12 | |
Orange | 5.23 | 130 x 5 | |
White | 6.28 | 130 x 6 | |
Red | 8.37 | 130 x 8 | |
Yellow | 10.05 | 130 x 10 | |
Pink | 12.6 | 130 x 12 | |
Grey | 16.7 | 130 x 16 | |
Green | 20.09 | 130 x 20 | |
Purple | 26.2 | 130 x 25 | |
Orange | 6.04 | 150 x 5 | |
White | 7.24 | 150 x 6 | |
Red | 9.66 | 150 x 8 | |
Yellow | 12.1 | 150 x 10 | |
Pink | 14.5 | 150 x 12 | |
Grey | 19.3 | 150 x 16 | |
Green | 24.1 | 150 x 20 | |
Purple | 30.01 | 150 x 25 | |
Green | 60.04 | 150 x 50 | |
Orange | 7.24 | 180 x 5 | |
White | 8.69 | 180 x 6 | |
Yellow | 14.5 | 180 x 10 | |
Pink | 17.4 | 180 x 12 | |
Grey | 23.2 | 180 x 16 | |
Green | 29.0 | 180 x 20 | |
Purple | 36.2 | 180 x 25 | |
White | 9.66 | 200 x 6 | |
Red | 12.9 | 200 x 8 | |
Yellow | 16.1 | 200 x 10 | |
Pink | 19.3 | 200 x 12 | |
Grey | 25.7 | 200 x 16 | |
Green | 32.2 | 200 x 20 | |
Purple | 40.03 | 200 x 25 | |
White | 12.1 | 250 x 6 | |
Red | 16.1 | 250 x 8 | |
Yellow | 20.01 | 250 x 10 | |
Pink | 24.1 | 250 x 12 | |
Grey | 32.2 | 250 x 16 | |
Green | 40.02 | 250 x 20 | |
Purple | 50.03 | 250 x 25 | |
White | 14.5 | 300 x 6 | |
Red | 19.3 | 300 x 8 | |
Yellow | 24.1 | 300 x 10 | |
Pink | 29.0 | 300 x 12 | |
Grey | 38.6 | 300 x 16 | |
Green | 48.3 | 300 x 20 | |
Purple | 60.04 | 300 x 25 |
US Bar | Metric | Japanese | Canadian/ASTM | ||||
---|---|---|---|---|---|---|---|
Diameter(Inch) | Bar Size | Bar Size | Diameter (millimeter) | Diameter (millimeter) | Round Bar Size | Bar Size | Diameter (millimeter2) |
0.250 | #2 | 5 | 5 | 6 | 6 | 10M | 100 |
0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 15M | 200 |
0.500 | #4 | 6 | 6 | 13 | 13 | 20M | 300 |
0.625 | #5 | 7 | 7 | 16 | 16 | 25M | 500 |
0.750 | #6 | 8 | 8 | 19 | 19 | 30M | 700 |
0.875 | #7 | 9 | 9 | 22 | 22 | 35M | 1000 |
1.000 | #8 | 10 | 10 | 25 | 25 | 45M | 1500 |
1.125 | #9 | 11 | 11 | 29 | 29 | 55M | 2500 |
1.250 | #10 | 12 | 12 | 32 | 32 | ||
1.375 | #11 | 14 | 14 | 35 | 35 | ||
1.500 | #12 | 16 | 16 | 38 | 38 | ||
1.625 | #13 | 18 | 18 | 41 | 41 | ||
1.750 | #14 | 20 | 20 | 44 | 44 | ||
1.875 | #15 | 22 | 22 | 48 | 48 | ||
2.000 | #16 | 25 | 25 | 51 | 51 | ||
2.250 | #18 | 28 | 28 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Size in Mm | Size In MM | kg per meter | kg per meter |
---|---|---|---|
20*20*2.0 | 25*25*2.0 | 1.12 | 1.43 |
25*25*1.5 | 20*20*2.5 | 1.06 | 1.35 |
25*25*2.5 | 30*30*2.5 | 1.74 | 2.14 |
30*30*2.0 | 25*25*3.0 | 1.68 | 2.04 |
30*30*3.0 | 40*40*1.5 | 2.51 | 1.81 |
40*40*2.0 | 50*50*1.5 | 2.31 | 2.28 |
40*40*3.0 | 40*40*4.0 | 3.45 | 4.46 |
40*40*5.0 | 40*40*2.5 | 5.40 | 2.92 |
50*50*2.0 | 50*50*2.5 | 2.93 | 3.71 |
50*50*3.0 | 60*60*3.0 | 4.39 | 5.34 |
50*50*5.0 | 50*50*4.0 | 6.97 | 5.72 |
60*60*4.0 | 60*60*5.0 | 6.97 | 8.54 |
60*60*6.0 | 80*80*3.0 | 9.45 | 7.22 |
70*70*3.6 | 70*70*5.0 | 7.46 | 10.11 |
70*70*6.3 | 90*90*5.0 | 12.50 | 13.30 |
75*75*3.0 | 80*80*5.0 | 7.07 | 11.70 |
80*80*3.6 | 70*70*3.0 | 8.59 | 6.28 |
80*80*6.0 | 90*90*3.0 | 13.90 | 8.01 |
90*90*3.6 | 70*70*8 | 9.72 | 15.30 |
90*90*6.0 | 100*100*4.0 | 15.76 | 12.00 |
100*100*3.0 | 90*90*8.0 | 8.96 | 20.40 |
100*100*5.0 | 120*120*6.3 | 14.80 | 22.30 |
100*100*6.0 | 120*120*10 | 16.19 | 34.20 |
100*100*10 | 120*120*5 | 27.90 | 18.00 |
120*120*6.0 | 100*100*5.0 | 21.30 | 14.80 |
120*120*8.0 | 100*100*8.0 | 27.90 | 22.90 |
120*120*12 | 120*120*12.5 | 35.8 | 41.60 |
140*140*5.0 | 140*140*6.3 | 21.10 | 26.30 |
140*140*8 | 140*140*10 | 32.90 | 40.40 |
140*140*12.5 | 150*150*5.0 | 49.50 | 22.70 |
150*150*6.3 | 150*150*8.0 | 28.30 | 35.40 |
150*150*10 | 180*180*10 | 43.60 | 53.00 |
150*150*16 | 180*180*6.3 | 66.40 | 34.20 |
180*180*5 | 150*150*16 | 27.40 | 66.40 |
180*180*8 | 150*150*12.5 | 43.00 | 53.40 |
180*180*12.5 | 200*200*6 | 65.20 | 35.8 |
200*200*5 | 180*180*16 | 30.50 | 81.40 |
200*200*6.3 | 250*250*8 | 38.2 | 60.50 |
200*200*10 | 250*250*12.5 | 59.30 | 92.60 |
200*200*16 | 250*250*6.3 | 91.50 | 48.10 |
200*200*8 | 250*250*10 | 48.00 | 75.00 |
200*200*12.5 | 250*250*16 | 73.00 | 117.00 |
300*300*6.3 | 400*400*16 | 57.90 | 192 |
300*300*10 | 350*350*12.5 | 57.90 | 132.00 |
300*300*12.5 | 300*300*16 | 112.00 | 142.00 |
350*350*8 | 350*350*10 | 85.70 | 106.00 |
300*300*8 | 350*350*16 | 90.70 | 167.00 |
400*400*10 | 400*400*12 | 122.00 | 141.00 |
400*400*12.5 | 300*300*8 | 152.00 | 73.10 |
0.2% Proof Stress | Elongation | Tensile Strength | Hardness | Reduction of area |
---|---|---|---|---|
MPA | % | MPA | HRC | % |
Min | Min | Min | Min | Min |
827 | 17 | 1034 | 40 | 25 |
Density | Yield Properties (0.2%Offset) | Melting Point | Elongation | Tensile Properties |
---|---|---|---|---|
8.0 g/cm3 | Psi – 30000 , MPa – 205 | 1454 °C (2650 °F) | 40 % | Psi – 75000 , MPa – 515 |
Wt per Foot of hex bar | Wt per Inch | Size in Inches |
---|---|---|
0.0180 | 2.160 | 1/4″ |
0.0104 | 1.248 | 3/16″ |
0.0600 | 4.920 | 3/8″ |
0.0290 | 3.480 | 5/16″ |
0.0740 | 8.880 | 1/2″ |
0.0560 | 6.72 | 7/16″ |
1.150 | 13.80 | 5/8″ |
0.0930 | 11.16 | 9/16″ |
1.660 | 19.92 | 3/4″ |
1.390 | 16.68 | 11/16″ |
2.300 | 27.60 | 7/8″ |
2.600 | 31.20 | 15/16″ |
1.950 | 23.40 | 13/16″ |
3.30 | 39.60 | 1-1/16″ |
2.90 | 34.80 | 1″ |
4.600 | 55.20 | 1-1/4″ |
3.700 | 44.40 | 1-1/8″ |
5.600 | 67.20 | 1-3/8″ |
5.100 | 61.20 | 1-5/16″ |
6.600 | 79.20 | 1-1/2″ |
6.100 | 73.20 | 1-7/16″ |
26.53 | 318.36 | 3″ |
9.030 | 108.36 | 1-3/4″ |
7.800 | 93.60 | 1-5/8″ |
18.42 | 221.04 | 2-1/2″ |
11.80 | 141.60 | 2″ |
10.0400 | 124.80 | 1-7/8″ |
16.920 | 203.04 | 2-3/8″ |
14.920 | 179.04 | 2-1/4″ |
Grade | Euronorm | UNS No | Old British | Japanese JIS | Swedish SS | ||
---|---|---|---|---|---|---|---|
No | Name | En | BS | ||||
316 | 1.4401 | X5CrNiMo17-12-2 | S31600 | 58E | 304S11 | SUS 316 | 2347 |
Size in milimeter | Average Weight | |
---|---|---|
KG/MTR | KG/FT | |
12 x 12 | 1.010 | 0.030 |
10 x 10 | 0.080 | 0.020 |
16 x 16 | 2.000 | 0.060 |
14 x 14 | 1.050 | 0.050 |
20 x 20 | 3.014 | 1.000 |
17 x 17 | 2.027 | 0.069 |
32 x 32 | 8.000 | 2.040 |
63 x 63 | 31.020 | 9.050 |
25 x 25 | 4.090 | 1.050 |
42 X 42 | 13.085 | 4.022 |
40 x 40 | 12.060 | 3.080 |
53 X 53 | 22.005 | 6.072 |
50 x 50 | 19.060 | 6.000 |
56 x 56 | 24.060 | 7.050 |
Grade | Cr | C | Ni | Mn | S | Si | N | P | Mo | |
---|---|---|---|---|---|---|---|---|---|---|
316 | min. | 16.0 | – | 10.0 | – | – | – | – | – | 2.0 |
max. | 18.0 | 0.08 | 14.0 | 2.0 | 0.03 | 0.75 | 0.10 | 0.045 | 3.0 |
Grade | Elongation (% in 50mm) min | Strength of Tensile (MPa) minimum | Strength of Yield 0.2% Proof (MPa) minimum | Pipe Hardness | |
---|---|---|---|---|---|
Brinell (HB) maximum | Rockwell B (HR B) maximum | ||||
316 | 40 | 515 | 205 | 217 | 95 |
ASTM A276 Type 316 Rod | SS 316 Rod |
A479 Gr 316 Flat Bar | 316 Ss Bar |
SS 316 Round Bar | 316 Stainless Cold Finish Round Bar |
316 Stainless Steel Round Bar | JIS SUS 316 Rectangular Bar |
316 Stainless Steel Half Round Bar | 316 Stainless Steel Square Bar |
Hot Rolled SS 316 Round Bar | Steel S31600 Bright Bar |
UNS S31600 Forged Bars | ASME SA 276/479 Stainless Steel 316 Bar |
316 SS Hollow Bar | UNS S31600 Forged Round Bar |
316 SS Round Bar | Steel 316 Threaded Bar |
Hot Rolled 316 Stainless Steel Bars | SS DIN 1.4401 / 1.4436 Special Metal Round Bar |
Stainless Steel 316 Round Bar | ASTM A276 AISI 316 Stainless Steel Round Bars |
316 Round Bar | 316 Stainless Steel Black Bar |
316 Stainless Round Bar | SS UNS S31600 Round Bar |
Searching for
Stainless Steel 316 Round Bar supplier in your country? Checklist of material we export in the following areas.
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
