ASTM A182 F316L Blind Flange and EN 1.4404 Slip On Flange manufacturer in India
What is Stainless Steel 316L Flanges?
Stainless steel 316l flanges are low carbon austenitic grade. These flanges are designed with a superior chemical composition consisting of nickel, chromium, and molybdenum. The superior content gives these modules enhanced corrosion resistance across stress-induced environments. The versatile flanges are immune to sensitization and pitting by acids in harsh systems. The flanges in this grade possess outstanding welding characteristics and can be readily welded in place following standard welding procedures. They are employed in a range of temperatures to securely seal different piping items.
SA182 F316l Slip on Flanges Vs ASTM A182 F316l RTJ Flange
Flanges are important constituents used to seal different piping grades. Slip on flanges and RTJ flanges are versatile types that can be distinguished from certain features.
- SA182 F316l Slip on flanges are designed with a low-profile head. ASTM A182 F316l RTJ flange is a metallic ring that has cuts or grooves in its face.
- Slip on flanges are slid on the piping modules and welded using one or more fillet welds. RTJ flanges are generally bolted in place, making use of nuts or bolts.
UNS S31603 Socket Weld Flange Vs A182 Gr F316l Threaded Flange
- UNS S31603 Socket Weld Flange is a less common flange type requiring lower fitting space compared to traditional flange types. A182 Gr F316l Threaded Flange is a common flange type in this range.
- Socket weld flanges are welded in place using a fillet weld. A threaded flange is designed with threads that align directly to piping modules.
- SS 316l grade can withstand a range of high-pressure applications. SS 316l threaded flanges are preferred in low-pressure systems.
Can 316L Stainless Steel Flanges rust?
The SS 316l grade flanges will rust if they’re exposed to corrosive and reducing media for long periods. With superior content of chromium, nickel, and molybdenum the 316l flanges have better resistance to acids and corrosive media when compared to other grades of stainless steel flanges.
Table of Content
SS 316L Flanges Specification
| Specifications | ASTM A182 F316L Flange/ Stainless Steel 316L Flanges |
|---|---|
| Main Types | Screwed / Forged / Plate/ Threaded |
| Available Sizes | 1/2 To 48 Inch |
| Equipment used | Press machine, Pushing Machine, Sand-blasting machine, Bending machine, electric bevelling machine |
| ANSI Standard | Class 150 to Class 2500 LBS |
| Supporting material | Ring Joint Gasket Flange Bolts |
| EN Standard | 16, 6, 40, 25, 10 Bar |
| Standards | ASME B16.5, DIN, ANSI Flanges, B16.47 Series A and B, BS 10, B16.48, EN 1092, ASME Flanges, BS Flanges, BS4504, EN Flanges, GOST Flanges, DIN Flanges |
| UNI Standard | 16, 6, 40, 25, 10 Bar |
| Test | Magnetic particle detector UI trasonic flaw detector X ray detector Direct reading Spectrograph Hydrostatic testing machine |
| DIN Standard | 16, 40, 10, 6, 25 Bar / PN64, PN10, PN16, PN6, PN25, PN40 |
| Technique | Heat treated machined Forged |
| JIS Standard | 30, 20, 40, 5, 16 10, 63 K |
| Face Type | Large Tongue and Groove, Lap Joint Face, Large Male Female, Flat Face, Small Tongue, Raised Face, Small Male Female, Ring Joint 316l Stainless Steel Flange Manufacturer and Supplier |
| Marking | All SS 316L Flange are marked as follows: Supplier or Manufacturer’s Name, Class, Dimension, Size, Bore, Material, Heat No. (Or according to the customer’s request) |
ASTM A182 F316L Flanges Price List
| Products | Size | Flange Outside Diameter | Number of Bolt Holes | Price |
|---|---|---|---|---|
| STAINLESS STEEL MALLEABLE ROUGH/MACHINEDCASTINGS ( P-BDY-224, REV-D, 316L: FLANGED BODY | 1 in | 4-1/4 in | 4 | $48.71 |
| STAINLESS STEEL FLANGE:STUTZKORBRING DRW16-266(SS 316L) | 1-1/2 in | 5 in | 4 | $59.80 |
| S.S. FITTINGS - STAINLESS STEEL FLANGES- FLANGE WNRF 8 CLASS 150, A182 F 316L | 2 in | 6 in | 4 | $84.60 |
| Stainless Steel Forged Flanges 316L 931402XA06 9150077-129FLANGE 3 150 316L SST | 2-1/2 in | 7 in | 4 | $119.62 |
| FLANGES STAINLESS STEEL SA182 GR F316L 4WN 150 RF STD/40S 125-250 RMS(5NOS) |
3 in | 7-1/2 in | 4 | $134.13 |
| STAINLESS STEEL FORGED FLANGES- PM NO.550200XA02 PART NO.DP0008-5040-S6 FLANGE DIN DN50 PN40 316L | 4 in | 9 in | 8 | $188.85 |
| Stainless Steel Forged Flanges 316L 058100XA03 9150077-134FLANGE 4 150 (WELD) | 6 in | 11 in | 8 | $299.01 |
Types of Stainless Steel 316L Flanges
SA182 F316L SWRF Flanges
SS DIN 1.4404 Slip On Flange
UNS S31603 SORF Flanges
AISI 316L Stainless Steel Ring Joint Flange
SA 182 F 316L Girth Flanges
ASTM A182 Gr F316L Expander Flanges
A182 316L Blind Flange
SA 182 316L BLRF Flanges
Sa182 316L Lapped Joint Flange
Stainless Steel 316L Weld Neck Flanges
316L Stainless Steel WNRF Flange
ASTM A182 F316L Socket Weld Flange
ASTM A182 316L Orifice Flanges
AISI 316L Spectacle Blind Flange
SUS 316L Tongue & Groove Flange
SS 316L Nipo Flanges
EN 1.4404 Long Weld Neck Flange
1.4404 Stainless Steel Reducing Flanges
ASTM A182 Grade F316L Screwed Flange
ASME SA182 F316L Threaded Flange
A182 Gr F316L SORF Weight Chart
| Pipe Normal Diameter in Inch | Outer Diameter Flange | Diameter of Raised Face | Length Hub | Thickness Of Flange in Min | Diamete. of Bolt Circle |
Number of Bolts |
Diameter of Bolt Holes |
Diameter. of Hub |
LBS | Thread Length | Diameter of Bolts (inch) |
KGS | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 80 | 190.50 | 127.00 | 30.20 | 23.90 | 152.40 | 4 | 19.10 | 108.00 | 9 | 30.20 | 5/8 | 4.1 |
| 1/2 | 15 | 89.00 | 35.10 | 15.70 | 11.20 | 60.50 | 4 | 15.80 | 30.20 | 0.9 | 15.70 | 1/2 | 0.4 |
| 18 | 450 | 635.00 | 533.40 | 68.30 | 39.60 | 577.90 | 16 | 31.80 | 505.00 | 126 | 68.30 | 1 1/8 | 57 |
| 1 | 25 | 108.00 | 50.80 | 17.50 | 14.20 | 79.30 | 4 | 15.80 | 49.30 | 1.8 | 17.50 | 1/2 | 0.8 |
| 12 | 300 | 482.50 | 381.00 | 55.60 | 31.80 | 431.80 | 12 | 25.40 | 365.30 | 64 | 55.60 | 7/8 | 29 |
| 1-1/4 | 32 | 117.50 | 63.50 | 20.60 | 15.70 | 88.90 | 4 | 15.80 | 58.70 | 2.6 | 20.60 | 1/2 | 1.2 |
| 3/4 | 20 | 98.50 | 42.90 | 15.70 | 12.70 | 69.90 | 4 | 15.80 | 38.10 | 1.5 | 15.70 | 1/2 | 0.7 |
| 1-1/2 | 40 | 127.00 | 73.20 | 22.40 | 17.50 | 98.60 | 4 | 15.80 | 65.00 | 3.3 | 22.40 | 1/2 | 1.5 |
| 2 | 50 | 152.50 | 91.90 | 25.40 | 19.10 | 120.70 | 4 | 19.10 | 77.70 | 5.1 | 25.40 | 5/8 | 2.3 |
| 2-1/2 | 65 | 178.00 | 104.60 | 28.40 | 22.40 | 139.70 | 4 | 19.10 | 90.40 | 8.1 | 28.40 | 5/8 | 3.7 |
| 10 | 250 | 406.50 | 323.90 | 49.30 | 30.20 | 362.00 | 12 | 25.40 | 304.80 | 39.5 | 49.30 | 7/8 | 18 |
| 3-1/2 | 90 | 216.00 | 139.70 | 31.80 | 23.90 | 177.80 | 8 | 19.10 | 122.20 | 11.2 | 31.80 | 5/8 | 5.1 |
| 16 | 400 | 597.00 | 469.90 | 63.50 | 36.60 | 539.80 | 16 | 28.50 | 457.20 | 103 | 63.50 | 1 | 47 |
| 4 | 100 | 228.50 | 157.20 | 33.30 | 23.90 | 190.50 | 8 | 19.10 | 134.90 | 13 | 33.30 | 5/8 | 5.9 |
| 20 | 500 | 698.50 | 584.20 | 73.20 | 42.90 | 635.00 | 20 | 31.80 | 558.80 | 167 | 73.20 | 1 1/8 | 76 |
| 5 | 125 | 254.00 | 185.70 | 36.60 | 23.90 | 215.90 | 8 | 22.40 | 163.60 | 15.4 | 36.60 | 3/4 | 7 |
| 14 | 350 | 533.50 | 412.80 | 57.20 | 35.10 | 476.30 | 12 | 28.50 | 400.10 | 86 | 57.20 | 1 | 39 |
| 6 | 150 | 279.50 | 215.90 | 39.60 | 25.40 | 241.30 | 8 | 22.40 | 192.00 | 18.5 | 39.60 | 3/4 | 8.4 |
| 8 | 200 | 343.00 | 269.70 | 44.50 | 28.40 | 298.50 | 8 | 22.40 | 246.10 | 28.6 | 44.50 | 3/4 | 13 |
| 24 | 600 | 813.00 | 692.20 | 82.60 | 47.80 | 749.30 | 20 | 35.10 | 663.40 | 214 | 82.60 | 1 1/4 | 97 |
SS 316L Blind Flange Torque Chart
| Size in Inch | Bolt Diameter | Size in MM | Torque lbf.ft. |
Number of Bolt | Bolt Stress lb/in2 |
Torque Nm |
|---|---|---|---|---|---|---|
| 10 | 7/8 | 250 | 194 | 12 | 40,000 | 263 |
| 3/4 | ½ | 20 | 26 | 4 | 30,000 | 36 |
| 6 | ¾ | 150 | 137 | 8 | 45,000 | 185 |
| 20 | 1 1/8 | 500 | 421 | 20 | 40,000 | 571 |
| 1 | ½ | 35 | 29 | 4 | 33,000 | 39 |
| 1 ½ | ½ | 40 | 44 | 4 | 50,000 | 60 |
| 1/2 | ½ | 15 | 22 | 4 | 25,000 | 30 |
| 18 | 1 1/8 | 450 | 421 | 16 | 40,000 | 571 |
| 2 | 5/8 | 50 | 86 | 4 | 50,000 | 117 |
| 12 | 7/8 | 300 | 194 | 12 | 40,000 | 263 |
| 3 | 5/8 | 80 | 86 | 4 | 50,000 | 117 |
| 16 | 1 | 400 | 289 | 16 | 40,000 | 392 |
| 4 | 5/8 | 100 | 69 | 8 | 40,000 | 93 |
| 8 | ¾ | 200 | 137 | 8 | 45,000 | 185 |
| 14 | 1 | 350 | 296 | 12 | 41,000 | 401 |
| 24 | 1 ¼ | 600 | 588 | 20 | 40,000 | 797 |
A182 Grade F316L BLRF Hardness
- 316L stainless steel has an elongation of 40%, a hardness of 217 on the Brinell scale and a 95 on the Rockwell B scale.
SS UNS S31603 Pipe Flanges Sizes
| Nominal Pipe Size | Thickness of Flanges | Outside Diameter of Flanges | Length Thru Hub | Diameter of Hub at Bevel | Diameter of Hub at Base | Depth of Socket | Diameter of Raised Face | Diameter or Bore | Radius of Fillet | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Welding Neck | Slip On Threaded Socket | Lap Joint | Slip on Socket | Lap Joint | ||||||||
| 2 | 3/4 | 6 | 2 1/2 | 1 | 1 | 2.38 | 3 1/16 | 11/16 | 3 5/8 | 2.44 | 2.46 | 5/16 |
| 3/4 | 1/2 | 3 7/8 | 2 1/16 | 5/8 | 5/8 | 1.05 | 1 1/2 | 7/16 | 1 11/16 | 1.09 | 1.11 | 1/8 |
| 1 1/4 | 5/8 | 4 5/8 | 2 1/4 | 13/16 | 13/16 | 1.66 | 2 5/16 | 9/16 | 2 1/2 | 1.70 | 1.72 | 3/16 |
| 1/2 | 7/16 | 3 1/2 | 1 7/8 | 5/8 | 5/8 | .84 | 1 3/16 | 3/8 | 1 3/8 | .88 | .90 | 1/8 |
| 1 1/2 | 11/16 | 5 | 2 7/16 | 7/8 | 7/8 | 1.90 | 2 9/16 | 5/8 | 2 7/8 | 1.95 | 1.97 | 1/4 |
| 3 | 15/16 | 7 1/2 | 2 3/4 | 1 3/16 | 1 3/16 | 3.50 | 4 1/4 | 13/16 | 5 | 3.57 | 3.60 | 3/8 |
| 3 1/2 | 15/16 | 8 1/2 | 2 13/16 | 1 1/4 | 1 1/4 | 4.00 | 4 13/16 | 7/8 | 5 1/2 | 4.07 | 4.10 | 3/8 |
| 4 | 15/16 | 9 | 3 | 1 5/16 | 1 5/16 | 4.50 | 5 5/16 | 15/16 | 6 3/16 | 4.57 | 4.60 | 7/16 |
| 6 | 1 | 11 | 3 1/2 | 1 9/16 | 1 9/16 | 6.63 | 7 9/16 | 1 1/16 | 8 1/2 | 6.72 | 6.75 | 1/2 |
| 10 | 1 3/16 | 16 | 4 | 1 15/16 | 1 15/16 | 10.75 | 12 | 1 5/16 | 12 3/4 | 10.88 | 10.92 | 1/2 |
| 14 | 1 3/8 | 21 | 5 | 2 1/4 | 3 1/8 | 14.00 | 15 3/4 | 1 5/8 | 16 1/4 | 14.14 | 14.18 | 1/2 |
| 5 | 15/16 | 10 | 3 1/2 | 1 7/16 | 1 7/16 | 5.56 | 6 7/16 | 15/16 | 7.5/16 | 5.66 | 5.69 | 7/16 |
| 18 | 1 9/16 | 25 | 5 1/2 | 2 11/16 | 3 13/16 | 18.00 | 19 7/8 | 1 15/16 | 21 | 18.18 | 18.20 | 1/2 |
| 24 | 1 7/8 | 32 | 6 | 3 1/4 | 4 3/8 | 24.00 | 26 1/8 | 2 1/2 | 27 1/4 | 24.25 | 24.25 | 1/2 |
We supply hydro-tested JIS 10K 316L Stainless Steel Weld Neck Flange, BS4504 PN16 Stainless Steel 316L Socket Weld Flange material, check EN 1092-1 Type 11 PN25 ASTM A182 F316L Orifice Flanges and SUS 316L Spectacle Blind Flange pressure rating
316L Stainless Steel Flanges Gasket Size
| NPS For (Normal Pipe Size) | Gasket (I.D.) Inside Diameter |
Gasket (O.D.) Outside Diameter | ||||
|---|---|---|---|---|---|---|
| #400LB | #150LB | #600LB | #300LB | #900LB | ||
| 1/2" | 0.84 | 2.125 | 1.875 | 2.125 | 2.125 | 2.50 |
| 3/4" | 1.06 | 2.625 | 2.25 | 2.625 | 2.625 | 2.75 |
| 1" | 1.31 | 2.875 | 2.625 | 2.875 | 2.875 | 3.125 |
| 1 1/4" | 1.66 | 3.25 | 3 | 3.25 | 3.25 | 3.50 |
| 1 1/2" | 1.91 | 3.75 | 3.375 | 3.75 | 3.75 | 3.875 |
| 2" | 2.38 | 4.375 | 4.125 | 4.375 | 4.375 | 5.625 |
| 2 1/2" | 2.88 | 5.125 | 4.875 | 5.125 | 5.125 | 6.50 |
| 3" | 3.50 | 5.875 | 5.375 | 5.875 | 5.875 | 6.625 |
| 4" | 4.50 | 7.00 | 6.875 | 7.625 | 7.125 | 8.125 |
| 5" | 5.56 | 8.375 | 7.75 | 9.50 | 8.50 | 9.75 |
| 6" | 6.62 | 9.75 | 8.75 | 10.50 | 9.875 | 11.375 |
| 8" | 8.62 | 12.00 | 11 | 12.625 | 12.125 | 14.125 |
| 10" | 10.75 | 14.125 | 13.375 | 15.75 | 14.25 | 17.125 |
| 12" | 12.75 | 16.50 | 16.125 | 18.00 | 16.625 | 19.625 |
Stainless Steel 316L Flanges Certificates
- Third Party Inspection Report
- Raw Materials Certificate
- 100% Radiography Test Report
- EN 10204 / 3.1B Certificate
ASTM A182 F316L Stainless Steel Flanges Chemical Composition
| Grade | Sulfur | Carbon | Chromium | Manganese | Nitrogen | Silicon | Molybdenum | Phosphorus | Nickel |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel 316L Flange | 0.030 | 0.035 | 16 To 18 | 2 | 68.89 | 1 | 2 To 3 | 0.045 | 10 To 14 |
Supplier and Manufacturer of ASTM A182 F316L Flanges, BS10 Table D AISI 316L Stainless Steel Lap Joint Flange and ASTM A182 Gr F316L Forged Flange, we accept small/ large orders of A182 F316L Material
ANSI B16.5 SS 316L Orifice Flanges Mechanical Properties
| Density | Yield Properties | Melting Point | Tensile Properties | Elongational |
|---|---|---|---|---|
| 8.0 g/cm3 | Psi – 30000, MPa – 205 | 1399 °C (2550 °F) | Psi – 75000, MPa – 515 | 35 % |
Stainless Steel 316L Slip On Flanges Equivalent
| Standard | GOST | Werkstoff Nr. | AFNOR | Unified Numbering System | British Standards | Japanese Standards | European Standards |
|---|---|---|---|---|---|---|---|
| Stainless Steel 316L Flange | 03Ch17N14M3 / 03Ch17N14M2 | 1.4435 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | S31603 | 316S11 / 316S13 | SUS 316L | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |

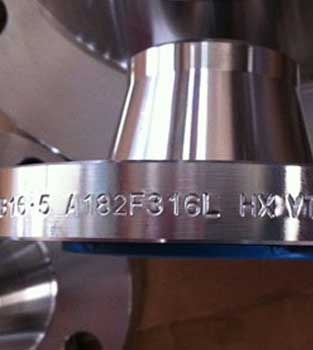

Stainless Steel 316L Flanges Application
- Food processing industry
- Oil & gas industry
- Mechanical engineering
- Plant engineering
- Chemical industry
- Power industry
- Pipeline engineering
- Petrochemical industry
- Aerospace
- Waste water management
- Marine industry
SS F316L Flange Pressure Rating
| Temperature (°C) | Class 900 | Class 150 | Class 400 | Class 300 | Class 1500 | Class 600 | Class 2500 |
|---|---|---|---|---|---|---|---|
| -29 - 38 | 155 | 19.8 | 68.9 | 51.7 | 259 | 103.4 | 431 |
| 50 | 155 | 19.5 | 68.9 | 51.7 | 259 | 103.4 | 431 |
| 300 | 129 | 10.2 | 57.0 | 42.9 | 214 | 85.7 | 357 |
| 150 | 151 | 15.8 | 66.8 | 50.2 | 251 | 100.3 | 418 |
| 475 | 51.3 | 3.7 | 22.8 | 17.1 | 85.4 | 34.2 | 142 |
| 100 | 155 | 17.7 | 68.7 | 51.5 | 258 | 103.0 | 429 |
| 425 | 86.3 | 5.5 | 38.4 | 28.8 | 144 | 57.5 | 240 |
| 200 | 146 | 13.8 | 64.8 | 48.6 | 243 | 97.2 | 405 |
| 325 | 124 | 9.3 | 55.0 | 41.4 | 207 | 82.6 | 344 |
| 350 | 120 | 8.4 | 53.4 | 40.0 | 200 | 80.0 | 334 |
| 400 | 104 | 6.5 | 46.3 | 34.7 | 174 | 69.4 | 290 |
| 250 | 139 | 12.1 | 61.7 | 46.3 | 232 | 92.7 | 386 |
| 375 | 114 | 7.4 | 50.4 | 37.8 | 189 | 75.7 | 315 |
| 450 | 69.0 | 4.6 | 30.7 | 23.0 | 115 | 46.0 | 192 |
| 500 | 34.7 | 2.8 | 15.4 | 11.6 | 57.9 | 23.2 | 96.5 |
| 538 | 17.7 | 1.4 | 7.9 | 5.9 | 29.5 | 11.8 | 49.2 |
ASTM A182 316L SS Plate Flange Dimension
| Nominal Pipe Size | Thickness of Flange | Diameter of Hub at Base | Diameter of Raised Face | Diameter or Bore | Outside Diameter of Flange | Length Thru Hub | Diameter of Hub at Bevel | Radius of Fillet | Depth of Socket | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Slip on Socket | Lap Joint | Slip On Threaded Socket | Welding Neck | Lap Joint | ||||||||
| Q | X | R | W | B | O | Y | Y | Y | H | r | Z | |
| 3/4 | 1/2 | 1 1/2 | 1 11/16 | 1.09 | 1.11 | 3 7/8 | 5/8 | 2 1/16 | 5/8 | 1.05 | 1/8 | 7/16 |
| 12 | 1 1/4 | 14 3/8 | 15 | 12.88 | 12.92 | 19 | 2 3/16 | 4 1/2 | 2 3/16 | 12.75 | 1/2 | 1 9/16 |
| 1 | 9/16 | 1 15/16 | 2 | 1.36 | 1.38 | 4 1/4 | 11/16 | 2 3/16 | 11/16 | 1.32 | 1/8 | 1/2 |
| 6 | 1 | 7 9/16 | 8 1/2 | 6.72 | 6.75 | 11 | 1 9/16 | 3 1/2 | 1 9/16 | 6.63 | 1/2 | 1 1/16 |
| 1 1/4 | 5/8 | 2 5/16 | 2 1/2 | 1.70 | 1.72 | 4 5/8 | 13/16 | 2 1/4 | 13/16 | 1.66 | 3/16 | 9/16 |
| 1 1/2 | 11/16 | 2 9/16 | 2 7/8 | 1.95 | 1.97 | 5 | 7/8 | 2 7/16 | 7/8 | 1.90 | 1/4 | 5/8 |
| 16 | 1 7/16 | 18 | 18 1/2 | 16.16 | 16.19 | 23 1/2 | 2 1/2 | 5 | 3 7/16 | 16.00 | 1/2 | 1 3/4 |
| 2 | 3/4 | 3 1/16 | 3 5/8 | 2.44 | 2.46 | 6 | 1 | 2 1/2 | 1 | 2.38 | 5/16 | 11/16 |
| 1/2 | 7/16 | 1 3/16 | 1 3/8 | .88 | .90 | 3 1/2 | 5/8 | 1 7/8 | 5/8 | .84 | 1/8 | 3/8 |
| 18 | 1 9/16 | 19 7/8 | 21 | 18.18 | 18.20 | 25 | 2 11/16 | 5 1/2 | 3 13/16 | 18.00 | 1/2 | 1 15/16 |
| 2 1/2 | 7/8 | 3 9/16 | 4 1/8 | 2.94 | 2.97 | 7 | 1 1/8 | 2 3/4 | 1 1/8 | 2.88 | 5/16 | 3/4 |
| 3 | 15/16 | 4 1/4 | 5 | 3.57 | 3.60 | 7 1/2 | 1 3/16 | 2 3/4 | 1 3/16 | 3.50 | 3/8 | 13/16 |
| 20 | 1 11/16 | 22 | 23 | 20.20 | 20.25 | 27 1/2 | 2 7/8 | 5 11/16 | 4 1/16 | 20.00 | 1/2 | 2 1/8 |
| 10 | 1 3/16 | 12 | 12 3/4 | 10.88 | 10.92 | 16 | 1 15/16 | 4 | 1 15/16 | 10.75 | 1/2 | 1 5/16 |
| 3 1/2 | 15/16 | 4 13/16 | 5 1/2 | 4.07 | 4.10 | 8 1/2 | 1 1/4 | 2 13/16 | 1 1/4 | 4.00 | 3/8 | 7/8 |
| 4 | 15/16 | 5 5/16 | 6 3/16 | 4.57 | 4.60 | 9 | 1 5/16 | 3 | 1 5/16 | 4.50 | 7/16 | 15/16 |
| 5 | 15/16 | 6 7/16 | 7.5/16 | 5.66 | 5.69 | 10 | 1 7/16 | 3 1/2 | 1 7/16 | 5.56 | 7/16 | 15/16 |
| 8 | 1 1/8 | 9 11/16 | 10 5/8 | 8.72 | 8.75 | 13 1/2 | 1 3/4 | 4 | 1 3/4 | 8.63 | 1/2 | 1 1/4 |
| 14 | 1 3/8 | 15 3/4 | 16 1/4 | 14.14 | 14.18 | 21 | 2 1/4 | 5 | 3 1/8 | 14.00 | 1/2 | 1 5/8 |
| 24 | 1 7/8 | 26 1/8 | 27 1/4 | 24.25 | 24.25 | 32 | 3 1/4 | 6 | 4 3/8 | 24.00 | 1/2 | 2 1/2 |
AS2129/ AS4087 New Zealand/ Australian Standard A182 Grade F316L BLRF, SS DIN 1.4404 Plate Flange and AISI 316L Long Weld Neck Flange exporter in India, View various type of 316L Stainless Steel Flanges and A182 Gr F316L SORF, BLRF, SWRF, WNRF Flanges
SS Grade F316L Flat Flange Surface finish
- Zinc Plated
- Yellow Transparent
- Anti-rust Paint
- Cold and Hot Dip Galvanized
- Oil Black Paint

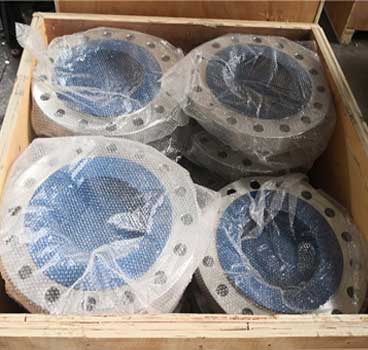

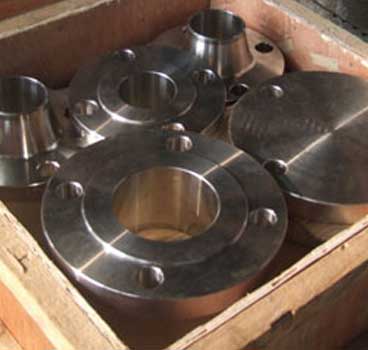

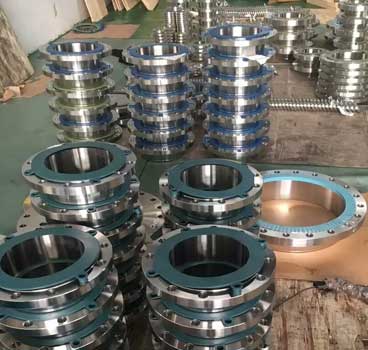

Stainless Steel 316L Flanges Packaging
SS WERKSTOFF NR. 1.4404 Socket Weld Flanges Standards
| EN 1092-1 Flange | AWWA C207 Flanges |
| Korean Flange | Australian Flanges |
| JIS B2220 Flange | MSS SP-44 Flange |
| SABS / SANS 1123 Flanges | BS 4504 Flanges |
| API Flanges | BS 10 Flanges |
| ISO Flanges | GOST 12820 80 Flanges |
A182 F316L Plate Flange Heat Resistance
- Stainless Steel 316L Socket Weld Flange has good oxidation resistance in intermittent service up to 1600°F and in continuous service to 1700°F.
316L Stainless Steel WNRF Flanges Thermal Conductivity
| Thermal Conductivity | 16.3 | W.m -1.°K-1 |
|---|---|---|
| Thermal Expansion | 15.9 | μm/μm/°C |
Manufacturer of SS 316L Flanges in Mumbai, browse our range of A182 F316L Plate Flange and SS 316L Slip On Flange material online and 316L Stainless Steel WNRF, Ring Type Joint Flanges offers Non Destructive Testing to ensure leak free connection

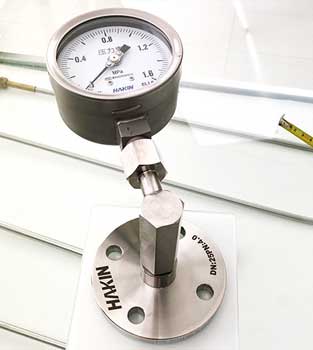

ASTM A182 SS F316L Long Weld Neck Flange Testing
- Mechanical test
- Flaring test
- Macro/micro test
- Chemical analysis
- Ultrasonic test
- Fumigation certificate
- NABL approved lab test reports
- Raw material traceability records
- Guarantee letter
- Heat treatment charts
Stainless Steel 316L Flanges Inventory
| Stainless Steel 316L Flanges | 316L SS Lapped joint Flanges |
| SS 316L Flanges | ASME SA182M Stainless Steel 316L Class 300 Flange |
| A182 F316L Flange | Stainless Steel 316L RTJ Flange |
| ASTM A182 F316L Flanges | SS 316L Blind Flanges |
| A182 Gr F316L SORF | Stainless Steel 316L Flanges |
| SS 316L Blind Flange | 316L SS WNRF Flanges |
| SS 316L Slip On Flange | Wrought Austenitic Steel 316L Industrial Flanges |
| A182 Grade F316L BLRF | SS Grade F316L Flat Flange |
| SS UNS S31603 Pipe Flanges | SS 316L EN 1092-1 Flanges |
| 316L Stainless Steel Flanges | ASTM A182 Stainless Steel 316L Flanges |
| ASTM A182 F316L Stainless Steel Flanges | SS 316L SO flanges |
| ANSI B16.5 SS 316L Orifice Flanges | SS 316L Weld Neck Flanges |
| Stainless Steel 316L Slip On Flanges | SS 316L Flat Face Flanges |
| SS 316L Weld Neck Flange | Stainless Steel 316L Industrial Flanges |
| SS F316L Flange | A182 F316L Plate Flange |
| ASTM A182 316L SS Plate Flange | SS WERKSTOFF NR. 1.4404 Socket Weld Flanges |
| Werkstoff No 1.4435 SS Socket Weld Flanges | 316L Stainless Steel WNRF Flanges |
| Stainless Steel ASTM A182 F316L Threaded Flanges | Stainless steel 316L Ring Type Joint Flanges |
| EN-1092 SS 316L Forged Flanges | SS UNS S31603 Orifice Flange |
| A182 F316L Material | ASTM A182 SS F316L Long Weld Neck Flange |
Searching for
Stainless Steel 316L Flanges Supplier in your country? Checklist of material we export in the following areas.
SS 316L Flanges
Bangladesh, Jakarta -Indonesia, Dubai, Los Alamos -Mexico, Hong Kong, Turkey, Argentina, Germany, China, Oman, Saudi Arabia (KSA).
ASTM A182 F316L Flanges
Malaysia, Poland, Romania, Indonesia, Malaysia, Iran, Qatar, New Zealand, Brazil, Netherlands, United Arab Emirates (UAE).
SS UNS S31603 Pipe Flanges
USA, Chile, Ellington -United States, Canada, Sweden, United States, Greece, Singapore, Vietnam, Mexico, Denmark, Thailand, Finland.
316L Stainless Steel Flanges
Russia, Belgium, Norway, Egypt, Bahrain, Philippines, South Korea, Peru, Malaysia, Tehran -Iran, Colombia, Italy.
EN-1092 SS 316L Forged Flanges
Spain, Jakarta, Europe, Australia, Jordan, Dammam -KSA, Japan, Istanbul -Turkey, NY 12203 (USA), Dubai -UAE, Kuala Lumpur.
Stainless Steel 316L Industrial Flanges
France, Singapore, Taiwan, South Africa, Portugal, Morocco, Czechia, Kuwait, Austria, United Kingdom (UK), Nigeria.
